ZWE214-AEXSB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

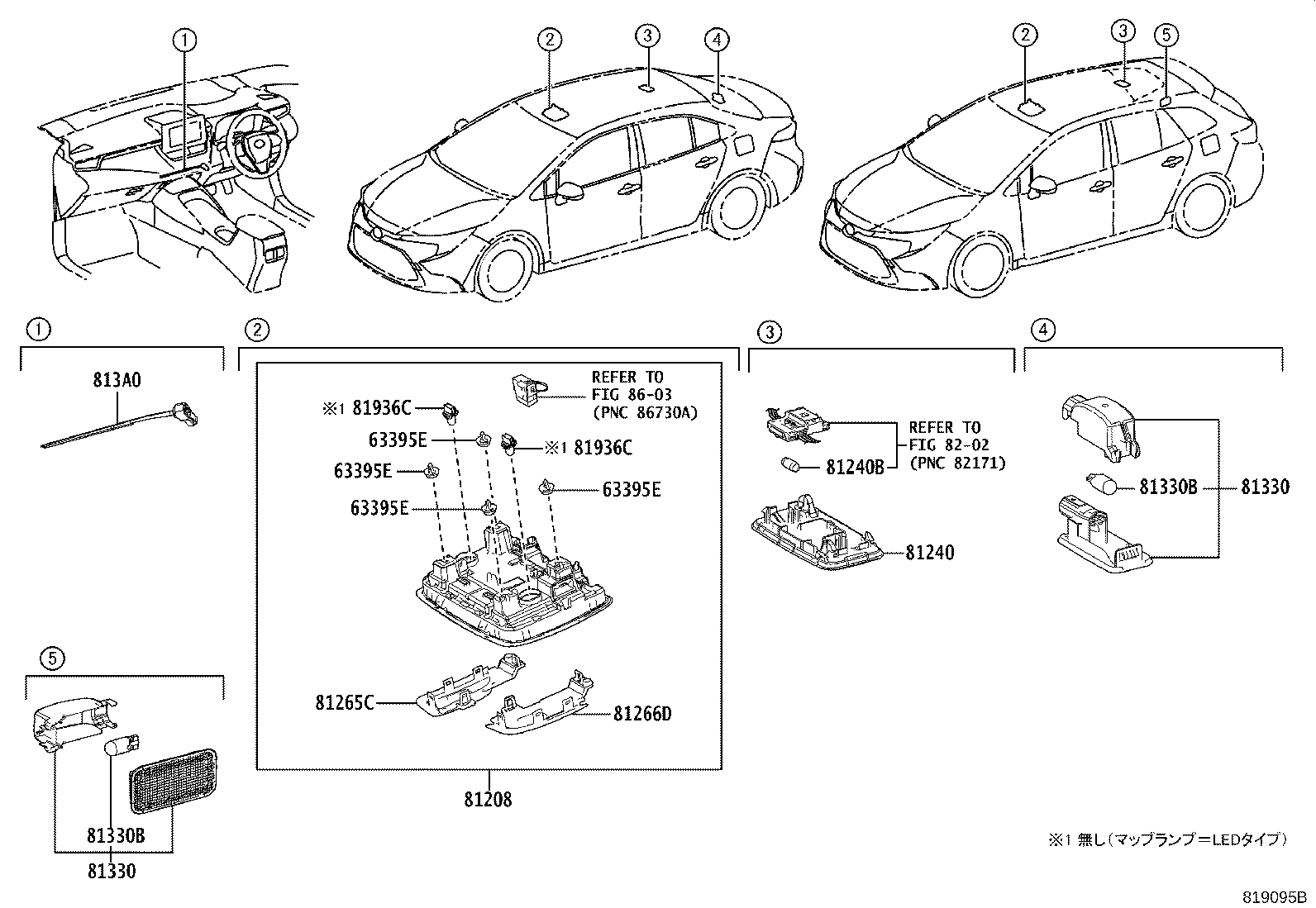

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81208 81240 81240B 81265C 81266D 81330 81330 81330B 81330B 813A0 81936C 81936C 8202 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZRE212,ZWE21#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZRE212,ZWE21#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZRE212,ZWE21#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

MZEA12,NRE210,ZRE212,ZWE21#

 4
81208 - LAMP SUB-ASSY, MAP
81208-12160C0

NRE210,ZRE212,ZWE21#..HBDWB,WB

ｲﾙﾐﾈｰﾃｨｯﾄﾞｴﾝﾄﾘｼｽﾃﾑ−有り(ﾙｰﾑ & ﾏｯﾌﾟﾗﾝﾌﾟ,ｾﾝﾀﾄﾚｲ,*CUH),BLACK,TRIM2#

 1
81208-12180A0

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

FROMAGE,TRIM2#

 1
81208-12180C0

NRE210,ZRE212,ZWE21#..HBDWB,WB

BLACK,TRIM2#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12100C0

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

BLACK,TRIM2#

 1
81240-12100A9

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

FROMAGE,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

MZEA12,NRE210,ZRE212,ZWE21#

12V 8W

 1
81265C - LENS, MAP LAMP, NO.1
81265-12370

MZEA12,NRE210,ZRE212,ZWE21#

 1
81266D - LENS, MAP LAMP, NO.2
81266-12370

MZEA12,NRE210,ZRE212,ZWE21#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

MZEA12,NRE210,ZRE212,ZWE21#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

MZEA12,NRE210,ZRE212,ZWE21#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

MZEA12,NRE210,ZRE212,ZWE21#

12V 5W

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

MZEA12,NRE210,ZRE212,ZWE21#

12V 5W

 1
813A0 - LAMP ASSY, INSTRUMENT PANEL
813A0-12020

NRE210,ZRE212,ZWE21#..HBDWB,WB

ｲﾙﾐﾈｰﾃｨｯﾄﾞｴﾝﾄﾘｼｽﾃﾑ−有り(ﾙｰﾑ & ﾏｯﾌﾟﾗﾝﾌﾟ,ｾﾝﾀﾄﾚｲ,*CUH)

 1
81936C - BULB ASSY
81936-12160

NRE210,ZRE212,ZWE21#

 2
81936C - BULB ASSY
81936-12160

NRE210,ZRE212,ZWE21#

 2
Linked diagrams
8202
8603
