ZWE214-AEXSB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )2ZRFXE

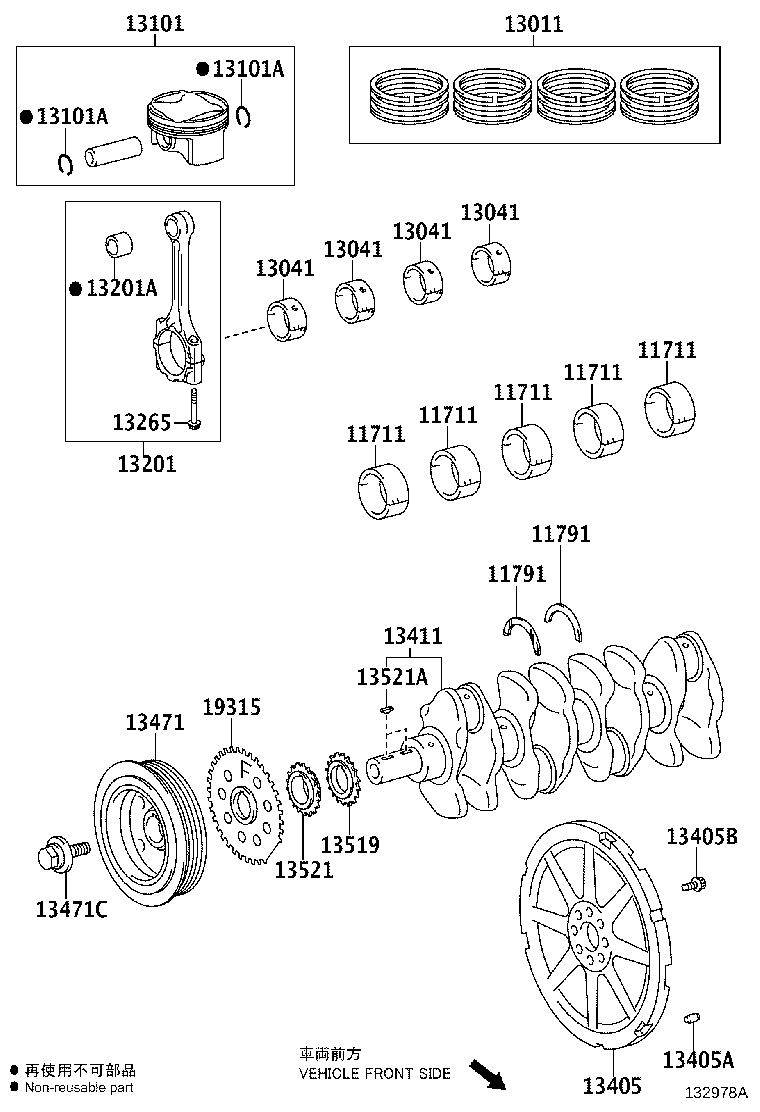

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13405 13405A 13405B 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3705004

2ZRFXE..ZWE21#

MARK4,修理書参照

 5
11701-3705001

2ZRFXE..ZWE21#

MARK1,修理書参照

 5
11701-3705002

2ZRFXE..ZWE21#

MARK2,修理書参照

 5
11701-3705003

2ZRFXE..ZWE21#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3705004

2ZRFXE..ZWE21#

MARK4,修理書参照

 5
11701-3705001

2ZRFXE..ZWE21#

MARK1,修理書参照

 5
11701-3705002

2ZRFXE..ZWE21#

MARK2,修理書参照

 5
11701-3705003

2ZRFXE..ZWE21#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3705004

2ZRFXE..ZWE21#

MARK4,修理書参照

 5
11701-3705001

2ZRFXE..ZWE21#

MARK1,修理書参照

 5
11701-3705002

2ZRFXE..ZWE21#

MARK2,修理書参照

 5
11701-3705003

2ZRFXE..ZWE21#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3705004

2ZRFXE..ZWE21#

MARK4,修理書参照

 5
11701-3705001

2ZRFXE..ZWE21#

MARK1,修理書参照

 5
11701-3705002

2ZRFXE..ZWE21#

MARK2,修理書参照

 5
11701-3705003

2ZRFXE..ZWE21#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3705004

2ZRFXE..ZWE21#

MARK4,修理書参照

 5
11701-3705001

2ZRFXE..ZWE21#

MARK1,修理書参照

 5
11701-3705002

2ZRFXE..ZWE21#

MARK2,修理書参照

 5
11701-3705003

2ZRFXE..ZWE21#

MARK3,修理書参照

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE..ZWE21#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE..ZWE21#

STD

 2
13011 - RING SET, PISTON
13011-37270

2ZRFXE..ZWE21#

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3704003

2ZRFXE..ZWE21#

MARK3,修理書参照

 4
13041-3704002

2ZRFXE..ZWE21#

MARK2,修理書参照

 4
13041-3704001

2ZRFXE..ZWE21#

MARK1,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3704003

2ZRFXE..ZWE21#

MARK3,修理書参照

 4
13041-3704002

2ZRFXE..ZWE21#

MARK2,修理書参照

 4
13041-3704001

2ZRFXE..ZWE21#

MARK1,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3704003

2ZRFXE..ZWE21#

MARK3,修理書参照

 4
13041-3704002

2ZRFXE..ZWE21#

MARK2,修理書参照

 4
13041-3704001

2ZRFXE..ZWE21#

MARK1,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3704003

2ZRFXE..ZWE21#

MARK3,修理書参照

 4
13041-3704002

2ZRFXE..ZWE21#

MARK2,修理書参照

 4
13041-3704001

2ZRFXE..ZWE21#

MARK1,修理書参照

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-37250

2ZRFXE..ZWE21#

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZR#..ZRE212,ZWE21#

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZR#..ZRE212,ZWE21#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39295

2ZRFXE..ZWE21#

(J)

 4
13201-09C10

2ZRFXE..ZWE21#

(L)

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZR#..ZRE212,ZWE21#

 4
13265 - BOLT, CONNECTING ROD
13265-22040

2ZR#..ZRE212,ZWE21#

 8
13405 - FLYWHEEL SUB-ASSY
13451-37070

2ZRFXE..ZWE21#

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

2ZRFXE..ZWE21#

長さ=18,外径=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01027

2ZRFXE..ZWE21#

 8
13411 - CRANKSHAFT
13401-37021

2ZR#..ZRE212,ZWE21#

(J)

 1
13401-0T061

2ZR#..ZRE212,ZWE21#

(L)

 1
13471 - PULLEY, CRANKSHAFT
13470-37060

2ZRFXE..ZWE21#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

2ZR#..ZRE212,ZWE21#

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

2ZR#..ZRE212,ZWE21#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37011

2ZR#..ZRE212,ZWE21#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZR#..ZRE212,ZWE21#

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

2ZR#..ZRE212,ZWE21#

 1
