ZWE214-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1908- )SED

Click highlighted areas on diagram

ｼｰﾄﾊﾞｯｸ(ｺﾃｲｼｷ)

diagram 7104 7104 71077B 71398A 71398A 71398A 71651B 71891 71891 71891 71892 73705 73706 9011908C96 9011908C96 9167180820 9167180820 9167281025
Part # Description Qty Price
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-12X90C0

ZRE212,ZWE21#..SED..(HBDS,S)

GRAY,TRIM20

 1
71077-12X90C1

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

BLACK,TRIM21

 1
71077-12X90C2

ZRE212,ZWE21#..SED..(GX,HBDGX)

GRAY,TRIM20

 1
71398A - HOLDER, REAR SEAT BACK
71398-33010C1

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

BLACK

 3
71398A - HOLDER, REAR SEAT BACK
71398-33010C1

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

BLACK

 3
71398A - HOLDER, REAR SEAT BACK
71398-33010C1

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

BLACK

 3
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-12380

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
71891 - BRACKET, REAR SEAT BACK SET, NO.1
71891-12030

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 3
71891 - BRACKET, REAR SEAT BACK SET, NO.1
71891-12030

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 3
71891 - BRACKET, REAR SEAT BACK SET, NO.1
71891-12030

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 3
71892 - BRACKET, REAR SEAT BACK SET, NO.2
71891-12040

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-12190

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73705-12200

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
Common parts
90119-08C96
91671-80820
91672-81025
Linked diagrams
7104

ILLUST NO. 1 OF 2(1908- )SED

Click highlighted areas on diagram

ｼｰﾄﾊﾞｯｸ(ｶﾄｳｼｷ)

diagram 71017 71018 7104 7104 71077S 71078S 71303C 71304C 71305A 71349C 71651S 71652S 71940A 71940A 71956B 71956B 71956B 71956B 72630C 72640A 72646B 72661C 72661C 7270235010 72806D 72830 72839 72848A 73705 73706 9038606009 91552K1025 91552K1025 91552K1025 9167180820 9167180820 9167281025 9415180600 9415180600
Part # Description Qty Price
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-12190

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73705-12200

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
Common parts
72702-35010
90386-06009
91552-K1025
91671-80820
91672-81025
94151-80600
Linked diagrams
7104

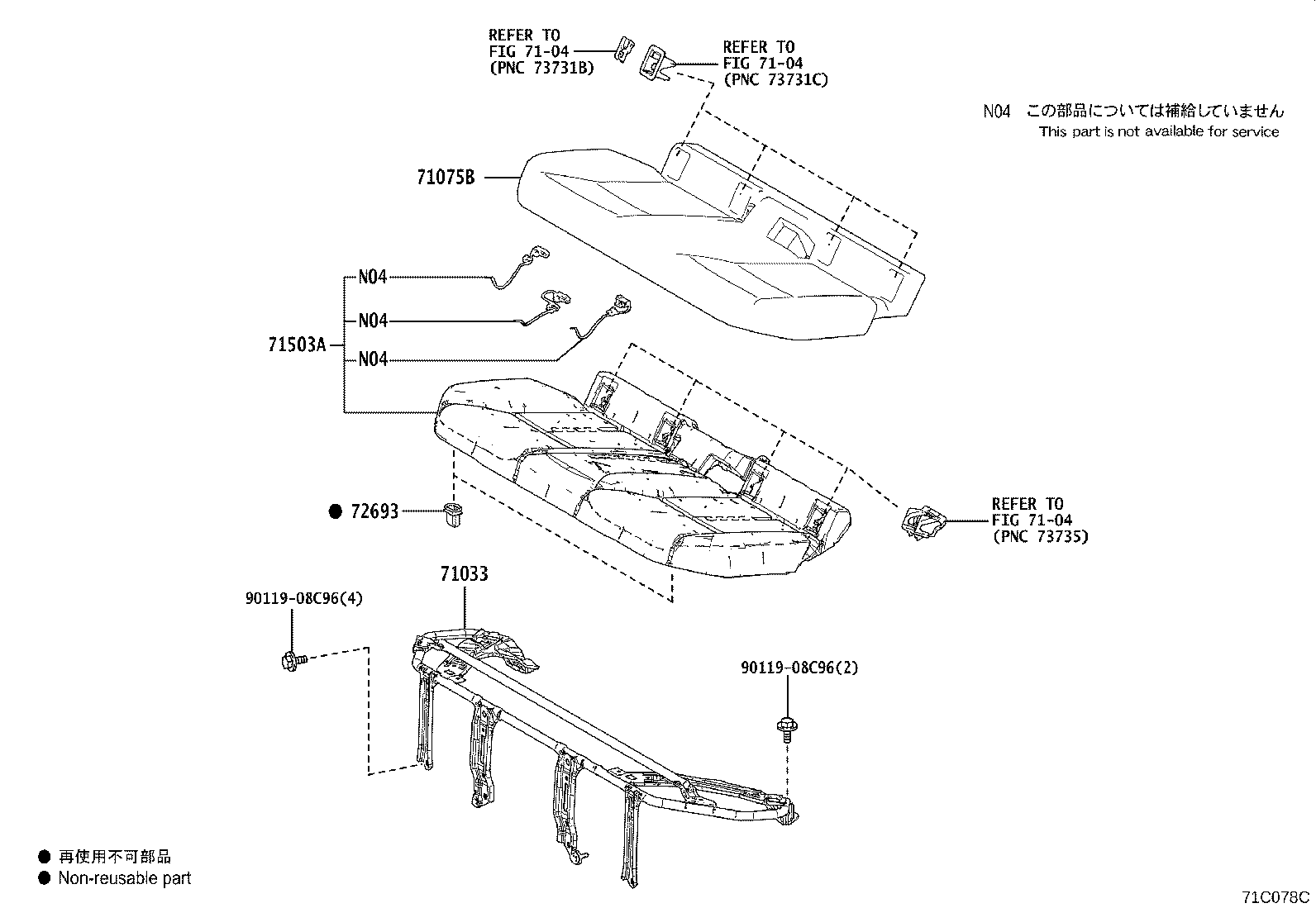

ILLUST NO. 2 OF 2(1908- )ZWE214..SED

Click highlighted areas on diagram

ｼｰﾄｸｯｼｮﾝ

diagram 71033 7104 7104 7104 71075B 71503A 72693 9011908C96 9011908C96
Part # Description Qty Price
71033 - LEG SUB-ASSY, REAR SEAT CUSHION
71033-12040

ZWE214

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-12W90B3

ZWE214..HBDGX

GRAY,TRIM20

 1
71075-12W90B5

ZWE214..HBDGX,HBDS

BLACK,TRIM21

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-12370

ZWE214

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

MZEA12,NRE210,ZRE212,ZWE21#

 2
Common parts
90119-08C96
Linked diagrams
7104
