ZWE211W-AWXEB (2019)
Toyota Corolla

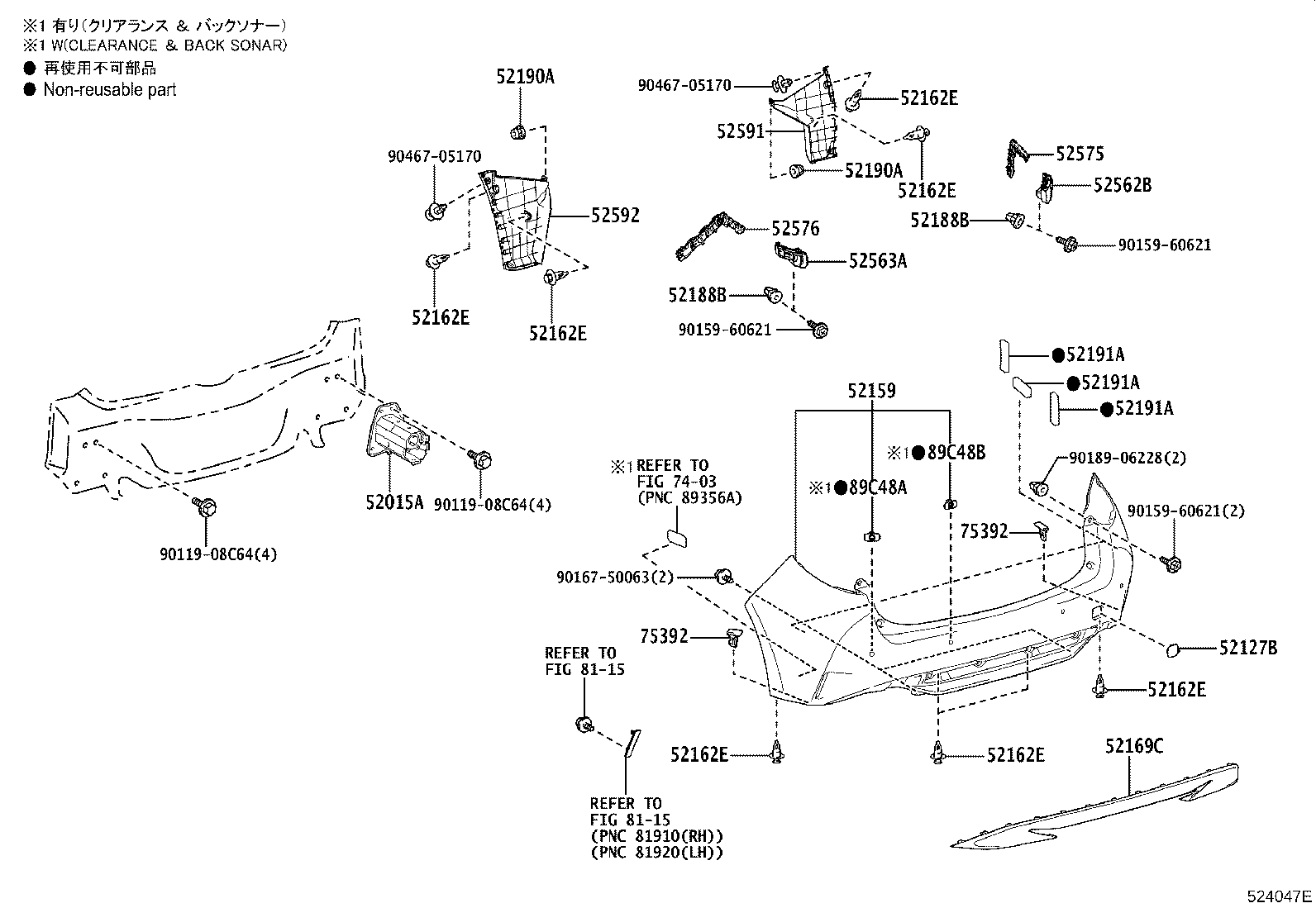

(1909- )WG..GX,HBDGX,HBDS,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12500 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52127B - COVER, REAR BUMPER HOLE, RH | ||||
| 52161-12100J0 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52161-12100D0 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
1 | ||
| 52161-12100B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
1 | ||
| 52161-12100A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
1 | ||
| 52161-12100C0 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
1 | ||
| 52161-12100B1 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52161-12100A1 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12968A1 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159-12968D0 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
1 | ||
| 52159-12968A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
1 | ||
| 52159-12968C2 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
1 | ||
| 52159-12968J1 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52159-12968B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
1 | ||
| 52159-12968B1 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12240 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDWB,WB) 塗装不要 |
1 | ||
| 52169-12230 |
ZRE212,ZWE21#..WG..(GX,HBDGX,HBDS,S) 塗装不要 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12260 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12340 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-20070D3 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
2 | ||
| 89348-20070A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
2 | ||
| 89348-20070A1 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
2 | ||
| 89348-20070B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
2 | ||
| 89348-20070B2 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
2 | ||
| 89348-20070J0 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
2 | ||
| 89348-20070C5 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58110 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8115 | ||||

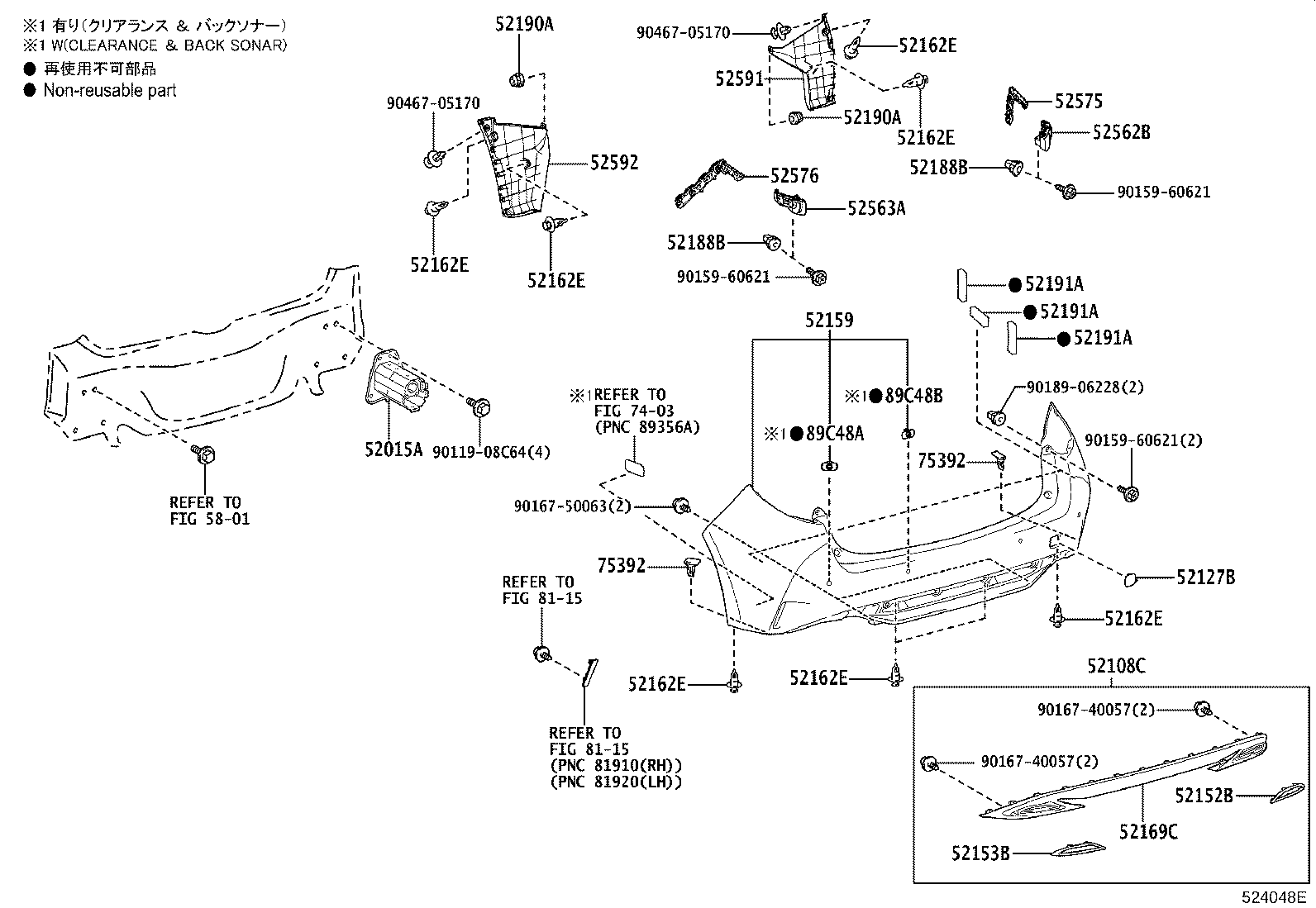

(1909- )WG..G,HBDWB,WB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12500 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-12060 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDWB,WB) |
1 | ||
| 52127B - COVER, REAR BUMPER HOLE, RH | ||||
| 52161-12100J0 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52161-12100D0 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
1 | ||
| 52161-12100B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
1 | ||
| 52161-12100A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
1 | ||
| 52161-12100C0 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
1 | ||
| 52161-12100B1 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52161-12100A1 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-12290 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDWB,WB) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-12290 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDWB,WB) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12968A1 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159-12968D0 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
1 | ||
| 52159-12968A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
1 | ||
| 52159-12968C2 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
1 | ||
| 52159-12968J1 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52159-12968B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
1 | ||
| 52159-12968B1 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12240 |
MZEA12,NRE210,ZRE212,ZWE21#..WG..(G,HBDWB,WB) 塗装不要 |
1 | ||
| 52169-12230 |
ZRE212,ZWE21#..WG..(GX,HBDGX,HBDS,S) 塗装不要 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
6 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12260 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12250 |
MZEA12,NRE210,ZRE212,ZWE21#..WG |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12340 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-20070D3 |
ZRE212,ZWE21#..WG..(HBDS,S) SCARLET ME.,3U4 |
2 | ||
| 89348-20070A0 |
ZRE212,ZWE21#..WG..(HBDS,S) SUPER WHITE 2,040 |
2 | ||
| 89348-20070A1 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
2 | ||
| 89348-20070B0 |
ZRE212,ZWE21#..WG..(HBDS,S) SILVER ME.,1F7 ,2KS |
2 | ||
| 89348-20070B2 |
ZRE212,ZWE21#..WG..(HBDS,S) CELESTITE GRAY ME.,1K3 |
2 | ||
| 89348-20070J0 |
ZRE212,ZWE21#..WG..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
2 | ||
| 89348-20070C5 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) BLACK MC.,209 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-58110 |
MZEA12,ZRE212,ZWE21#..WG..(G,HBDS,HBDWB,S,WB) |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7403 | ||||
| 8115 | ||||
