ZWE211-AEXSB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )SED

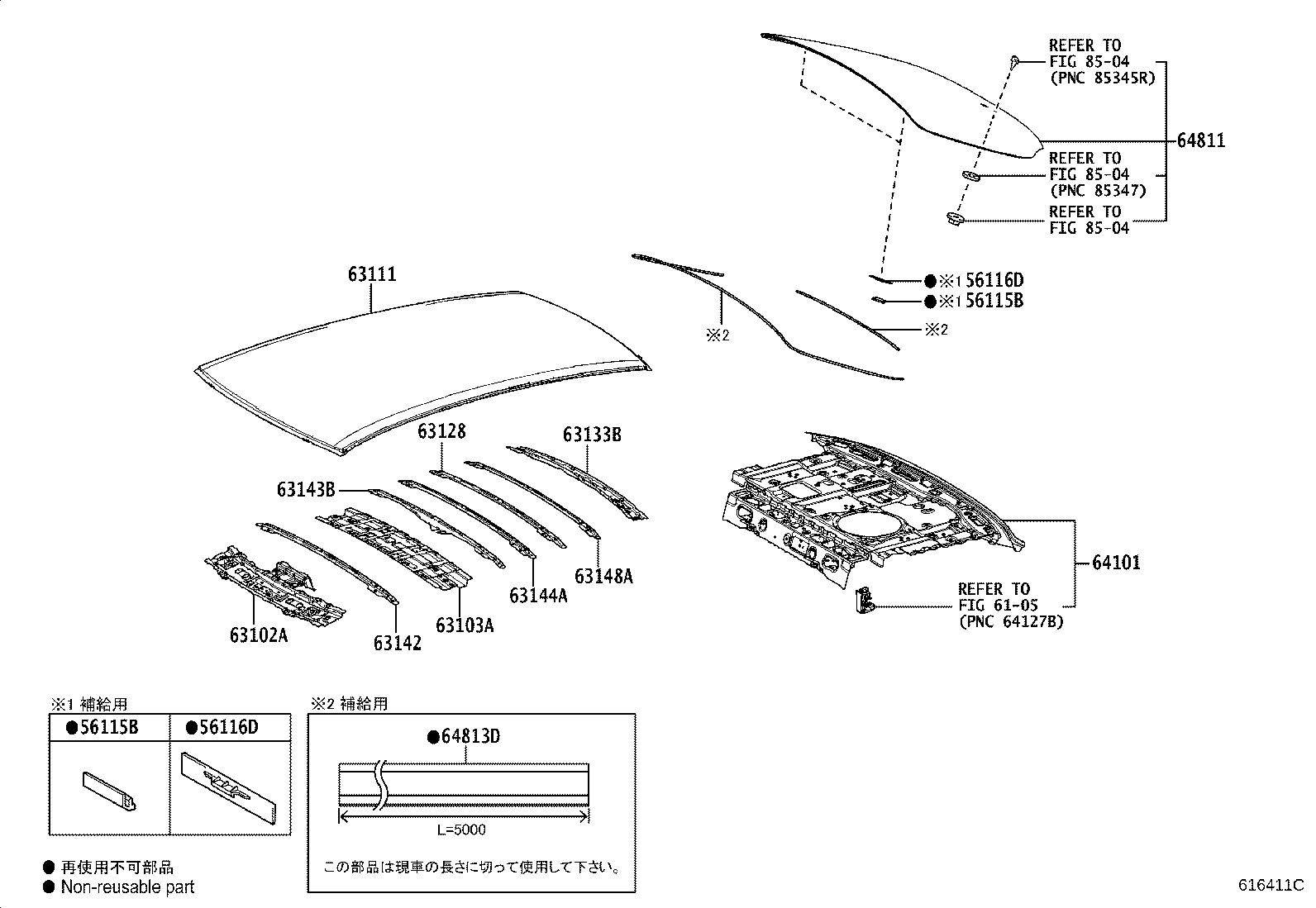

Click highlighted areas on diagram

diagram 56115B 56115B 56116D 56116D 6105 63102A 63103A 63111 63128 63133B 63142 63143B 63144A 63148A 64101 64811 64813D 8504 8504 8504
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

NRE210,ZRE212,ZWE21#..SED

 1
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

NRE210,ZRE212,ZWE21#..SED

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NRE210,ZRE212,ZWE21#..SED

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

NRE210,ZRE212,ZWE21#..SED

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12911

MZEA12,NRE210,ZRE212,ZWE21#

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-12160

NRE210,ZRE212,ZWE21#..SED

 1
63111 - PANEL, ROOF
63111-12B40

NRE210,ZRE212,ZWE21#..SED

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-12040

NRE210,ZRE212,ZWE21#..SED

 1
63133B - FRAME, BACK WINDOW
63133-12350

NRE210,ZRE212,ZWE21#..SED

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12150

MZEA12,NRE210,ZRE212,ZWE21#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12190

NRE210,ZRE212,ZWE21#..SED

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12160

NRE210,ZRE212,ZWE21#..SED

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-12090

NRE210,ZRE212,ZWE21#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12A30

NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB)

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
64101-12A40

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
64101-12A50

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
64101-12A20

NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB)

 1
64101-12A40

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

寒冷地仕様

 1
64101-12A30

NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB)

寒冷地仕様

 1
64811 - GLASS, BACK WINDOW
64811-12C90

NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
64811-12D00

NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)

 1
64811-12C90

NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)

寒冷地仕様

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-50130

NRE210,ZRE212,ZWE21#..SED

 1
Linked diagrams
6105
8504
