ZWE211-AEXSB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

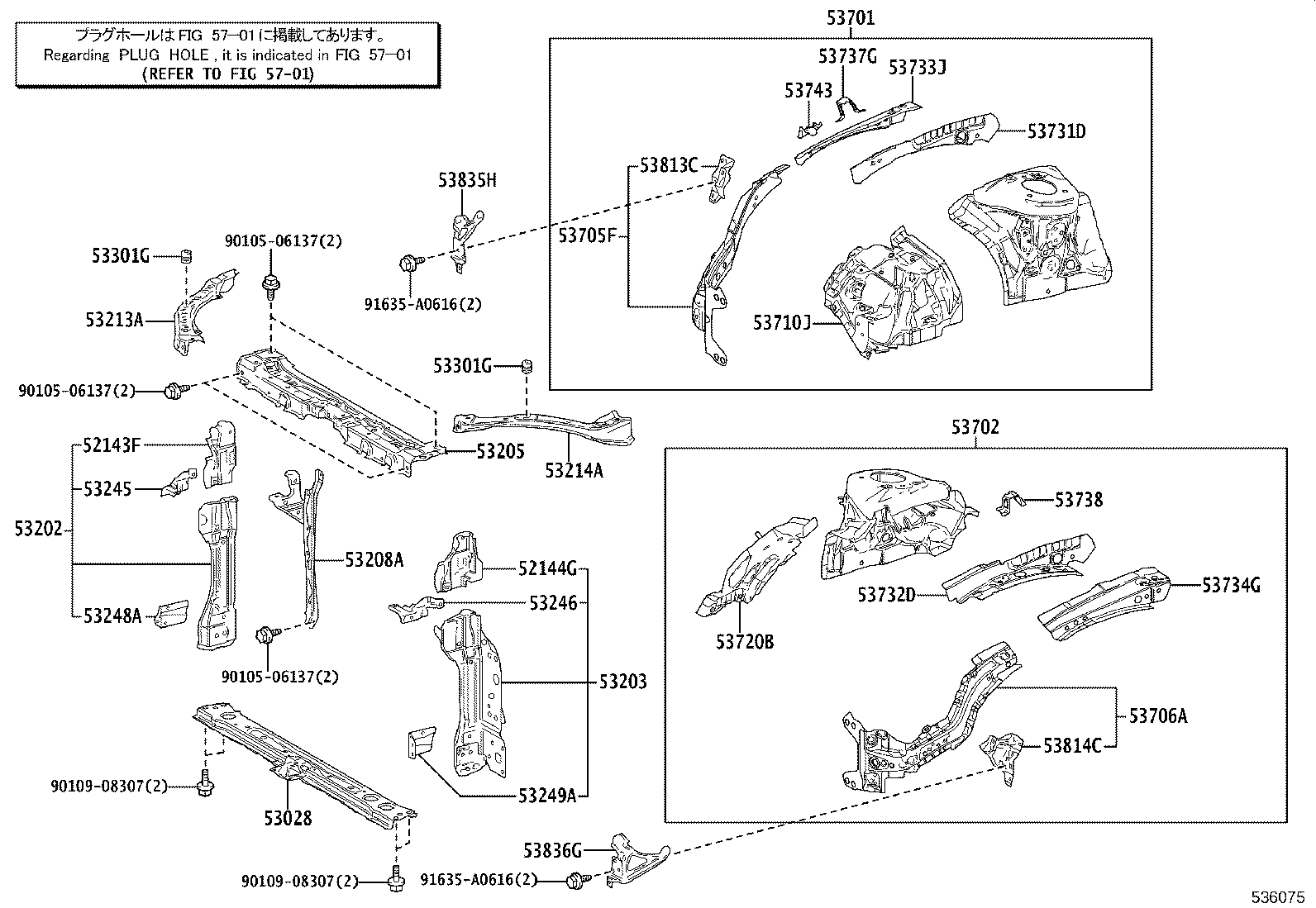

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ&ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ

diagram 52143F 52144G 53028 53202 53203 53205 53208A 53213A 53214A 53245 53246 53248A 53249A 53301G 53301G 53701 53702 53705F 53706A 53710J 53720B 53731D 53732D 53733J 53734G 53737G 53738 53743 53813C 53814C 53835H 53836G 5701 9010506137 9010506137 9010506137 9010908307 9010908307 91635A0616 91635A0616
Part # Description Qty Price
52143F - BRACKET, FRONT BUMPER SIDE, RH
52143-47030

MZEA12,NRE210,ZRE212,ZWE21#

 1
52144G - BRACKET, FRONT BUMPER SIDE, LH
52144-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER
53028-12050

NRE210,ZRE212,ZWE21#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-47903

MZEA12,NRE210,ZRE212,ZWE21#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-47903

MZEA12,NRE210,ZRE212,ZWE21#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12340

NRE210,ZRE212,ZWE21#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-12580

MZEA12,NRE210,ZRE212,ZWE21#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-12220

MZEA12,NRE210,ZRE212,ZWE21#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-12180

MZEA12,NRE210,ZRE212,ZWE21#

 1
53245 - BRACKET, HEADLAMP, RH
53245-12150

MZEA12,NRE210,ZRE212,ZWE21#

 1
53246 - BRACKET, HEADLAMP, LH
53246-12090

MZEA12,NRE210,ZRE212,ZWE21#

 1
53248A - BRACKET, RADIATOR SHUTTER, RH
53248-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
53249A - BRACKET, RADIATOR SHUTTER, LH
53249-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
53301G - CUSHION, HOOD BUMPER
90541-15111

MZEA12,NRE210,ZRE212,ZWE21#

 2
53301G - CUSHION, HOOD BUMPER
90541-15111

MZEA12,NRE210,ZRE212,ZWE21#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-12A70

MZEA12,NRE210,ZRE212,ZWE21#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-12A80

MZEA12,NRE210,ZRE212,ZWE21#

 1
53705F - BRACE SUB-ASSY, FENDER APRON, RH
53705-47901

MZEA12,NRE210,ZRE212,ZWE21#

 1
53706A - BRACE SUB-ASSY, FENDER APRON, LH
53706-47901

MZEA12,NRE210,ZRE212,ZWE21#

 1
53710J - APRON ASSY, FRONT FENDER, RH
53710-47060

MZEA12,NRE210,ZRE212,ZWE21#

 1
53720B - APRON ASSY, FRONT FENDER, LH
53720-47070

MZEA12,NRE210,ZRE212,ZWE21#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-47031

MZEA12,NRE210,ZRE212,ZWE21#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53733-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53734-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
53737G - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-12140

MZEA12,NRE210,ZRE212,ZWE21#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-12100

MZEA12,NRE210,ZRE212,ZWE21#

 1
53743 - REINFORCEMENT, FRONT FENDER APRON EXTENSION
53743-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-47030

MZEA12,NRE210,ZRE212,ZWE21#

 1
53835H - BRACE, FRONT FENDER TO EXTENSION, RH
53835-12140

MZEA12,NRE210,ZRE212,ZWE21#

 1
53836G - BRACE, FRONT FENDER TO EXTENSION, LH
53836-12090

MZEA12,NRE210,ZRE212,ZWE21#

 1
Common parts
90105-06137
90109-08307
91635-A0616
Linked diagrams
5701

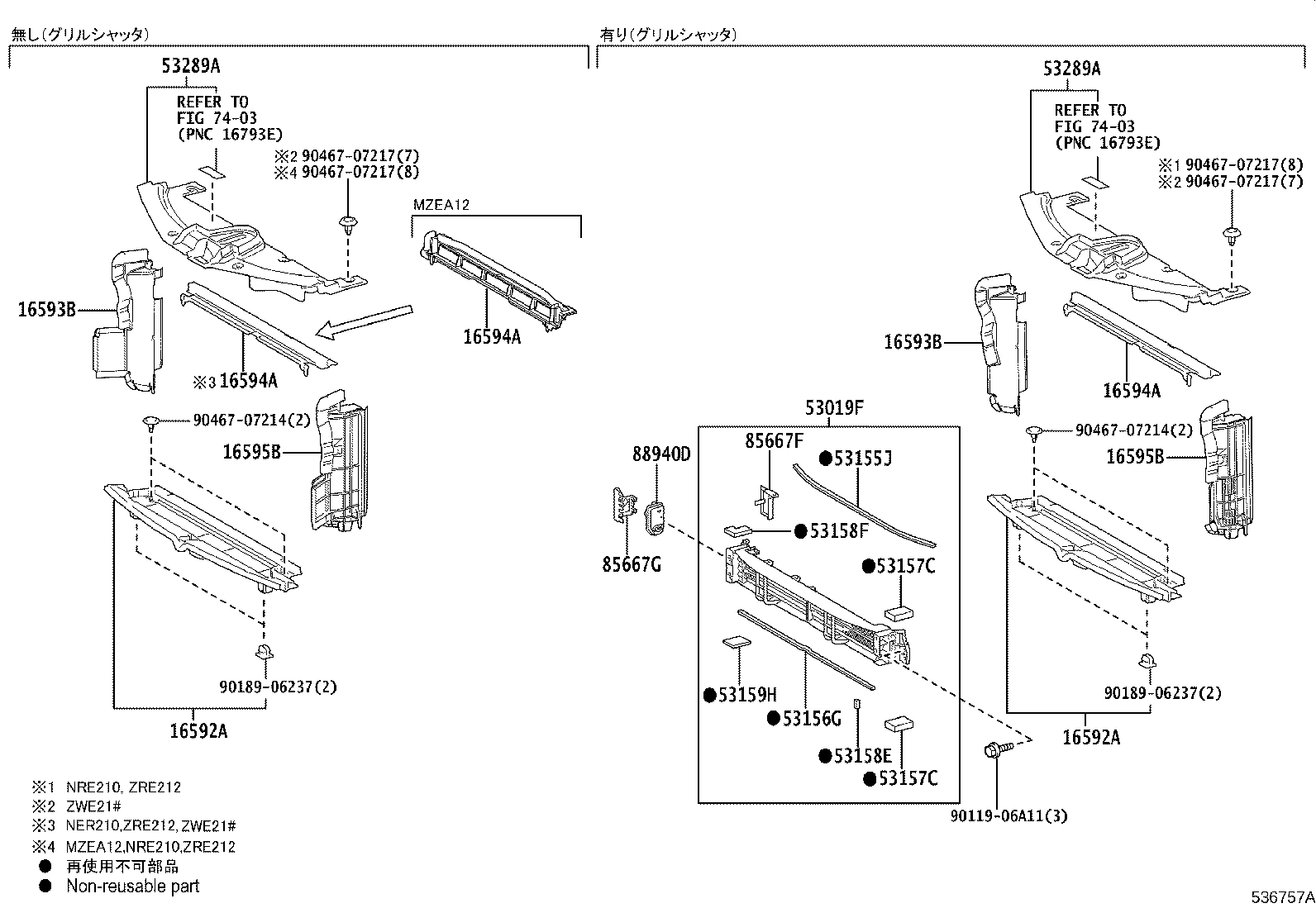

ILLUST NO. 1 OF 3(1908- )

Click highlighted areas on diagram

ｴｱｶﾞｲﾄﾞ&ﾗｼﾞｴｰﾀｻﾎﾟｰﾄｶﾊﾞｰ

diagram 16592A 16592A 16593B 16593B 16594A 16594A 16594A 16595B 16595B 53019F 53155J 53156G 53157C 53157C 53158E 53158F 53159H 53289A 53289A 7403 7403 85667F 85667G 88940D 9011906A11 9018906237 9018906237 9046707214 9046707214 9046707217 9046707217 9046707217 9046707217
Part # Description Qty Price
16592A - GUIDE, RADIATOR AIR, NO.3
16592-24010

8NRFTS,2ZRFXE..NRE210,ZWE21#

 1
16592-24050

M20AFKS,8NRFTS,2ZRFXE..MZEA12,NRE210,ZWE21#

 1
16592A - GUIDE, RADIATOR AIR, NO.3
16592-24010

8NRFTS,2ZRFXE..NRE210,ZWE21#

 1
16592-24050

M20AFKS,8NRFTS,2ZRFXE..MZEA12,NRE210,ZWE21#

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-37130

8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#..GX,HBDWB,S,WB

 1
16593B - GUIDE, RADIATOR AIR, NO.1 RH
16593-37130

8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#..GX,HBDWB,S,WB

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-37010

2ZRFXE..ZWE21#

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-37010

2ZRFXE..ZWE21#

 1
16594A - GUIDE, RADIATOR AIR, NO.2
16594-37010

2ZRFXE..ZWE21#

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-37150

2ZRFXE..ZWE21#..HBDWB

 1
16595B - GUIDE, RADIATOR AIR, NO.1 LH
16595-37150

2ZRFXE..ZWE21#..HBDWB

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-12080

ZWE21#

 1
53289A - COVER, RADIATOR SUPPORT OPENING
53289-12080

ZWE21#

 1
Common parts
90119-06A11
90189-06237
90467-07214
90467-07217
Linked diagrams
7403

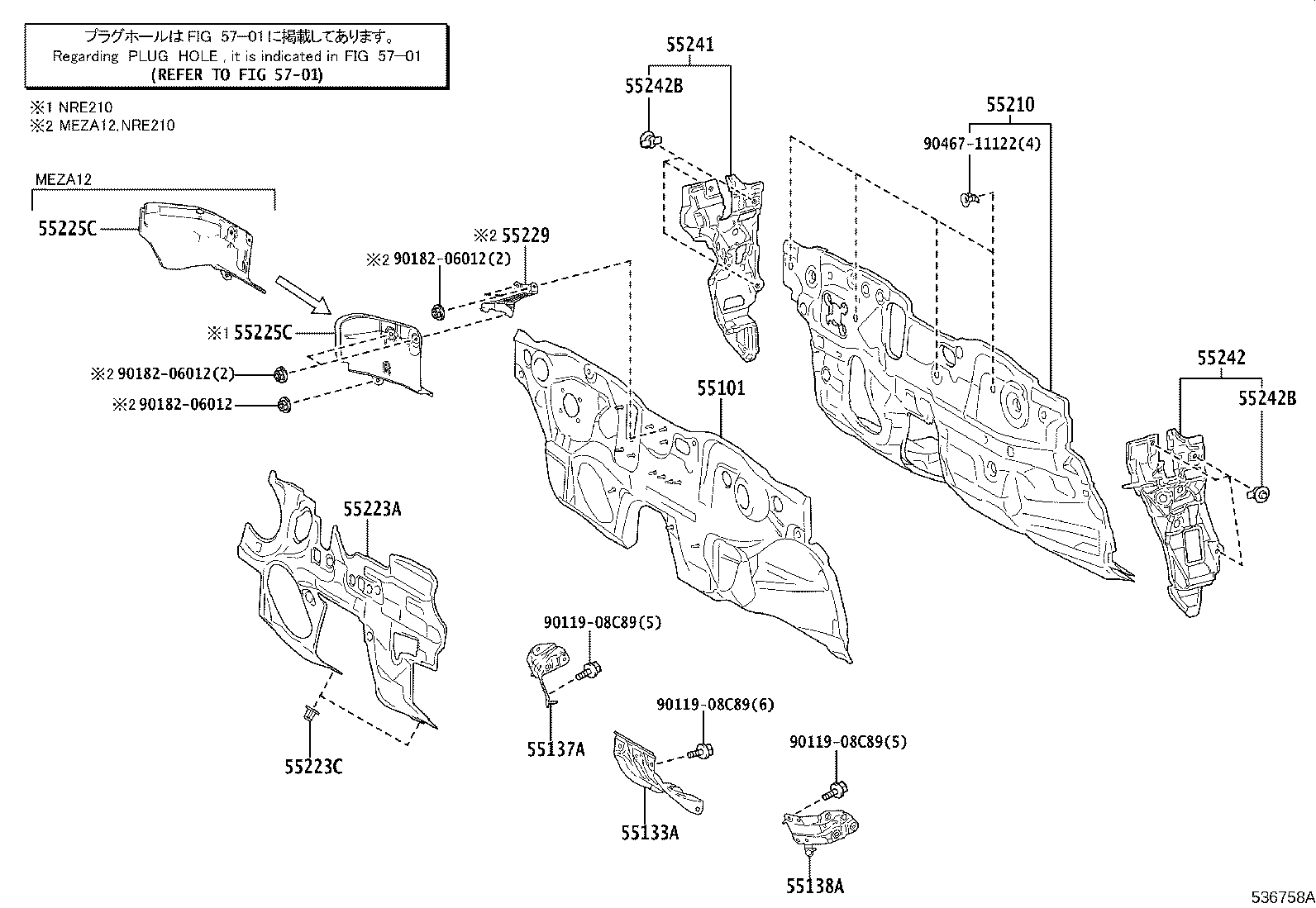

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

ﾀﾞｯｼｭﾊﾟﾈﾙ

diagram 55101 55133A 55137A 55138A 55210 55223A 55223C 55225C 55225C 55229 55241 55242 55242B 55242B 5701 9011908C89 9011908C89 9011908C89 9018206012 9018206012 9018206012 9046711122
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-10A01

MZEA12,ZRE212,ZWE21#

 1
55133A - REINFORCEMENT, DASH TO FLOOR, RH
55133-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
55137A - BRACE, DASH TO FRAME, RH
55137-47040

MZEA12,NRE210,ZRE212,ZWE21#

 1
55138A - BRACE, DASH TO FRAME, LH
55138-47070

MZEA12,NRE210,ZRE212,ZWE21#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12700

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-47100

MZEA12,NRE210,ZRE212,ZWE21#

 1
55223C - CLIP
90467-06197

MZEA12,NRE210,ZRE212,ZWE21#

 2
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-12030

MZEA12,NRE210,ZRE212,ZWE21#

 1
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-12010

MZEA12,NRE210,ZRE212,ZWE21#

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MZEA12,NRE210,ZRE212,ZWE21#

 6
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MZEA12,NRE210,ZRE212,ZWE21#

 6
Common parts
90119-08C89
90182-06012
90467-11122
Linked diagrams
5701
