ZWE211-AEXNB (2019)
Toyota Corolla

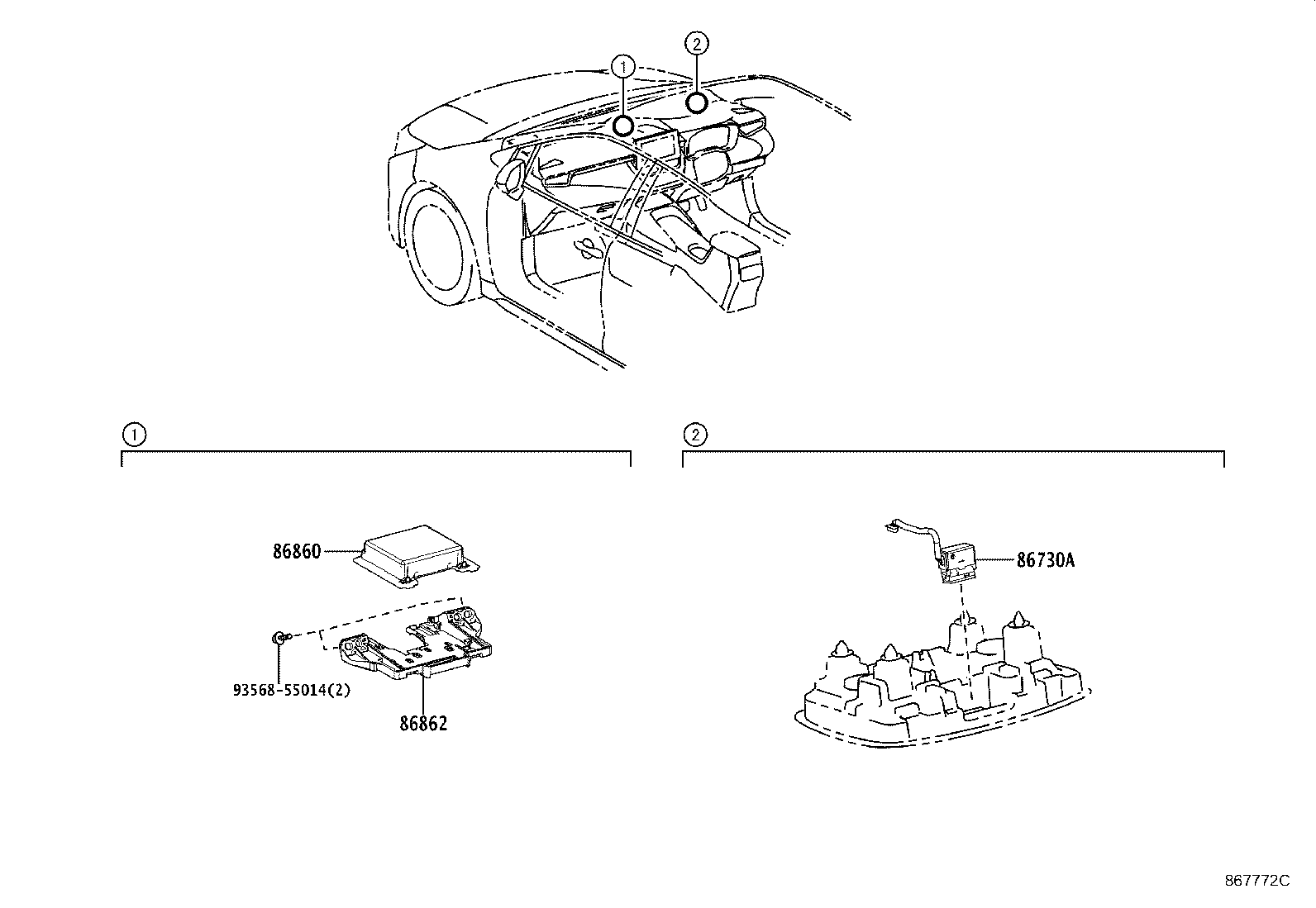

ILLUST NO. 1 OF 3(1908- )
ｱﾝﾃﾅ & ﾏｲｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-47030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-78010 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86880-78010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-58020 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 86862-42010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86862-58020 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86862-42010 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

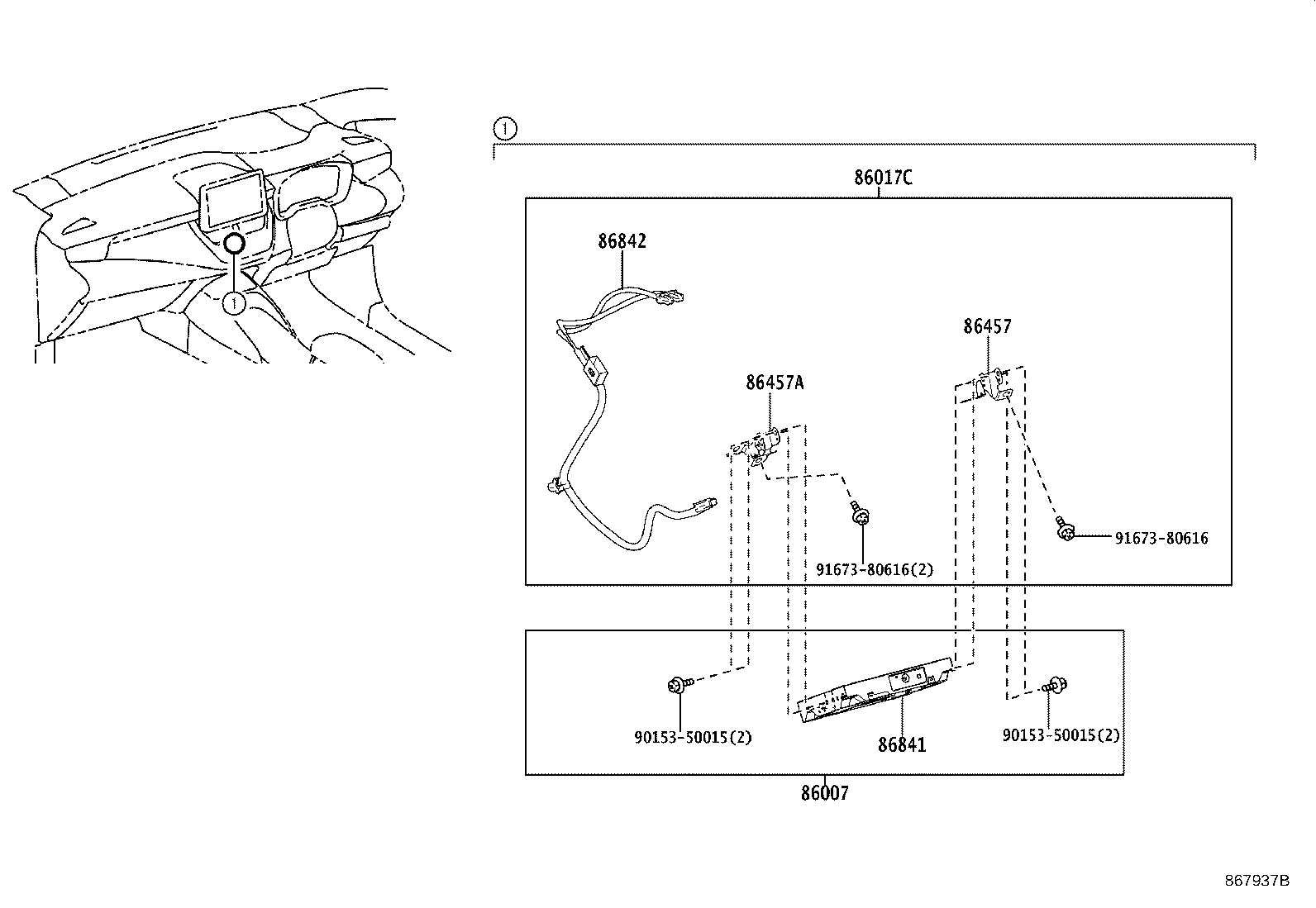

ILLUST NO. 2 OF 3(1908- )
ﾅﾋﾞｷｯﾄ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86007 - COMPUTER SET, NAVIGATION | ||||
| 86007-52010 |
MZEA12,NRE210,ZRE212,ZWE21# ***,ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86007-52020 |
MZEA12,NRE210,ZRE212,ZWE21# ***,ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86017C - FITTING SET, NAVIGATION SETTING | ||||
| 86017-12010 |
MZEA12,NRE210,ZRE212,ZWE21# ***,ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86017-12010 |
MZEA12,NRE210,ZRE212,ZWE21# ***,ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86457 - BRACKET, MULTI-MEDIA MODULE NO.1 | ||||
| 86457-12010 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86457-12010 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86457-12010 |
NRE210,ZRE212,ZWE21# 別体ﾃﾞｨｽｸﾌﾟﾚｲﾔ(DVD)−有り |
1 | ||
| 86457A - BRACKET, MULTI-MEDIA MODULE NO.2 | ||||
| 86457-12020 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86457-12020 |
NRE210,ZRE212,ZWE21# 別体ﾃﾞｨｽｸﾌﾟﾚｲﾔ(DVD)−有り |
1 | ||
| 86457-12020 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-K0042 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0044 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0043 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0031 |
NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-12030 |
NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0032 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0033 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86840-K0034 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-12040 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(T−CONNECT ﾅﾋﾞｷｯﾄ) |
1 | ||
| 86842-12040 |
MZEA12,NRE210,ZRE212,ZWE21# ﾅﾋﾞｹﾞｰｼｮﾝ(DOP)−有り(ｴﾝﾄﾘ ﾅﾋﾞｷｯﾄ) |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||

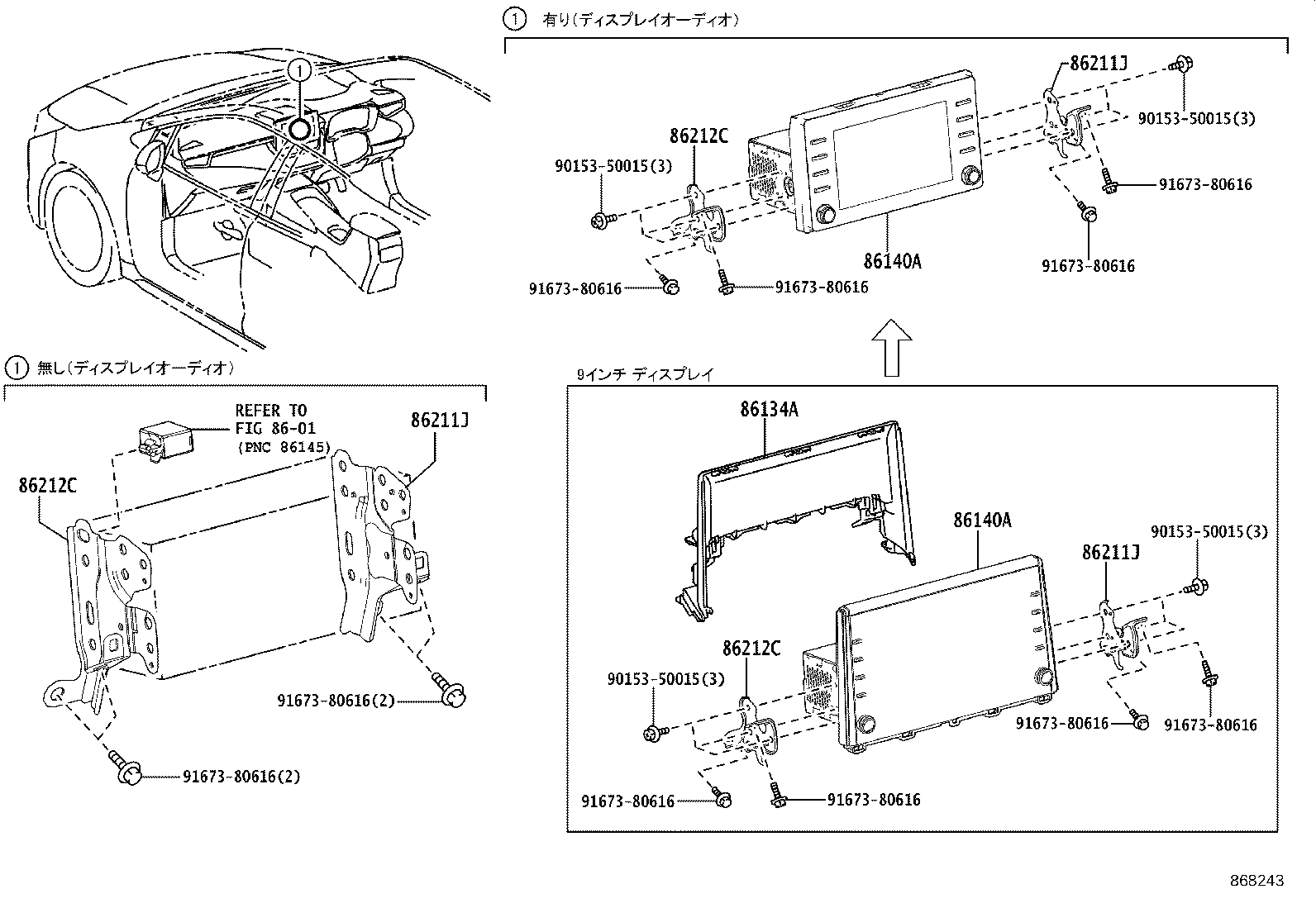

ILLUST NO. 2 OF 3(1908- )
ﾃﾞｨｽﾌﾟﾚｲ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86134A - PARTS, MULTI-DISPLAY | ||||
| 86134-12030 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-12460B1 |
ZRE212,ZWE21#..HBDS,S DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ,SILVER,TRIM2# |
1 | ||
| 86140-12400 |
NRE210,ZRE212,ZWE21# DENSO TEN |
1 | ||
| 86140-12400 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12860 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B40B1 |
ZRE212,ZWE21#..HBDS,S DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ,SILVER,TRIM2# |
1 | ||
| 86140-12B20 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B50 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B20 |
NRE210,ZRE212,ZWE21# DENSO TEN |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-12460B1 |
ZRE212,ZWE21#..HBDS,S DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ,SILVER,TRIM2# |
1 | ||
| 86140-12400 |
NRE210,ZRE212,ZWE21# DENSO TEN |
1 | ||
| 86140-12400 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12860 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B40B1 |
ZRE212,ZWE21#..HBDS,S DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ,SILVER,TRIM2# |
1 | ||
| 86140-12B20 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B50 |
ZRE212,ZWE21#..GX,HBDGX DENSO TEN,ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86140-12B20 |
NRE210,ZRE212,ZWE21# DENSO TEN |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-12490 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86211-12470 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-12490 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86211-12470 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-12490 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86211-12470 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-12460 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86212-12480 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-12460 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86212-12480 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-12460 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 86212-12480 |
ZRE212,ZWE21#..GX,HBDGX ｵｰﾃﾞｨｵ(日本向け)−ｵｰﾃﾞｨｵﾚｽ & 4ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8601 | ||||
