ZWE211-AEXNB (2019)
Toyota Corolla
(1908- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-12120 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85391-12120 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85347 - PACKING, REAR WASHER | ||||
| 85347-12010 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85347-12010 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85349-89122 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85355-20200 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-20800 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85375-20800 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85355R - VALVE, REAR WASHER HOSE | ||||
| 85321-26020 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85321-26020 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 85371-12040 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
3 | ||
| 85371-12040 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
3 | ||
| 85371P - CLAMP, REAR WASHER HOSE, NO.2 | ||||
| 85371-12050 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85371-12050 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NRE210,ZRE212,ZWE21#..SED *H,L=250,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90099-33080 |
NRE210,ZRE212,ZWE21#..SED *H,L=250,寒冷地仕様 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
NRE210,ZRE212,ZWE21#..SED 長さ=1480,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 90446-07001 |
NRE210,ZRE212,ZWE21#..SED 長さ=1480,寒冷地仕様 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33803 |
NRE210,ZRE212,ZWE21#..SED 長さ=1470,寒冷地仕様 |
1 | ||
| 90099-33803 |
NRE210,ZRE212,ZWE21#..SED 長さ=1470,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33803 |
NRE210,ZRE212,ZWE21#..SED *H,L=2045,寒冷地仕様 |
1 | ||
| 90099-33803 |
NRE210,ZRE212,ZWE21#..SED *H,L=2045,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
NRE210,ZRE212,ZWE21#..SED *H,L=185,寒冷地仕様 |
1 | ||
| 90099-33080 |
NRE210,ZRE212,ZWE21#..SED *H,L=185,ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-12850 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様 |
1 | ||
| 85379-12850 |
NRE210,ZRE212,ZWE21#..SED ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||

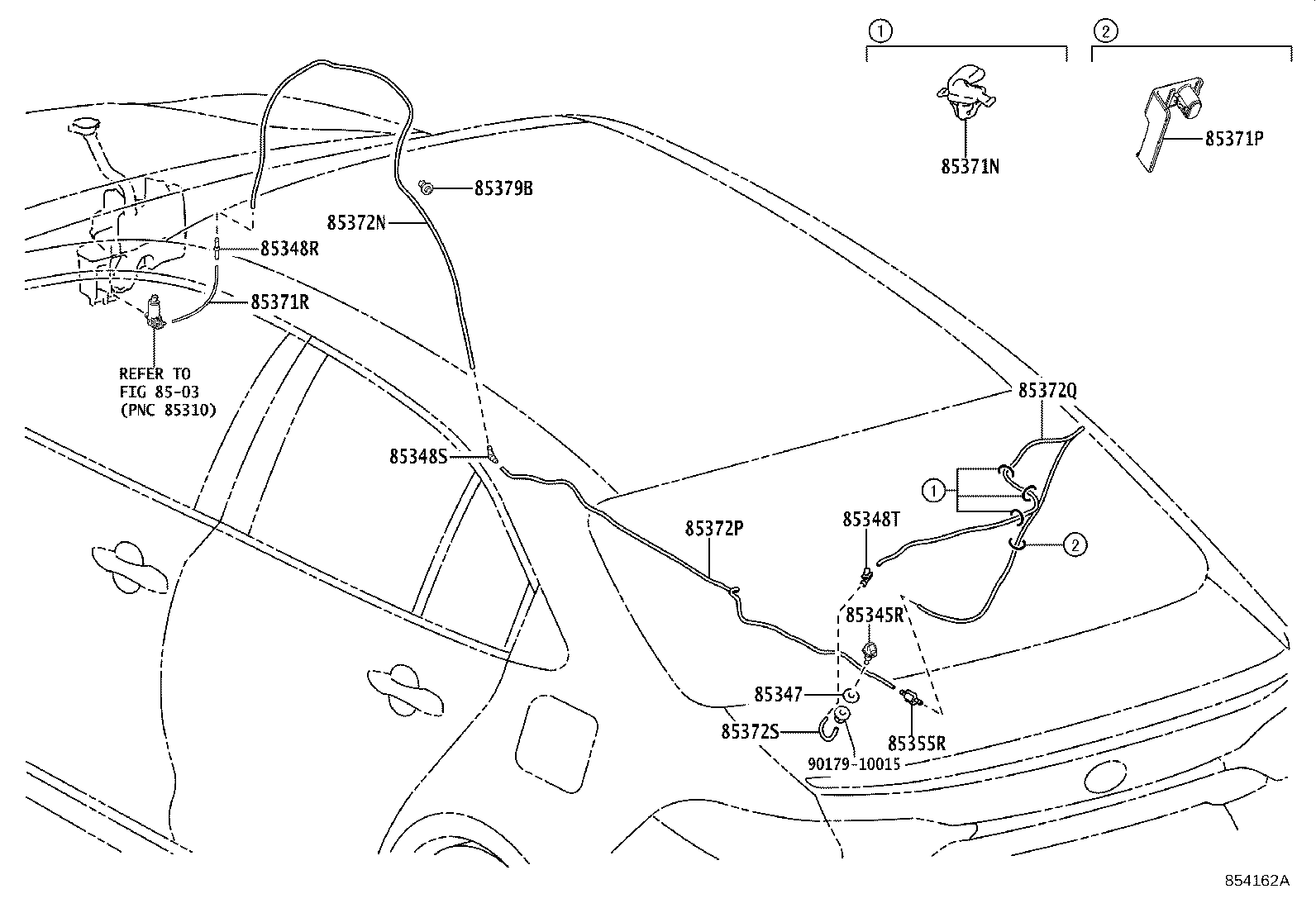

| Linked diagrams | ||||
| 8503 | ||||
