ZWE211-AEXNB (2019)
Toyota Corolla

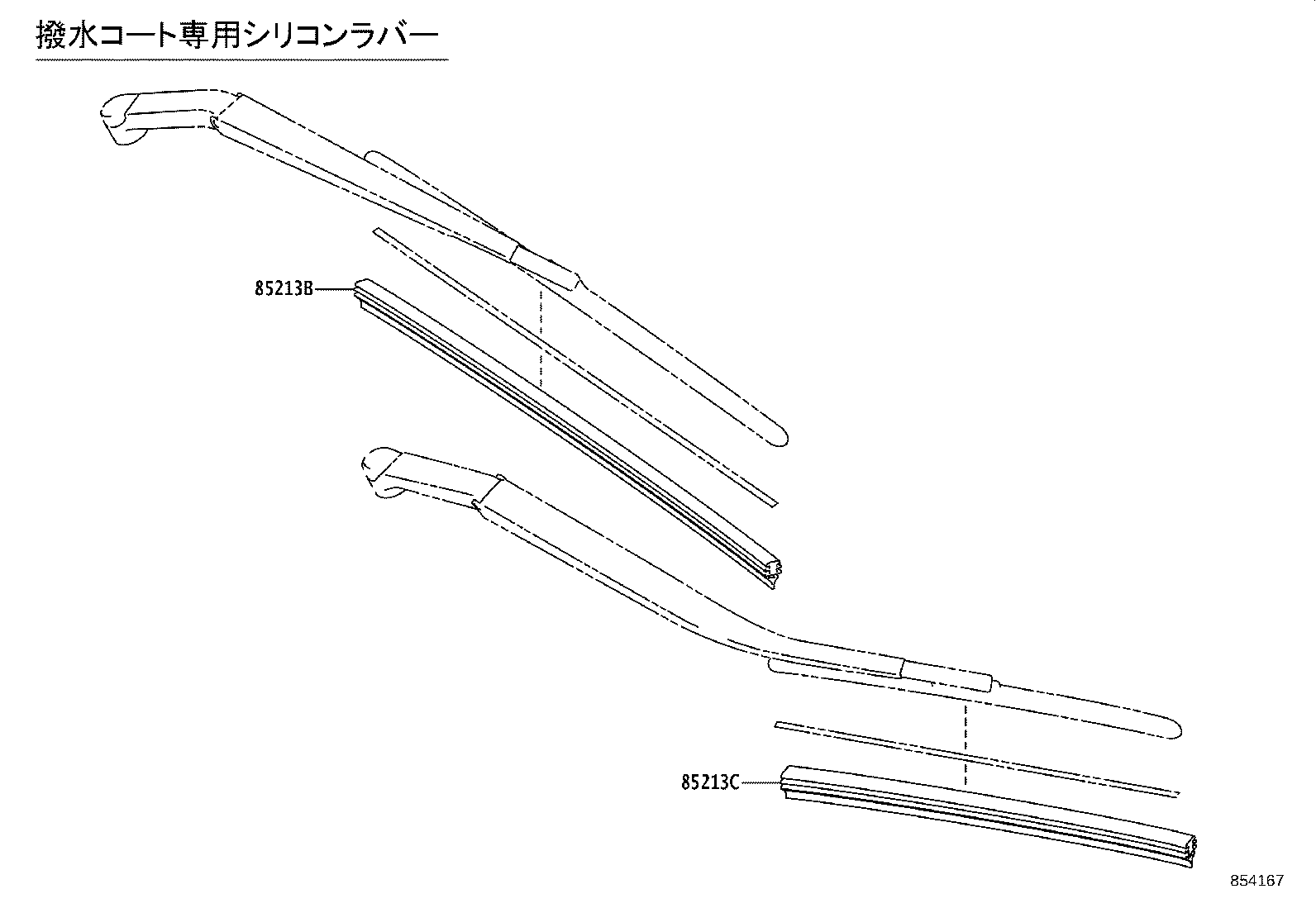

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT) | ||||
| 85213-28110 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT) | ||||
| 85213-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||

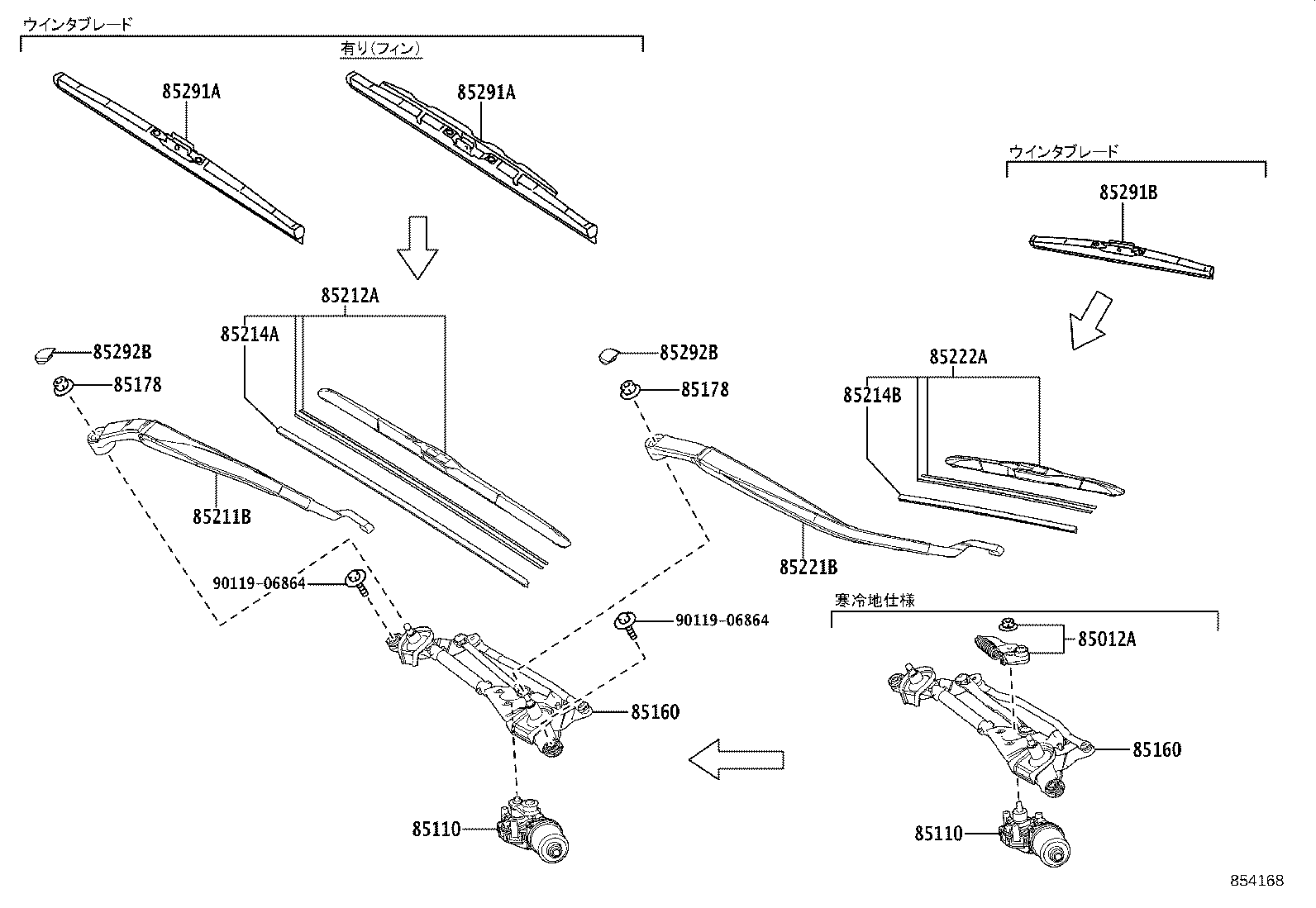

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-50010 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12C50 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85110-12C40 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12C50 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85110-12C40 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-12B90 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85150-12C00 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-12B90 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85150-12C00 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-12670 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-12610 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-28080 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-68030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-12600 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-12A80 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-52100 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-52100 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-52090 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-52090 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-52100 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-52100 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-52090 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-52090 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-58110 |
NRE210,ZRE212,ZWE21#..SED 寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-58110 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様&ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| Common parts | ||||
| 90119-06864 | ||||
