ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE21#

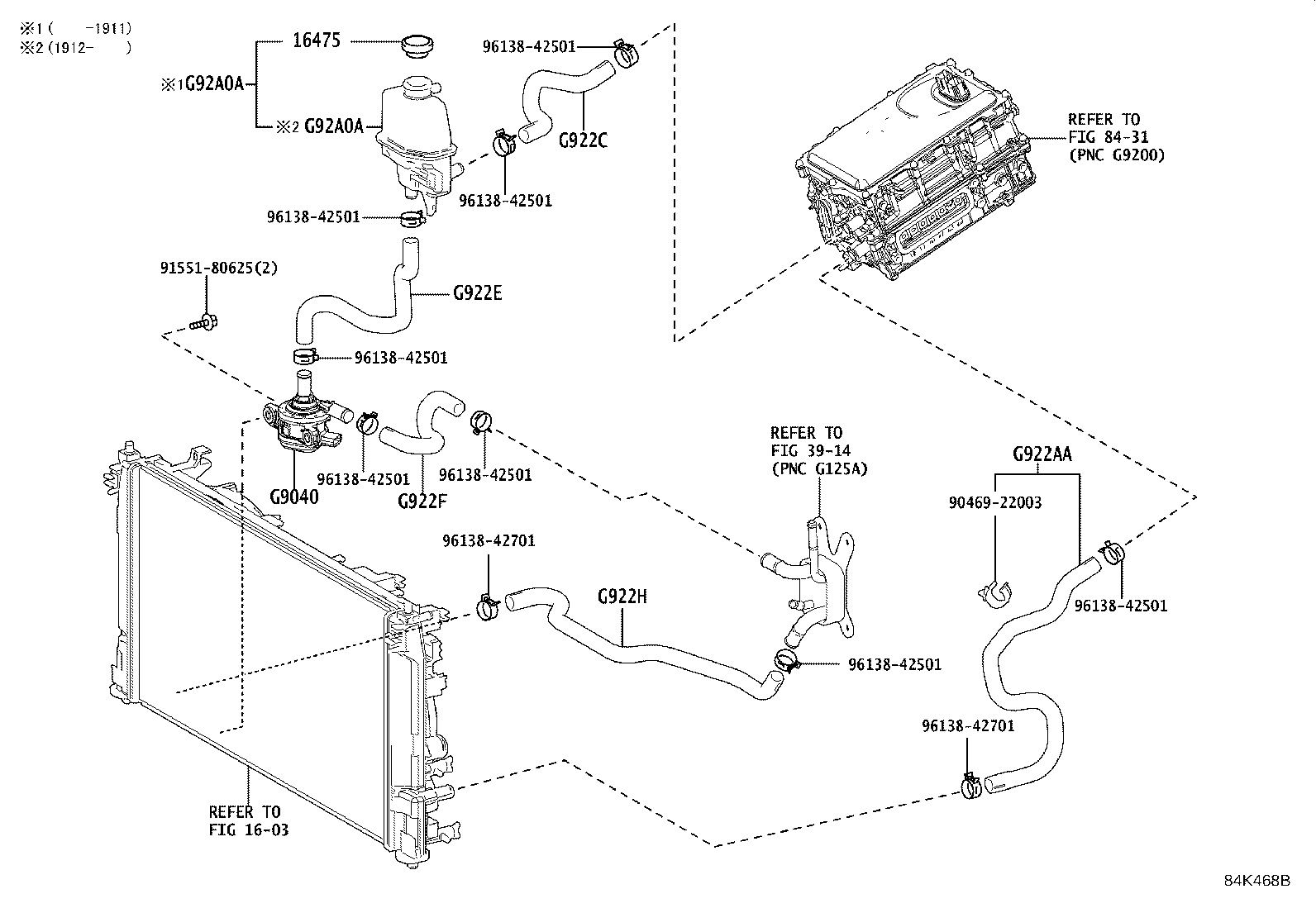

Click highlighted areas on diagram

diagram 1603 16475 3914 8431 9046922003 9155180625 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842701 9613842701 G9040 G922AA G922C G922E G922F G922H G92A0A G92A0A
Part # Description Qty Price
16475 - CAP, RESERVE TANK
16475-28140

2ZRFXE..ZWE21#

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-47040

ZWE21#

 1
G922AA - HOSE, INVERTER COOLING INLET, NO.1
G922A-47010

ZWE21#

 1
G922C - HOSE, INVERTER COOLING OUTLET, NO.1
G922C-47010

ZWE21#

 1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-47010

ZWE21#

 1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-47010

ZWE21#

 1
G922H - HOSE, HYBRID RADIATOR INLET
G922H-47010

ZWE21#

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-47011

ZWE21#

 1
G910G-12010

ZWE21#

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-47011

ZWE21#

 1
G910G-12010

ZWE21#

 1
Common parts
90469-22003
91551-80625
96138-42501
96138-42701
Linked diagrams
1603
3914
8431
