ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

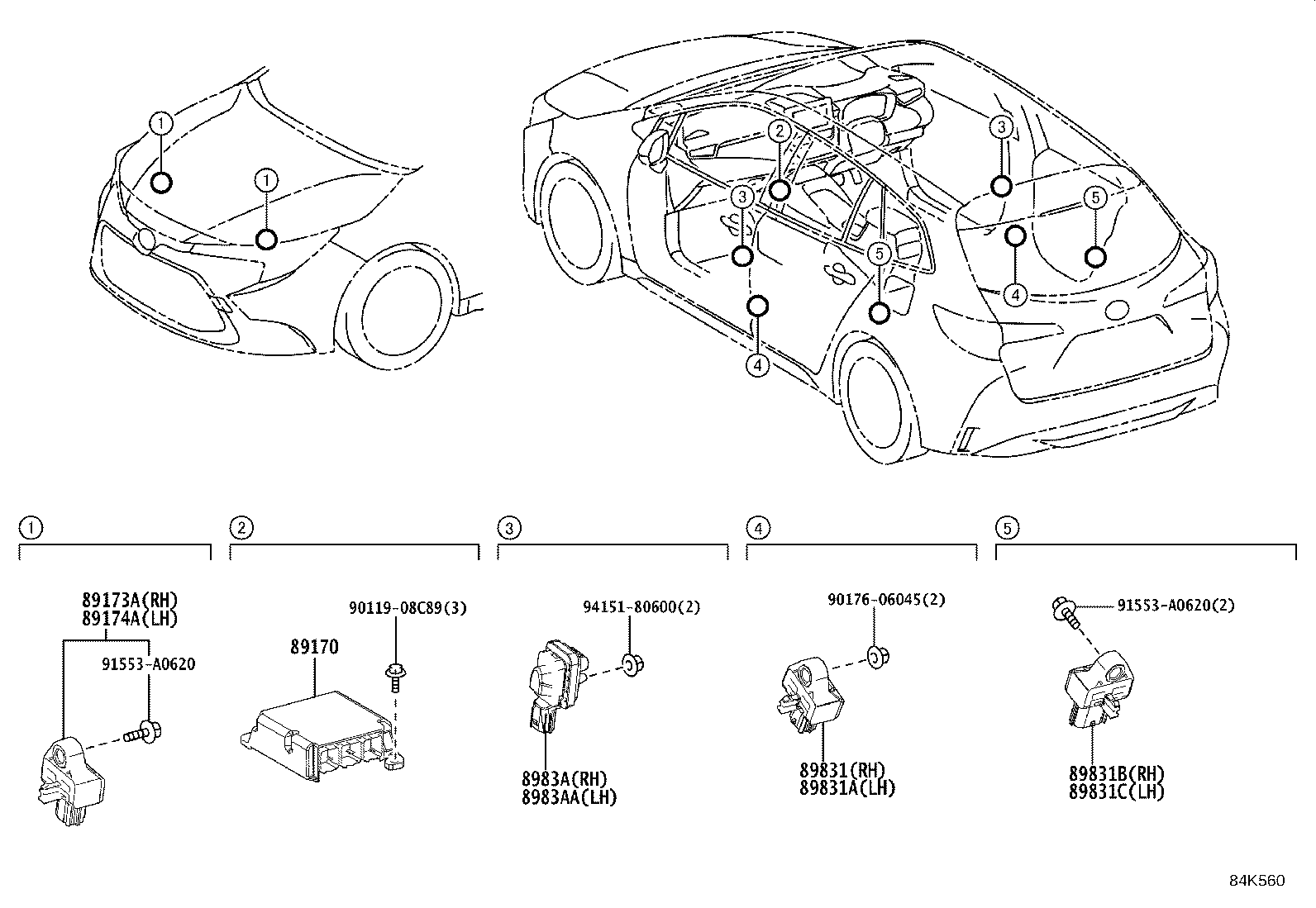

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89831 89831A 89831B 89831C 8983A 8983AA 9011908C89 9017606045 91553A0620 91553A0620 9415180600
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-12G60

ZWE21#

 1
89170-12F70

ZWE21#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49495

MZEA12,NRE210,ZRE212,ZWE21#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49495

MZEA12,NRE210,ZRE212,ZWE21#

 1
89831 - SENSOR, SIDE AIR BAG, RH, NO.1
89831-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
89831A - SENSOR, SIDE AIR BAG, LH, NO.1
89831-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-28040

MZEA12,NRE210,ZRE212,ZWE21#

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-28040

MZEA12,NRE210,ZRE212,ZWE21#

 1
8983A - SENSOR, SIDE AIR BAG PRESSURE, RH
8983A-33010

MZEA12,NRE210,ZRE212,ZWE21#

 1
8983A-33011

MZEA12,NRE210,ZRE212,ZWE21#

 1
8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH
8983A-33010

MZEA12,NRE210,ZRE212,ZWE21#

 1
8983A-33011

MZEA12,NRE210,ZRE212,ZWE21#

 1
Common parts
90119-08C89
90176-06045
91553-A0620
94151-80600
