ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE21#

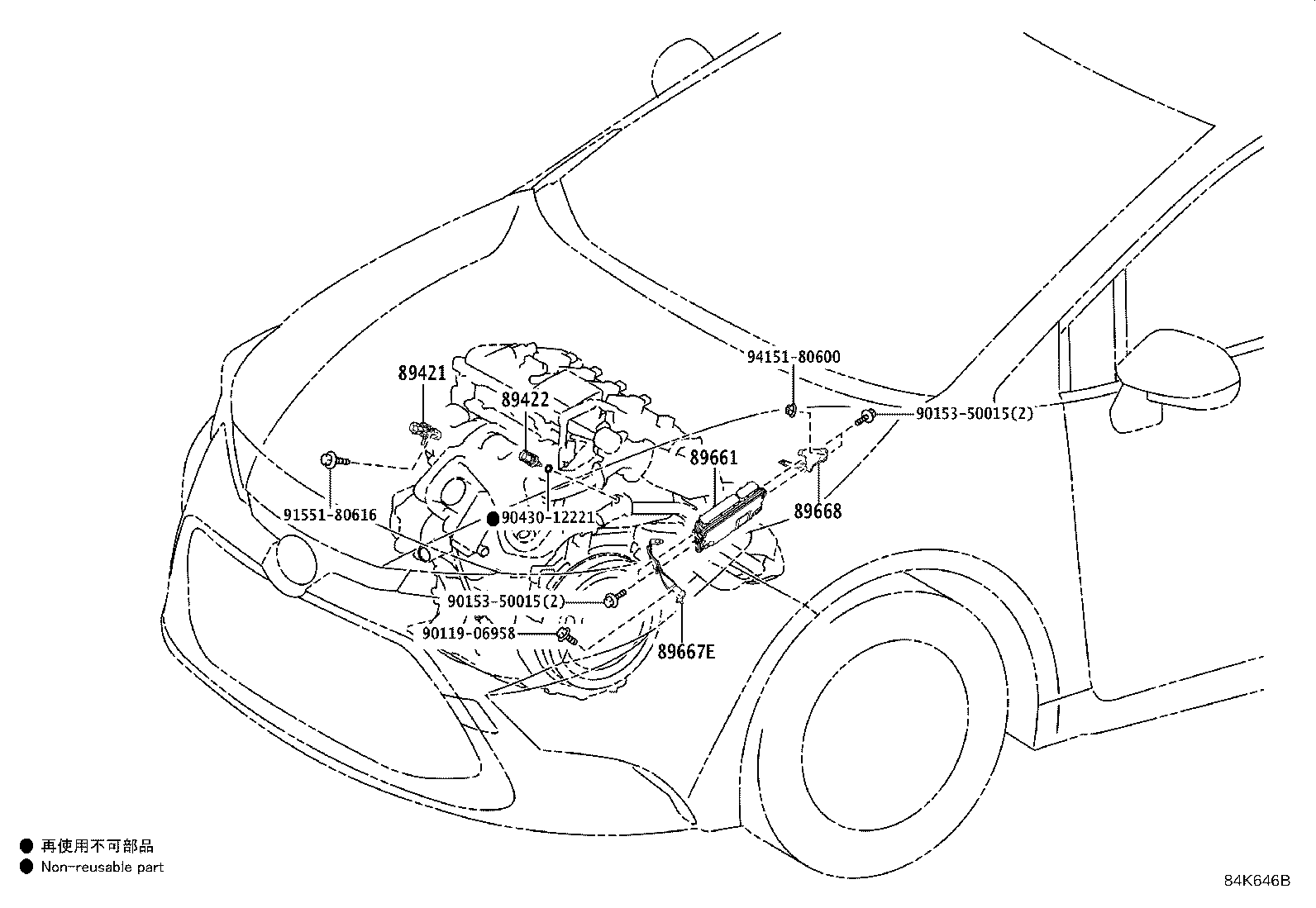

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 9011906958 9015350015 9015350015 9043012221 9155180616 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZRE212,ZWE21#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE212,ZWE21#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12W10

ZWE211

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-12370

ZWE21#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-47050

ZWE21#

 1
Common parts
90119-06958
90153-50015
90430-12221
91551-80616
94151-80600
