ZWE211-AEXNB (2019)
Toyota Corolla

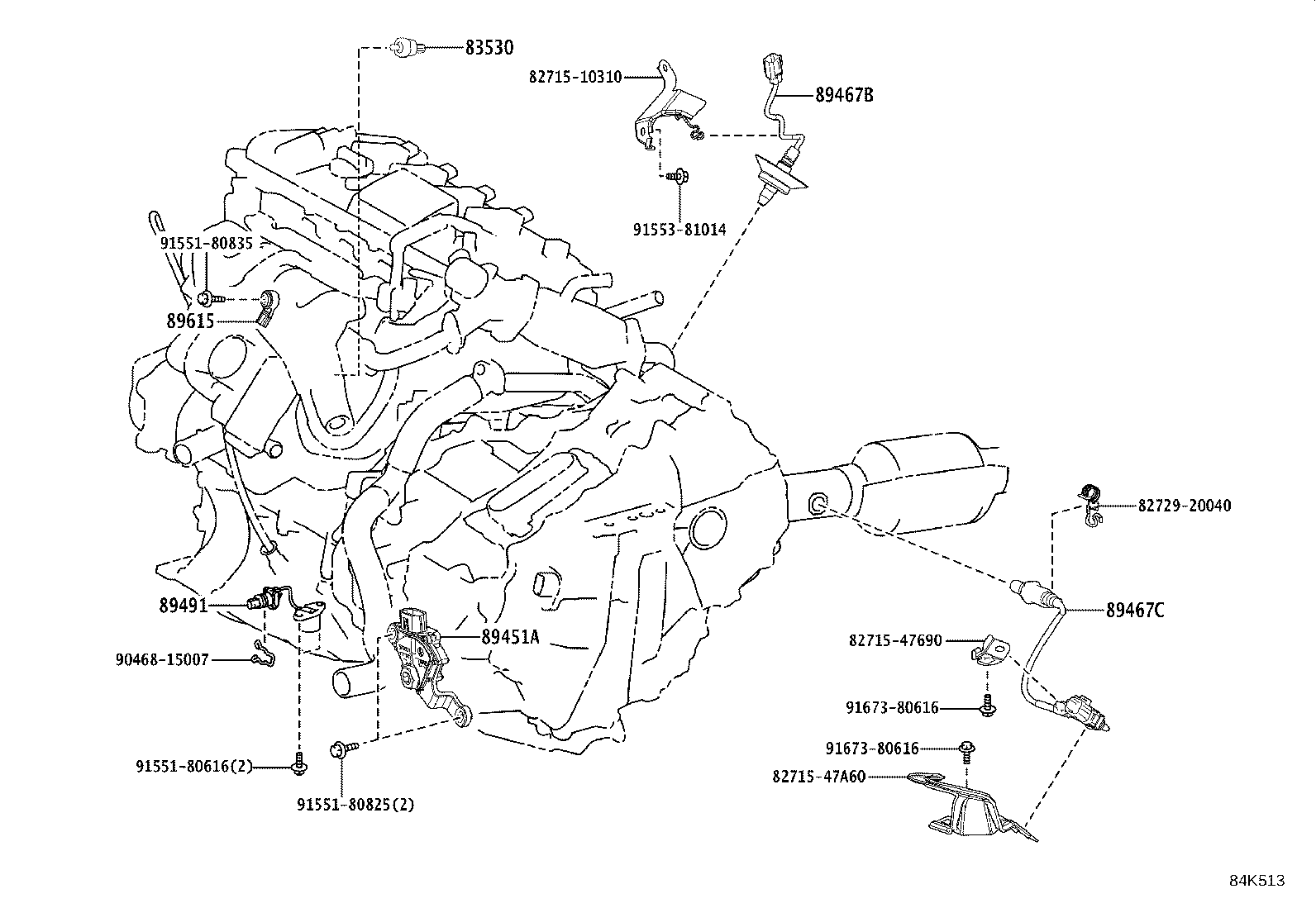

ILLUST NO. 1 OF 8(1908- )ZWE21#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZRE212,ZWE21# |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
ZWE21# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZWE21# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89465-47090 |
ZWE21# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-47011 |
ZWE21# |
1 | ||
| 89491-28090 |
ZWE21# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 82715-10310 | ||||
| 82715-47690 | ||||
| 82715-47A60 | ||||
| 82729-20040 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80616 | ||||

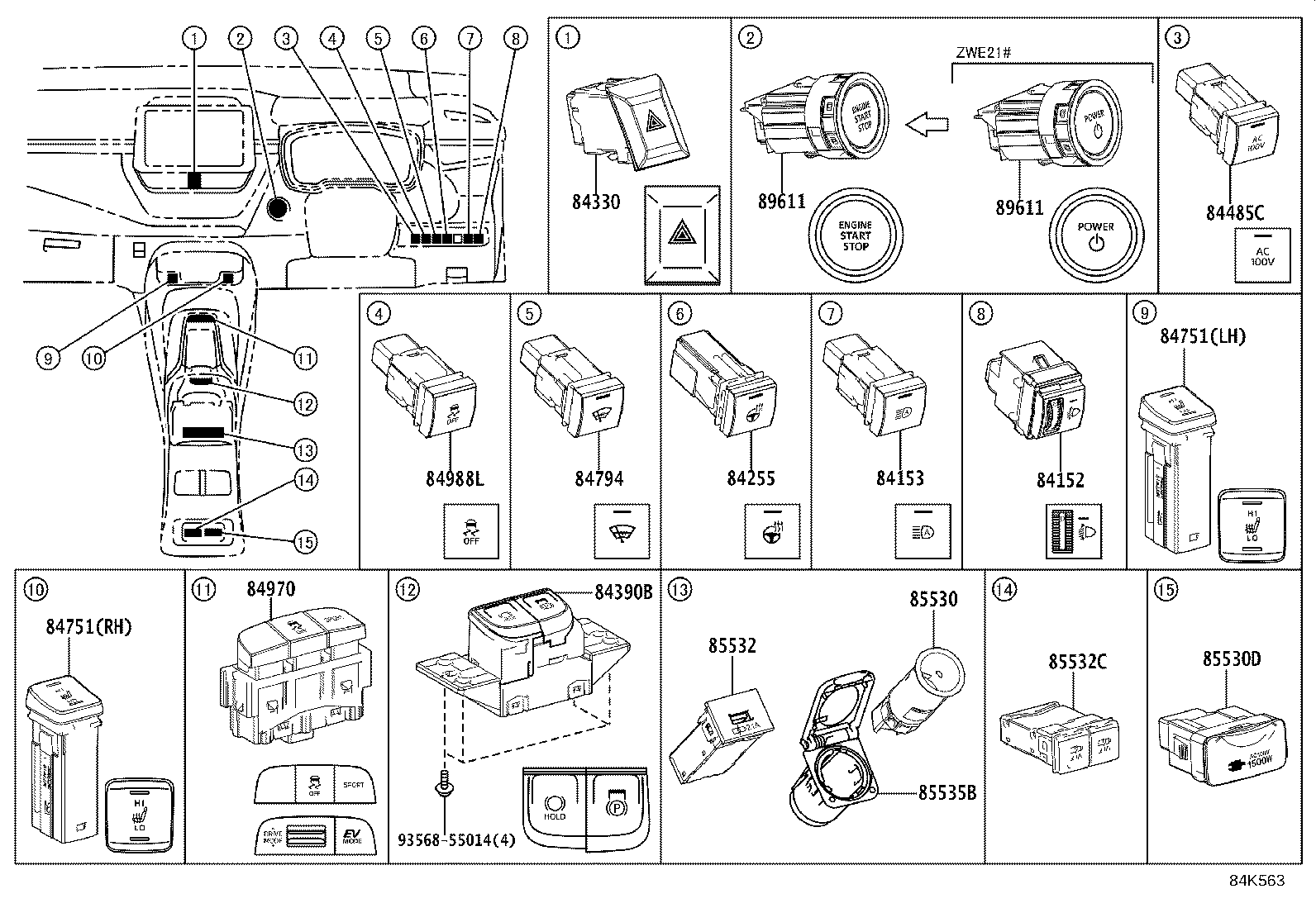

ILLUST NO. 5 OF 8(1908- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12100 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-33010 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-12060 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 84390-12070 |
ZWE21#..HBDGX |
1 | ||
| 84485C - SWITCH, POWER OUTLET | ||||
| 84485-12010 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12150 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),左側 |
1 | ||
| 84751-12140 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),右側 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12150 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),左側 |
1 | ||
| 84751-12140 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),右側 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-60060 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12220 |
ZWE21# |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-12020 |
NRE210,ZWE21# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58070C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個),BLACK |
2 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85532C - SOCKET, USB CHARGER, NO.2 | ||||
| 85532-42010 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12080 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85535-12090C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
ZWE21# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
ZWE21# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

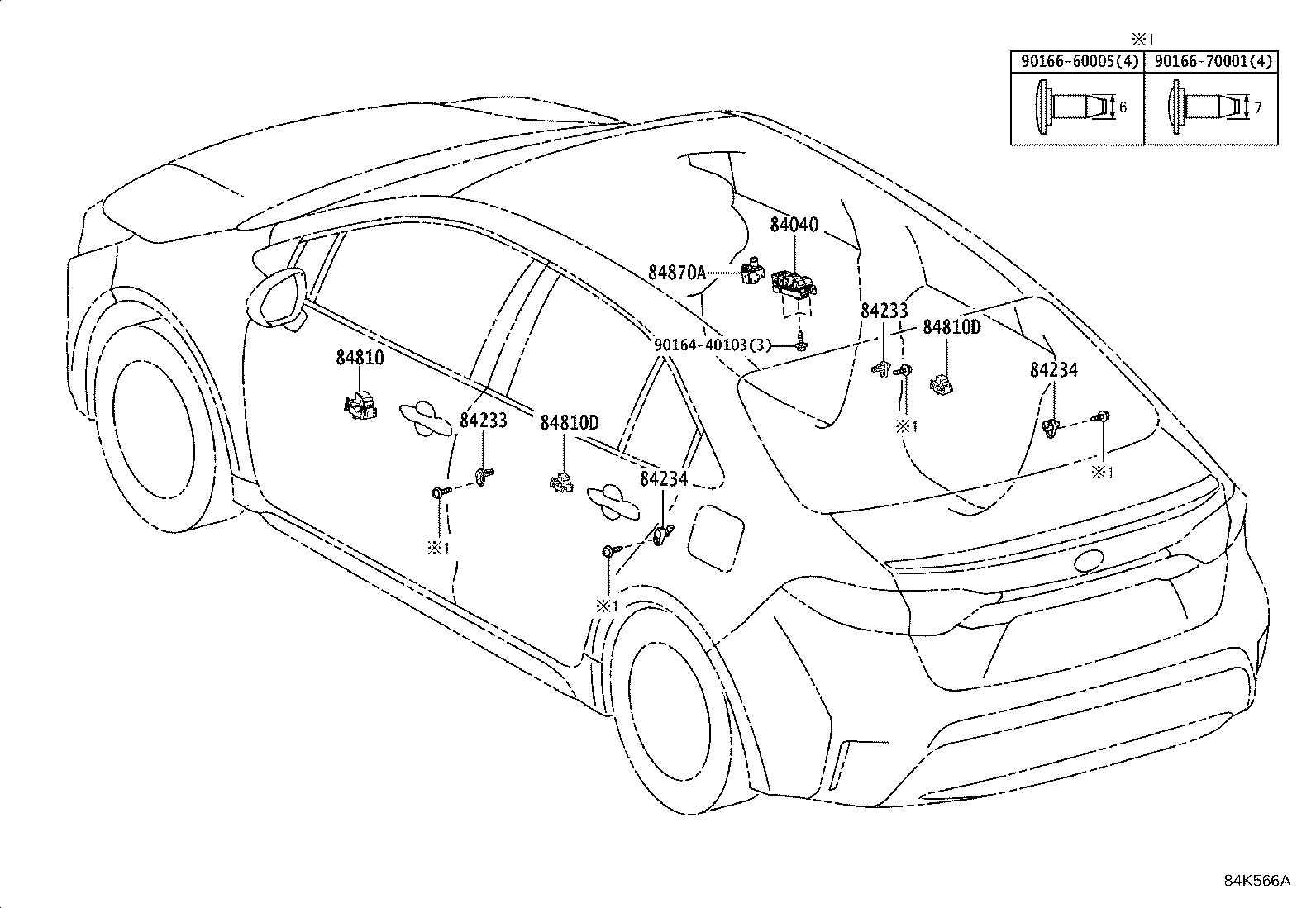

ILLUST NO. 7 OF 8(1908- )SED
ﾄﾞｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12200 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 84040-12190 |
ZRE212,ZWE21#..GX,HBDGX |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 84810-12100 |
ZRE212,ZWE21#..GX,HBDGX |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
ZRE212,ZWE21#..GX,HBDGX |
2 | ||
| 84810-12120 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12100 |
ZRE212,ZWE21#..GX,HBDGX |
2 | ||
| 84810-12120 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様 |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 84872-47020 |
ZRE212,ZWE21#..GX,HBDGX |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 84872-12160 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 84872-12190 |
ZRE212,ZWE21#..GX,HBDGX 除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

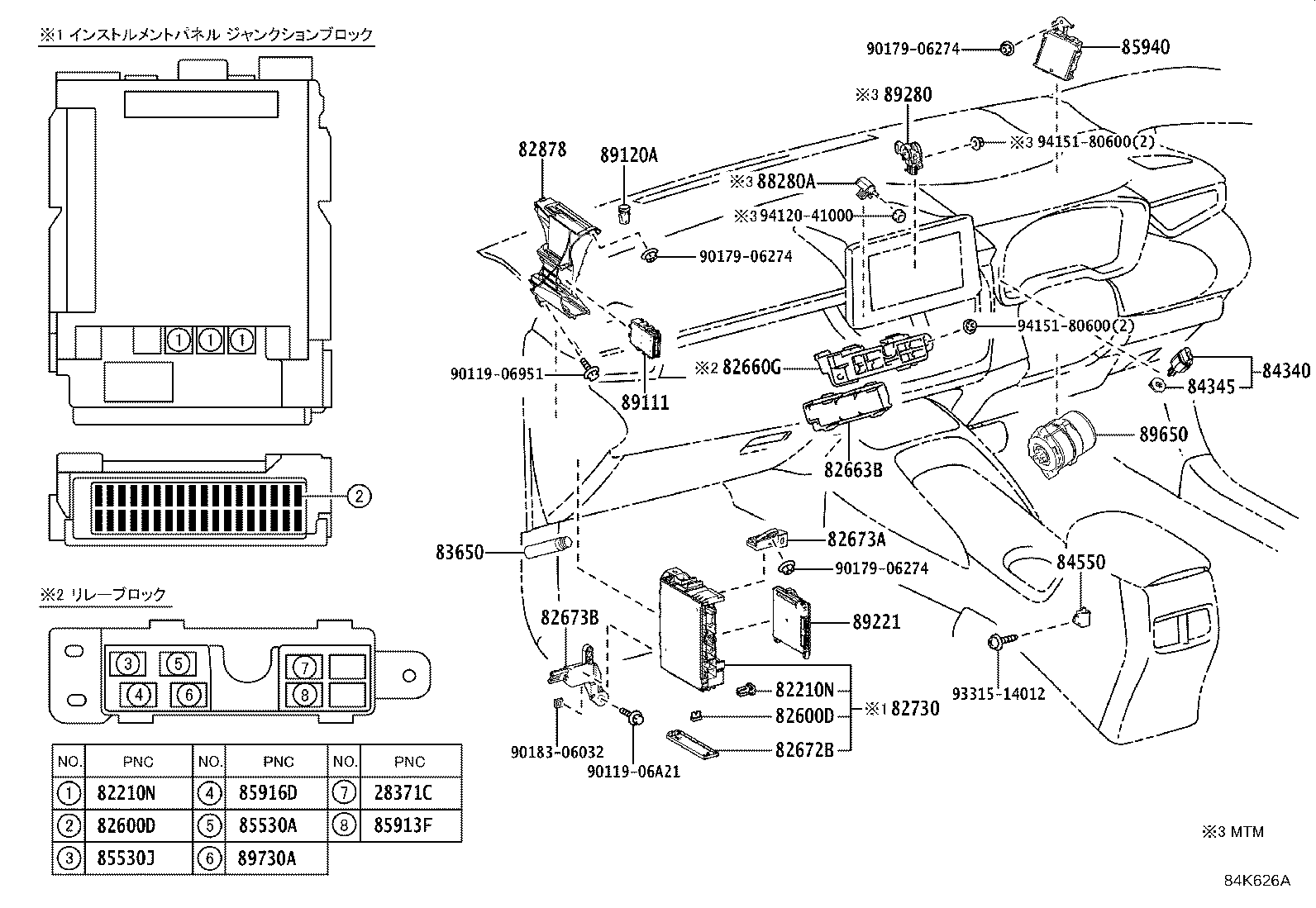

ILLUST NO. 4 OF 8(1908- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
8NRFTS,2ZR#..NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,NRE210,ZRE212,ZWE21# 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,NRE210,ZRE212,ZWE21# 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
MZEA12,NRE210,ZRE212,ZWE21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZRE212,ZWE21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZRE212,ZWE21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
MZEA12,NRE210,ZRE212,ZWE21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZRE212,ZWE21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
MZEA12,NRE210,ZRE212,ZWE21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZRE212,ZWE21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZRE212,ZWE21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
MZEA12,NRE210,ZRE212,ZWE21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZRE212,ZWE21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-12150 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12610 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47190 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47210 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12N90 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47020 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85530J - RELAY, POWER OUTLET SOCKET, NO.3 | ||||
| 90987-02027 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個 |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12042 |
ZWE21# |
1 | ||
| 89111-12041 |
ZWE21# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-12M10 |
ZWE21#..SED..(HBDGX,HBDS) |
1 | ||
| 89220-12P20 |
ZWE21#..SED..(HBDGX,HBDS) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12L20 |
ZWE21#..HBDGX,HBDS JTEKT/DENSO |
1 | ||
| 89650-12L10 |
MZEA12,ZWE21#..G,HBDWB JTEKT/DENSO |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||

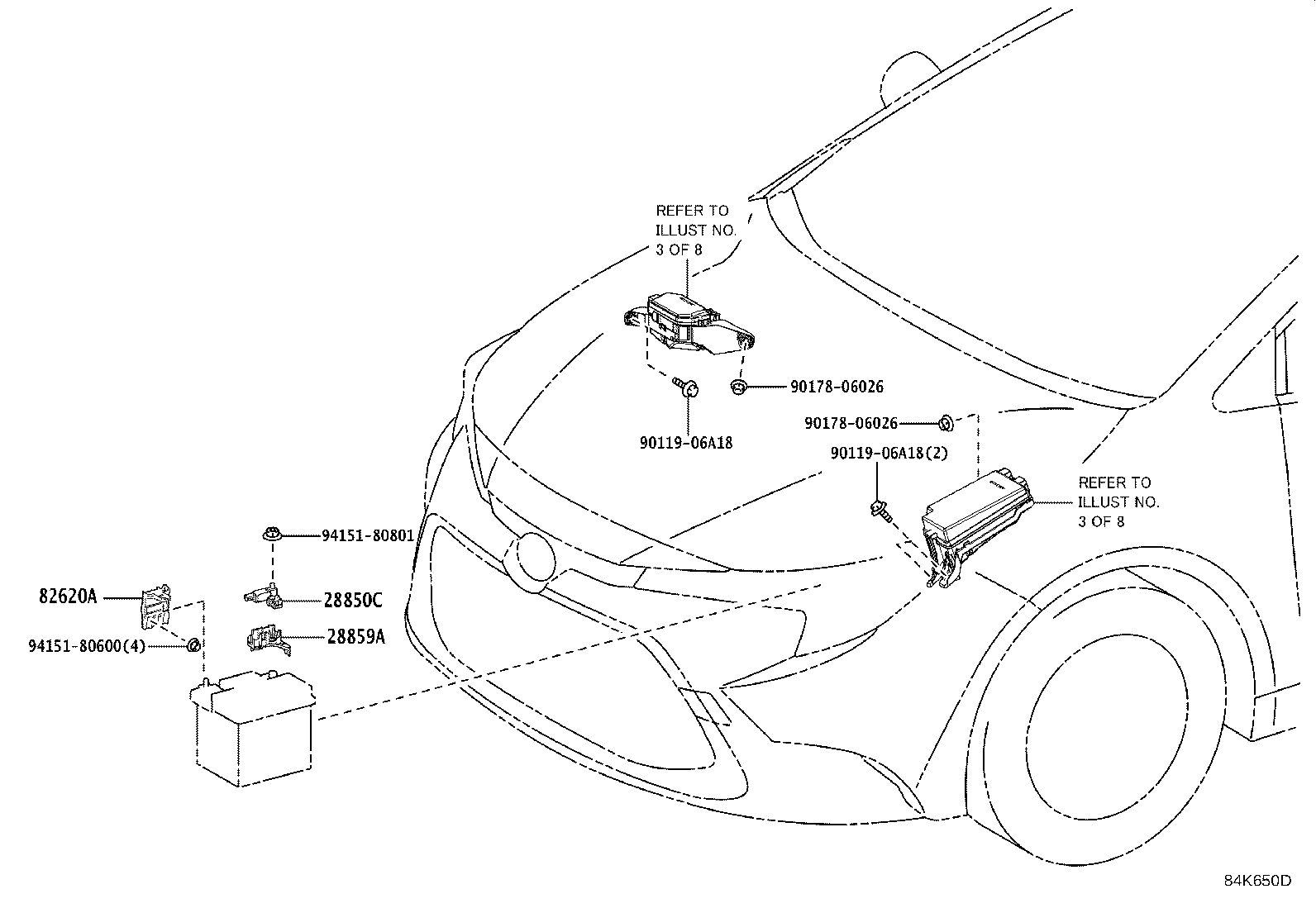

ILLUST NO. 2 OF 8(1908- )ZWE21#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25010 |
2ZRFXE..ZWE21# |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37040 |
2ZRFXE..ZWE21# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47090 |
ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||

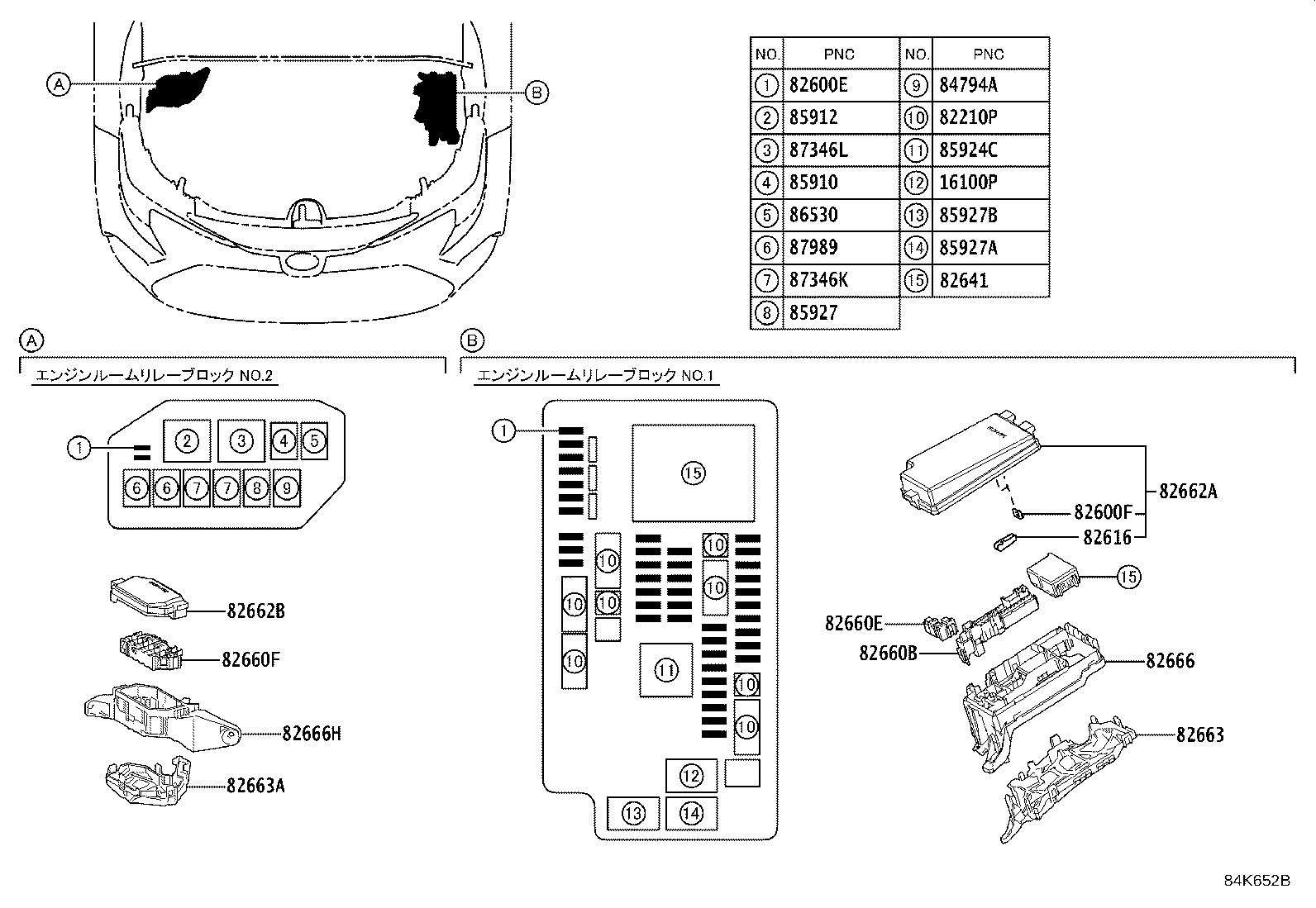

ILLUST NO. 3 OF 8(1908- )ZWE21#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZWE21# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
MZEA12,NRE210,ZRE212,ZWE21# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08308 |
ZWE21# 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08295 |
MZEA12,NRE210,ZRE212,ZWE21# 30A,ﾒｽ端子,桃 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
ZWE21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
MZEA12,NRE210,ZRE212,ZWE21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
MZEA12,NRE210,ZRE212,ZWE21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
MZEA12,NRE210,ZRE212,ZWE21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
MZEA12,NRE210,ZRE212,ZWE21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
MZEA12,NRE210,ZRE212,ZWE21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
ZWE21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
ZWE21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
ZWE21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12420 |
ZWE21# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12430 |
ZWE21# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12E30 |
ZWE21# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12E50 |
ZWE21# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZWE21# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12660 |
ZWE21# |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様 |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZRE212,ZWE21# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZWE21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZRE212,ZWE21# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZWE21# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZWE21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NRE210,ZWE21# 寒冷地仕様 |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
NRE210,ZWE21# 寒冷地仕様 |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り |
2 | ||
| 90987-04004 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様&除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 除菌ｲｵﾝ & ﾏｲﾅｽｲｵﾝ発生装置−有り |
2 | ||
| 90987-04004 |
ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様 |
2 | ||

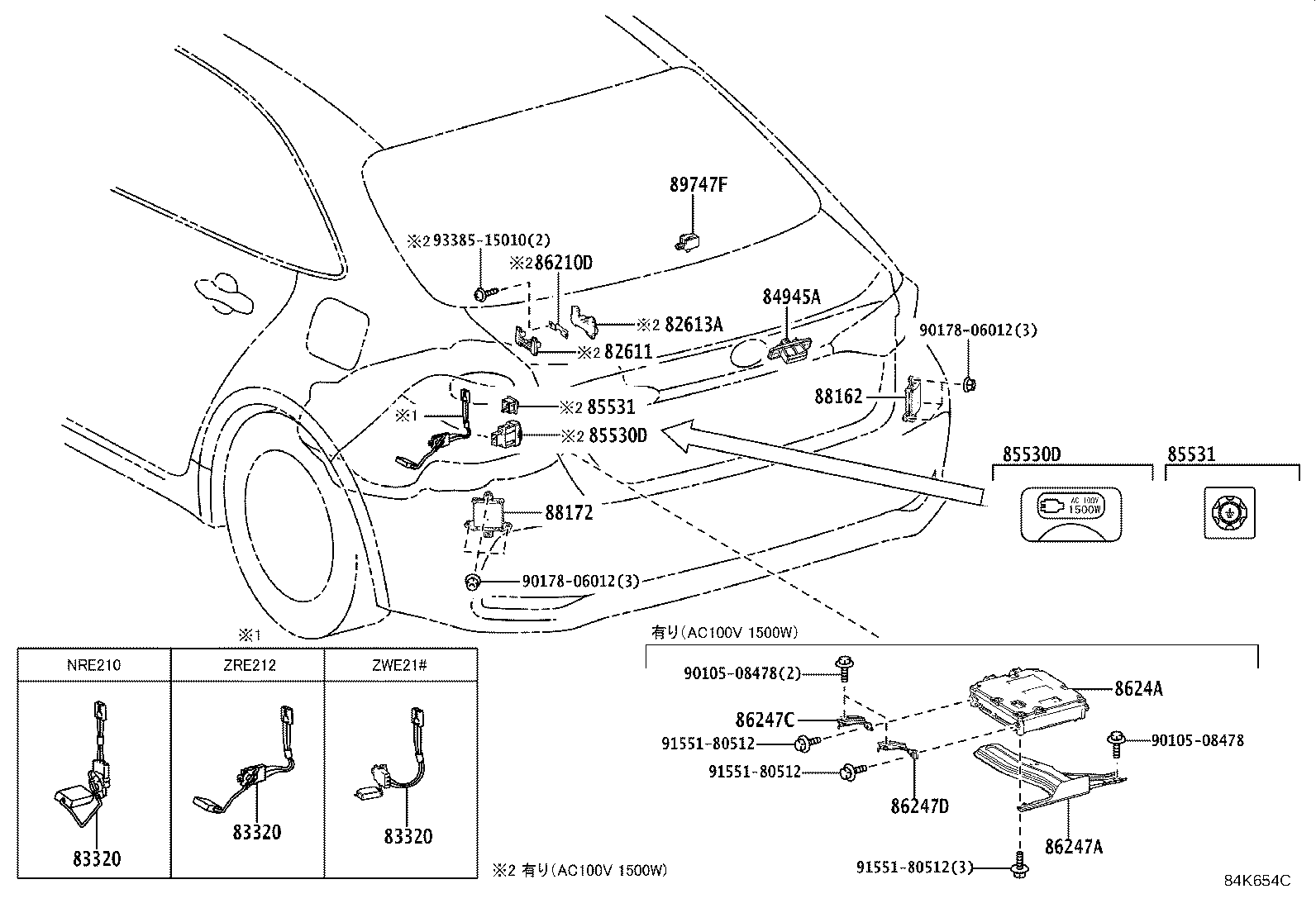

ILLUST NO. 8 OF 8(1908- )SED
ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-47060 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82613A - BLOCK, FUSE BASE | ||||
| 82613-47020 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-76010 |
ZWE21# |
1 | ||
| 83320-10270 |
ZWE21# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-76010 |
ZWE21# |
1 | ||
| 83320-10270 |
ZWE21# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-76010 |
ZWE21# |
1 | ||
| 83320-10270 |
ZWE21# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-12070 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58070C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個),BLACK |
2 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58070C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個),BLACK |
2 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-28050C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-28050C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 86210D - FUSE, HIGH VOLTAGE | ||||
| 90982-11053 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86247A - BRACKET, VOLTAGE INVERTER | ||||
| 86247-12030 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86247C - BRACKET, VOLTAGE INVERTER, NO.2 | ||||
| 86247-12040 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86247D - BRACKET, VOLTAGE INVERTER, NO.3 | ||||
| 86247-12050 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 8624A - INVERTER, VOLTAGE | ||||
| 8624A-33020 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 88162-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 88162-12030 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-12030 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 88162-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 88162-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 89747-52010 |
ZRE212,ZWE21#..GX,HBDGX ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90178-06012 | ||||
| 91551-80512 | ||||
| 93385-15010 | ||||

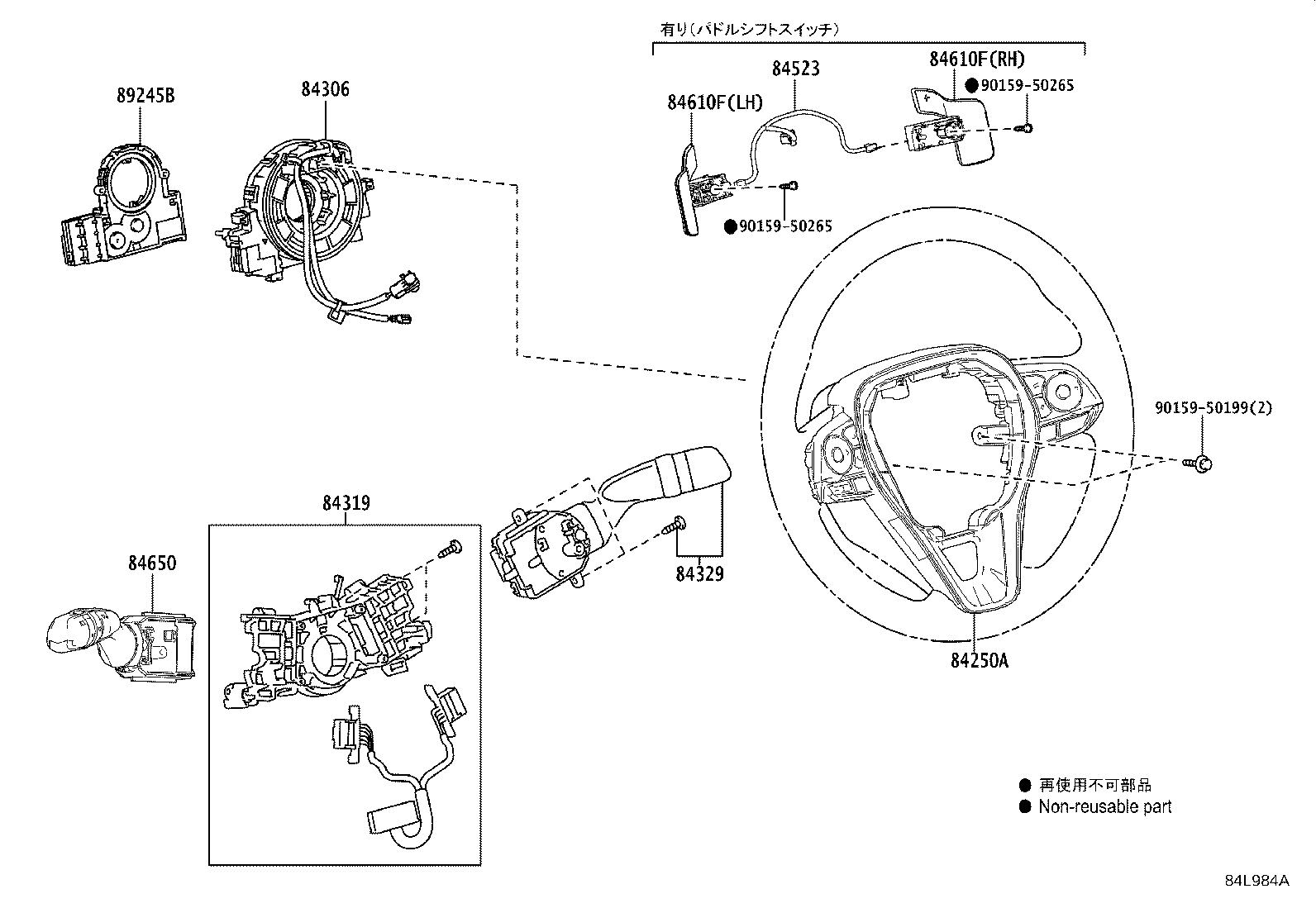

ILLUST NO. 6 OF 8(1908- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12580 |
ZRE212,ZWE21#..GX,HBDGX |
1 | ||
| 84250-12690 |
ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−ｳﾚﾀﾝ |
1 | ||
| 84250-12690 |
MZEA12,ZRE212,ZWE21#..G,HBDS,S |
1 | ||
| 84250-12690 |
ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12020 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 84308-33110 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33030 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84329-33020 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84329-12120 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S |
1 | ||
| 84329-33030 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB |
1 | ||
| 84329-12130 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84329-33020 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12B40 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 84652-33590 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 84652-12B40 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) 寒冷地仕様 |
1 | ||
| 84652-12A80 |
ZRE212,ZWE21#..SED..(GX,HBDGX) |
1 | ||
| 84652-12B50 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り |
1 | ||
| 84652-12B50 |
ZRE212,ZWE21#..SED..(GX,HBDGX) 寒冷地仕様 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-50010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
