ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1908- )ZWE21#

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800 28800A 28800D 8202 8202 8202 82671R 8401 8401 8401 8401 8401
Part # Description Qty Price
28800 - BATTERY
28800-37130

2ZR#..ZRE212,ZWE21#

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

2ZRFXE..ZWE21#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-47020

2ZRFXE..ZWE21#

 1
82671R - STOPPER, BATTERY TERMINAL
82671-47040

ZWE21#

 1
Linked diagrams
8202
8401

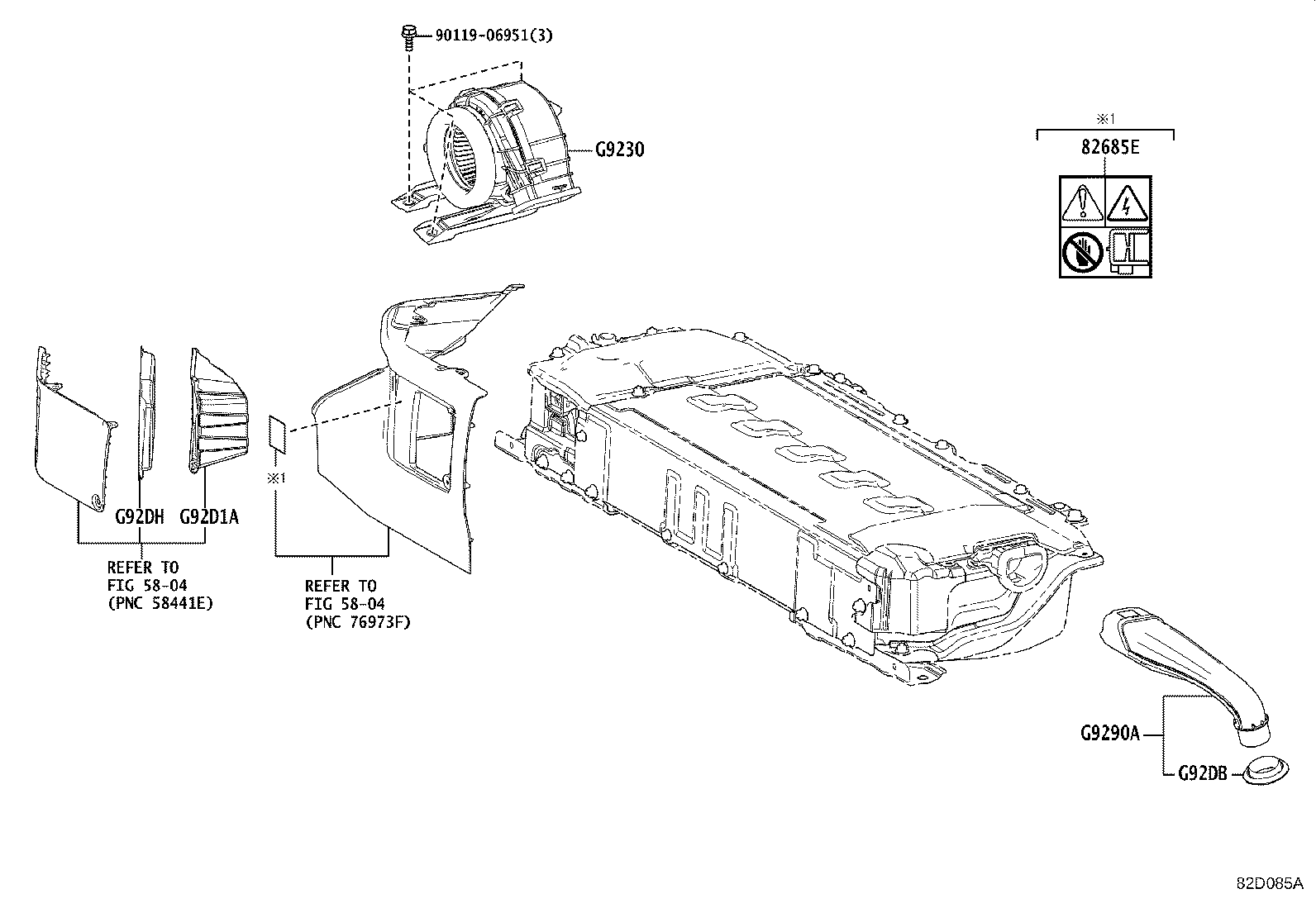

ILLUST NO. 2 OF 4(1908- )ZWE211

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 5804 5804 82685E 9011906951 G9230 G9290A G92D1A G92DB G92DH
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-47110

ZWE21#

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-47050

ZWE211

 1
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-47030

ZWE211

 1
G92D1A - DUCT, EV BATTERY INTAKE, NO.1
G92D1-12030

ZWE21#

 1
G92DB - SEAL, HYBRID BATTERY, NO.1
G92DB-47030

ZWE211

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-12050

ZWE21#

 1
Common parts
90119-06951
Linked diagrams
5804

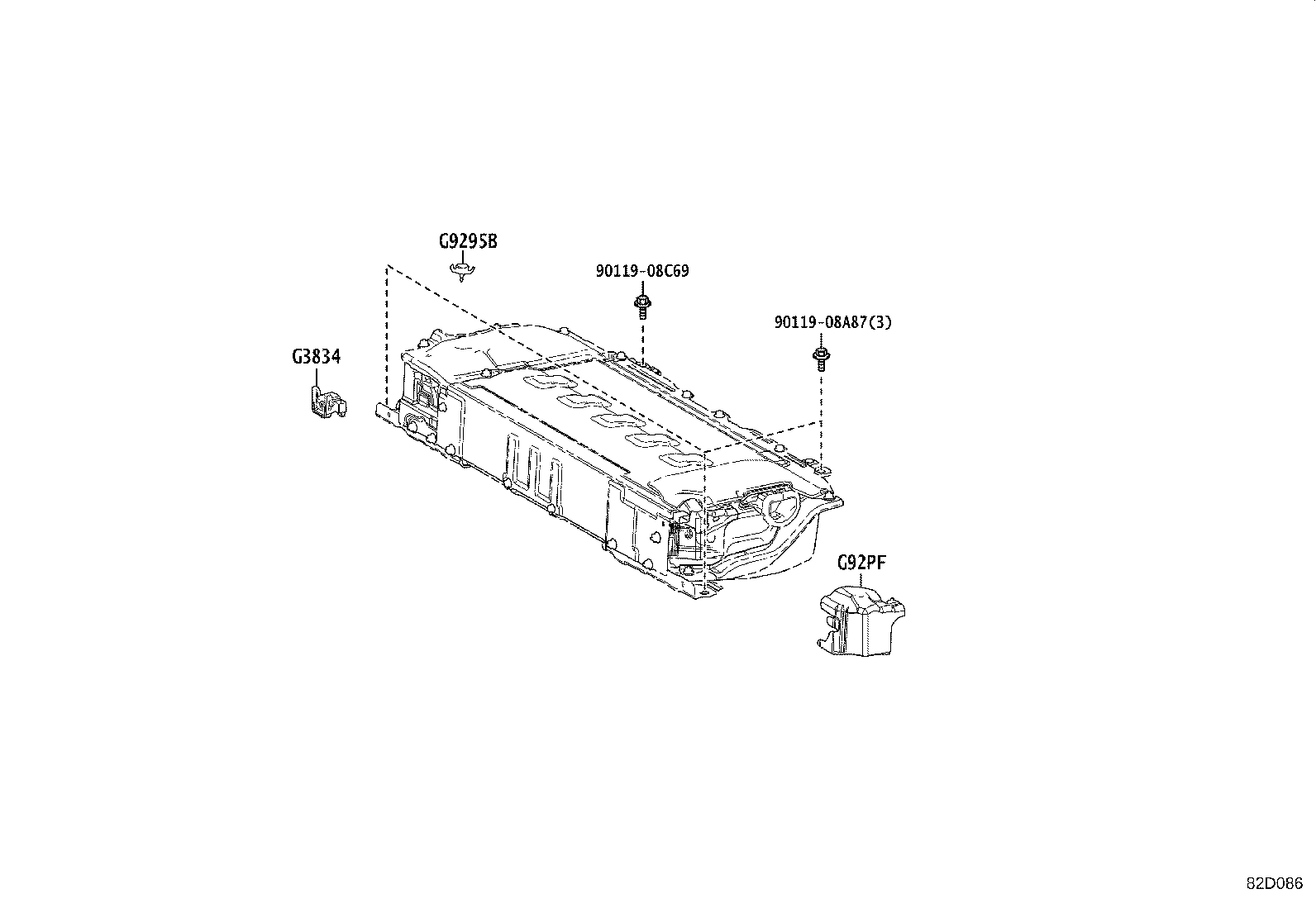

ILLUST NO. 3 OF 4(1908- )ZWE211

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 9011908A87 9011908C69 G3834 G9295B G92PF
Part # Description Qty Price
G3834 - GRIP, SERVICE PLUG
G3834-47050

ZWE21#

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZWE21#

 1
G92PF - PROTECTOR, HV BATTERY, NO.4
G92PF-47010

ZWE211

 1
Common parts
90119-08A87
90119-08C69

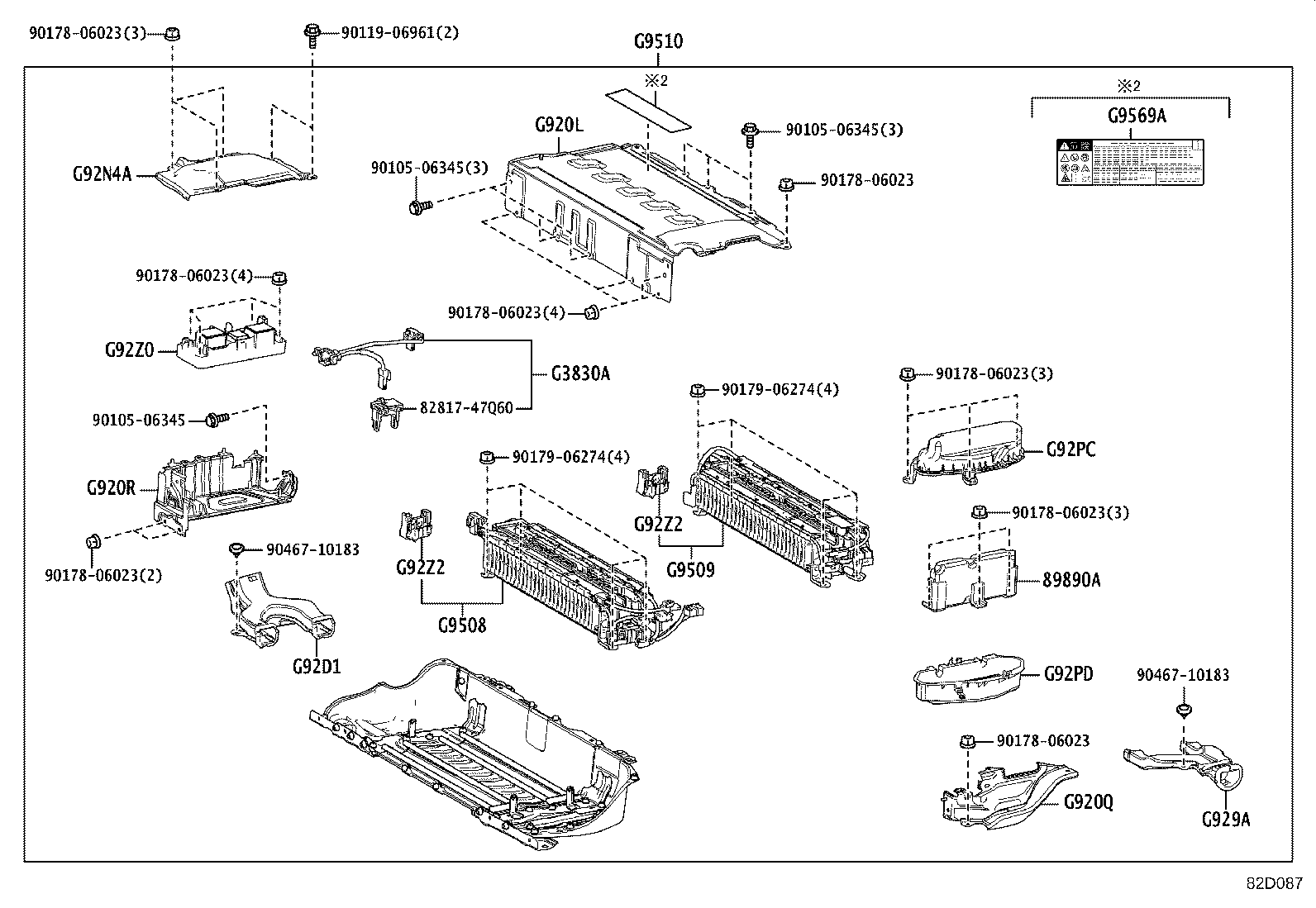

ILLUST NO. 4 OF 4(1908- )ZWE211

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 8281747Q60 89890A 9010506345 9010506345 9010506345 9011906961 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017906274 9017906274 9046710183 9046710183 G3830A G920L G920Q G920R G929A G92D1 G92N4A G92PC G92PD G92Z0 G92Z2 G92Z2 G9508 G9509 G9510 G9569A
Part # Description Qty Price
89890A - COMPUTER ASSY, BATTERY
89890-47103

ZWE211

DENSO

 1
89890-47104

ZWE211

DENSO

 1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-47120

ZWE211

 1
G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1
G920N-47110

ZWE211

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-47050

ZWE211

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-47020

ZWE211

 1
G929A - HOSE, HV BATTERY, NO.1
G929A-47030

ZWE211

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92E1-47051

ZWE211

 1
G92N4A - PANEL, HV BATTERY RH COVER, NO.1
G92N4-47050

ZWE211

 1
G92PC - PROTECTOR, HV BATTERY, NO.1
G92PC-47010

ZWE211

 1
G92PD - PROTECTOR, HV BATTERY, NO.2
G92PD-47010

ZWE211

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-47110

ZWE211

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

ZWE21#

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

ZWE21#

 1
G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1
G9509-47020

ZWE211

 1
G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2
G9508-47330

ZWE211

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-47121

ZWE211

 1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47100

ZWE211

 1
Common parts
82817-47Q60
90105-06345
90119-06961
90178-06023
90179-06274
90467-10183
