ZWE211-AEXNB (2019)
Toyota Corolla

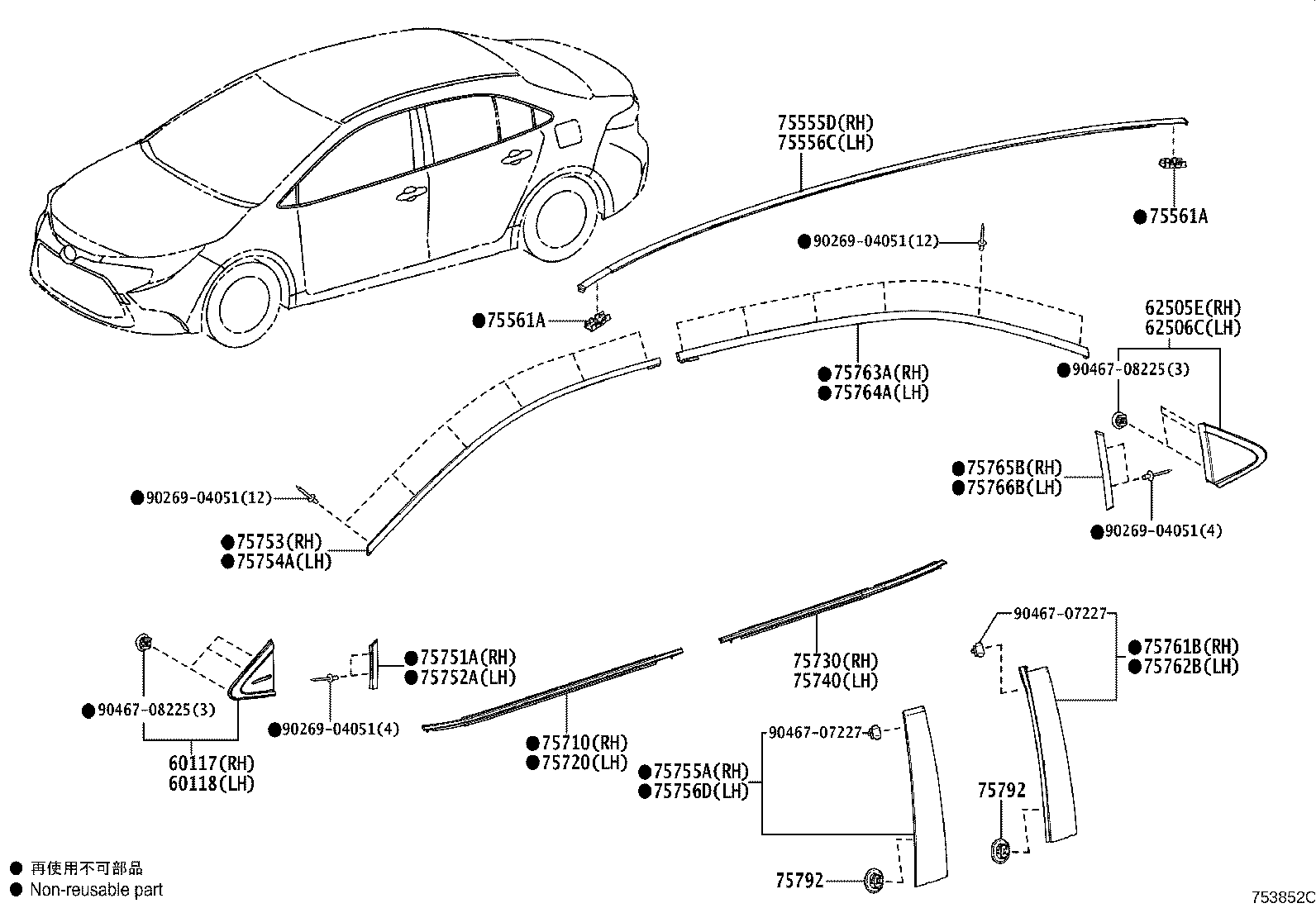

ILLUST NO. 1 OF 2(1908- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-12070 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-12070 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 62505E - COVER SUB-ASSY, QUARTER PILLAR, RH | ||||
| 62505-12030 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 62506C - COVER SUB-ASSY, QUARTER PILLAR, LH | ||||
| 62506-12030 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-12220 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75556-12230 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
NRE210,ZRE212,ZWE21# |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
NRE210,ZRE212,ZWE21# |
4 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-12890 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-12A30 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-12470 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-12560 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75751A - MOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE | ||||
| 75751-12250 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75752A - MOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE | ||||
| 75752-12250 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-12100 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-12080 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID | ||||
| 75755-12140 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID | ||||
| 75756-12160 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE | ||||
| 75761-12090 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE | ||||
| 75762-12090 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH | ||||
| 75763-12130 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH | ||||
| 75764-12140 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE) | ||||
| 75765-12150 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE) | ||||
| 75766-12150 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| Common parts | ||||
| 90269-04051 | ||||
| 90467-07227 | ||||
| 90467-08225 | ||||

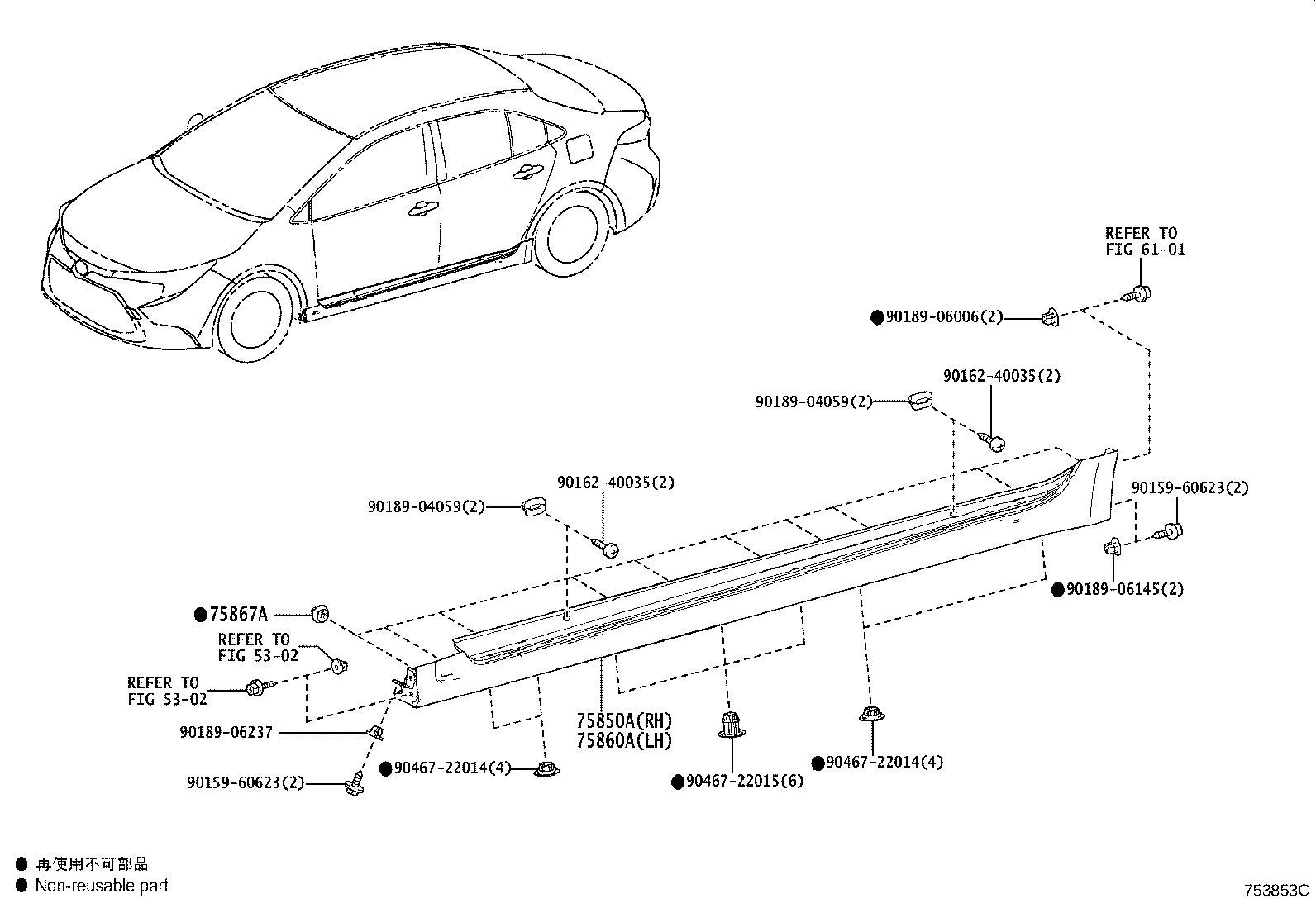

ILLUST NO. 2 OF 2(1908- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75851-12200A0 |
MZEA12,NRE210,ZRE212,ZWE21# WHITE PEARL CS.,070 ,2KR |
1 | ||
| 75851-12200A1 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SUPER WHITE 2,040 |
1 | ||
| 75851-12200B1 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S CELESTITE GRAY ME.,1K3 |
1 | ||
| 75851-12200B0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SILVER ME.,1F7 ,2KS |
1 | ||
| 75851-12200D0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SCARLET ME.,3U4 |
1 | ||
| 75851-12200C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK MC.,209 |
1 | ||
| 75851-12200J0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75852-12170A0 |
MZEA12,NRE210,ZRE212,ZWE21# WHITE PEARL CS.,070 ,2KR |
1 | ||
| 75852-12170B0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SILVER ME.,1F7 ,2KS |
1 | ||
| 75852-12170A1 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SUPER WHITE 2,040 |
1 | ||
| 75852-12170J0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 75852-12170D0 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S SCARLET ME.,3U4 |
1 | ||
| 75852-12170B1 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S CELESTITE GRAY ME.,1K3 |
1 | ||
| 75852-12170C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK MC.,209 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-52020 |
MZEA12,NRE210,ZRE212,ZWE21# |
20 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90162-40035 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06145 | ||||
| 90189-06237 | ||||
| 90467-22014 | ||||
| 90467-22015 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 6101 | ||||
