ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

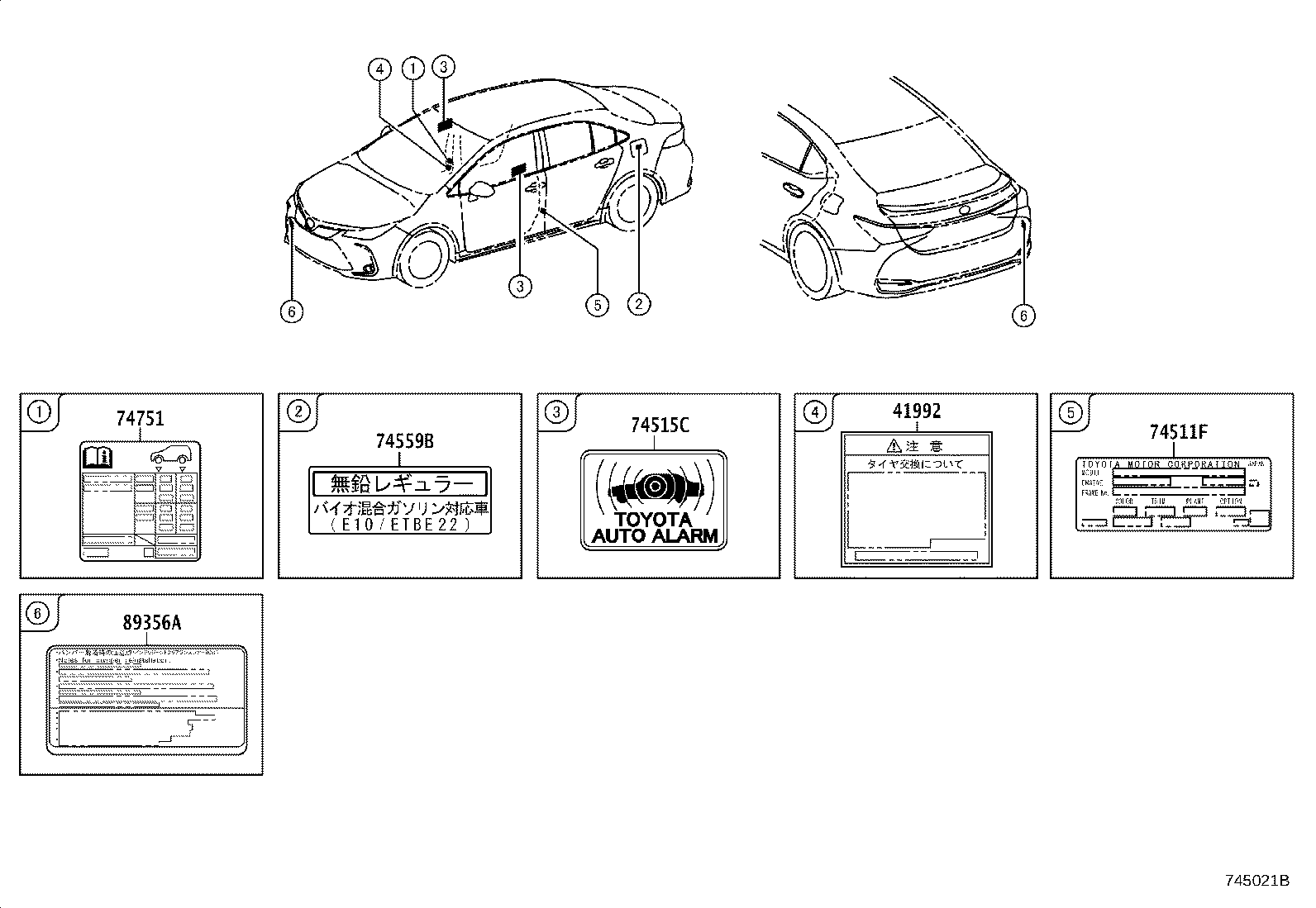

ILLUST NO. 2 OF 3(1908- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ(1/2)

diagram 41992 74511F 74515C 74559B 74751 89356A
Part # Description Qty Price
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

MZEA12,NRE210,ZRE212,ZWE21#

*111

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-33020

ZWE21#

 2
74559B - LABEL, FUEL INFORMATION
74559-48060

MZEA12,NRE210,ZRE212,ZWE21#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-12S50

ZRE212,ZWE211..GX,HBDGX

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/55R16,ｱﾙﾐ&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
42661-12S60

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB

 1
42661-12S70

ZRE212,ZWE211..GX,HBDGX

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
42661-12S50

ZRE212,ZWE211..HBDS,S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17,ｱﾙﾐ(ﾌﾞﾗｯｸ,切削光輝)&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
42661-12S50

MZEA12,NRE210,ZRE212,ZWE211..G,HBDS,HBDWB,S,WB

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
42661-12S50

ZRE212,ZWE211..HBDS,S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−215/45R17,ｱﾙﾐ&ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
42661-12S80

ZRE212,ZWE21#..GX,HBDGX

 1
42661-12S60

ZRE212,ZWE21#..GX,HBDGX

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/55R16,ｱﾙﾐ

 1
89356A - LABEL, CLEARANCE WARNING INFORMATION
89356-47020

MZEA12,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB

 2
89356-47020

ZRE212,ZWE21#..GX,HBDGX

ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り

 2

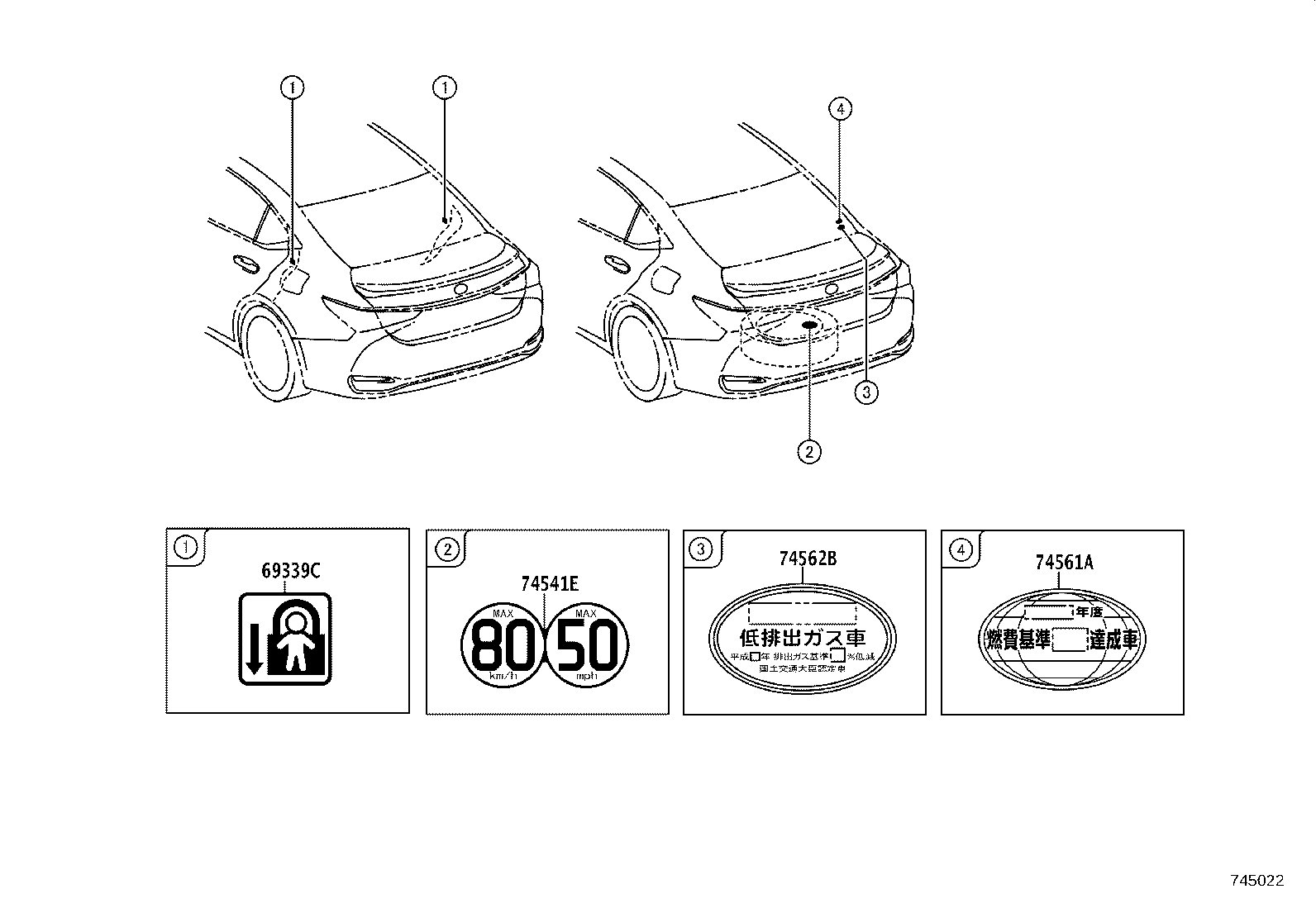

ILLUST NO. 3 OF 3(1908- )

Click highlighted areas on diagram

ｶﾞｲｿｳﾊﾟﾈﾙ(2/2)&ﾅｲｿｳ

diagram 69339C 74541E 74561A 74562B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-33040

MZEA12,NRE210,ZRE212,ZWE21#

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-42010

MZEA12,NRE210,ZRE212,ZWE211

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-47130

ZWE21#

2020年度 燃費基準+50%達成車

 1
74562B - LABEL, EMISSION INFORMATION
74562-30700

ZWE21#

H30 排出ｶﾞｽ75%低減

 1

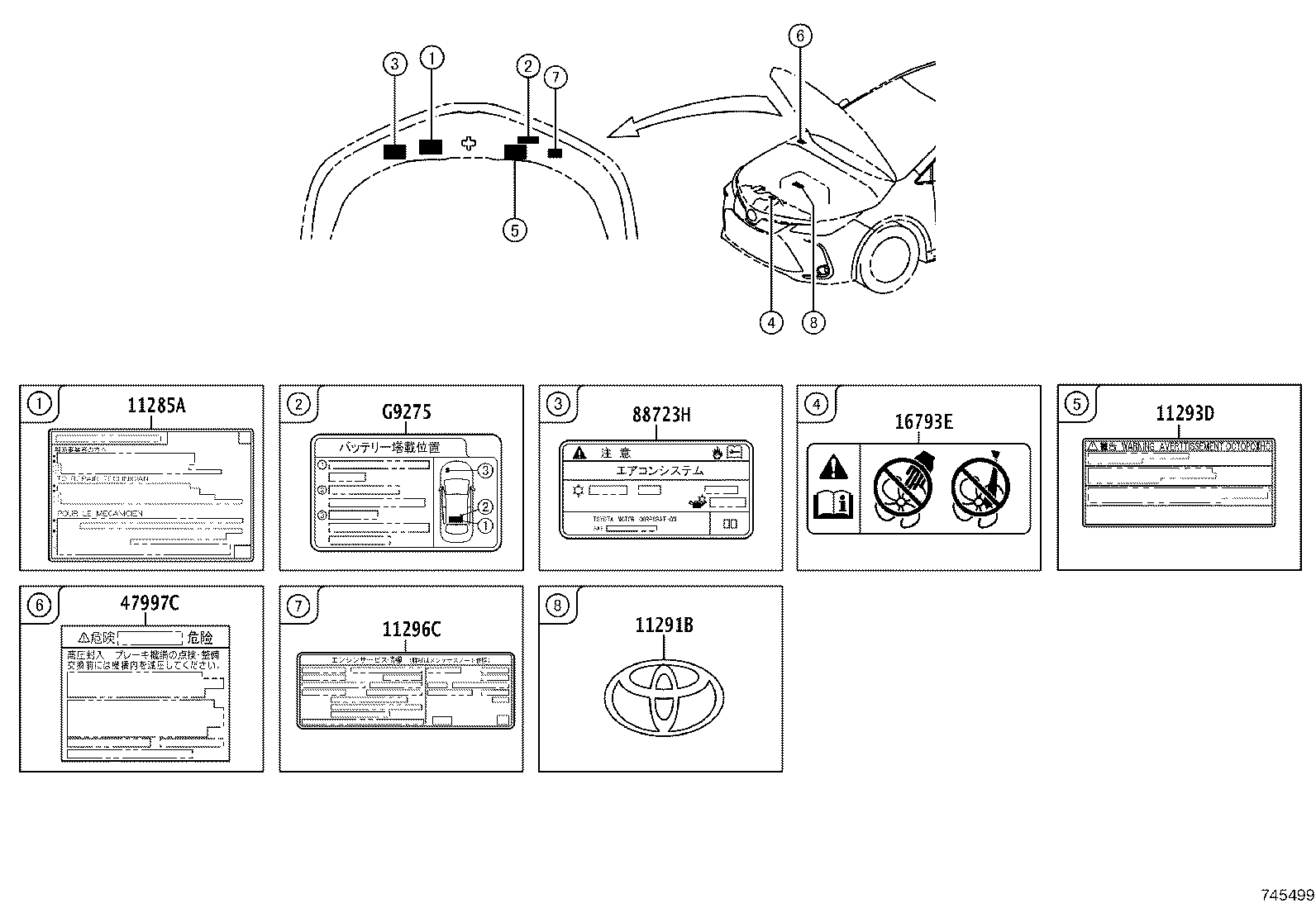

ILLUST NO. 1 OF 3(1908- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 11285A 11291B 11293D 11296C 16793E 47997C 88723H G9275
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-33030

2ZRFXE..ZWE21#

 1
11291B - PLATE, ENGINE NAME
11290-37010

2ZRFXE..ZWE21#

 1
11291-37100

2ZRFXE..ZWE21#

 1
11293D - LABEL, ENGINE CAUTION
11293-37070

2ZRFXE..ZWE21#

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-24020

M20AFKS,2ZRFXE..MZEA12,ZWE21#

 1
16793E - LABEL, COOLING FAN CAUTION
16793-36030

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 1
47997C - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010

ZWE21#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-12310

ZWE21#

 1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-47130

ZWE211

 1
