Toyota Corolla ZWE211 ARMREST & VISOR

ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

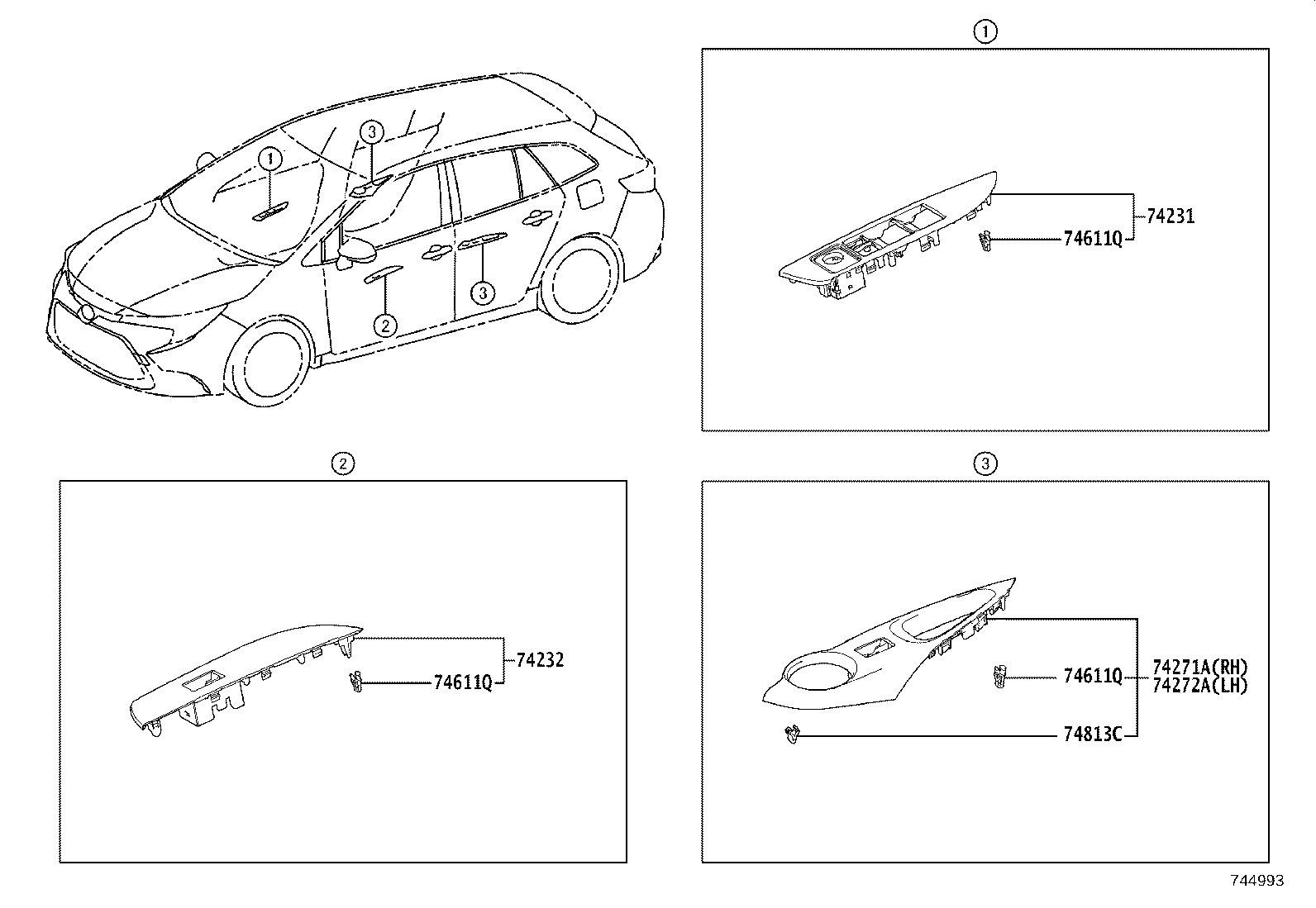

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

Part #	Description	Period	Qty
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-12E30	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74231-12D70	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-12B00	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74232-12B80	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-12550	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74271-12560	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-12490	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74272-12530	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
74611Q - CLIP
90467-10203	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
74611Q - CLIP
90467-10203	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
74611Q - CLIP
90467-10203	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
74813C - CLIP
90467-12080	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2

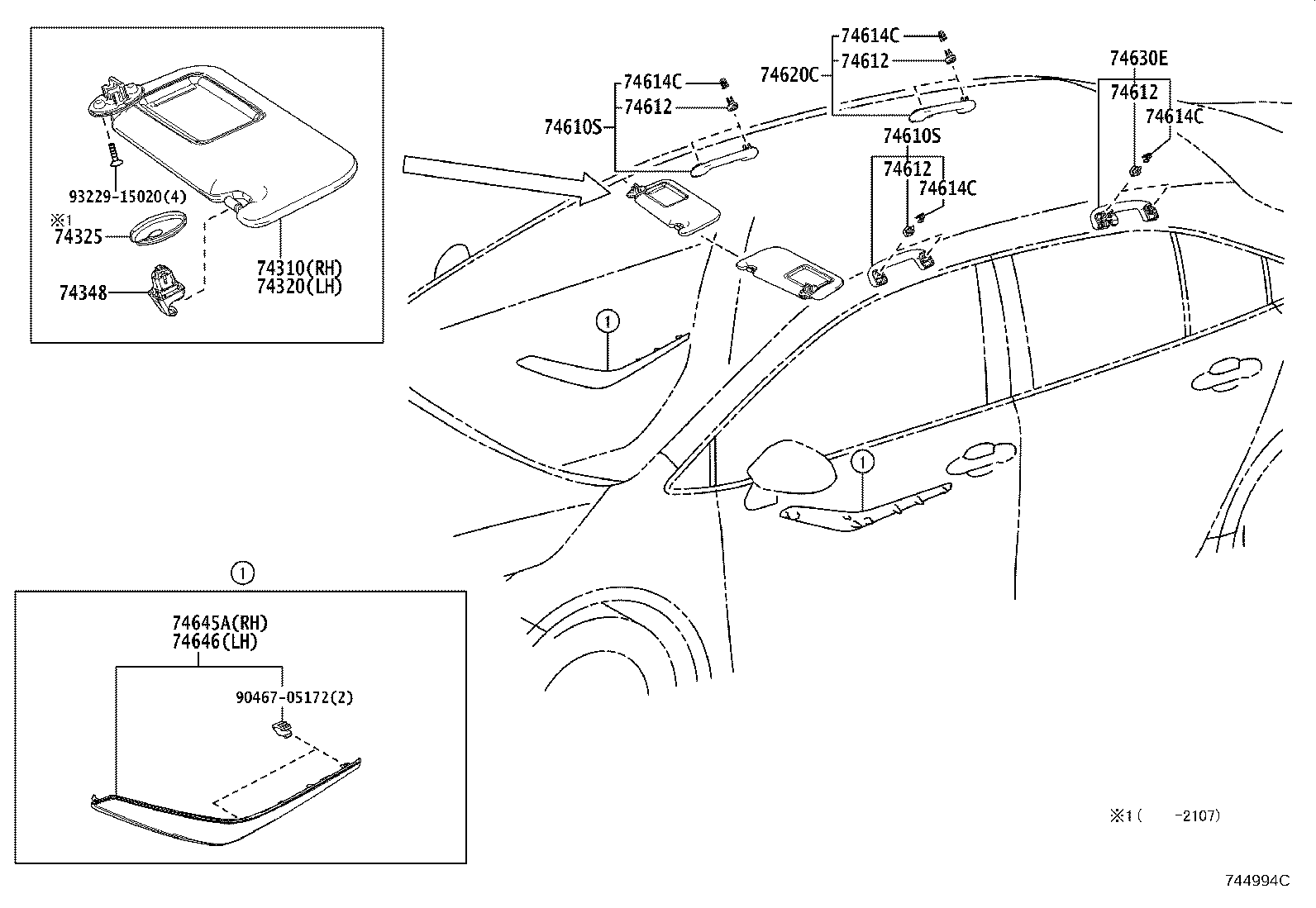

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-12J80C0	ZRE212,ZWE21#..HBDS,S BLACK,TRIM20,21	08/2019 - 07/2021	1
74310-12J80C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 07/2021	1
74310-12J80A0	ZRE212,ZWE21#..HBDS,S FROMAGE,TRIM20,21	08/2019 - 07/2021	1
74310-12J80A0	ZRE212,ZWE21#..GX,HBDGX FROMAGE,TRIM2#	08/2019 - 07/2021	1
74320 - VISOR ASSY, LH
74320-12J30A0	ZRE212,ZWE21#..HBDS,S FROMAGE,TRIM20,21	08/2019 - 07/2021	1
74320-12J30C0	ZRE212,ZWE21#..HBDS,S BLACK,TRIM20,21	08/2019 - 07/2021	1
74320-12J30A0	ZRE212,ZWE21#..GX,HBDGX FROMAGE,TRIM2#	08/2019 - 07/2021	1
74320-12J30C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 07/2021	1
74325 - COVER, VISOR BRACKET
74317-6002001	ZRE212,ZWE21#..GX,HBDGX FROMAGE,TRIM2#	08/2019 - 07/2021	2
74317-60020C2	ZRE212,ZWE21#..HBDS,S BLACK,TRIM20,21	08/2019 - 07/2021	2
74317-60020C2	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 07/2021	2
74317-6002001	ZRE212,ZWE21#..HBDS,S FROMAGE,TRIM20,21	08/2019 - 07/2021	2
74348 - HOLDER, VISOR
74348-47010C0	ZRE212,ZWE21#..HBDS,S BLACK,TRIM20,21	08/2019 - 12/2999	2
74348-47010A3	ZRE212,ZWE21#..GX,HBDGX FROMAGE,TRIM2#	08/2019 - 12/2999	2
74348-47010A3	ZRE212,ZWE21#..HBDS,S FROMAGE,TRIM20,21	08/2019 - 12/2999	2
74348-47010C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	2
74610S - GRIP ASSY, ASSIST
74610-12140A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	2
74610-12140C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	2
74610S - GRIP ASSY, ASSIST
74610-12140A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	2
74610-12140C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	2
74612 - COVER, ASSIST GRIP
74612-47070C2	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	8
74612-47070A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	8
74612 - COVER, ASSIST GRIP
74612-47070C2	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	8
74612-47070A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	8
74612 - COVER, ASSIST GRIP
74612-47070C2	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	8
74612-47070A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	8
74612 - COVER, ASSIST GRIP
74612-47070C2	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#	08/2019 - 12/2999	8
74612-47070A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#	08/2019 - 12/2999	8
74614C - PLATE, ASSIST GRIP LOCK
74614-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	8
74614C - PLATE, ASSIST GRIP LOCK
74614-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	8
74614C - PLATE, ASSIST GRIP LOCK
74614-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	8
74614C - PLATE, ASSIST GRIP LOCK
74614-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	8
74620C - GRIP ASSY, ASSIST, REAR RH
74610-12170A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#,ｺｰﾄﾌｯｸ付き	08/2019 - 07/2021	1
74610-12170C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#,ｺｰﾄﾌｯｸ付き	08/2019 - 07/2021	1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-12180A0	ZRE212,ZWE21#..GX,HBDGX,HBDS,S FROMAGE,TRIM2#,ｺｰﾄﾌｯｸ付き	08/2019 - 07/2021	1
74610-12180C0	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB BLACK,TRIM2#,ｺｰﾄﾌｯｸ付き	08/2019 - 07/2021	1
74645A - COVER, DOOR ASSIST GRIP, RH
74630-12170B0	ZRE212,ZWE21#..HBDS,S SILVER,TRIM2#	08/2019 - 12/2999	1
74645-12140	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74630-12170B0	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),SILVER,TRIM2#	10/2020 - 12/2999	1
74630-12170B0	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),SILVER,TRIM21	05/2020 - 09/2020	1
74646 - COVER, DOOR ASSIST GRIP, LH
74640-12160B0	ZRE212,ZWE21#..HBDS,S SILVER,TRIM2#	08/2019 - 12/2999	1
74640-12160B0	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),SILVER,TRIM21	05/2020 - 09/2020	1
74646-12140	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
74640-12160B0	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),SILVER,TRIM2#	10/2020 - 12/2999	1
Common parts
90467-05172
93229-15020
