ZWE211-AEXNB (2019)
Toyota Corolla

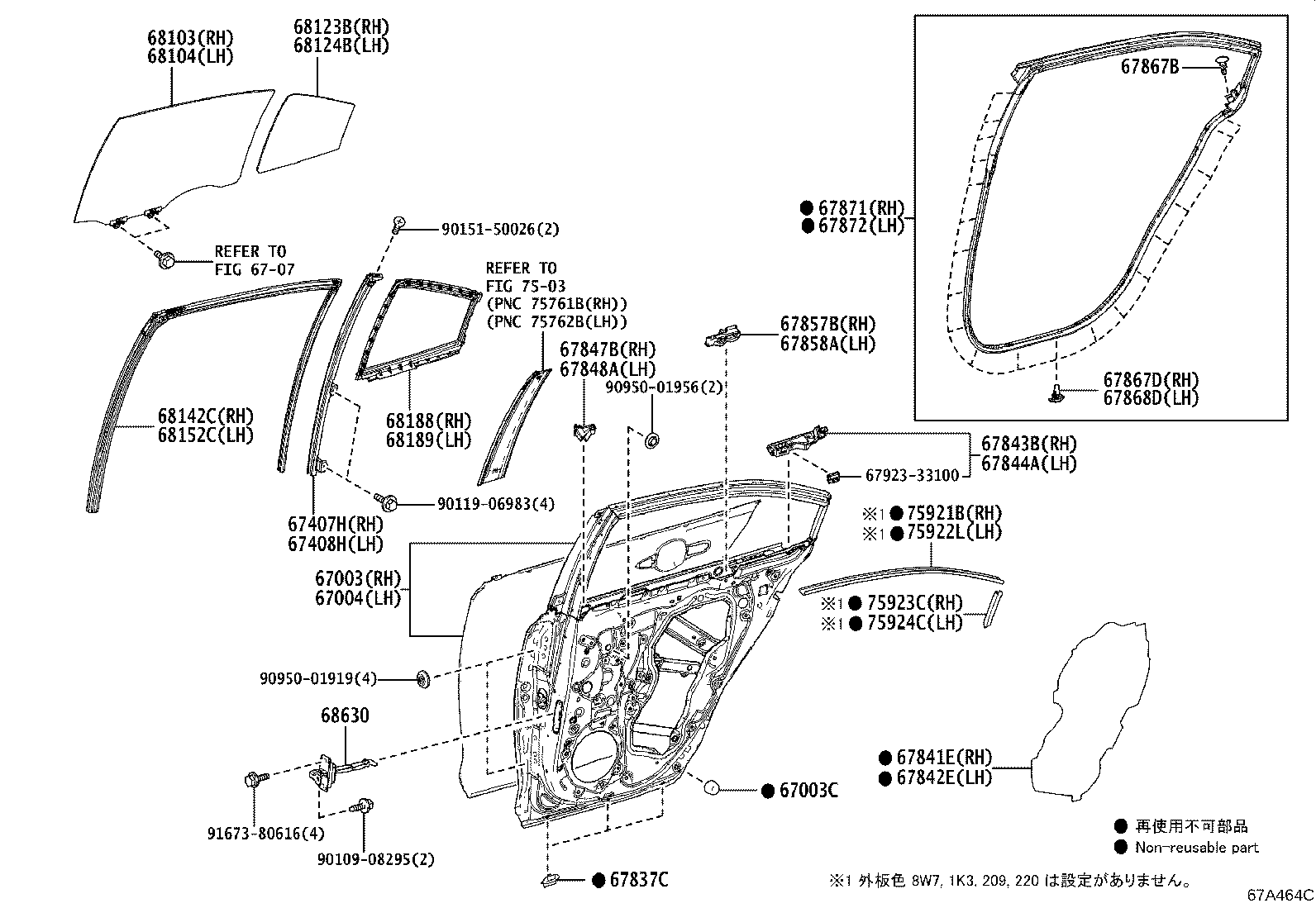

ILLUST NO. 1 OF 2(1908- )SED
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12C10 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12C10 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-12380 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-12380 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-47060 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12510 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-12040 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-12040 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-12030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-12030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12180 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67858A - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12130 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MZEA12,NRE210,ZRE212,ZWE21# |
20 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MZEA12,NRE210,ZRE212,ZWE21# |
20 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12600 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12600 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12A30 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68103-12A20 |
ZRE212,ZWE21#..SED..(GX,HBDGX) |
1 | ||
| 68103-12A30 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68103-12A30 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12A40 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 68104-12A30 |
ZRE212,ZWE21#..SED..(GX,HBDGX) |
1 | ||
| 68104-12A40 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68104-12A40 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12A50 |
ZRE212,ZWE21#..SED..(GX,HBDGX) |
1 | ||
| 68123-12A60 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 68123-12A60 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68123-12A60 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12A60 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68124-12A60 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 68124-12A50 |
ZRE212,ZWE21#..SED..(GX,HBDGX) |
1 | ||
| 68124-12A60 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P) |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12360 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12270 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12390 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12390 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 75921B - TAPE, BLACK OUT, NO.1 RH | ||||
| 75979-12060 |
ZRE212,ZWE21#..SED..(GX,HBDGX) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75979-12060 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75979-12060 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75922L - TAPE, BLACK OUT, NO.1 LH | ||||
| 75989-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75989-12030 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75989-12030 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75987-12480 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75987-12480 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75987-12480 |
ZRE212,ZWE21#..SED..(GX,HBDGX) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75988-12350 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75988-12350 |
ZRE212,ZWE21#..SED..(GX,HBDGX) 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75988-12350 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 67923-33100 | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

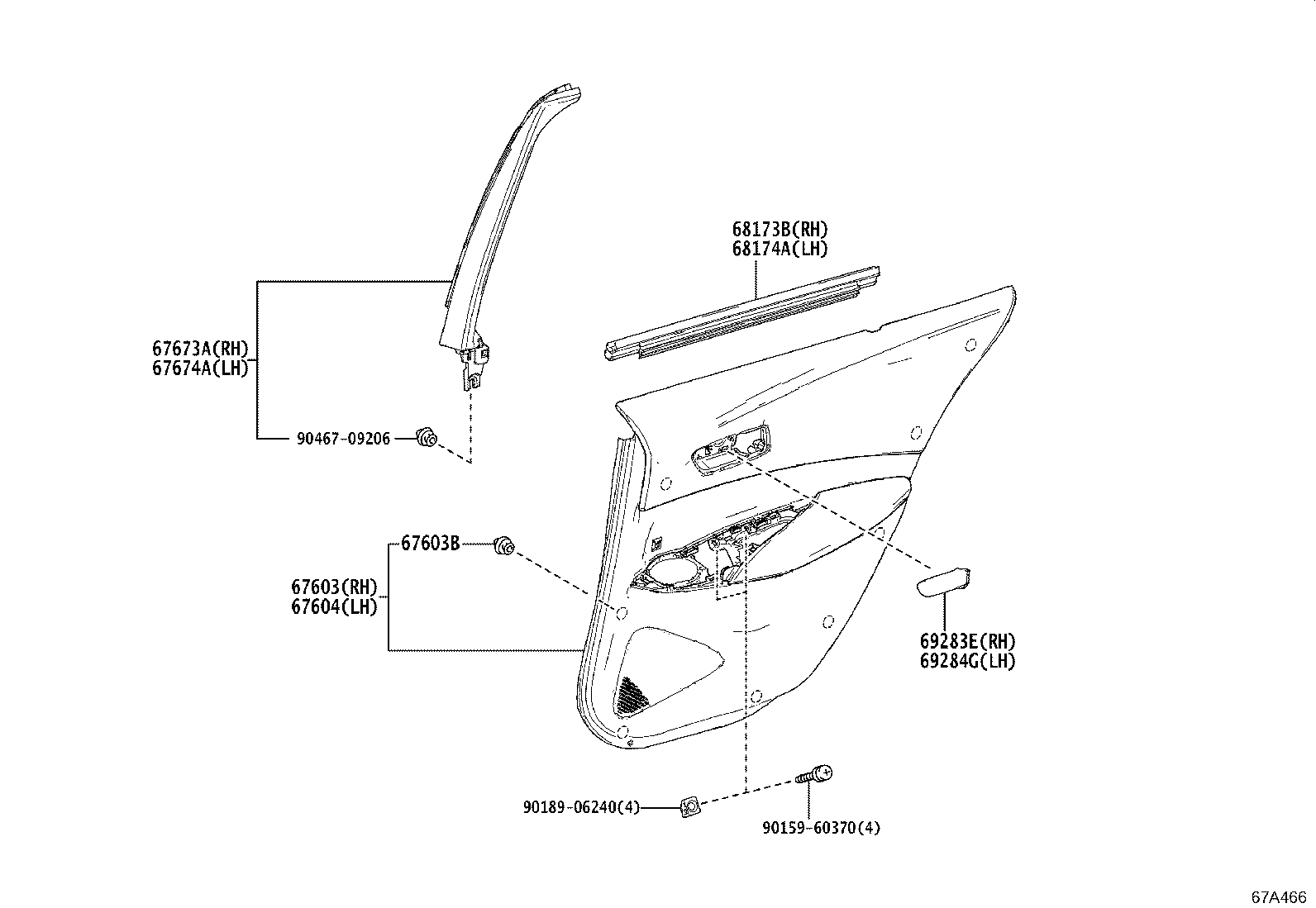

ILLUST NO. 2 OF 2(1908- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-12R30C5 |
ZRE212,ZWE21#..HBDS,S BLACK/BLACK/GRAY,TRIM21 |
1 | ||
| 67630-12P10C2 |
ZRE212,ZWE21#..GX,HBDGX BLACK/BLACK,TRIM21 |
1 | ||
| 67630-12P10C3 |
ZRE212,ZWE21#..GX,HBDGX BLACK/GRAY,TRIM20 |
1 | ||
| 67630-12R30C6 |
ZRE212,ZWE21#..HBDS,S BLACK/GRAY/GRAY,TRIM20 |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MZEA12,NRE210,ZRE212,ZWE21# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-12P10C2 |
ZRE212,ZWE21#..GX,HBDGX BLACK/BLACK,TRIM21 |
1 | ||
| 67640-12R30C5 |
ZRE212,ZWE21#..HBDS,S BLACK/BLACK/GRAY,TRIM21 |
1 | ||
| 67640-12P10C3 |
ZRE212,ZWE21#..GX,HBDGX BLACK/GRAY,TRIM20 |
1 | ||
| 67640-12R30C6 |
ZRE212,ZWE21#..HBDS,S BLACK/GRAY/GRAY,TRIM20 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-12021 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-12011 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-12390 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-12250 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 74037-12020C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 74038-12020C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06240 | ||||
| 90467-09206 | ||||
