Toyota Corolla ZWE211 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
COROLLA
ZWE211-AEXNB (2019)
6701 - FRONT DOOR PANEL & GLASS

ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

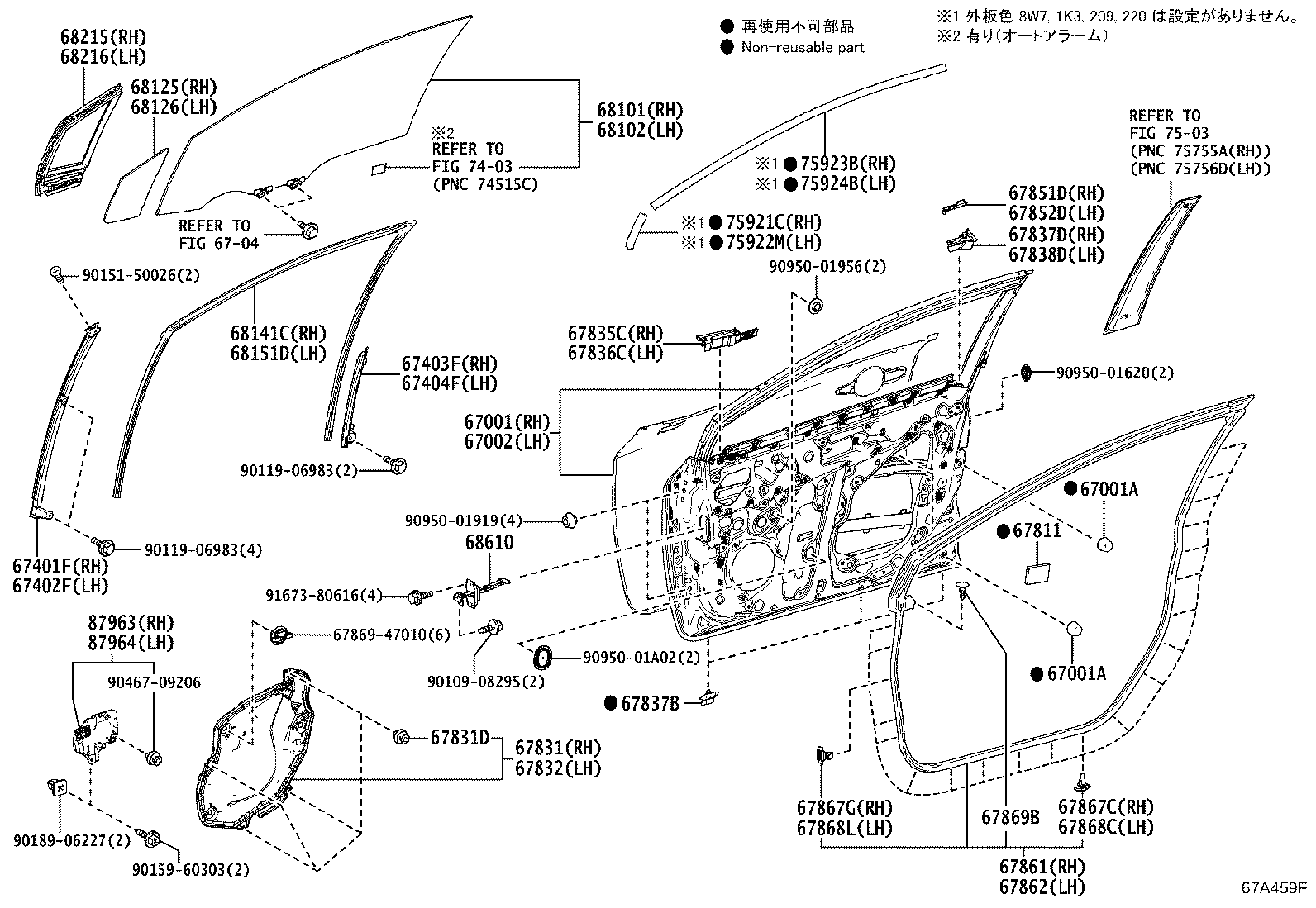

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-12C10	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09124	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
67001A - CUSHION, FRONT DOOR PANEL
90541-09124	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-12C10	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12380	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12400	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12330	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12310	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67811 - PAD, FRONT DOOR SILENCER
67811-12180	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	4
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12750	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER)
90467-09206	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	8
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12530	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67835-12040	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67836-12060	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67837B - SEAL, FRONT DOOR DUST PROOF
67837-47060	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67837D - SEAL, FRONT DOOR VENT, RH
67837-12090	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67838D - SEAL, FRONT DOOR VENT, LH
67838-12040	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH
67851-12010	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH
67852-12010	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12B30	MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様	08/2019 - 12/2999	1
67861-12B20	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12B30	MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様	08/2019 - 12/2999	1
67862-12B20	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	20
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	20
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67868-30030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-12F10	ZWE21#..HBDGX 寒冷地仕様	08/2019 - 10/2020	1
68101-12D90	ZWE21#..HBDGX 寒冷地仕様	10/2020 - 12/2999	1
68101-12E80	ZWE21#..HBDGX	08/2019 - 10/2020	1
68101-12E00	ZWE21#..HBDGX	10/2020 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-12E70	ZWE21#..HBDGX	08/2019 - 10/2020	1
68102-12D80	ZWE21#..HBDGX	10/2020 - 12/2999	1
68102-12F00	ZWE21#..HBDGX 寒冷地仕様	08/2019 - 10/2020	1
68102-12D70	ZWE21#..HBDGX 寒冷地仕様	10/2020 - 12/2999	1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68125-12030	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
68125-12020	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
68125-12030	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68126-12030	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
68126-12020	ZRE212,ZWE21#..GX,HBDGX	08/2019 - 12/2999	1
68126-12030	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12621	NRE210,ZRE212,ZWE21#	08/2019 - 03/2020	1
68141-12622	MZEA12,NRE210,ZRE212,ZWE21#	03/2020 - 12/2999	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-12322	MZEA12,NRE210,ZRE212,ZWE21#	03/2020 - 12/2999	1
68151-12321	NRE210,ZRE212,ZWE21#	08/2019 - 03/2020	1
68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68215-12010	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68216-12010	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
68610 - CHECK ASSY, FRONT DOOR
68610-12290	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
75921C - TAPE, BLACK OUT, NO.1 RH
75975-12080	ZRE212,ZWE21#..GX,HBDGX 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 10/2020	1
75975-12080	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照	10/2020 - 12/2999	1
75975-12080	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 12/2999	1
75922M - TAPE, BLACK OUT, NO.1 LH
75976-12060	ZRE212,ZWE21#..GX,HBDGX 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 10/2020	1
75976-12060	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 12/2999	1
75976-12060	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照	10/2020 - 12/2999	1
75923B - TAPE, BLACK OUT, NO.2 RH
75985-12800	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照	10/2020 - 12/2999	1
75985-12800	ZRE212,ZWE21#..GX,HBDGX 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 10/2020	1
75985-12800	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 12/2999	1
75924B - TAPE, BLACK OUT, NO.2 LH
75986-12480	ZRE212,ZWE21#..GX,HBDGX 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 10/2020	1
75986-12480	ZRE212,ZWE21#..GX,HBDGX “PLUS”*(P),個数0or1個､ｲﾗｽﾄ参照	10/2020 - 12/2999	1
75986-12480	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB 個数0or1個､ｲﾗｽﾄ参照	08/2019 - 12/2999	1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-12020	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
Common parts
67869-47010
90109-08295
90119-06983
90151-50026
90159-60303
90189-06227
90467-09206
90950-01620
90950-01919
90950-01956
90950-01A02
91673-80616
Linked diagrams
6704
7403
7503

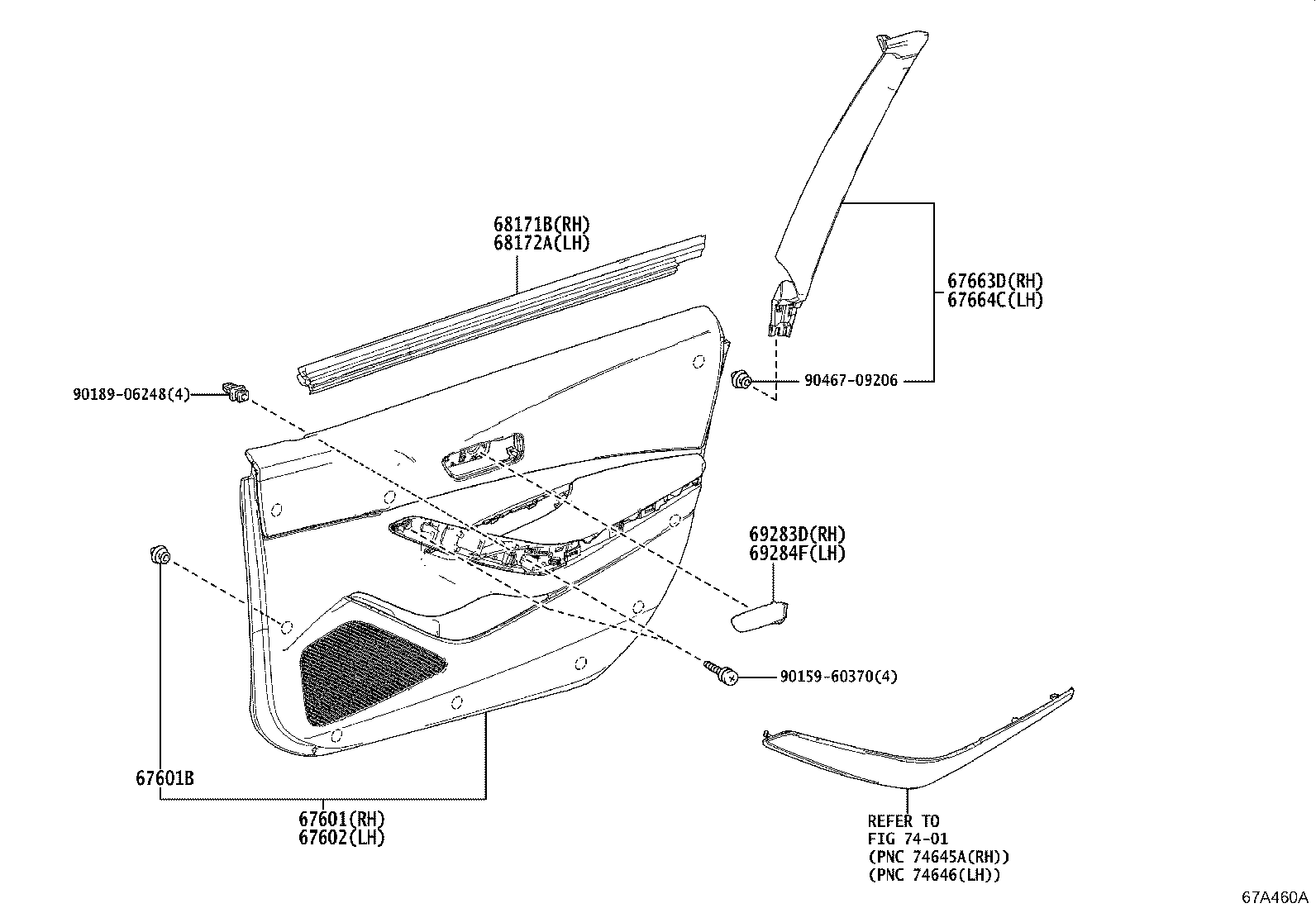

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-12S70C4	ZRE212,ZWE21#..GX,HBDGX BLACK/GRAY,TRIM20	08/2019 - 12/2999	1
67610-12S80C6	ZRE212,ZWE21#..HBDS,S BLACK/GRAY/GRAY,TRIM20	08/2019 - 12/2999	1
67610-12S70C3	ZRE212,ZWE21#..GX,HBDGX BLACK/BLACK,TRIM21	08/2019 - 12/2999	1
67610-12S80C5	ZRE212,ZWE21#..HBDS,S BLACK/BLACK/GRAY,TRIM21	08/2019 - 12/2999	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	18
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-12Q30C6	ZRE212,ZWE21#..HBDS,S BLACK/GRAY/GRAY,TRIM20	08/2019 - 12/2999	1
67620-12Q10C3	ZRE212,ZWE21#..GX,HBDGX BLACK/BLACK,TRIM21	08/2019 - 12/2999	1
67620-12Q10C4	ZRE212,ZWE21#..GX,HBDGX BLACK/GRAY,TRIM20	08/2019 - 12/2999	1
67620-12Q30C5	ZRE212,ZWE21#..HBDS,S BLACK/BLACK/GRAY,TRIM21	08/2019 - 12/2999	1
67663D - GARNISH, DOOR FRAME, RH
67663-12031	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
67664C - GARNISH, DOOR FRAME, LH
67664-12031	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-12400	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-12320	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
74037-12020C0	MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2#	08/2019 - 12/2999	1
69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
74038-12020C0	MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2#	08/2019 - 12/2999	1
Common parts
90159-60370
90189-06248
90467-09206
Linked diagrams
7401
