ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )SED

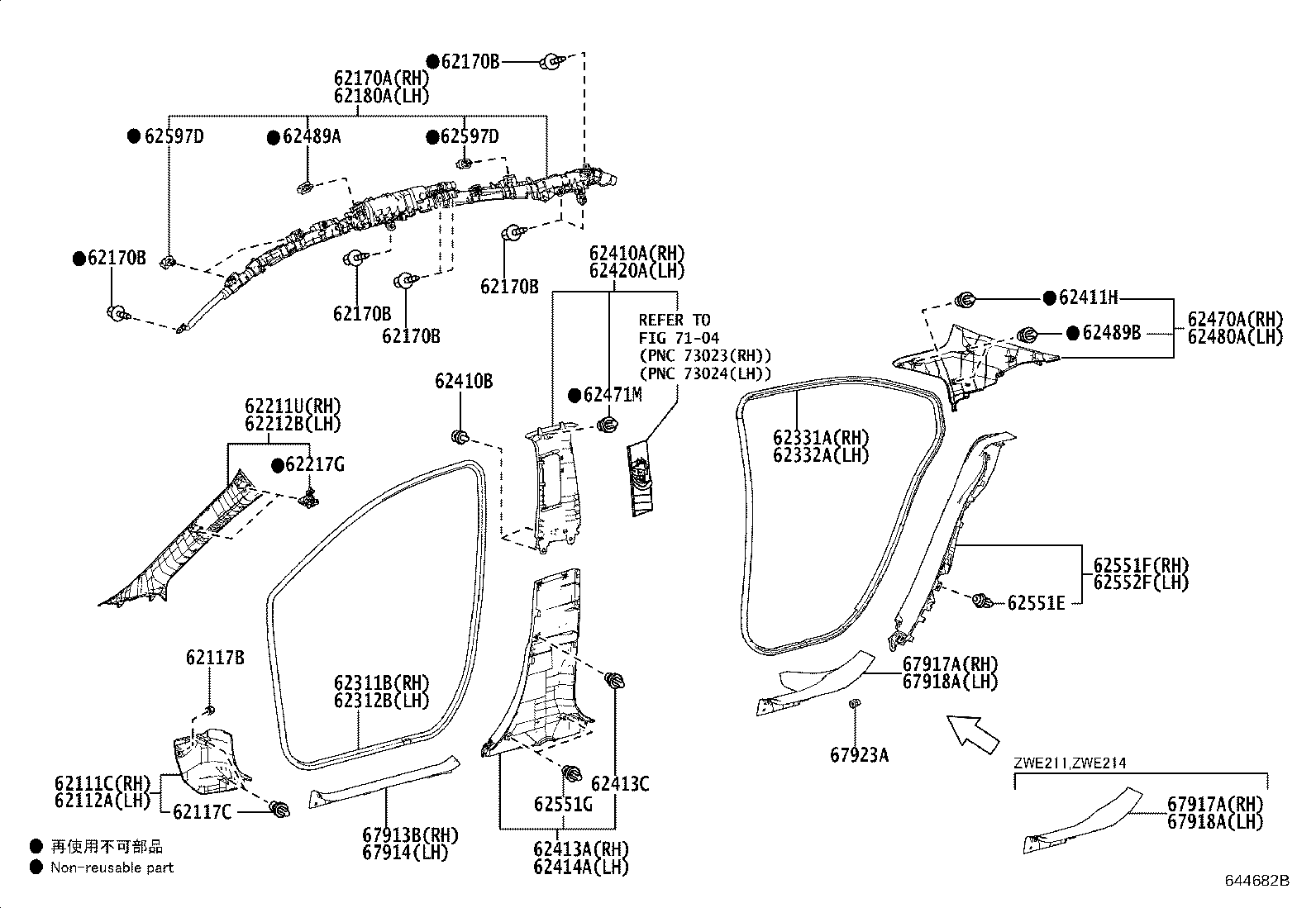

Click highlighted areas on diagram

diagram 62111C 62112A 62117B 62117C 62170A 62170B 62170B 62170B 62170B 62170B 62180A 62211U 62212B 62217G 62311B 62312B 62331A 62332A 62410A 62410B 62411H 62413A 62413C 62414A 62420A 62470A 62471M 62480A 62489A 62489B 62551E 62551F 62551G 62552F 62597D 62597D 67913B 67914 67917A 67917A 67918A 67918A 67923A 7104
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-12390C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62112-12450C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

MZEA12,NRE210,ZRE212,ZWE21#

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-10167

MZEA12,NRE210,ZRE212,ZWE21#

 4
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-12210

NRE210,ZRE212,ZWE21#..SED

 1
62170B - BOLT, W/WASHER
91673-80616

MZEA12,NRE210,ZRE212,ZWE21#

 14
62170B - BOLT, W/WASHER
91673-80616

MZEA12,NRE210,ZRE212,ZWE21#

 14
62170B - BOLT, W/WASHER
91673-80616

MZEA12,NRE210,ZRE212,ZWE21#

 14
62170B - BOLT, W/WASHER
91673-80616

MZEA12,NRE210,ZRE212,ZWE21#

 14
62170B - BOLT, W/WASHER
91673-80616

MZEA12,NRE210,ZRE212,ZWE21#

 14
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-12210

NRE210,ZRE212,ZWE21#..SED

 1
62211U - GARNISH ASSY, FRONT PILLAR, RH
62210-12160A0

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

FROMAGE,TRIM2#

 1
62210-12160C0

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

BLACK,TRIM2#

 1
62212B - GARNISH ASSY, FRONT PILLAR, LH
62220-12160A0

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

FROMAGE,TRIM2#

 1
62220-12160C0

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

BLACK,TRIM2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-42050

MZEA12,NRE210,ZRE212,ZWE21#

 4
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-12290

MZEA12,NRE210,ZRE212,ZWE21#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-12300

MZEA12,NRE210,ZRE212,ZWE21#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-12280

NRE210,ZRE212,ZWE21#..SED

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-12280

NRE210,ZRE212,ZWE21#..SED

 1
62410A - GARNISH ASSY, CENTER PILLAR, RH
62410-12120C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62410B - CLIP
90467-10216

MZEA12,NRE210,ZRE212,ZWE21#

 4
62411H - CLIP
90467-10188

MZEA12,NRE210,ZRE212,ZWE21#

 2
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12360C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

MZEA12,NRE210,ZRE212,ZWE21#

 2
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12350C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62420A - GARNISH ASSY, CENTER PILLER, LH
62420-12120C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
62470A - GARNISH ASSY, ROOF SIDE, INNER RH
62470-12260A0

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

FROMAGE,TRIM2#

 1
62471M - CLIP
90467-10167

MZEA12,NRE210,ZRE212,ZWE21#

 2
62480A - GARNISH ASSY, ROOF SIDE, INNER LH
62480-12260A0

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

FROMAGE,TRIM2#

 1
62489A - CLIP, ROOF SIDE INNER GARNISH
62489-28010

MZEA12,NRE210,ZRE212,ZWE21#

 2
62489B - CLIP, ROOF SIDE INNER GARNISH
90467-10161

NRE210,ZRE212,ZWE21#..SED

 4
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
62217-13010

MZEA12,NRE210,ZRE212,ZWE21#

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-12330C0

NRE210,ZRE212,ZWE21#..SED

BLACK,TRIM2#

 1
62551G - CLIP
90467-09236

MZEA12,NRE210,ZRE212,ZWE21#

 4
62552F - GARNISH, REAR SEAT SIDE, LH
62552-12320C0

NRE210,ZRE212,ZWE21#..SED

BLACK,TRIM2#

 1
62597D - CLIP
90467-18017

MZEA12,NRE210,ZRE212,ZWE21#

 6
62597D - CLIP
90467-18017

MZEA12,NRE210,ZRE212,ZWE21#

 6
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-12340C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12300C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12270C0

ZWE21#

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12270C0

ZWE21#

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12260C0

ZWE21#

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12260C0

ZWE21#

BLACK,TRIM2#

 1
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
67923-20090

MZEA12,NRE210,ZRE212,ZWE21#

 2
Linked diagrams
7104
