ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )SED

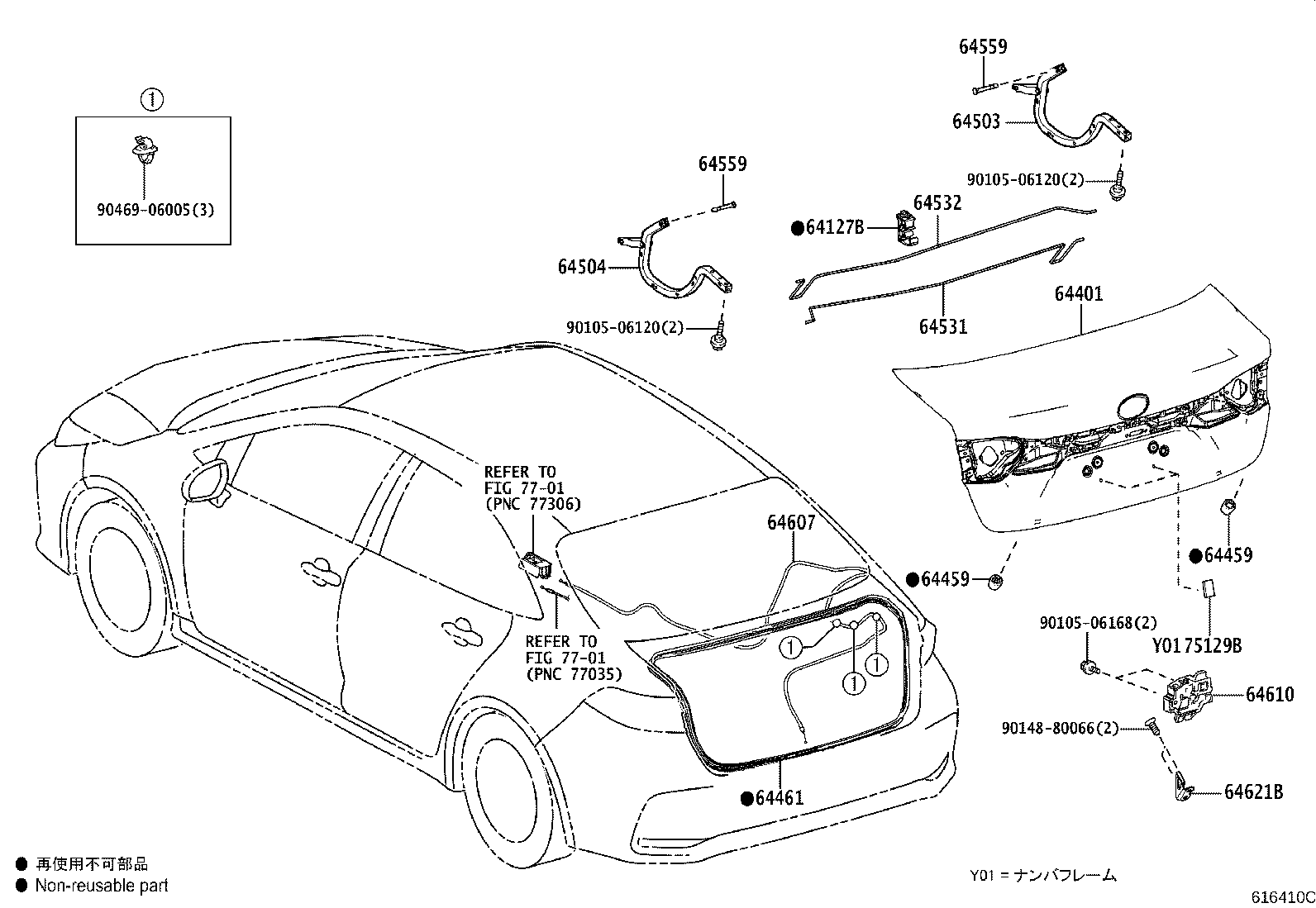

Click highlighted areas on diagram

diagram 64127B 64401 64459 64459 64461 64503 64504 64531 64532 64559 64559 64607 64610 64621B 75129B 7701 7701 9010506120 9010506120 9010506168 9014880066 9046906005
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33071

NRE210,ZRE212,ZWE21#..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12F30

ZRE212,ZWE21#..SED..(GX,HBDGX)

ﾊﾞｯｸﾓﾆﾀ−有り(*BGM)

 1
64401-12F10

ZRE212,ZWE21#..SED..(GX,HBDGX)

 1
64401-12F30

ZRE212,ZWE21#..SED..(GX,HBDGX)

“PLUS”*(P)

 1
64401-12F30

ZRE212,ZWE21#..SED..(HBDS,S)

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

NRE210,ZRE212,ZWE21#..SED

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

NRE210,ZRE212,ZWE21#..SED

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12620

NRE210,ZRE212,ZWE21#..SED

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12210

NRE210,ZRE212,ZWE21#..SED

 1
64503-12211

NRE210,ZRE212,ZWE21#..SED

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12211

NRE210,ZRE212,ZWE21#..SED

 1
64503-12210

NRE210,ZRE212,ZWE21#..SED

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12A61

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
64531-12A60

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12A50

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
64532-12A51

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

NRE210,ZRE212,ZWE21#..SED

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

NRE210,ZRE212,ZWE21#..SED

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12A80

NRE210,ZRE212,ZWE21#..SED

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-12100

NRE210,ZRE212,ZWE21#..SED

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33030

NRE210,ZRE212,ZWE21#..SED

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-30010

NRE210,ZRE212,ZWE21#..SED

 2
Common parts
90105-06120
90105-06168
90148-80066
90469-06005
Linked diagrams
7701
