ZWE211-AEXNB (2019)
Toyota Corolla

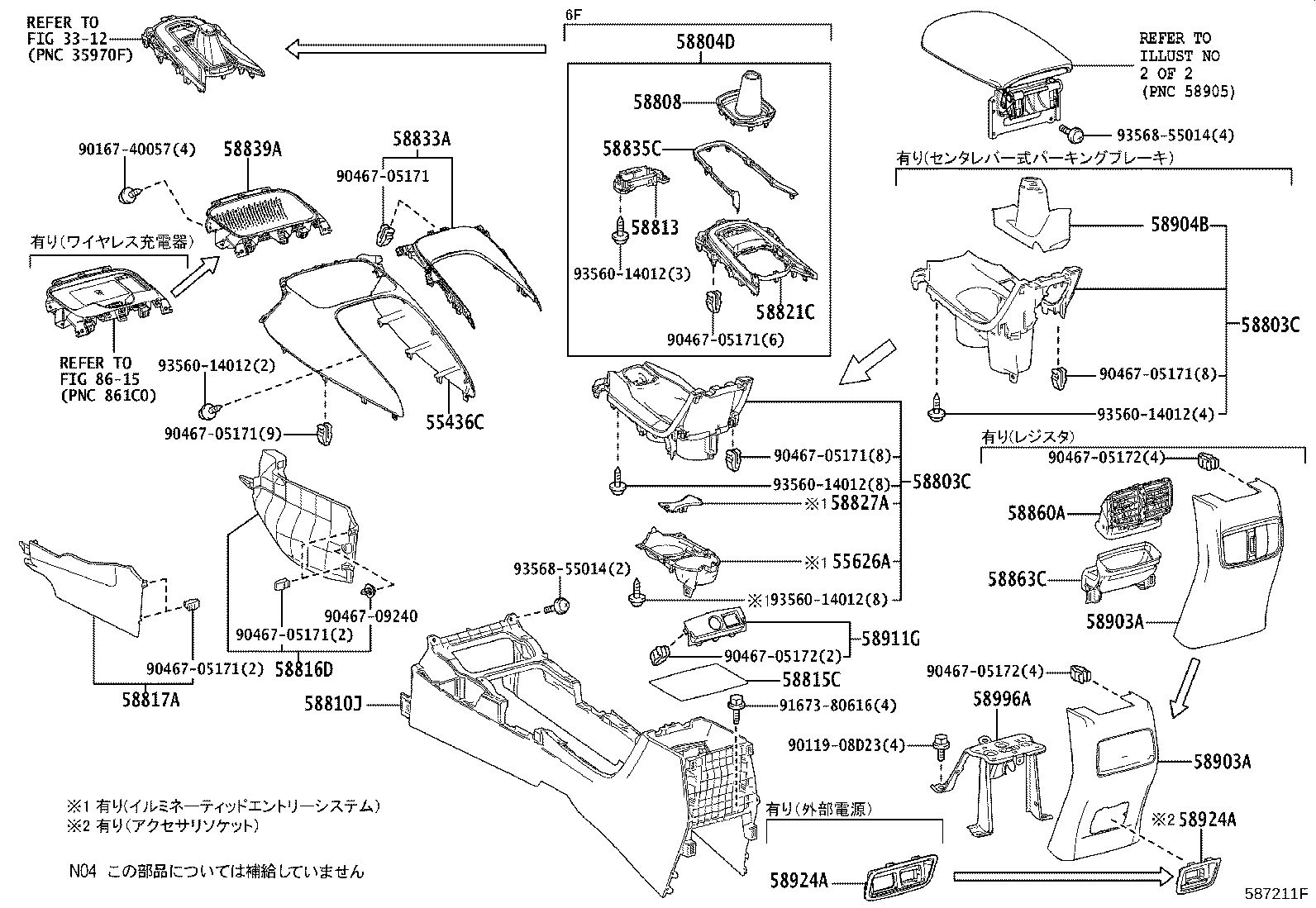

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12200C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-12050 |
ZWE21#..HBDGX |
1 | ||
| 58803-12110 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-12050 |
ZWE21#..HBDGX |
1 | ||
| 58803-12110 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-12520C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-12240 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-12160C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-12170C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-12150C0 |
ZRE212,ZWE21#..GX,HBDGX BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-12090C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58839-12100C0 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),BLACK,TRIM2# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-12010 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｸｰﾗﾘﾔﾀﾞｸﾄ−有り |
1 | ||
| 58863C - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-12040 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｸｰﾗﾘﾔﾀﾞｸﾄ−有り |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-12100C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58903-12090C0 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｸｰﾗﾘﾔﾀﾞｸﾄ−有り,BLACK,TRIM2# |
1 | ||
| 58903-12120C0 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58903-12150C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-12100C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58903-12090C0 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｸｰﾗﾘﾔﾀﾞｸﾄ−有り,BLACK,TRIM2# |
1 | ||
| 58903-12120C0 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58903-12150C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58911G - PANEL, BOX, NO.1 | ||||
| 58911-12580C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-12060C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58924-12050C0 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58924A - PANEL, CONSOLE REAR END, NO.2 | ||||
| 58924-12060C0 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58924-12050C0 |
ZWE21#..SED..(HBDGX,HBDS) ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個,BLACK,TRIM2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12290 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 58996-12240 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90167-40057 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8615 | ||||

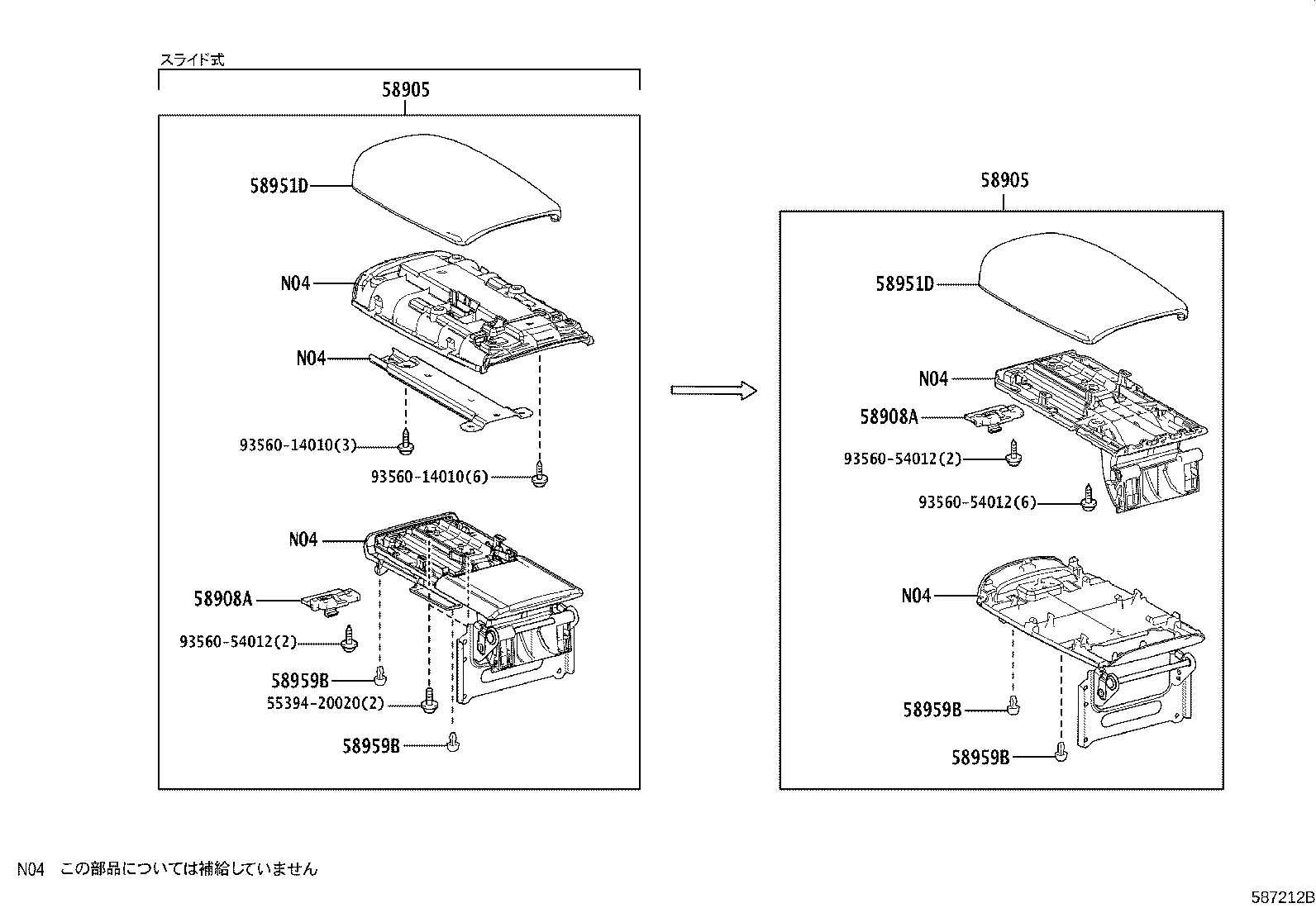

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12A90B1 |
ZRE212,ZWE21#..GX,HBDGX GRAY,TRIM20 |
1 | ||
| 58905-12B40C0 |
ZRE212,ZWE21#..HBDS,S BLACK,TRIM21 |
1 | ||
| 58905-12A90C3 |
ZRE212,ZWE21#..GX,HBDGX BLACK,TRIM21 |
1 | ||
| 58905-12B40B0 |
ZRE212,ZWE21#..HBDS,S GRAY,TRIM20 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12A90B1 |
ZRE212,ZWE21#..GX,HBDGX GRAY,TRIM20 |
1 | ||
| 58905-12B40C0 |
ZRE212,ZWE21#..HBDS,S BLACK,TRIM21 |
1 | ||
| 58905-12A90C3 |
ZRE212,ZWE21#..GX,HBDGX BLACK,TRIM21 |
1 | ||
| 58905-12B40B0 |
ZRE212,ZWE21#..HBDS,S GRAY,TRIM20 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-12810C0 |
ZRE212,ZWE21#..GX,HBDGX BLACK,TRIM21 |
1 | ||
| 58951-12830C0 |
ZRE212,ZWE21#..HBDS,S BLACK,TRIM21 |
1 | ||
| 58951-12830B0 |
ZRE212,ZWE21#..HBDS,S GRAY,TRIM20 |
1 | ||
| 58951-12810B0 |
ZRE212,ZWE21#..GX,HBDGX GRAY,TRIM20 |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-12810C0 |
ZRE212,ZWE21#..GX,HBDGX BLACK,TRIM21 |
1 | ||
| 58951-12830C0 |
ZRE212,ZWE21#..HBDS,S BLACK,TRIM21 |
1 | ||
| 58951-12830B0 |
ZRE212,ZWE21#..HBDS,S GRAY,TRIM20 |
1 | ||
| 58951-12810B0 |
ZRE212,ZWE21#..GX,HBDGX GRAY,TRIM20 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEA12,NRE210,ZRE212,ZWE21# |
4 | ||
| Common parts | ||||
| 55394-20020 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
