ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )SED

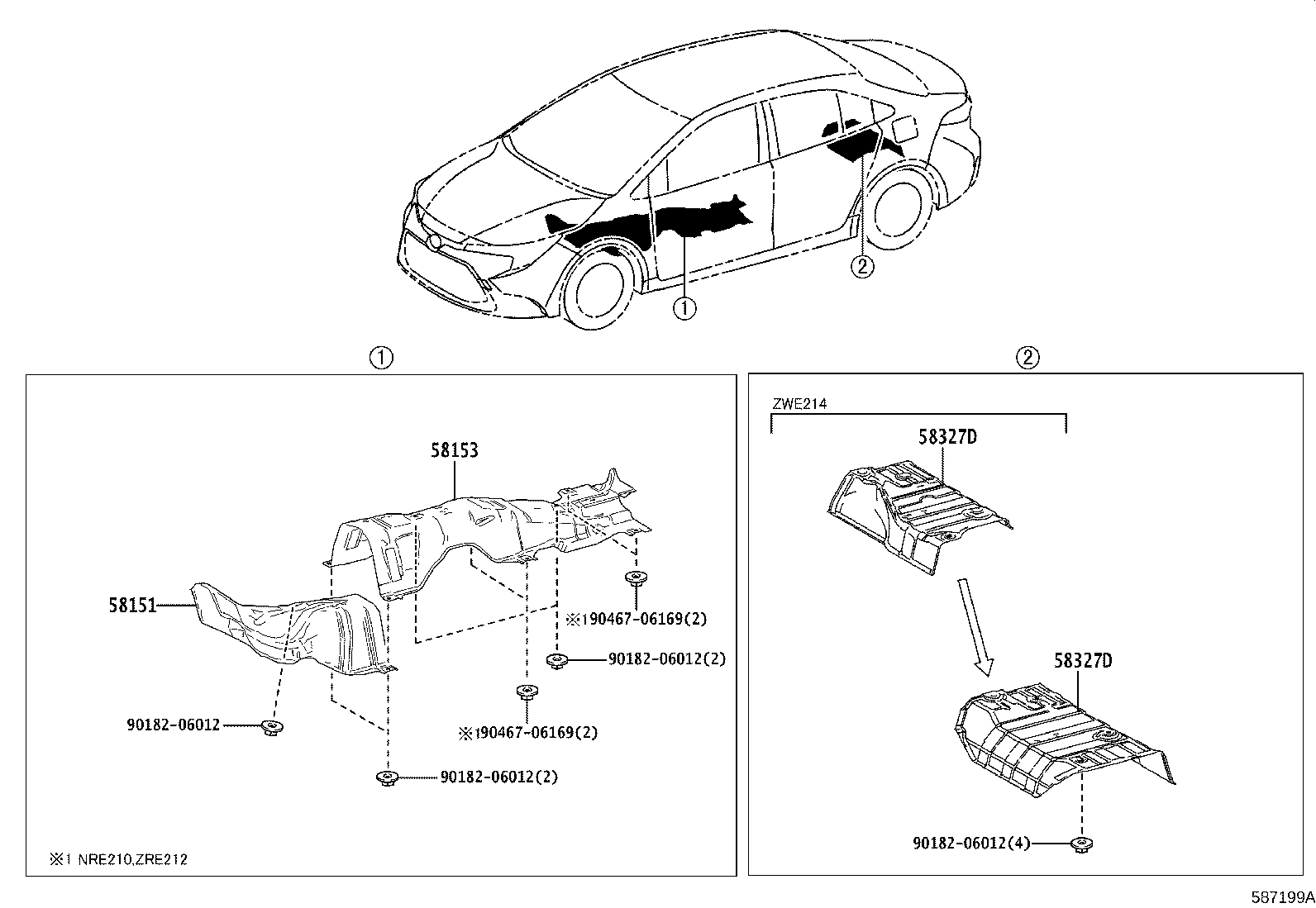

Click highlighted areas on diagram

diagram 58151 58153 58327D 58327D 9018206012 9018206012 9018206012 9018206012 9046706169 9046706169
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-12420

ZWE21#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12230

MZEA12,NRE210,ZRE212,ZWE21#

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-12260

NRE210,ZRE212,ZWE211..SED

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-12260

NRE210,ZRE212,ZWE211..SED

 1
Common parts
90182-06012
90467-06169
