ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

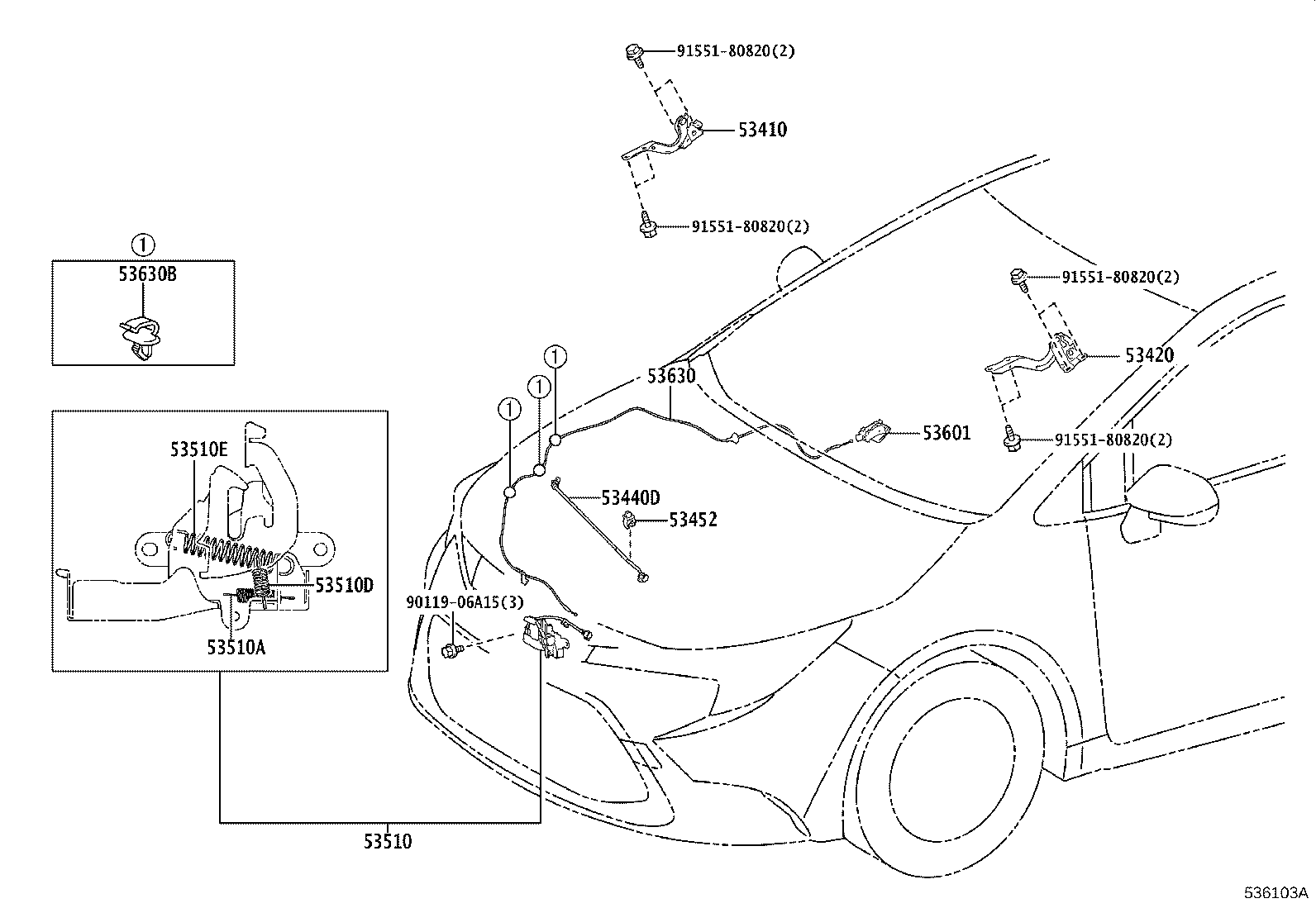

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53510 53510A 53510D 53510E 53601 53630 53630B 9011906A15 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12740

MZEA12,NRE210,ZRE212,ZWE21#

 1
53420 - HINGE ASSY, HOOD, LH
53420-12730

MZEA12,NRE210,ZRE212,ZWE21#

 1
53440D - SUPPORT ASSY, HOOD
53440-12220

MZEA12,NRE210,ZRE212,ZWE21#

 1
53452 - HOLDER, HOOD STAY
53452-15020

MZEA12,NRE210,ZRE212,ZWE21#

 1
53510 - LOCK ASSY, HOOD
53510-12C70

MZEA12,NRE210,ZRE212,ZWE21#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

MZEA12,NRE210,ZRE212,ZWE21#

線径=1.8,ｺｲﾙ巻数=13

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

MZEA12,NRE210,ZRE212,ZWE21#

線径=1.2,ｺｲﾙ巻数=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

MZEA12,NRE210,ZRE212,ZWE21#

線径=0.9,ｺｲﾙ巻数=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12730

MZEA12,NRE210,ZRE212,ZWE21#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

MZEA12,NRE210,ZRE212,ZWE21#

 3
Common parts
90119-06A15
91551-80820
