Toyota Corolla ZWE211 HOOD & FRONT FENDER

Part #	Description	Period	Qty
53153B - GUIDE, FRONT SIDE AIR
53153-12090	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB	08/2019 - 12/2999	1
53154E - GUIDE, FRONT SIDE AIR, NO.2
53154-12060	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB	08/2019 - 12/2999	1
53301 - HOOD SUB-ASSY
53301-12B70	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53301B - CUSHION, HOOD BUMPER
53384-78010	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
53336A - BRACKET, HOOD STAY
53336-12030	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53801 - FENDER SUB-ASSY, FRONT RH
53801-12B20	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-12B20	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53813D - EXTENSION, FRONT FENDER
53813-48011	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-12060	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-12050	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-12100	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-12080	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-12160	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53827-12160	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-12170	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53828-12170	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	2
53857-12010	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	2
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-12010	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	2
53857-12010	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	2
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-47011	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53857-47011	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	2
53857-12010	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	2
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-12010	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	2
53857-12010	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	2
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-47011	ZRE212,ZWE21#..GX,HBDGX 寒冷地仕様	08/2019 - 12/2999	1
53857-47011	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53882F - SEAL, FRONT FENDER
53882-33060	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
53936C - CUSHION
90541-09117	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	2
Common parts
90333-16003
90950-06096
91621-J0814
91635-A0616

Part #	Description	Period	Qty
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-47061	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-47041	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	1
53875A - LINER, FRONT FENDER, RH
53805-12130	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB	08/2019 - 12/2999	1
53805-12120	ZRE212,ZWE21#..GX,HBDGX,HBDS,S	08/2019 - 12/2999	1
53875C - CLIP, FRONT FENDER LINER
90467-07214	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB	08/2019 - 12/2999	4
90467-07220	ZRE212,ZWE21#..GX,HBDGX,HBDS,S	08/2019 - 12/2999	4
53875P - SCREW, NO.1
90159-60477	MZEA12,NRE210,ZRE212,ZWE21#	08/2019 - 12/2999	6
53876A - LINER, FRONT FENDER, LH
53806-12130	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB	08/2019 - 12/2999	1
53806-12120	ZRE212,ZWE21#..GX,HBDGX,HBDS,S	08/2019 - 12/2999	1
53879A - RETAINER, FRONT FENDER LINER
53879-47020	MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB	08/2019 - 12/2999	6
Common parts
90159-60477
90159-60623
90189-06006
90189-06145
90189-06236
90467-07214
Linked diagrams
5201

ZWE211-AEXNB (2019)

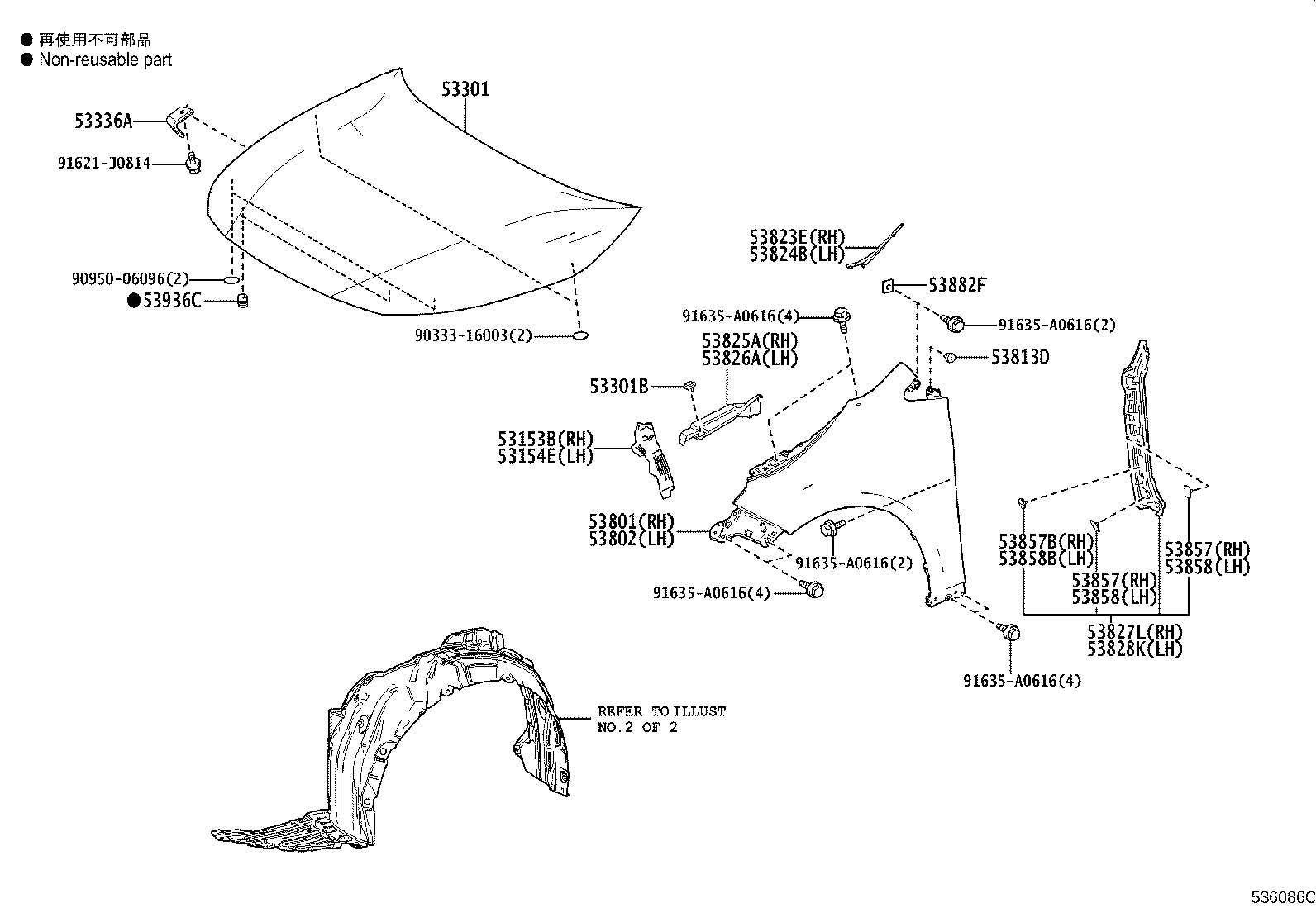

ILLUST NO. 1 OF 2(1908- )

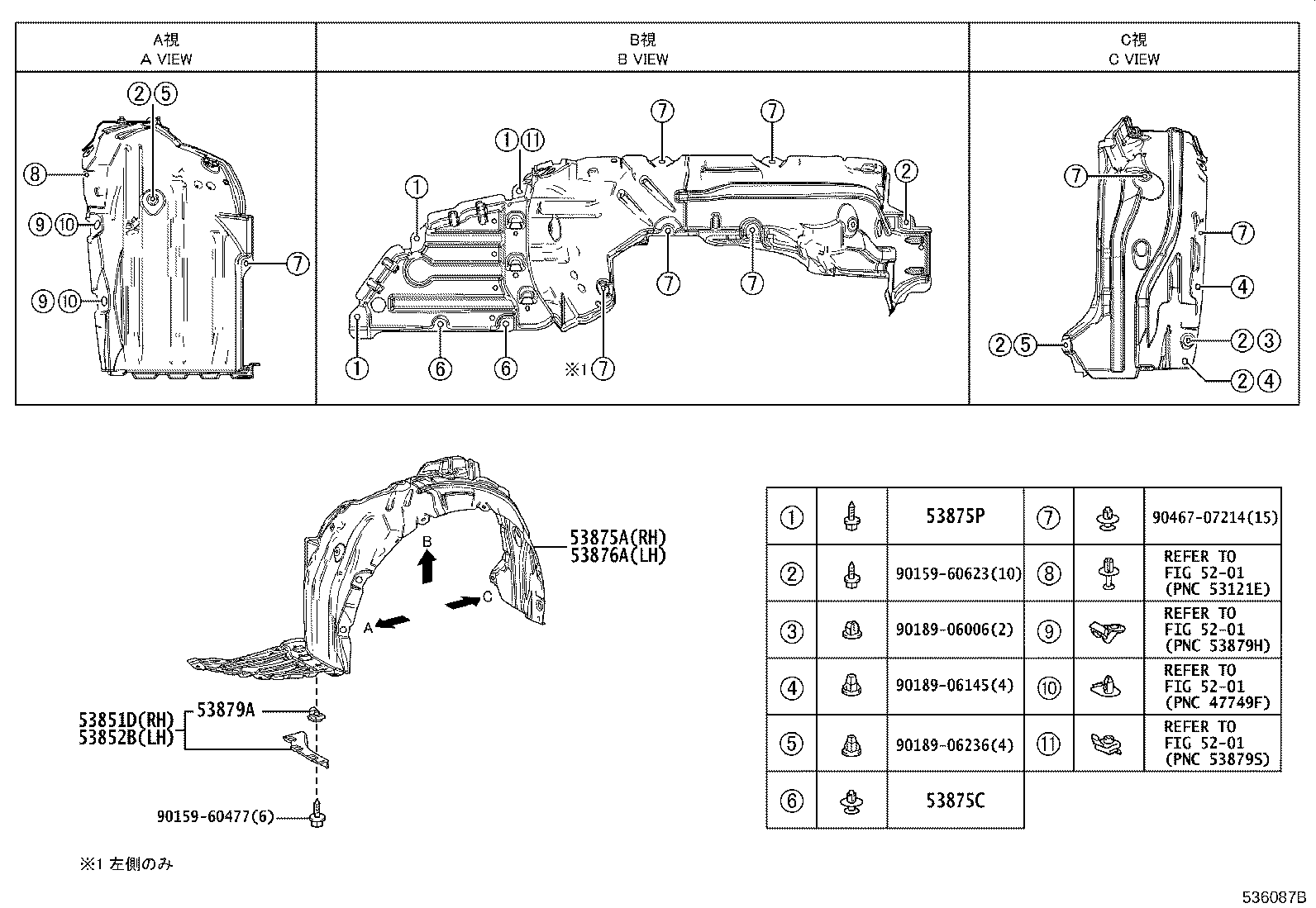

ILLUST NO. 2 OF 2(1908- )
