ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

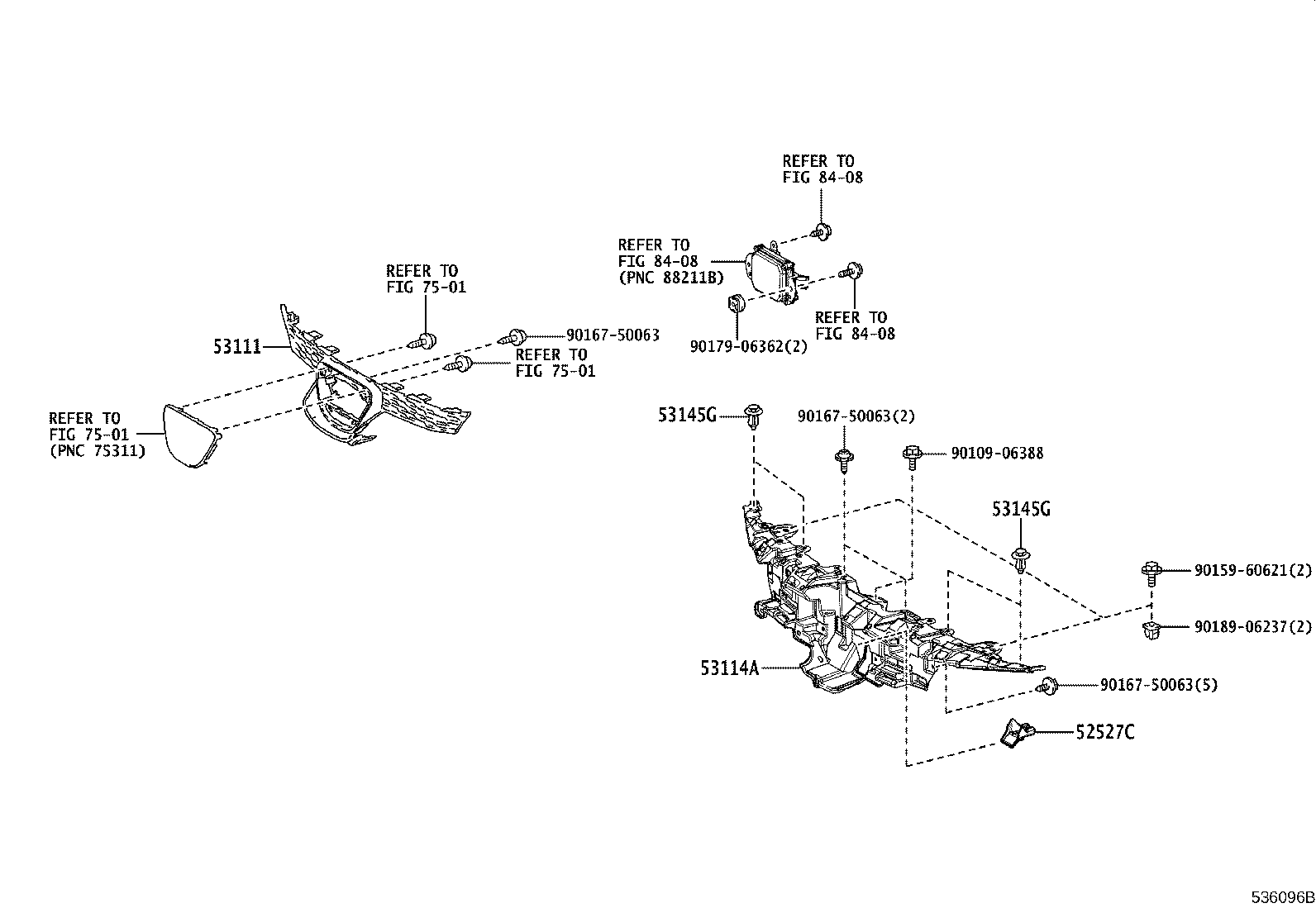

Click highlighted areas on diagram

diagram 52527C 53111 53114A 53145G 53145G 7501 7501 7501 8408 8408 8408 9010906388 9015960621 9016750063 9016750063 9016750063 9017906362 9018906237
Part # Description Qty Price
52527C - RETAINER, FRONT BUMPER, LOWER NO.2
52527-12060

MZEA12,NRE210,ZRE212,ZWE21#

 1
53111 - GRILLE, RADIATOR
53111-12F30

MZEA12,NRE210,ZRE212,ZWE21#

塗装不要

 1
53114A - GRILLE, RADIATOR, INNER
53114-12240

MZEA12,NRE210,ZRE212,ZWE21#

 1
53145G - CLIP, RADIATOR GRILLE
90467-05063C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK

 4
53145G - CLIP, RADIATOR GRILLE
90467-05063C0

MZEA12,NRE210,ZRE212,ZWE21#

BLACK

 4
Common parts
90109-06388
90159-60621
90167-50063
90179-06362
90189-06237
Linked diagrams
7501
8408
