ZWE211-AEXNB (2019)
Toyota Corolla
(1908- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12480 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52127B - COVER, REAR BUMPER HOLE, RH | ||||
| 52161-12080 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12965A1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),WHITE PEARL CS.,070 |
1 | ||
| 52159-12965A0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),SUPER WHITE 2,040 |
1 | ||
| 52159-12965C2 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),BLACK MC.,209 |
1 | ||
| 52159-12965D0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),SCARLET ME.,3U4 |
1 | ||
| 52159-12965B1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),CELESTITE GRAY ME.,1K3 |
1 | ||
| 52159-12965B0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),SILVER ME.,1F7 |
1 | ||
| 52159-12965J1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) “PLUS”*(P),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-12965D0 |
ZRE212,ZWE21#..SED..(HBDS,S) SCARLET ME.,3U4 |
1 | ||
| 52159-12965D0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SCARLET ME.,3U4 |
1 | ||
| 52159-12965A1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159-12965A0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52159-12D90A0 |
ZRE212..SED..GX;NRE210,ZWE21#..SED..(HBDGX,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159-12965A1 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
1 | ||
| 52159-12965B0 |
ZRE212,ZWE21#..SED..(HBDS,S) SILVER ME.,1F7 ,2KS |
1 | ||
| 52159-12D90D0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) SCARLET ME.,3U4 |
1 | ||
| 52159-12965J1 |
ZRE212,ZWE21#..SED..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52159-12965A0 |
ZRE212,ZWE21#..SED..(HBDS,S) SUPER WHITE 2,040 |
1 | ||
| 52159-12965B1 |
ZRE212,ZWE21#..SED..(HBDS,S) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52159-12965C2 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52159-12965B0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 ,2KS |
1 | ||
| 52159-12D90B0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) SILVER ME.,1F7 ,2KS |
1 | ||
| 52159-12965C2 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) BLACK MC.,209 |
1 | ||
| 52159-12D90B1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) CELESTITE GRAY ME.,1K3 |
1 | ||
| 52159-12D90C0 |
ZRE212..SED..GX;NRE210,ZWE21#..SED..(HBDGX,WB) BLACK MC.,209 |
1 | ||
| 52159-12965B1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,CELESTITE GRAY ME.,1K3 |
1 | ||
| 52159-12D90A1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) SUPER WHITE 2,040 |
1 | ||
| 52159-12D90J0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52159-12965J1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2TT ,8W7 |
1 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
8 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12210 |
NRE210,ZRE212,ZWE21#..SED 塗装不要 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52190A - CLIP | ||||
| 90467-06206C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
2 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-12140 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52462C - PAD, REAR BUMPER, RH | ||||
| 52462-24010 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-12140 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52463B - PAD, REAR BUMPER, LH | ||||
| 52462-24010 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-12220 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-12140 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12250 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12240 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12340 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-50130 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
2 | ||
| 89348-50130 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-48160A0 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) WHITE PEARL CS.,070 ,2KR |
2 | ||
| 89348-48160D1 |
ZRE212,ZWE21#..SED..(HBDS,S) SCARLET ME.,3U4 |
2 | ||
| 89348-48160A1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
2 | ||
| 89348-48160A1 |
ZRE212,ZWE21#..SED..(HBDS,S) SUPER WHITE 2,040 |
2 | ||
| 89348-48160A0 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 ,2KR |
2 | ||
| 89348-48160B3 |
ZRE212,ZWE21#..SED..(HBDS,S) SILVER ME.,1F7 ,2KS |
2 | ||
| 89348-48160C2 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) BLACK MC.,209 |
2 | ||
| 89348-48160J1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE M.M.,2TT ,8W7 |
2 | ||
| 89348-48160B4 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,CELESTITE GRAY ME.,1K3 |
2 | ||
| 89348-48160C2 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
2 | ||
| 89348-48160B3 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 ,2KS |
2 | ||
| 89348-48160B4 |
ZRE212,ZWE21#..SED..(HBDS,S) CELESTITE GRAY ME.,1K3 |
2 | ||
| 89348-48160J1 |
ZRE212,ZWE21#..SED..(HBDS,S) DK.BLUE M.M.,2TT ,8W7 |
2 | ||
| 89348-48160D1 |
ZRE212,ZWE21#..SED..(GX,HBDGX) ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り,SCARLET ME.,3U4 |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90189-06228 | ||||
| 90467-05170 | ||||

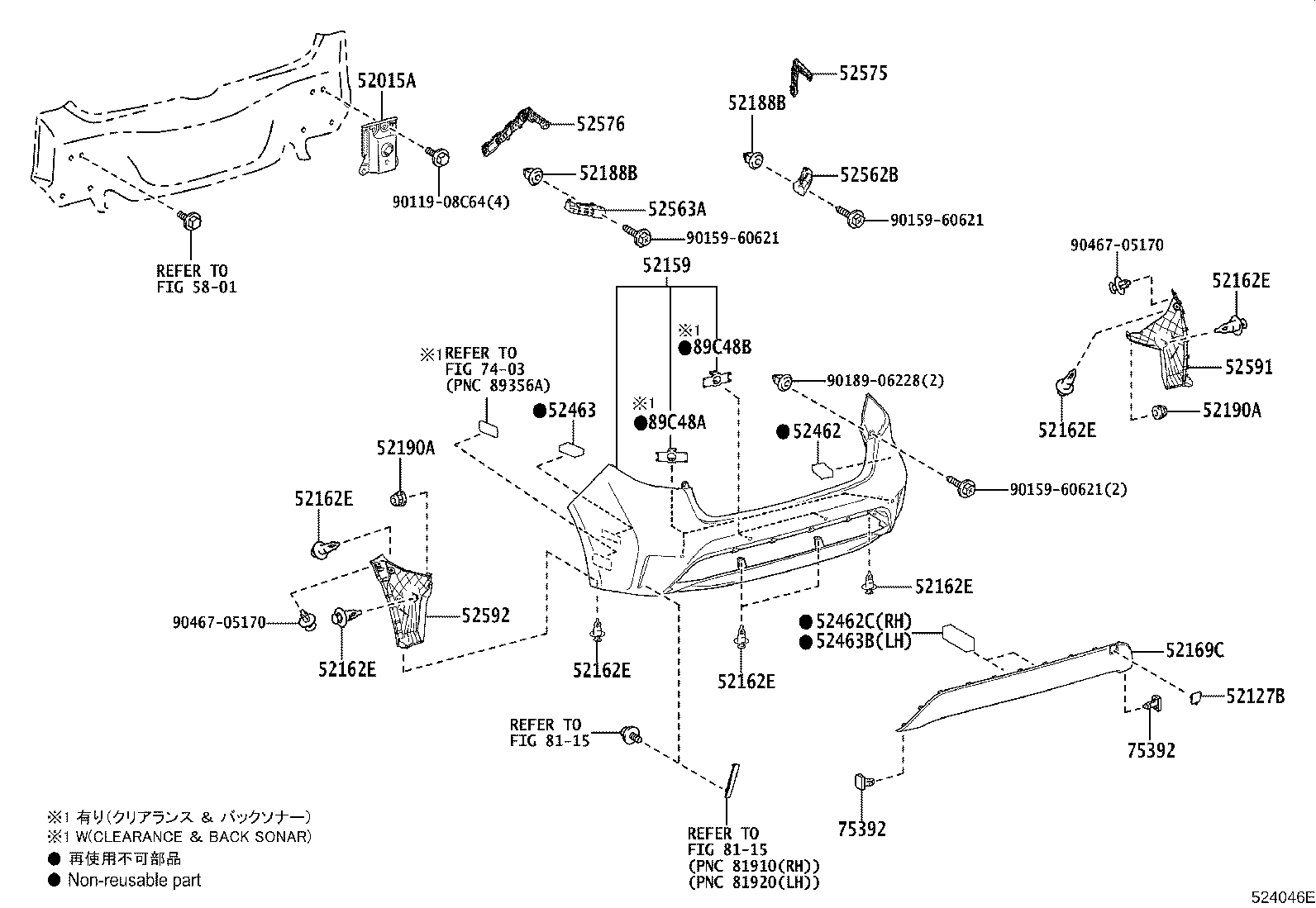

| Linked diagrams | ||||
| 5801 | ||||
| 7403 | ||||
| 8115 | ||||
