ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE21#

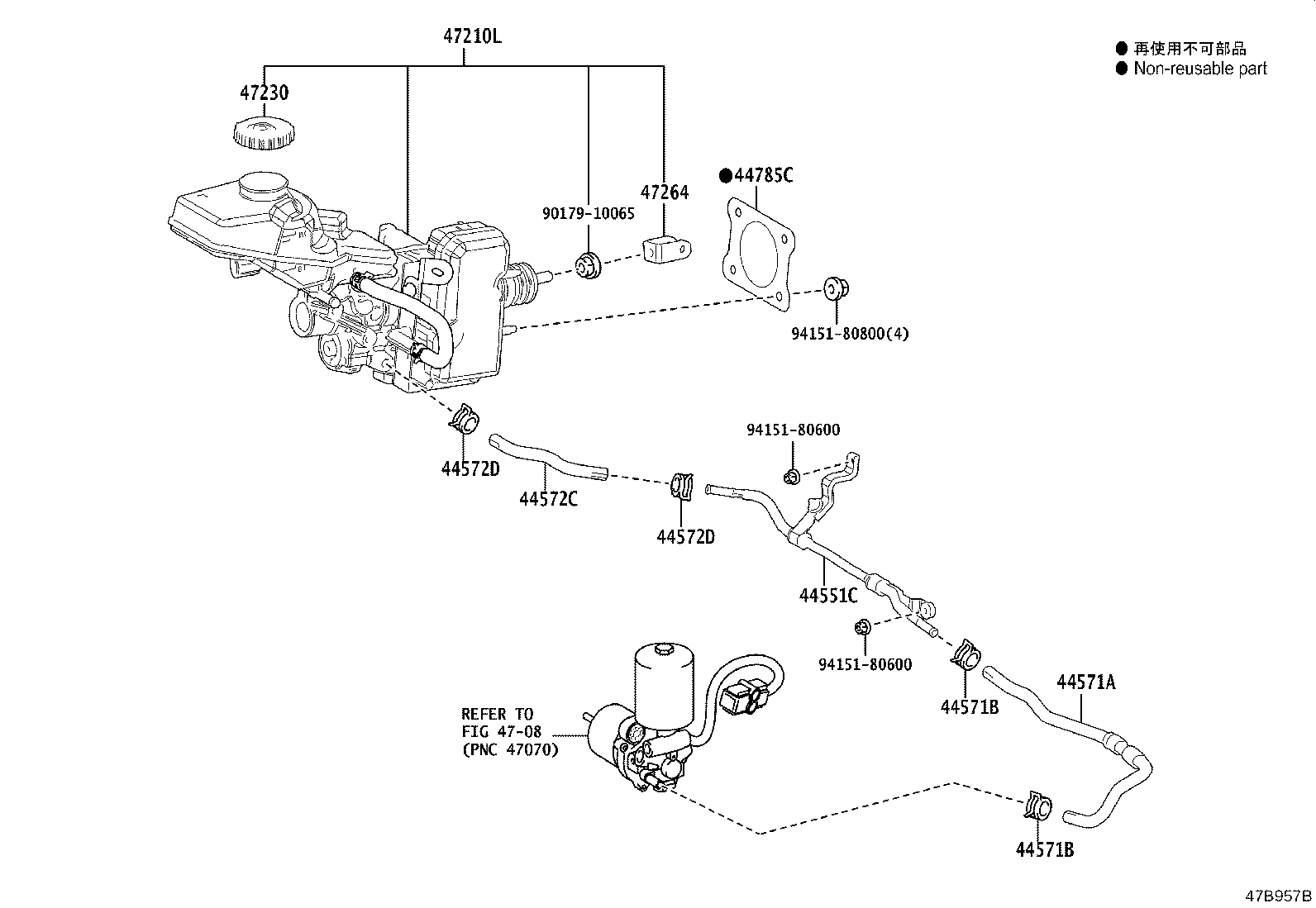

Click highlighted areas on diagram

diagram 44551C 44571A 44571B 44571B 44572C 44572D 44572D 44785C 4708 47210L 47230 47264 9017910065 9415180600 9415180600 9415180800
Part # Description Qty Price
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-47060

ZWE21#

 1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-47080

ZWE21#

 1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

ZWE21#

 2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501

ZWE21#

 2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-47060

ZWE21#

 1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

ZWE21#

 2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501

ZWE21#

 2
44785C - GASKET, BRAKE BOOSTER
44785-12040

ZWE21#

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-12800

ZWE21#..SED..(HBDGX,HBDS)

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090

ZWE21#

 1
47230-33330

ZWE21#

 1
47230-47090

ZWE21#

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-47010

ZWE21#

 1
Common parts
90179-10065
94151-80600
94151-80800
Linked diagrams
4708
