ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

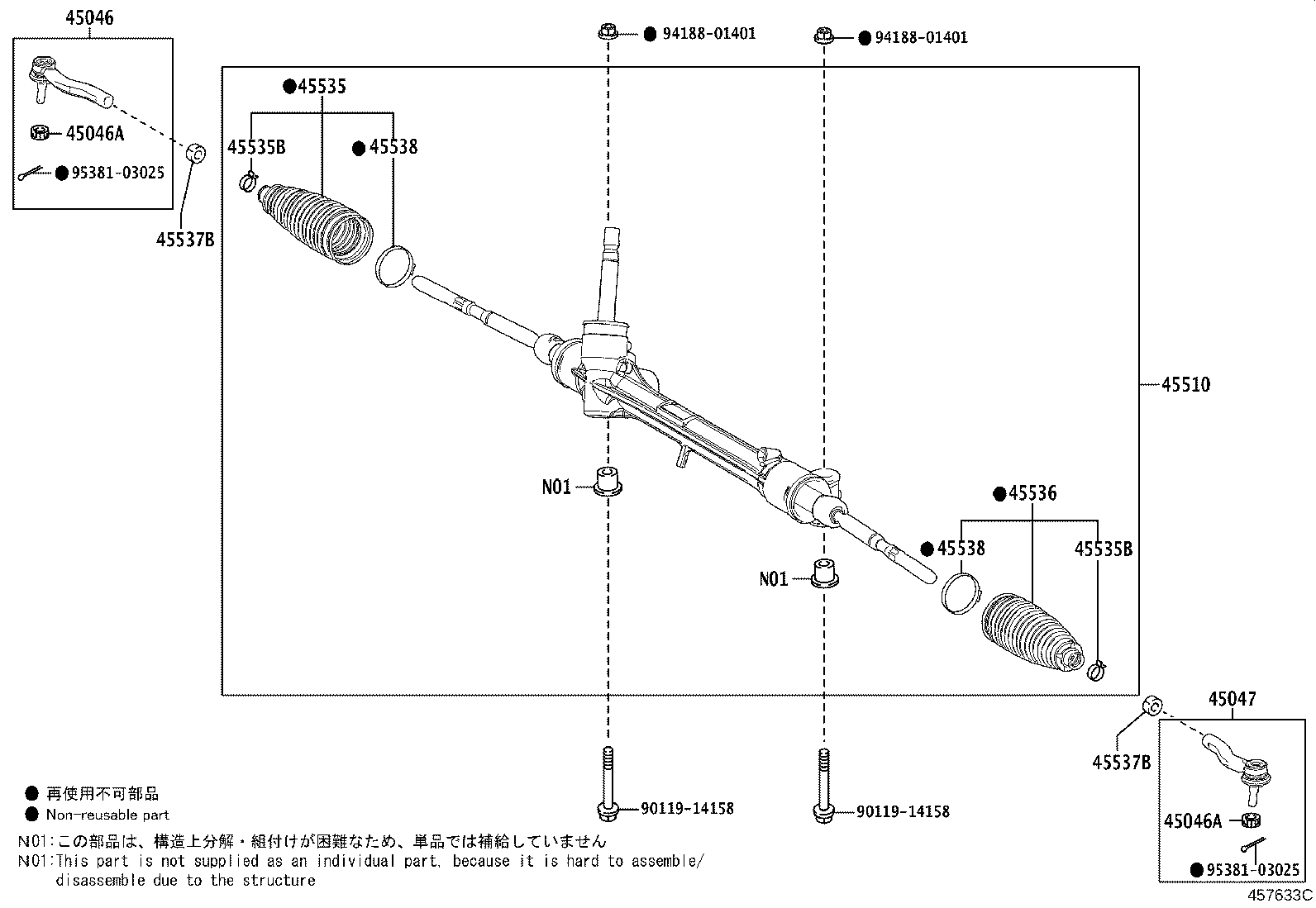

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45536 45537B 45537B 45538 45538 9011914158 9011914158 9418801401 9418801401 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-49255

MZEA12,NRE210,ZRE212,ZWE21#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MZEA12,NRE210,ZRE212,ZWE21#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

MZEA12,NRE210,ZRE212,ZWE21#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49195

MZEA12,NRE210,ZRE212,ZWE21#

 1
45510 - GEAR ASSY, STEERING
45510-47140

ZRE212,ZWE21#..GX,HBDGX

 1
45510-47150

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB

 1
45510-47150

ZRE212,ZWE21#..GX,HBDGX

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/55R16,ｱﾙﾐ

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59075

MZEA12,NRE210,ZRE212,ZWE21#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

MZEA12,NRE210,ZRE212,ZWE21#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

MZEA12,NRE210,ZRE212,ZWE21#

 2
45536 - BOOT, STEERING RACK, NO.2
45535-59075

MZEA12,NRE210,ZRE212,ZWE21#

 1
45537B - NUT, RACK END LOCK
90178-16001

MZEA12,NRE210,ZRE212,ZWE21#

 2
45537B - NUT, RACK END LOCK
90178-16001

MZEA12,NRE210,ZRE212,ZWE21#

 2
45538 - RETAINER, STEERING RACK BOOT
45538-48020

MZEA12,NRE210,ZRE212,ZWE21#

 2
45538 - RETAINER, STEERING RACK BOOT
45538-48020

MZEA12,NRE210,ZRE212,ZWE21#

 2
Common parts
90119-14158
94188-01401
95381-03025
