ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )2ZRFXE

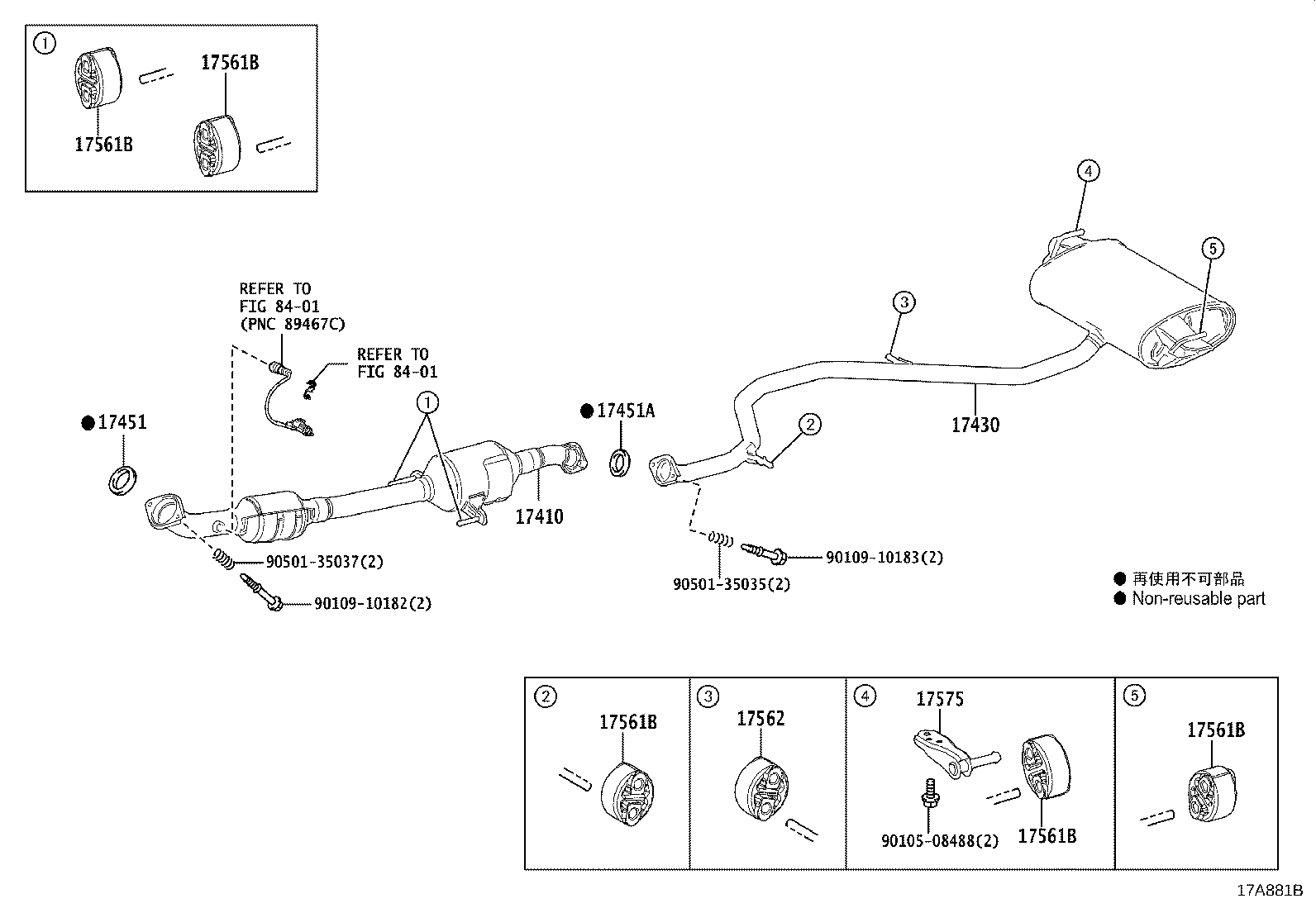

Click highlighted areas on diagram

diagram 17410 17430 17451 17451A 17561B 17561B 17561B 17561B 17561B 17562 17575 8401 8401 9010508488 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-37B30

2ZRFXE..ZWE21#

 1
17410-37B31

2ZRFXE..ZWE21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-37840

2ZRFXE..ZWE211

寒冷地仕様

 1
17430-37830

2ZRFXE..ZWE211

 1
17451 - GASKET, EXHAUST PIPE
17451-24010

2ZRFXE..ZWE21#

 1
17451-28040

2ZRFXE..ZWE21#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

2ZRFXE..ZWE21#

 1
17451-24020

2ZRFXE..ZWE21#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 5
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 5
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-28010

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-37030

M20AFKS,8NRFTS,2ZR#..MZEA12,NRE210,ZRE212,ZWE21#

 1
Common parts
90105-08488
90109-10182
90109-10183
90501-35035
90501-35037
Linked diagrams
8401
