ZWE211-AEXNB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

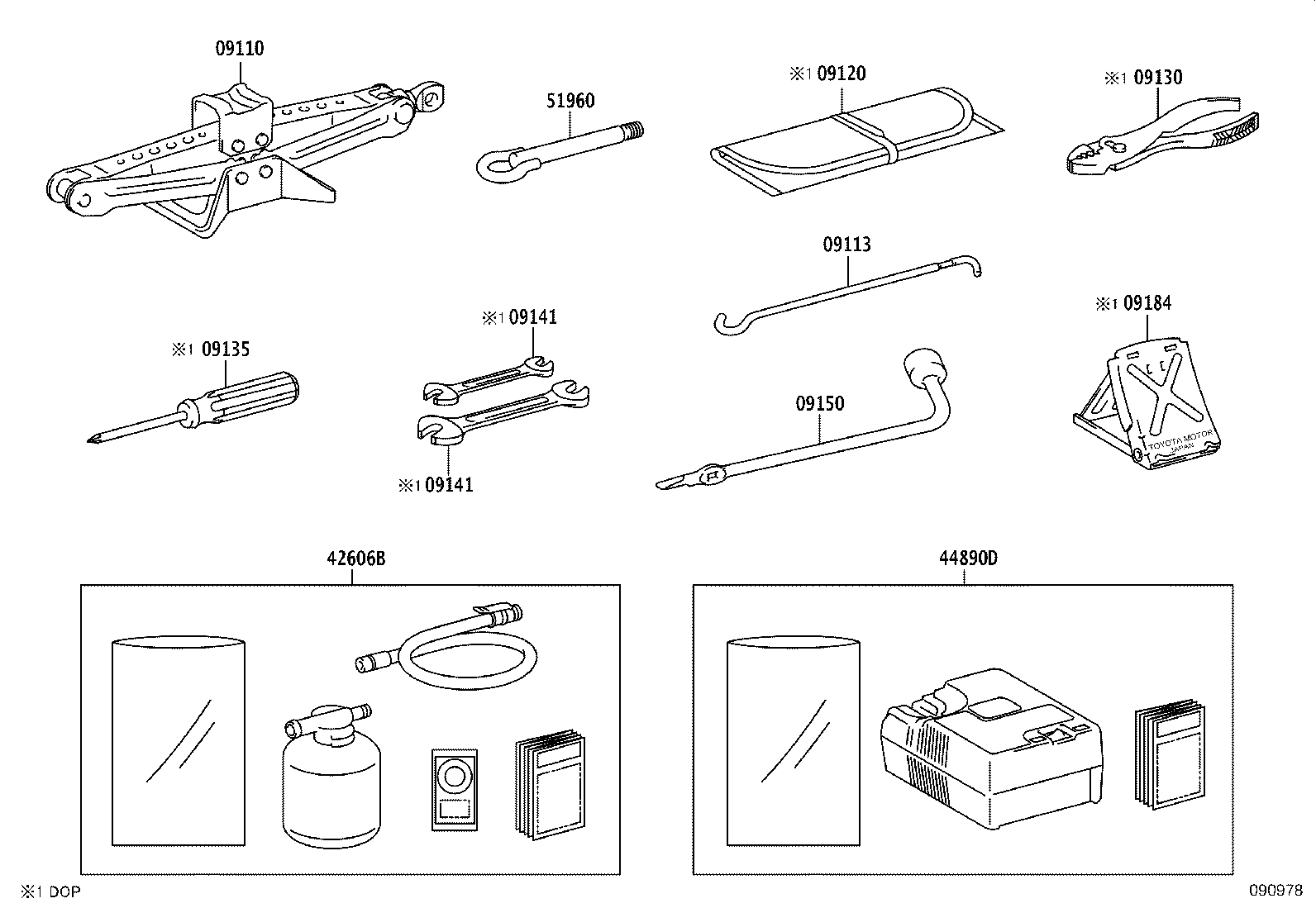

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09184 42606B 44890D 51960
Part # Description Qty Price
09110 - JACK ASSY
09111-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
09113 - HANDLE, JACK
09113-42030

MZEA12,NRE210,ZRE212,ZWE21#

 1
09120 - BAG, TOOL
09120-16030

MZEA12,NRE210,ZRE212,ZWE21#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
09130 - PLIERS
99913-11500

MZEA12,NRE210,ZRE212,ZWE21#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
09135 - DRIVER, SCREW
99915-10700

MZEA12,NRE210,ZRE212,ZWE21#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
09141 - SPANNER
99914-10810

MZEA12,NRE210,ZRE212,ZWE21#

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
99914-11214

MZEA12,NRE210,ZRE212,ZWE21#

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰX

 1
09141 - SPANNER
99914-10810

MZEA12,NRE210,ZRE212,ZWE21#

8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
99914-11214

MZEA12,NRE210,ZRE212,ZWE21#

12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰX

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

MZEA12,NRE210,ZRE212,ZWE21#

 1
09184 - STOPPER, WHEEL
09184-00010

MZEA12,NRE210,ZRE212,ZWE21#

ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾌﾟﾗｲﾔ,ｽﾊﾟﾅ,ﾄﾞﾗｲﾊﾞ,輪止め,ｹｰｽ

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-30011

MZEA12,NRE210,ZRE212,ZWE21#

 1
42606-30011

MZEA12,NRE210,ZRE212,ZWE211

ｽﾍﾟｱﾀｲﾔ−応急用(T125/70D17)

 1
44890D - COMPRESSOR ASSY, AIR
44890-30030

MZEA12,NRE210,ZRE212,ZWE21#

 1
51960 - HOOK ASSY, FRONT
51960-12110

MZEA12,NRE210,ZRE212,ZWE21#

 1
