ZWE211-AEXEB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

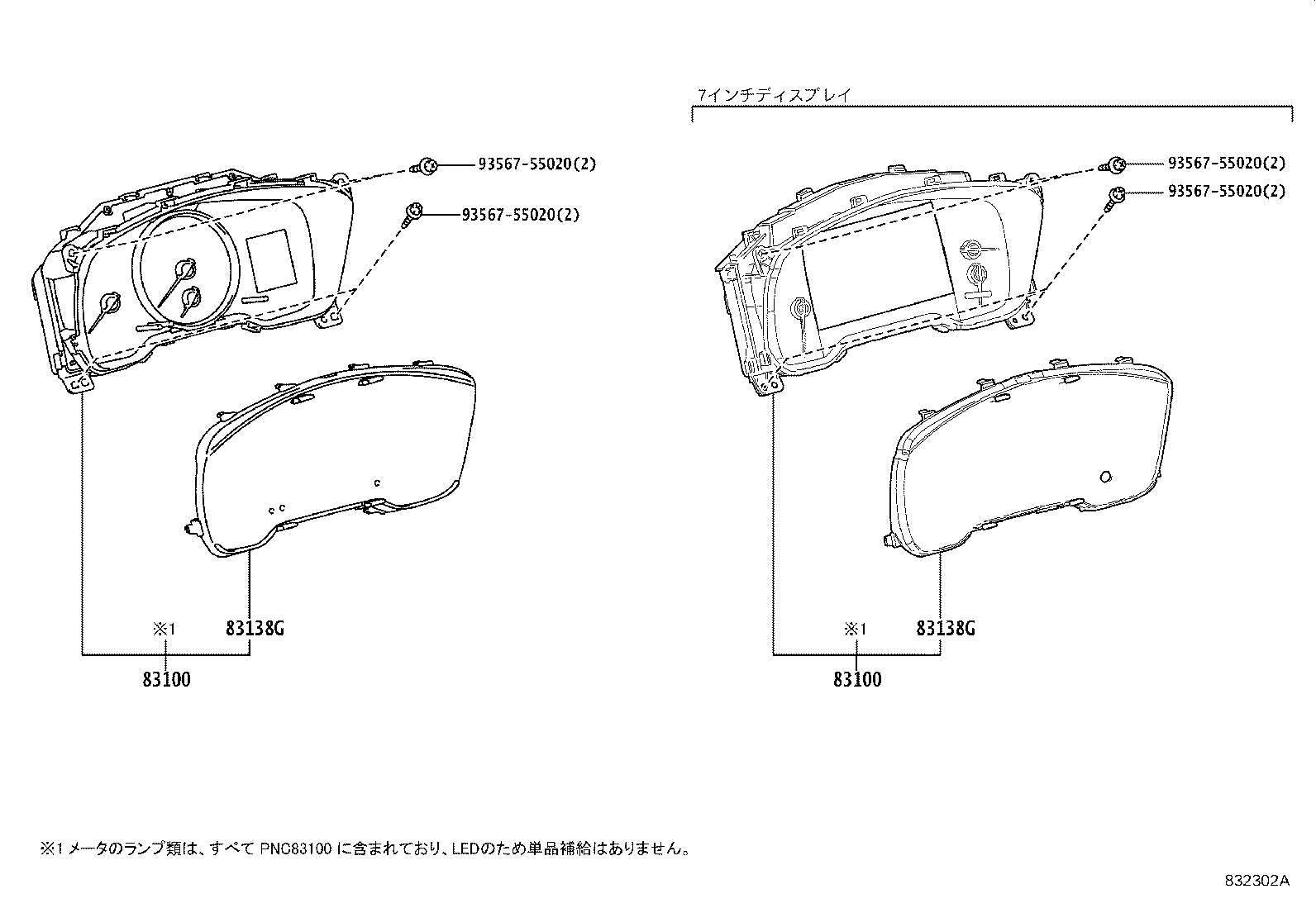

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ

diagram 83100 83100 83138G 83138G 9356755020 9356755020 9356755020 9356755020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-1AP50

ZWE21#..SED..HBDS

DENSO

 1
83800-1AP60

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP51

ZWE21#..SED..HBDS

DENSO

 1
83800-1AP61

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP62

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP52

ZWE21#..SED..HBDS

DENSO

 1
83100 - METER ASSY, COMBINATION
83800-1AP50

ZWE21#..SED..HBDS

DENSO

 1
83800-1AP60

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP51

ZWE21#..SED..HBDS

DENSO

 1
83800-1AP61

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP62

ZWE21#..SED..HBDS

DENSO,ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83800-1AP52

ZWE21#..SED..HBDS

DENSO

 1
83138G - GLASS, COMBINATION METER
83852-12G10

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

 1
83852-1AK50

ZRE212,ZWE21#..HBDS,S

ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
83138G - GLASS, COMBINATION METER
83852-12G10

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

 1
83852-1AK50

ZRE212,ZWE21#..HBDS,S

ﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ−7INCH ﾃﾞｨｽﾌﾟﾚｲ

 1
Common parts
93567-55020

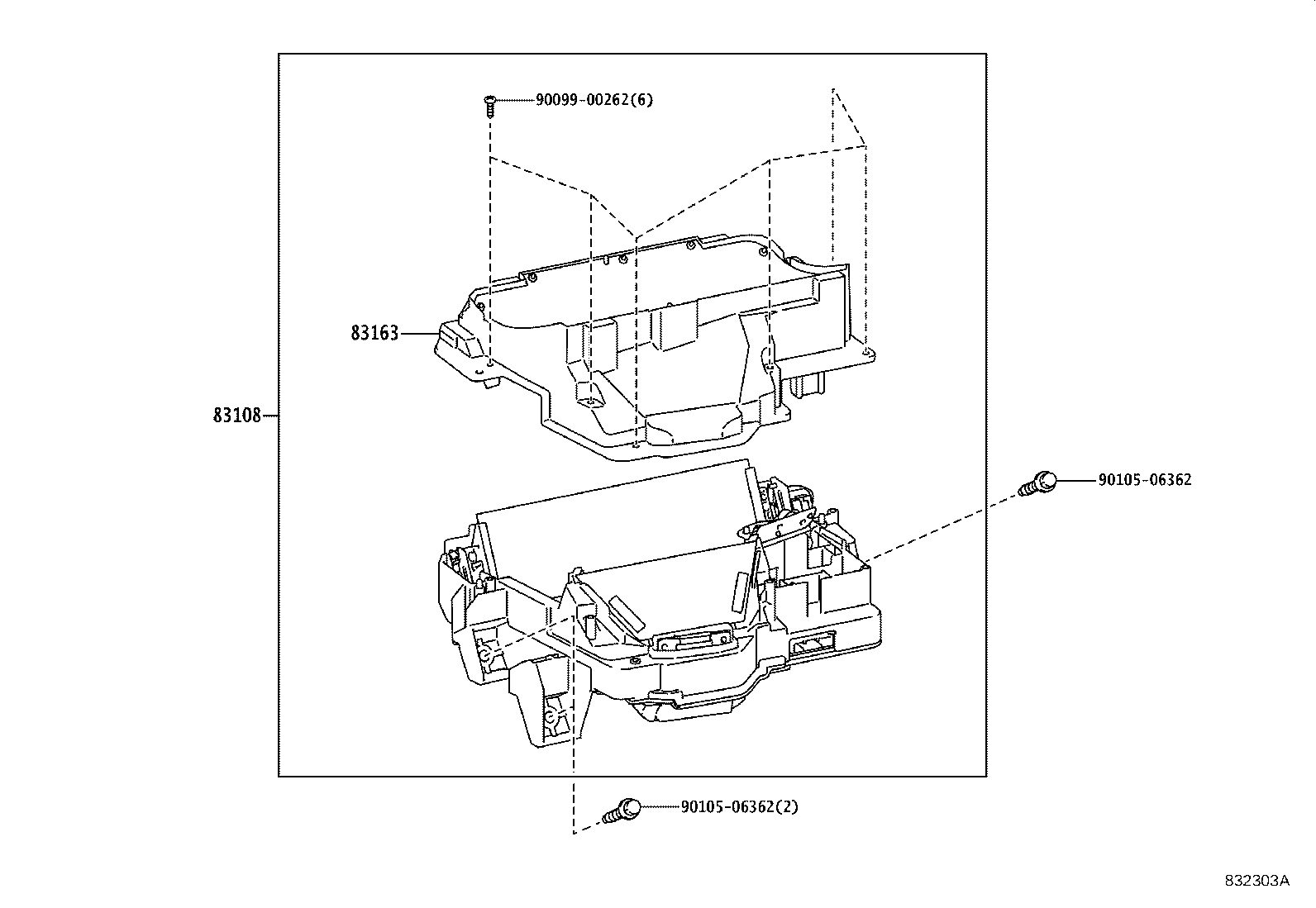

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ

diagram 83108 83163 9009900262 9010506362 9010506362
Part # Description Qty Price
Common parts
90099-00262
90105-06362
