ZWE211-AEXEB (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )SED

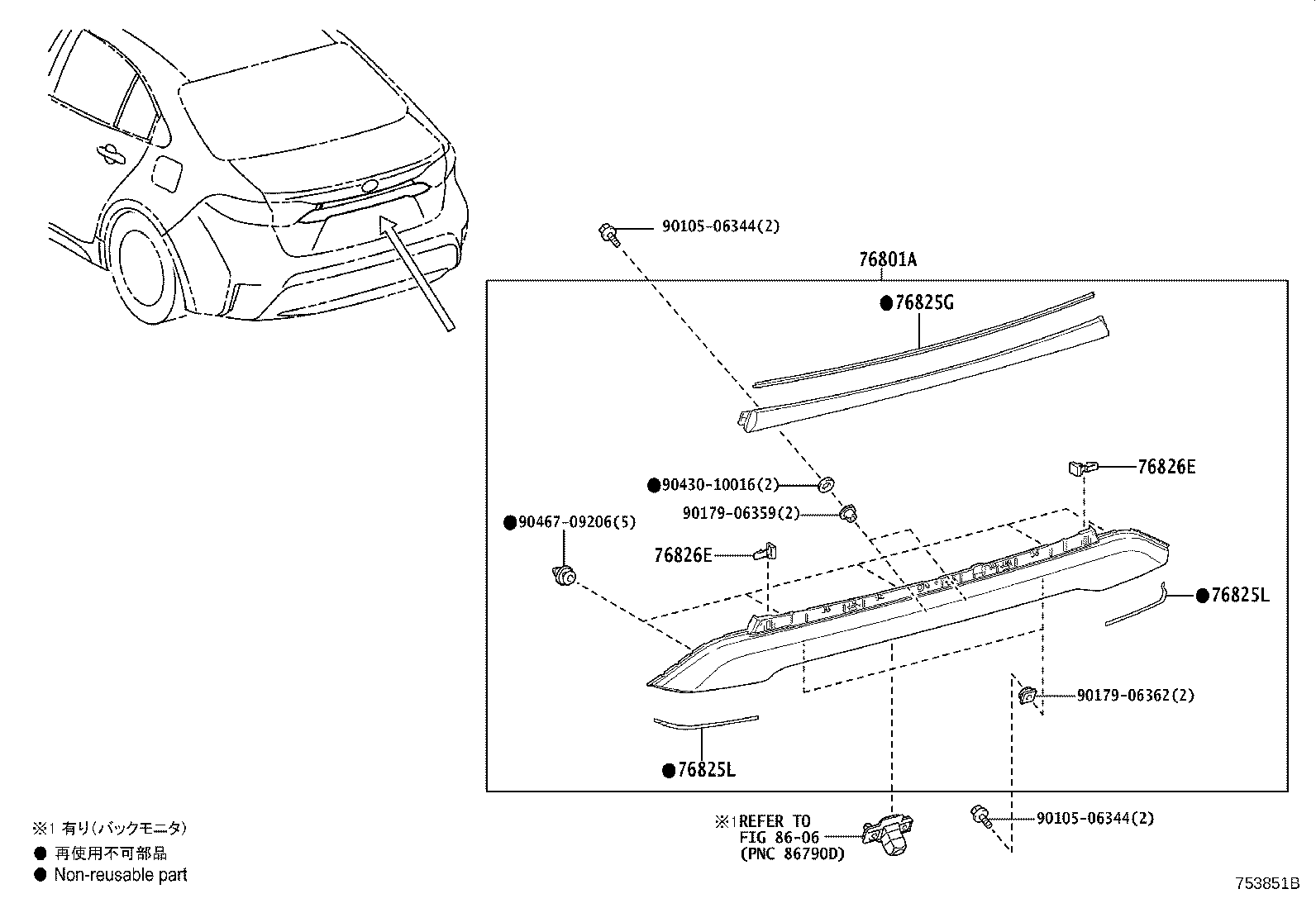

Click highlighted areas on diagram

diagram 76801A 76825G 76825L 76825L 76826E 76826E 8606 9010506344 9010506344 9017906359 9017906362 9043010016 9046709206
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-12D10D0

ZRE212,ZWE21#..SED..(HBDS,S)

SCARLET ME.,3U4

 1
76801-12D10A0

NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)

WHITE PEARL CS.,070 ,2KR

 1
76801-12D10B0

ZRE212,ZWE21#..SED..(HBDS,S)

SILVER ME.,1F7 ,2KS

 1
76801-12D10A1

ZRE212,ZWE21#..SED..(HBDS,S)

SUPER WHITE 2,040

 1
76801-12D10C0

NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB)

BLACK MC.,209

 1
76801-12D10J0

ZRE212,ZWE21#..SED..(HBDS,S)

DK.BLUE M.M.,2TT ,8W7

 1
76801-12D10B1

ZRE212,ZWE21#..SED..(HBDS,S)

CELESTITE GRAY ME.,1K3

 1
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-12160

NRE210,ZRE212,ZWE21#..SED

 1
76825L - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-12150

NRE210,ZRE212,ZWE21#..SED

 2
76825L - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-12150

NRE210,ZRE212,ZWE21#..SED

 2
76826E - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.1
52535-28020

NRE210,ZRE212,ZWE21#..SED

 2
76826E - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.1
52535-28020

NRE210,ZRE212,ZWE21#..SED

 2
Common parts
90105-06344
90179-06359
90179-06362
90430-10016
90467-09206
Linked diagrams
8606
