ZWE211-AEXEB (2019)
Toyota Corolla

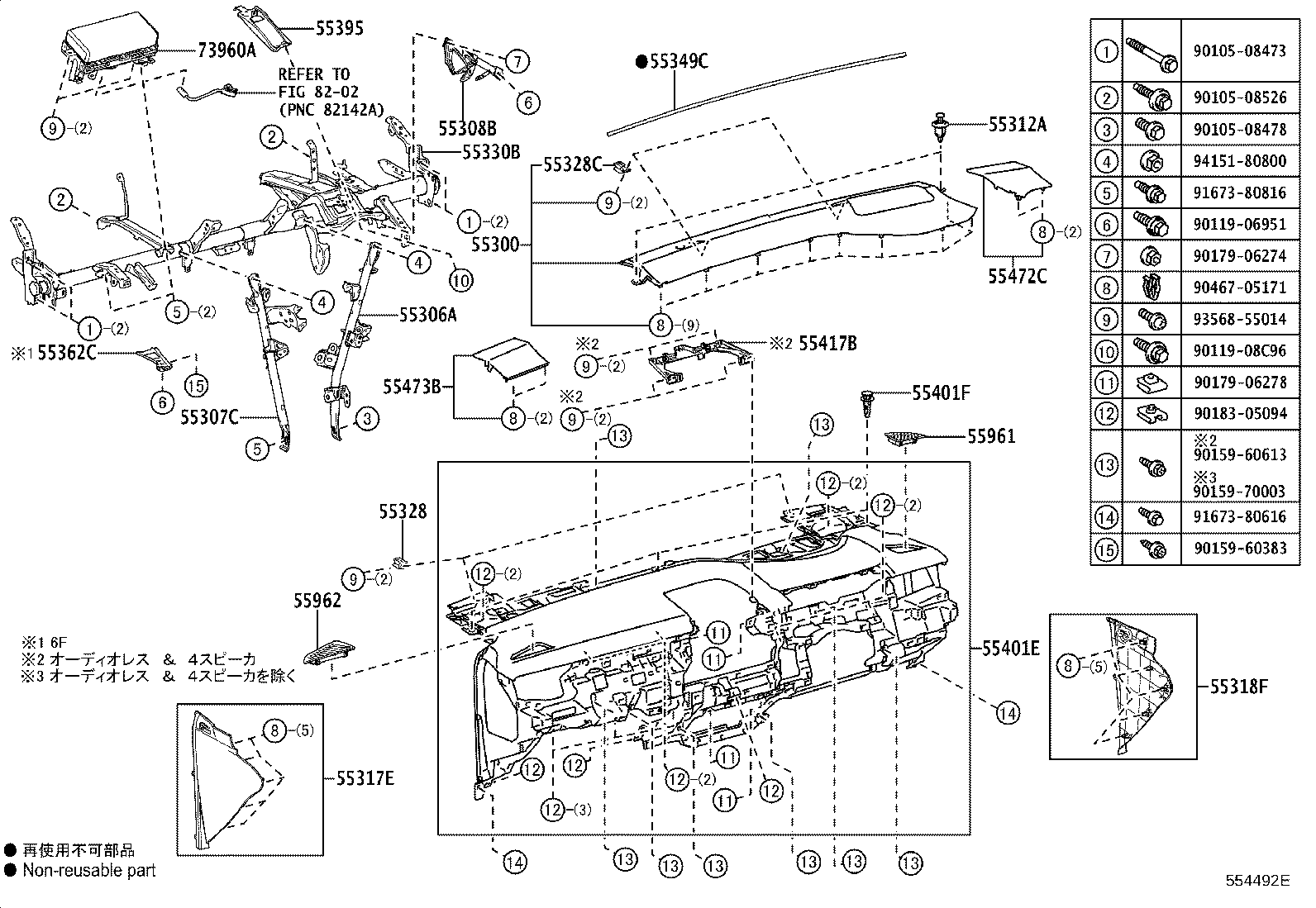

ILLUST NO. 1 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-12060C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12550 |
MZEA12,ZRE212,ZWE21# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12460 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-12340 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07217 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-12230C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-12170C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 55328-12430 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-12420 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 55328-12440 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12860 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 55330-12861 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-12190 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-12040 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-12904C4 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S BLACK,TRIM2# |
1 | ||
| 55400-12908C4 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S BLACK,TRIM2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
MZEA12,NRE210,ZRE212,ZWE21# |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-12140C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-12120C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12260C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12230C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12320 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-08526 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90159-60383 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

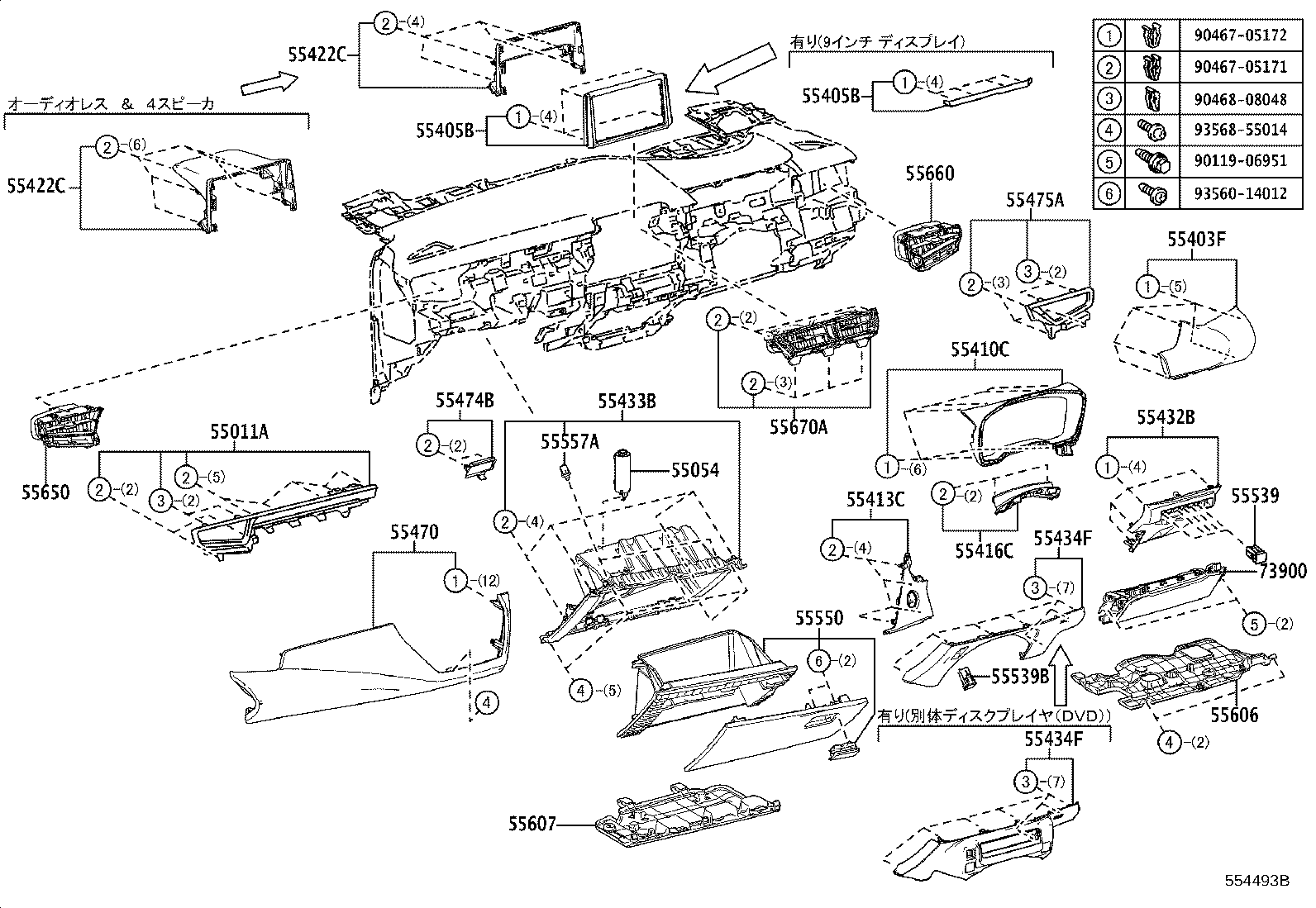

ILLUST NO. 2 OF 2(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-12181B3 |
ZRE212,ZWE21#..HBDS,S SILVER,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-12210C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12G10 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 55405-12E90B0 |
ZRE212,ZWE21#..HBDS,S SILVER,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12G10 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 55405-12E90B0 |
ZRE212,ZWE21#..HBDS,S SILVER,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12D50C2 |
ZRE212,ZWE21#..HBDS,S BLACK/SILVER,TRIM2# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-12750C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-12210 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-12340 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 55422-12340 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-12340 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 55422-12340 |
NRE210,ZRE212,ZWE21# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12700C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12390C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12320C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55434-12420C0 |
NRE210,ZRE212,ZWE21# 別体ﾃﾞｨｽｸﾌﾟﾚｲﾔ(DVD)−有り,BLACK,TRIM2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12320C0 |
NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55434-12420C0 |
NRE210,ZRE212,ZWE21# 別体ﾃﾞｨｽｸﾌﾟﾚｲﾔ(DVD)−有り,BLACK,TRIM2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-12100C3 |
ZRE212,ZWE21#..HBDS,S BLACK/GRAY,TRIM2# |
1 | ||
| 55470-12101C3 |
MZEA12,ZRE212,ZWE21#..G,HBDS,S BLACK/GRAY,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-12300B1 |
ZRE212,ZWE21#..HBDS,S SILVER,TRIM2# |
1 | ||
| 55474-12270B0 |
ZRE212,ZWE21#..HBDS,S SILVER,TRIM2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-12171C1 |
ZRE212,ZWE21#..GX,HBDGX,HBDS,S BLACK/SILVER,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
ZWE21# 外部電源−有り(AC100V 1500W:2個),BLACK |
1 | ||
| 55539-33170C0 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席),BLACK |
1 | ||
| 55539-33170C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK |
1 | ||
| 55539-33170C0 |
MZEA12,NRE210,ZRE212,ZWE21# 寒冷地仕様,BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12580C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEA12,NRE210,ZRE212,ZWE21# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12160 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12120 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12460 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12530 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12720 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12120C0 |
MZEA12,NRE210,ZRE212,ZWE21# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
