ZRE212-AEXSP (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

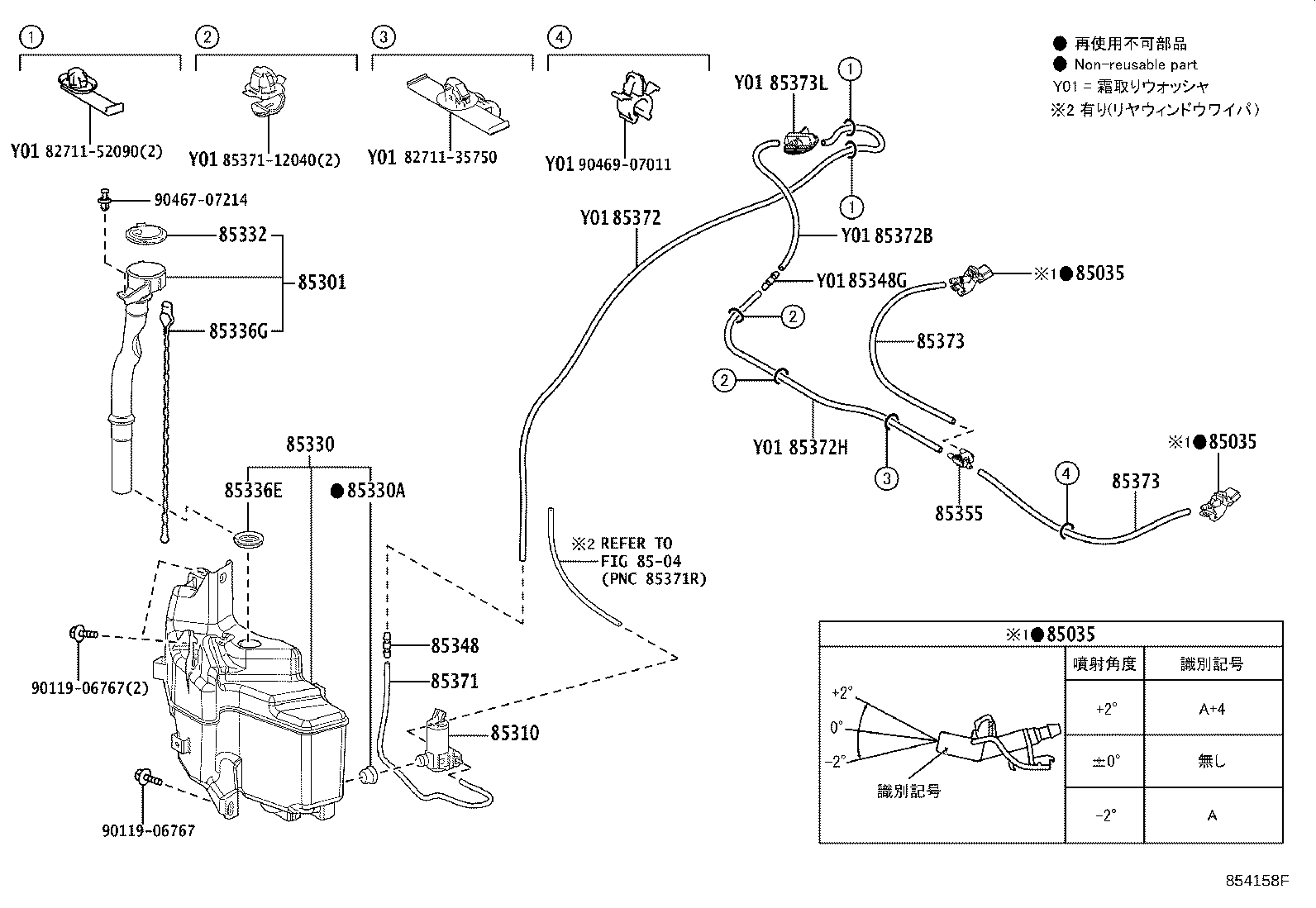

Click highlighted areas on diagram

diagram 8271135750 8271152090 85035 85035 85035 8504 85301 85310 85330 85330A 85332 85336E 85336G 85348 85348G 85355 85371 8537112040 85372 85372B 85372H 85373 85373 85373L 9011906767 9011906767 9046707214 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

MZEA12,NRE210,ZRE212,ZWE21#

角度 0

 2
85381-33080

MZEA12,NRE210,ZRE212,ZWE21#

角度 −2

 2
85381-12440

MZEA12,NRE210,ZRE212,ZWE21#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

MZEA12,NRE210,ZRE212,ZWE21#

角度 0

 2
85381-33080

MZEA12,NRE210,ZRE212,ZWE21#

角度 −2

 2
85381-12440

MZEA12,NRE210,ZRE212,ZWE21#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12360

MZEA12,NRE210,ZRE212,ZWE21#

角度 0

 2
85381-33080

MZEA12,NRE210,ZRE212,ZWE21#

角度 −2

 2
85381-12440

MZEA12,NRE210,ZRE212,ZWE21#

角度 +2

 2
85301 - INLET SUB-ASSY, WASHER
85301-12040

MZEA12,NRE210,ZRE212,ZWE21#

 1
85301-12050

NRE210,ZRE212,ZWE21#..SED

寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
85301-12050

MZEA12,NRE210,ZRE212,ZWE21#

寒冷地仕様

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

NRE210,ZRE212,ZWE21#..SED

寒冷地仕様

 1
85330-47100

NRE210,ZRE212,ZWE21#..SED

寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
85330-33070

NRE210,ZRE212,ZWE21#..SED

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12730

MZEA12,NRE210,ZRE212,ZWE21#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

MZEA12,NRE210,ZRE212,ZWE21#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

MZEA12,NRE210,ZRE212,ZWE21#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

MZEA12,NRE210,ZRE212,ZWE21#

 1
85336G - GAGE, WATER LEVEL
85312-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

MZEA12,NRE210,ZRE212,ZWE21#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

MZEA12,NRE210,ZRE212,ZWE21#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

MZEA12,NRE210,ZRE212,ZWE21#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

*H,L=500,寒冷地仕様

 1
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

*H,L=500

 1
90099-33080

NRE210,ZRE212,ZWE21#..SED

*H,L=500,寒冷地仕様&ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟ−有り

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62176

MZEA12,NRE210,ZRE212,ZWE21#

長さ=1090

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

*H,L=280

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

*H,L=510

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

長さ=465

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MZEA12,NRE210,ZRE212,ZWE21#

長さ=465

 2
85373L - GROMMET, WASHER
85373-12050

MZEA12,NRE210,ZRE212,ZWE21#

 1
Common parts
82711-35750
82711-52090
85371-12040
90119-06767
90467-07214
90469-07011
Linked diagrams
8504
