ZRE212-AEXSP (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )NRE210,ZRE212..SED

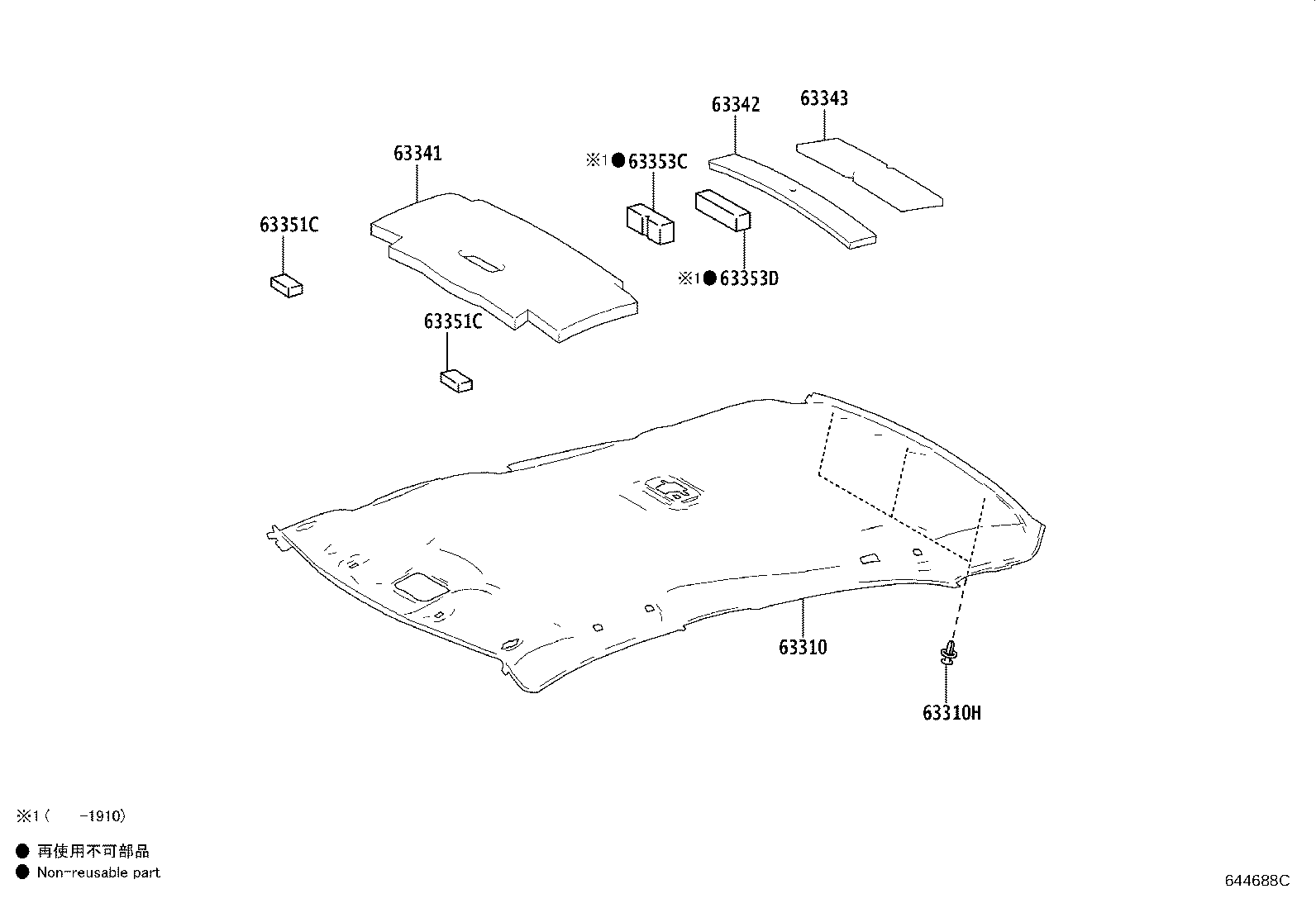

Click highlighted areas on diagram

diagram 63310 63310H 63341 63342 63343 63351C 63351C 63353C 63353D
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-12P10A1

ZRE212,ZWE21#..SED..(GX,HBDGX,HBDS,S)

FROMAGE,TRIM2#

 1
63310-12P10C1

NRE210,ZRE212,ZWE21#..SED..(HBDWB,WB)

BLACK,TRIM2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168C0

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

BLACK,TRIM2#

 3
90467-05168A0

ZRE212,ZWE21#..GX,HBDGX,HBDS,S

FROMAGE,TRIM2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-12380

MZEA12,NRE210,ZRE212

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12390

NRE210,ZRE212..SED

 1
63343 - PAD, ROOF SILENCER, NO.3
63342-12440

NRE210,ZRE212..SED

 1
63351C - PAD, ROOF HEADLINING
63351-12120

MZEA12,NRE210,ZRE212,ZWE21#

 2
63351C - PAD, ROOF HEADLINING
63351-12120

MZEA12,NRE210,ZRE212,ZWE21#

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-12030

NRE210,ZRE212,ZWE21#..SED

 1
63353D - PAD, ROOF HEADLINING, CENTER
63353-12040

NRE210,ZRE212,ZWE21#

 1
