ZRE212-AEXEP (2019)
Toyota Corolla

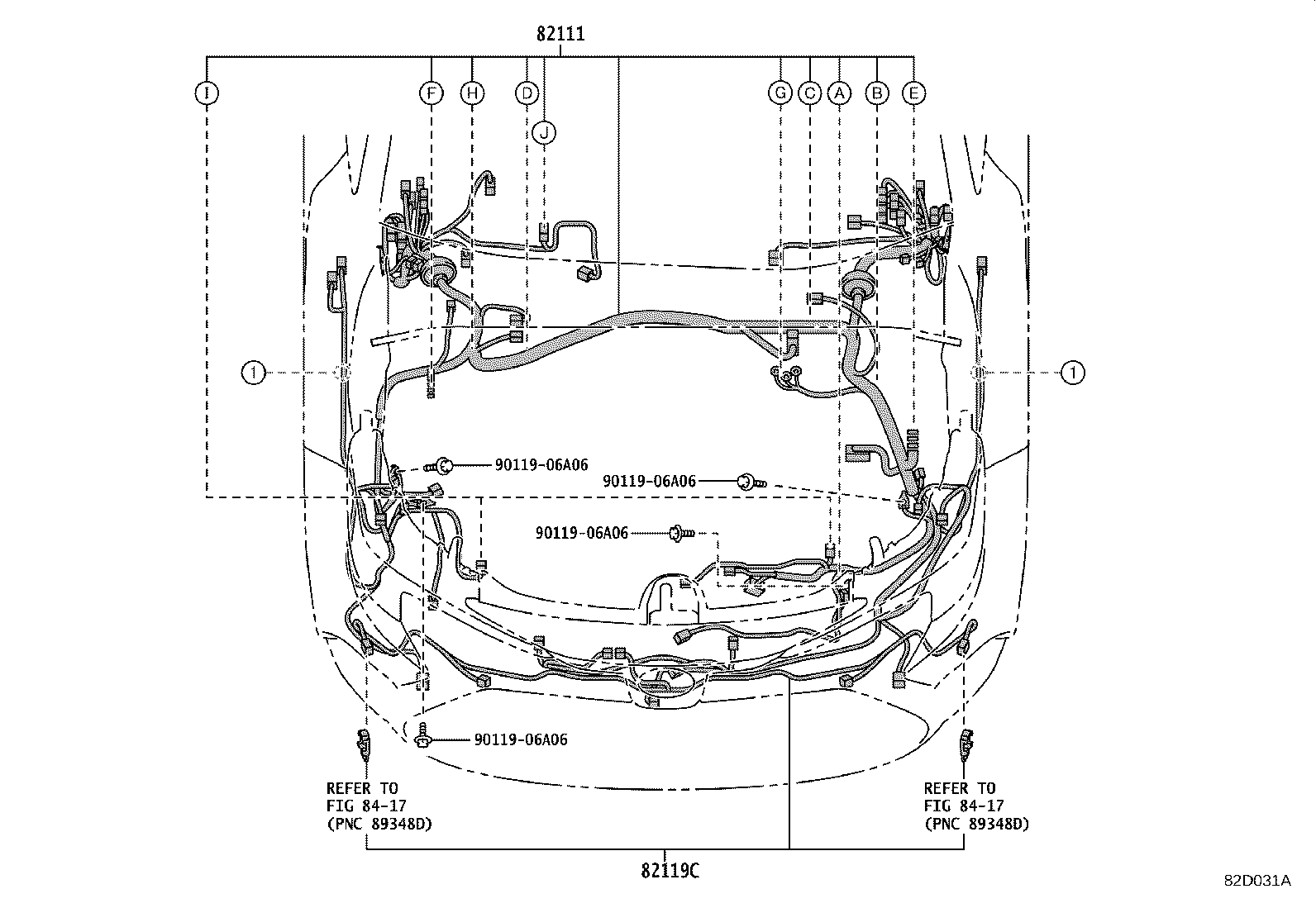

ILLUST NO. 1 OF12(1908- )MZEA12,NRE210,ZRE212
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1KL00 |
ZRE212..S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾌﾟﾛｼﾞｪｸﾀ |
1 | ||
| 82111-1KN70 |
ZRE212..S |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-12060 |
MZEA12,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8417 | ||||

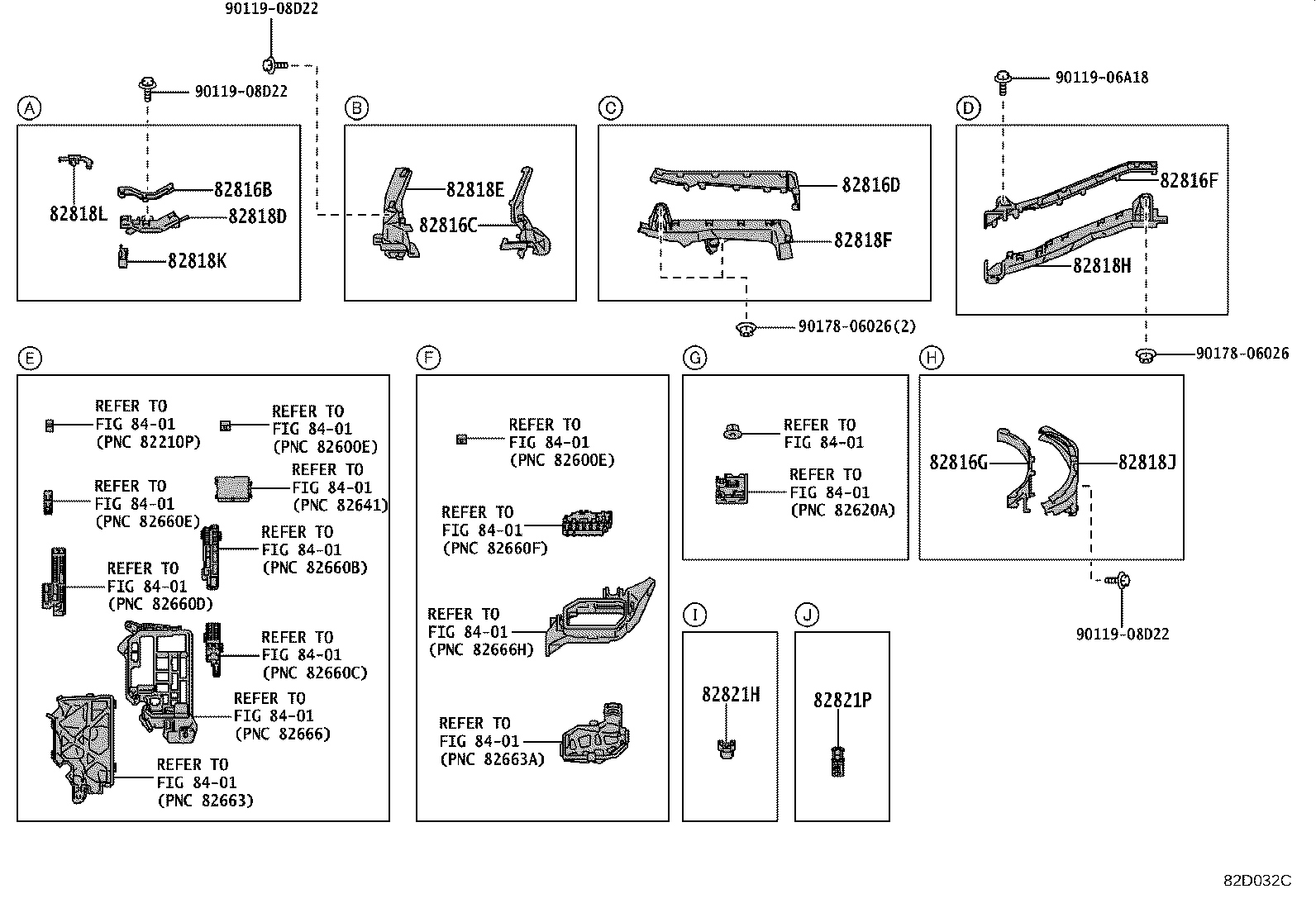

ILLUST NO. 2 OF12(1908- )MZEA12,NRE210,ZRE212
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12L40 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12L70 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12L80 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-12L90 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-12J00 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12Z20 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12Z60 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12Z70 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12Z80 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12W50 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12Z50 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-12Z10 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
MZEA12,NRE210,ZRE212 |
2 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||

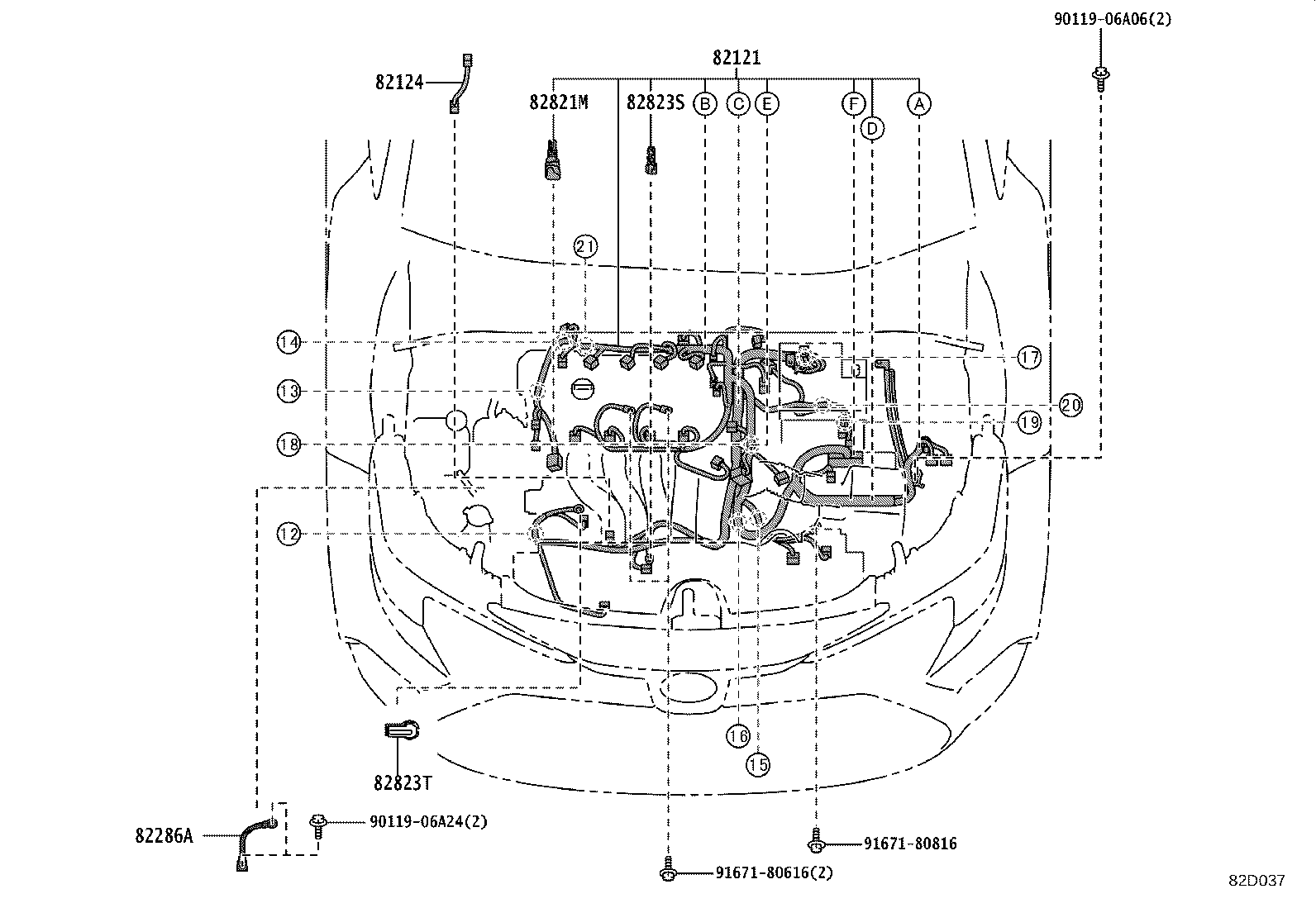

ILLUST NO. 3 OF12(1908- )ZRE212
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12T40 |
ZRE212 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZRE212,ZWE21# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-47010 |
ZRE212,ZWE21# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-12B60 |
ZRE212 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12120 |
ZRE212 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NRE210,ZRE212 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||

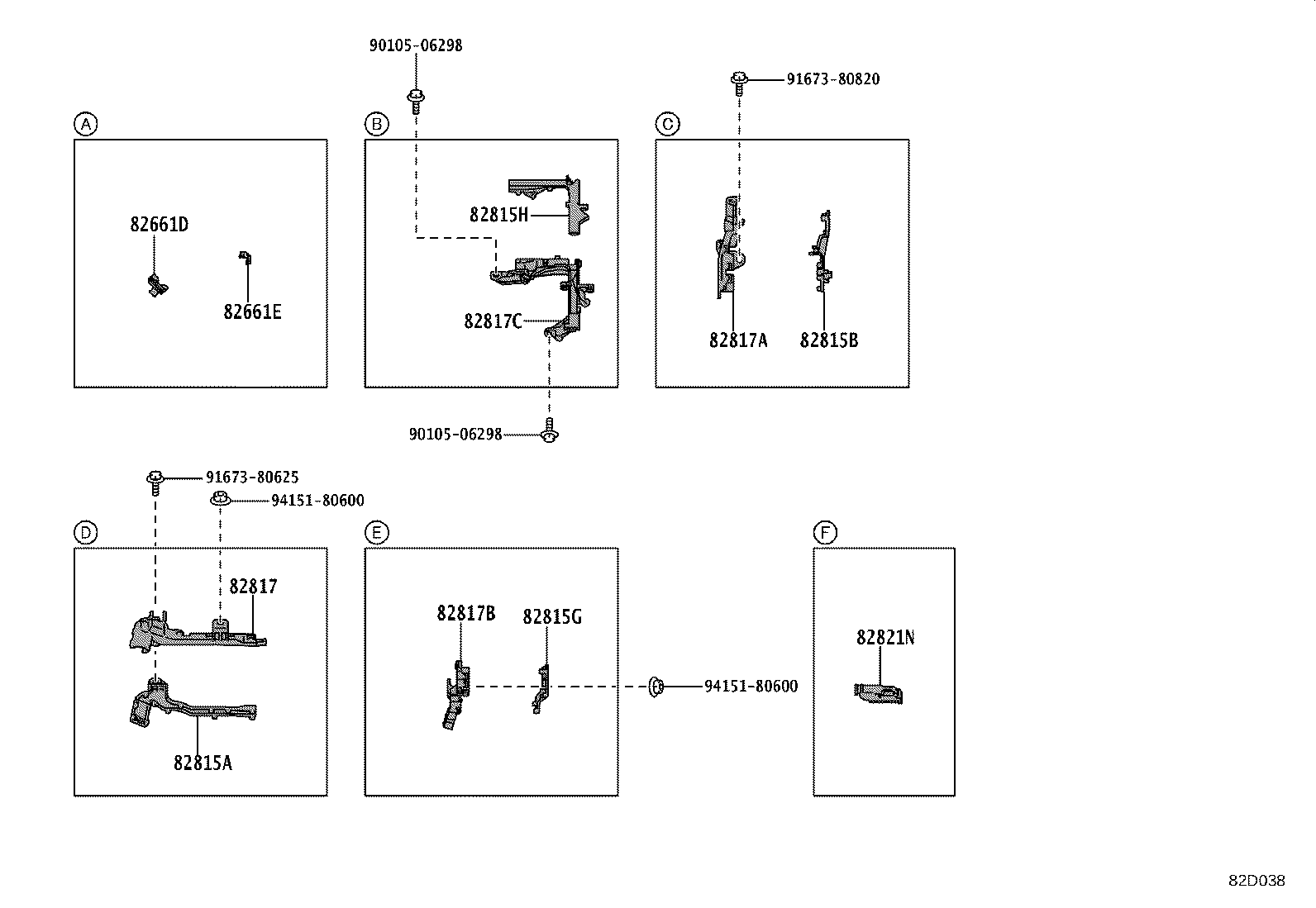

ILLUST NO. 4 OF12(1908- )ZRE212
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12340 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-12350 |
MZEA12,NRE210,ZRE212 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12K60 |
ZRE212 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12K50 |
ZRE212 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12K70 |
ZRE212 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-12K40 |
ZRE212 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12V80 |
ZRE212 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12V70 |
ZRE212 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12V90 |
ZRE212 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12V60 |
ZRE212 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-33310 |
ZRE212 |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 91673-80625 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||

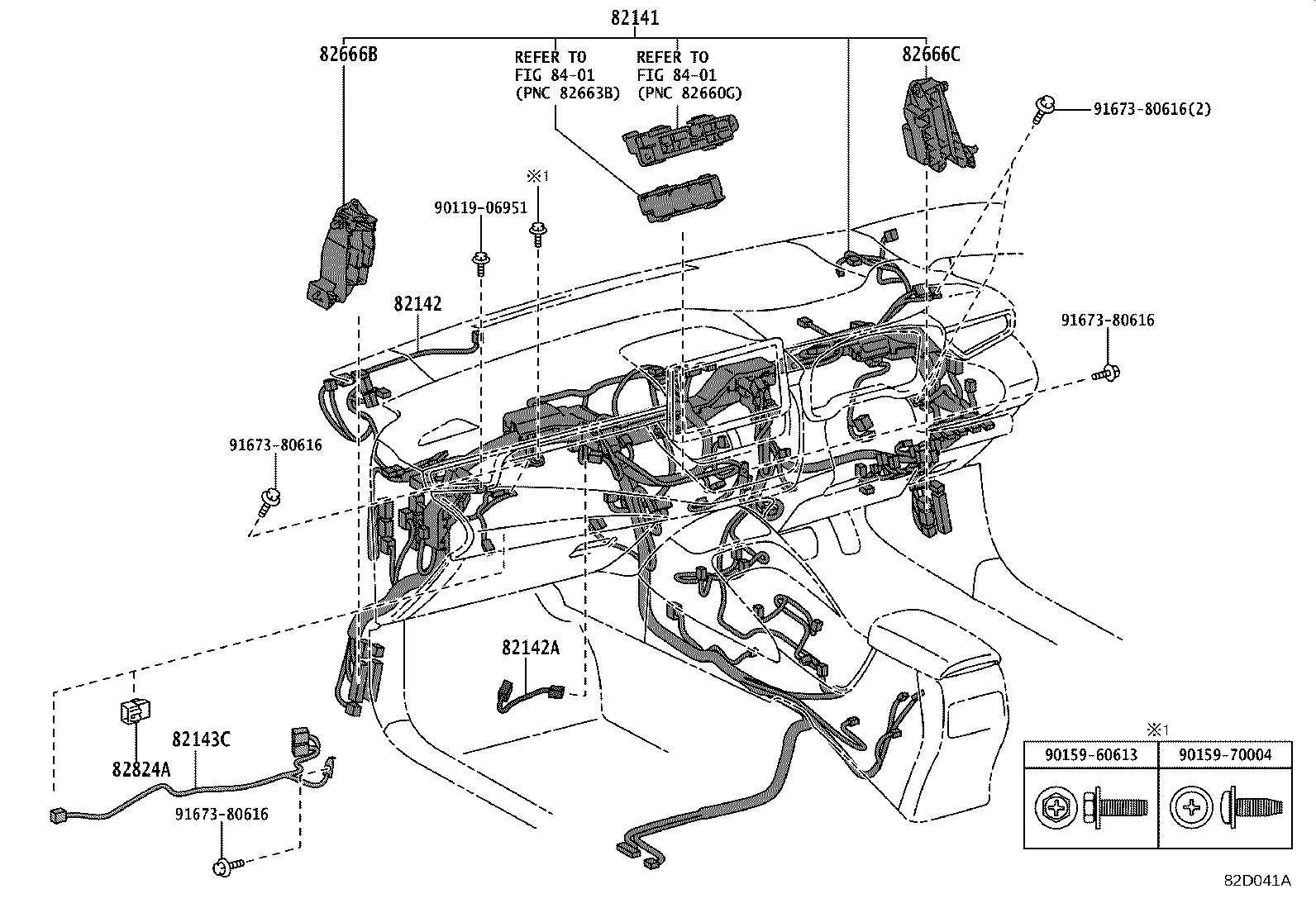

ILLUST NO. 5 OF12(1908- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1XJ60 |
ZRE212..S,WB |
1 | ||
| 82141-1XK70 |
ZRE212..S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XJ61 |
ZRE212..S,WB |
1 | ||
| 82141-1XK71 |
ZRE212..S,WB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12680 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12B80 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12670 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

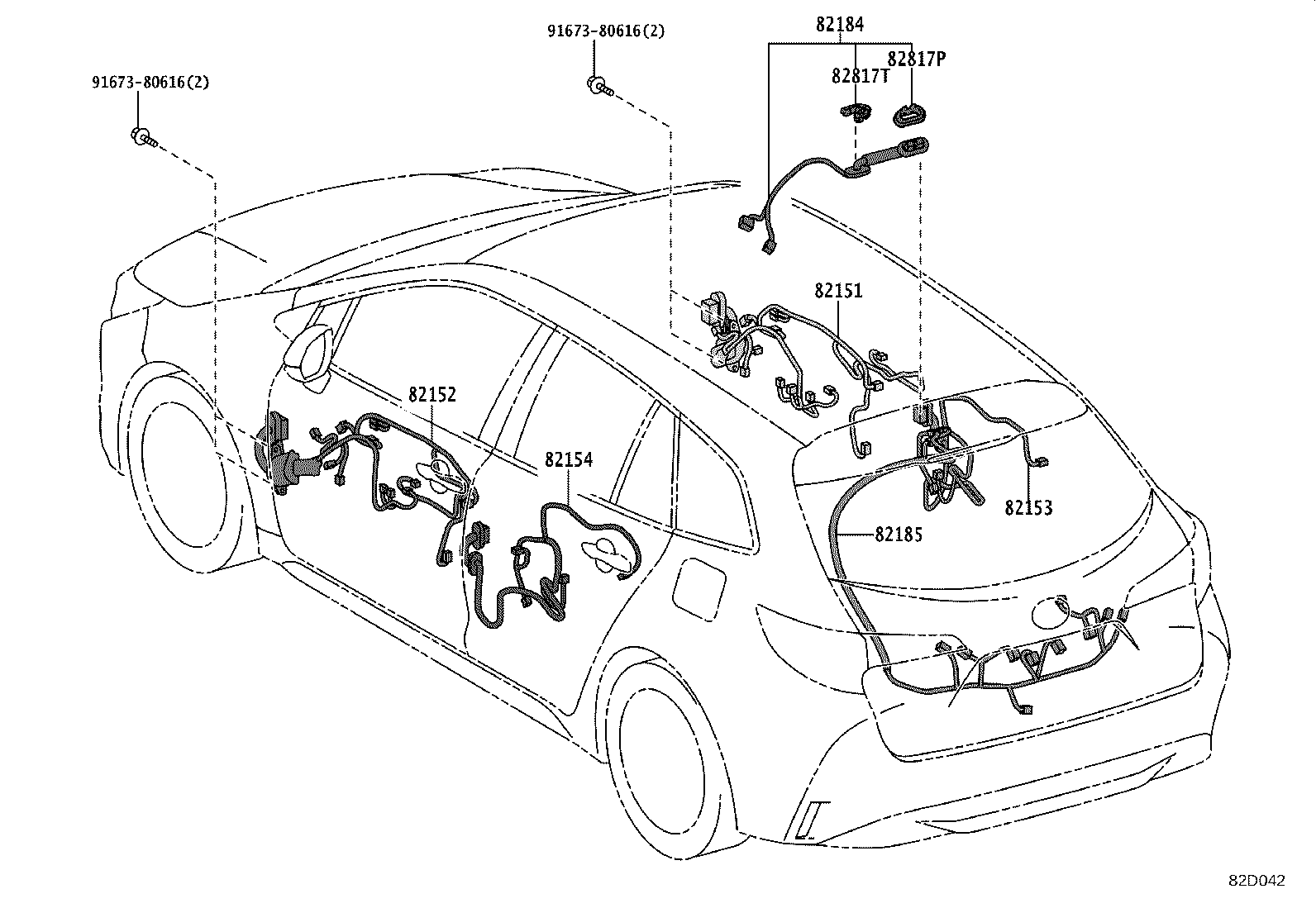

ILLUST NO. 6 OF12(1908- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1AC80 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1AB80 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12C30 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12B90 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||

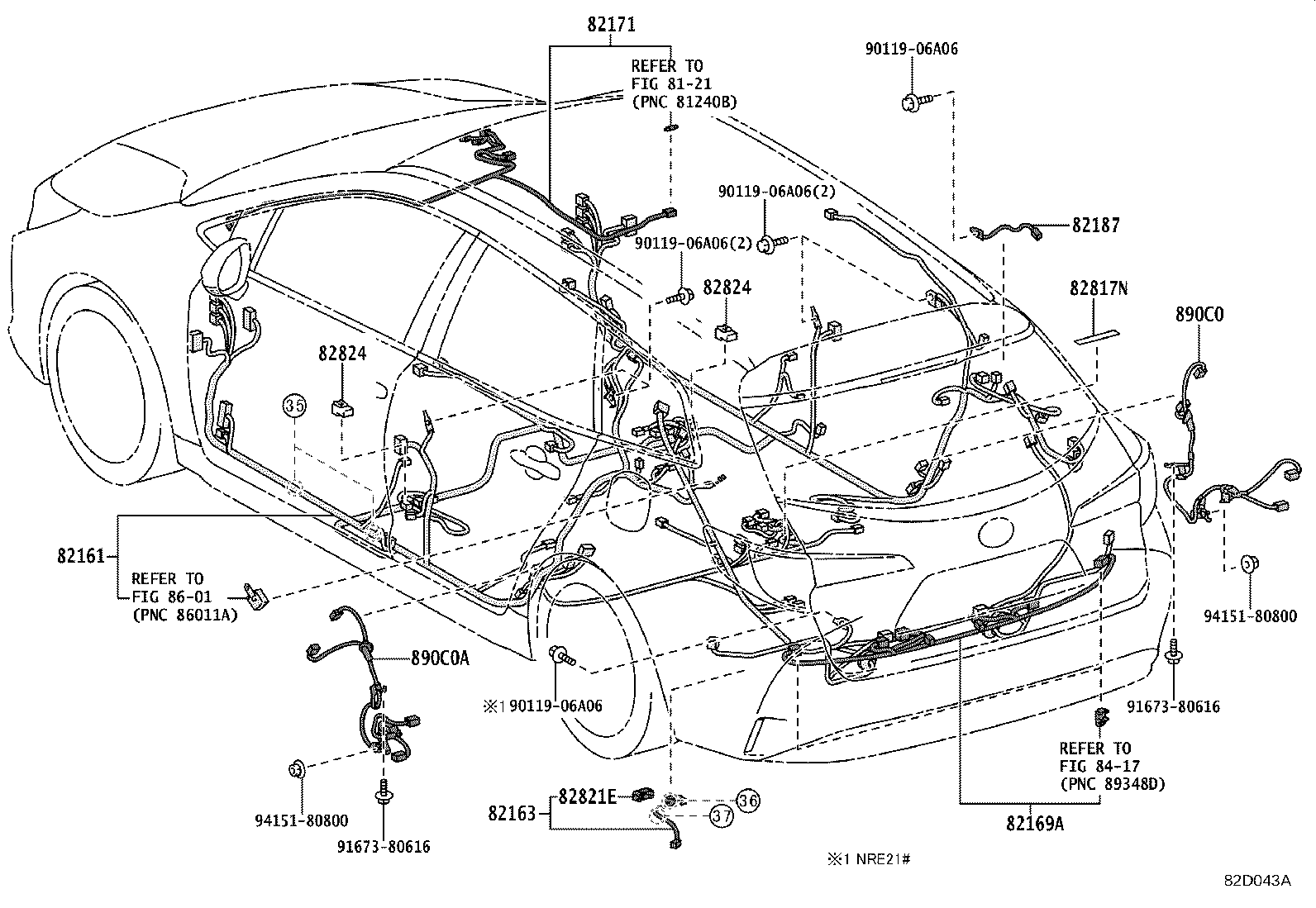

ILLUST NO. 7 OF12(1908- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-1EB50 |
ZRE212..SED..(S,WB) |
1 | ||
| 82161-1EB60 |
ZRE212..SED..(S,WB) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-12060 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12V30 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 82171-12V40 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12260 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 90980-12373 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 90980-12373 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
2 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-12010 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDGX,HBDS,HBDWB,S,WB |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-12020 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDGX,HBDS,HBDWB,S,WB |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

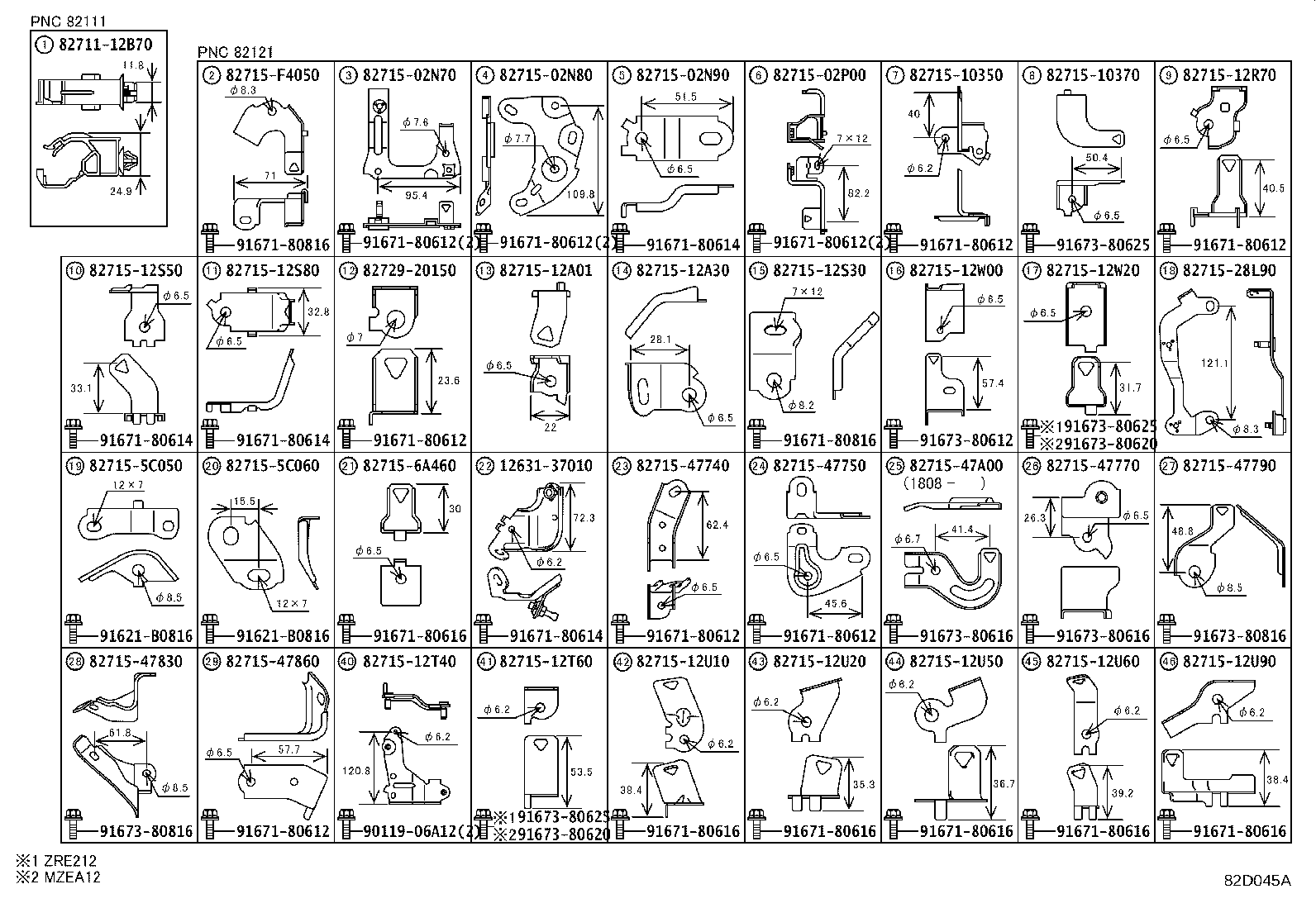

ILLUST NO. 9 OF12(1908- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82711-12B70 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-10350 | ||||
| 82715-10370 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12R70 | ||||
| 82715-12S30 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12T40 | ||||
| 82715-12T60 | ||||
| 82715-12U10 | ||||
| 82715-12U20 | ||||
| 82715-12U50 | ||||
| 82715-12U60 | ||||
| 82715-12U90 | ||||
| 82715-12W00 | ||||
| 82715-12W20 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82715-F4050 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||

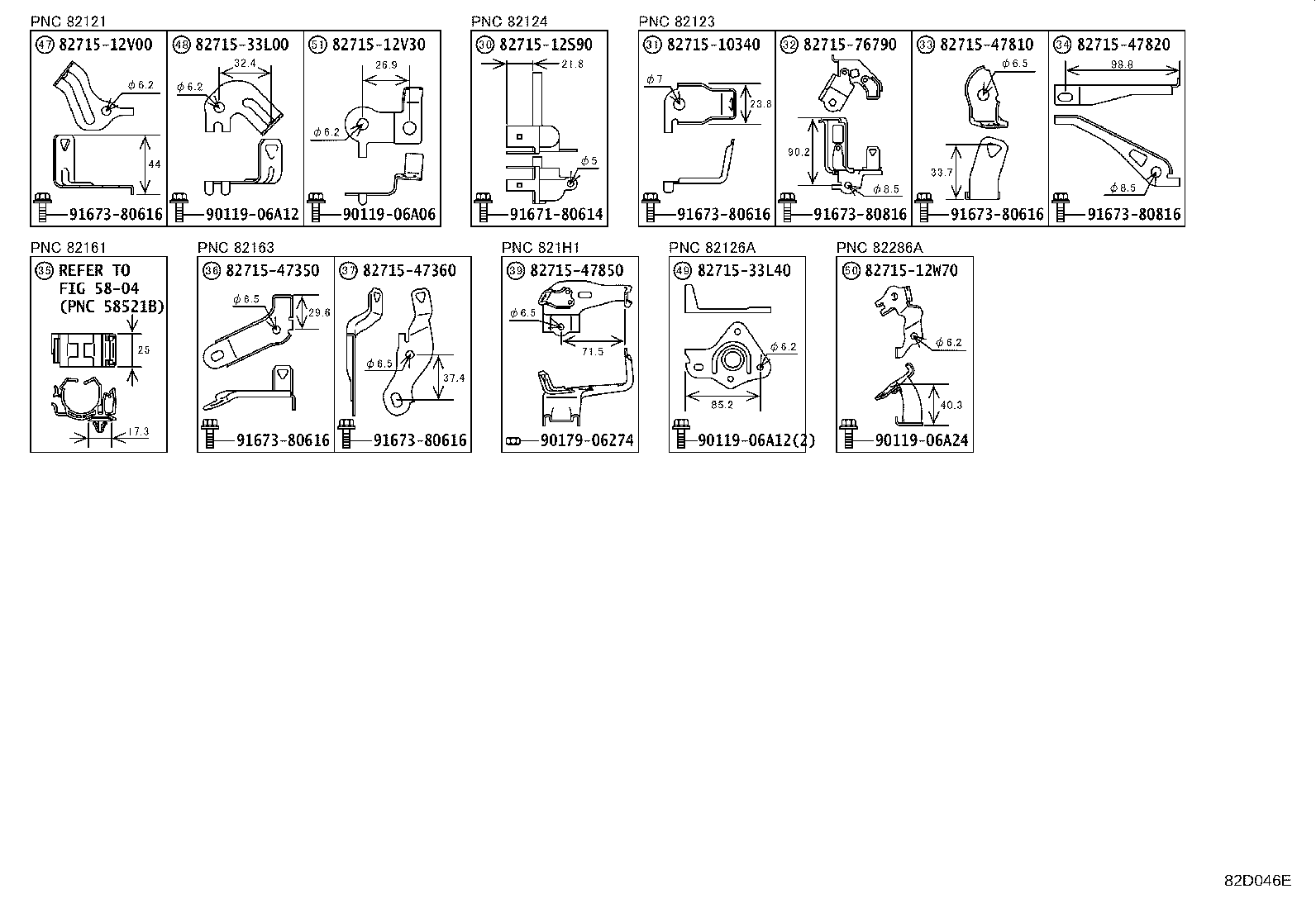

ILLUST NO.10 OF12(1908- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-10340 | ||||
| 82715-12S90 | ||||
| 82715-12V00 | ||||
| 82715-12V30 | ||||
| 82715-12W70 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-47350 | ||||
| 82715-47360 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47850 | ||||
| 82715-76790 | ||||
| 90119-06A06 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90179-06274 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 5804 | ||||

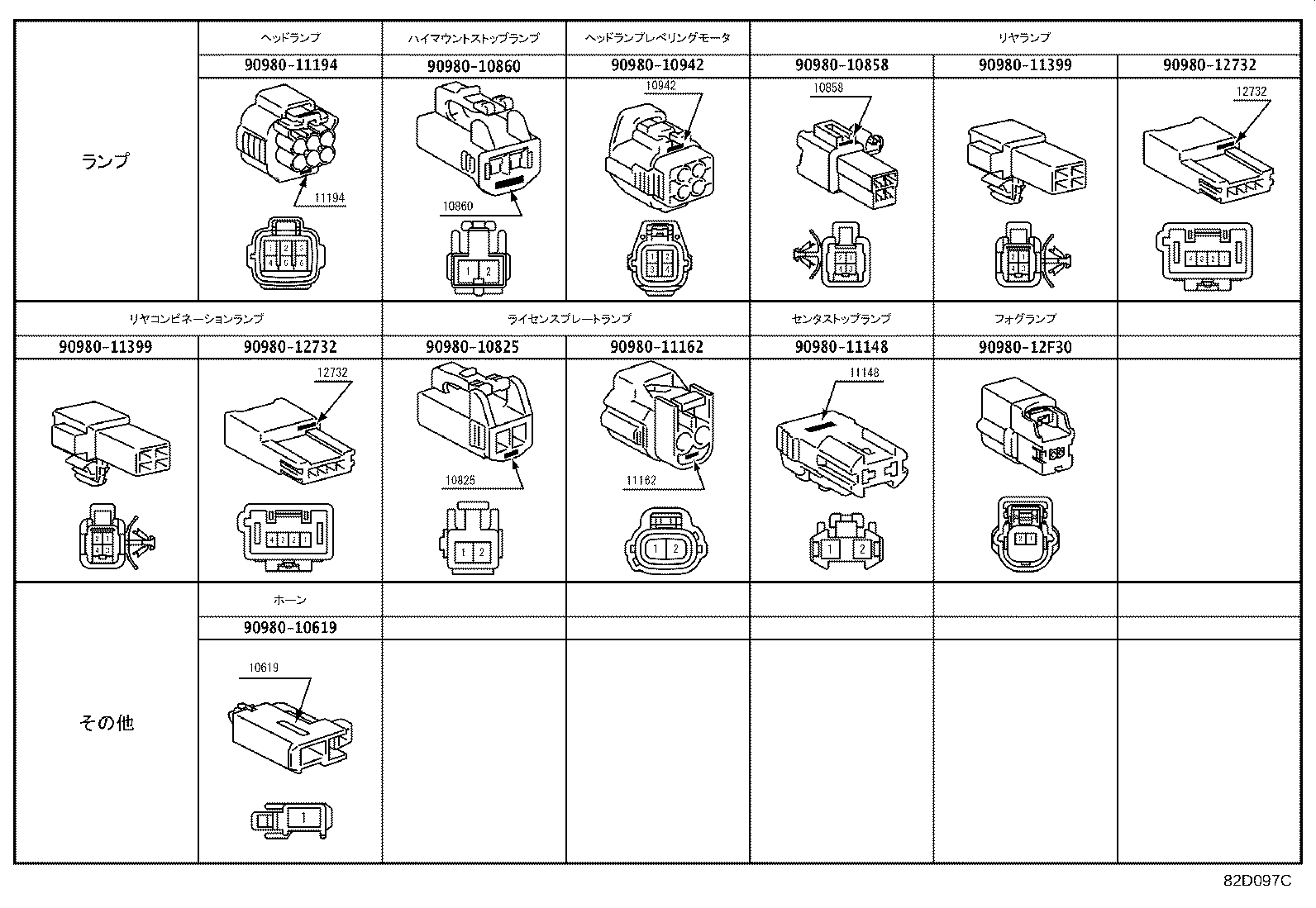

ILLUST NO.11 OF12(1908- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10858 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12732 | ||||
| 90980-12F30 | ||||

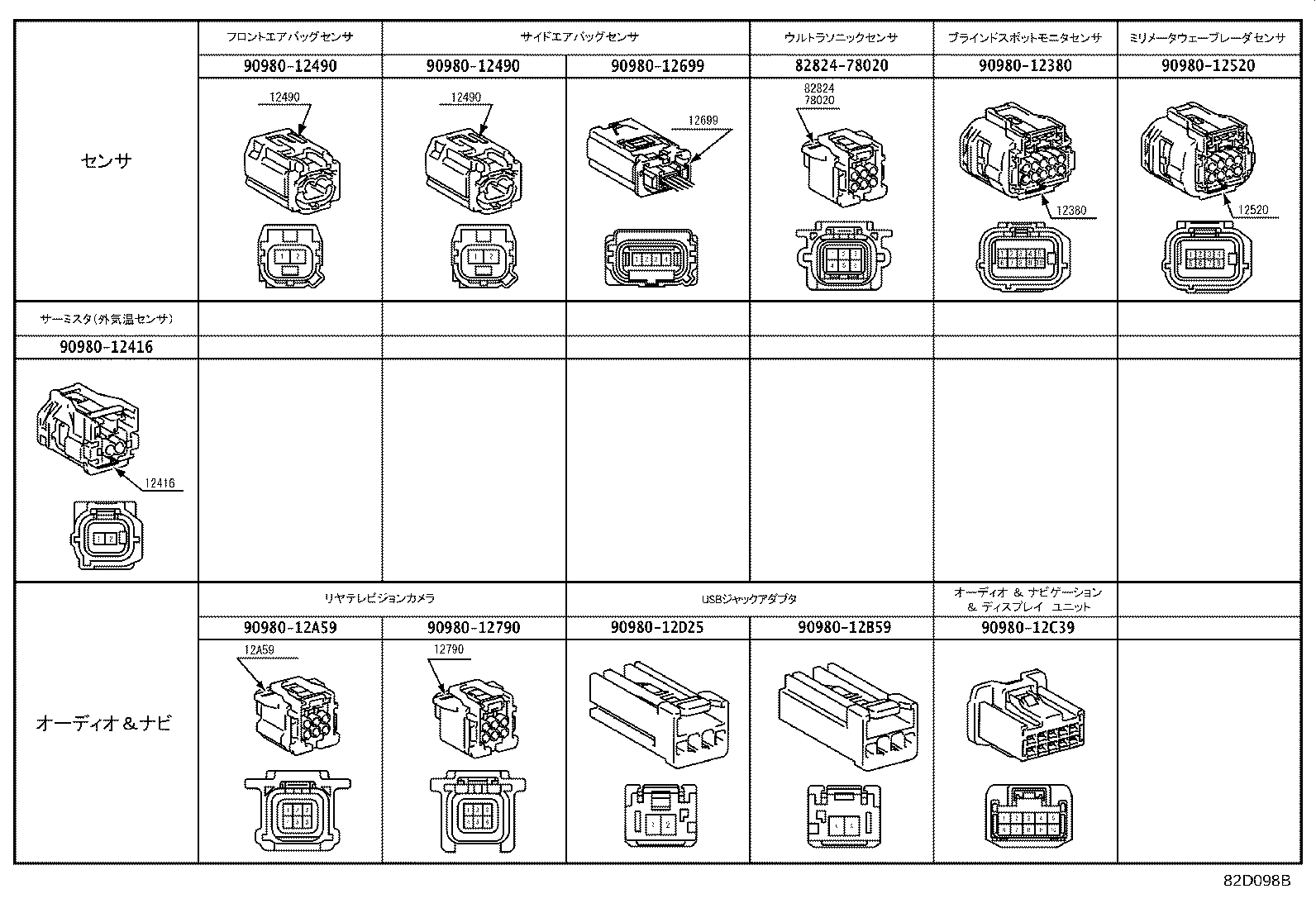

ILLUST NO.12 OF12(1908- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B59 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
