ZRE212-AEXEP (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

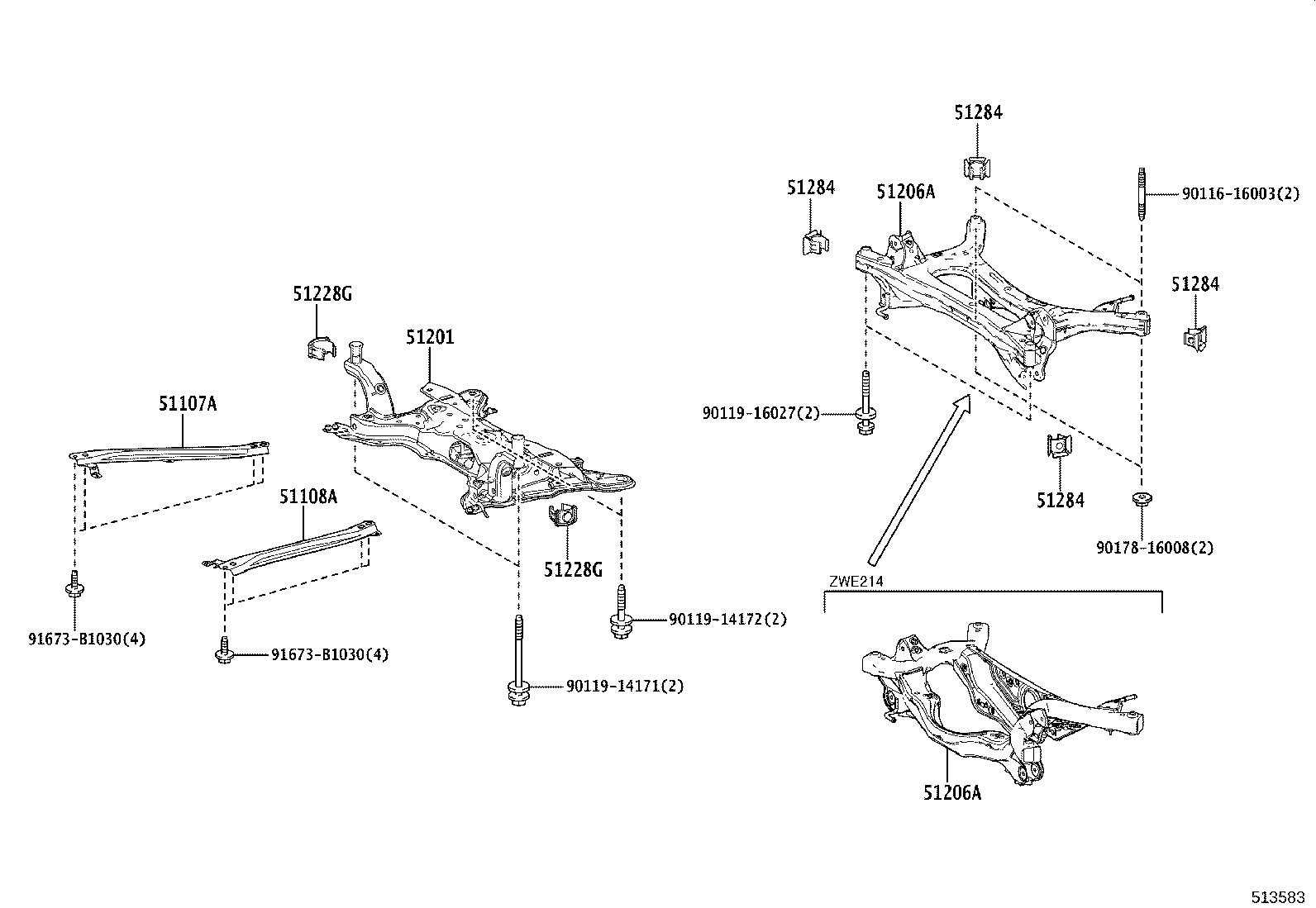

ILLUST NO. 1 OF 2(1908- )

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝ ｸﾛｽﾒﾝﾊﾞ

diagram 51107A 51108A 51201 51206A 51206A 51228G 51228G 51284 51284 51284 51284 9011616003 9011914171 9011914172 9011916027 9017816008 91673B1030 91673B1030
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-47072

MZEA12,NRE210,ZRE212,ZWE21#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-47013

MZEA12,NRE210,ZRE212,ZWE211

 1
51206-47012

MZEA12,NRE210,ZRE212,ZWE211

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-47013

MZEA12,NRE210,ZRE212,ZWE211

 1
51206-47012

MZEA12,NRE210,ZRE212,ZWE211

 1
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-47010

MZEA12,NRE210,ZRE212,ZWE21#

 2
51228G - PLATE, FRONT SUSPENSION MEMBER
51228-47010

MZEA12,NRE210,ZRE212,ZWE21#

 2
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

MZEA12,NRE210,ZRE212,ZWE211

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

MZEA12,NRE210,ZRE212,ZWE211

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

MZEA12,NRE210,ZRE212,ZWE211

 4
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-47010

MZEA12,NRE210,ZRE212,ZWE211

 4
Common parts
90116-16003
90119-14171
90119-14172
90119-16027
90178-16008
91673-B1030

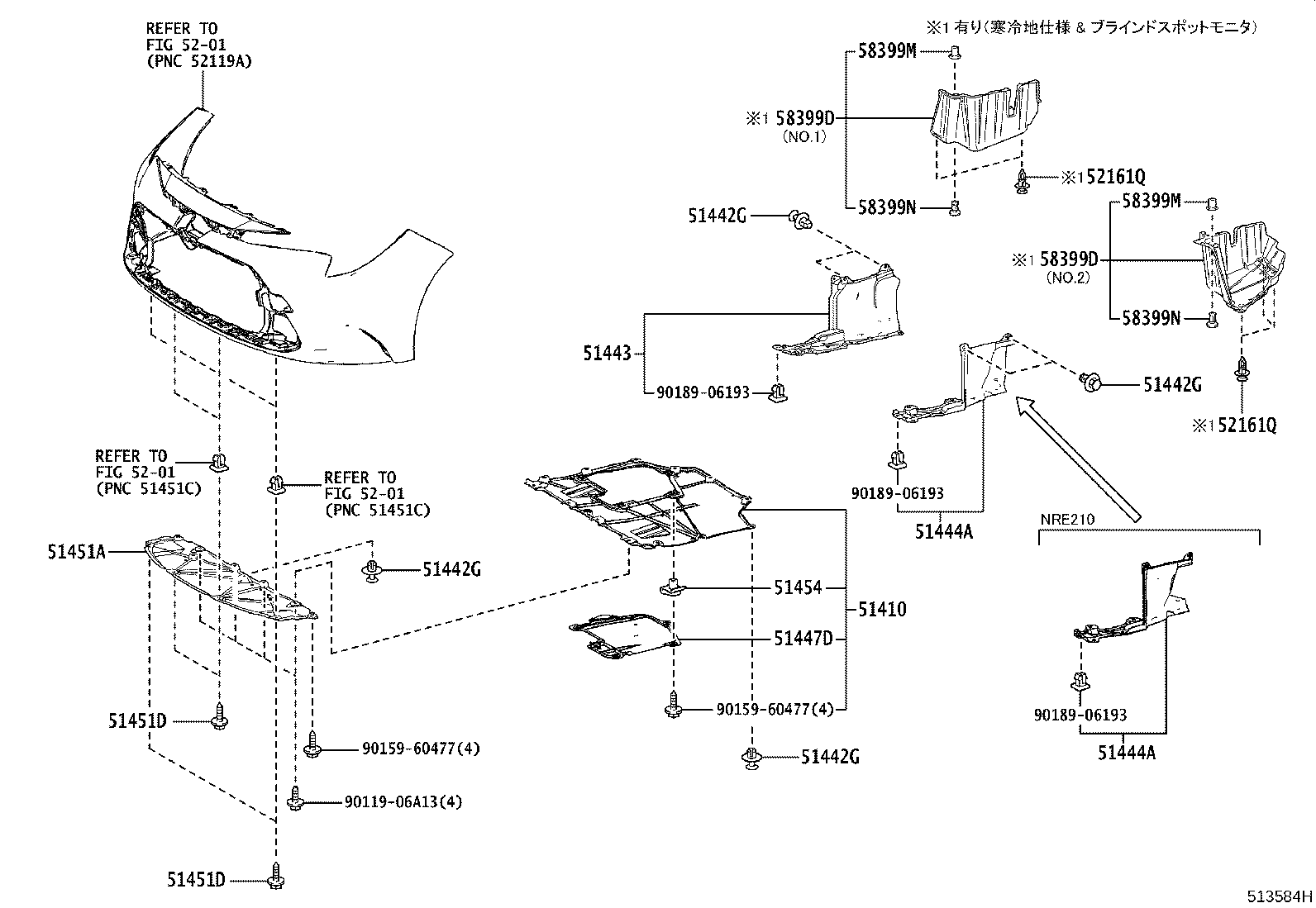

ILLUST NO. 2 OF 2(1908- )MZEA12,NRE210,ZRE212

Click highlighted areas on diagram

ｱﾝﾀﾞ ｶﾊﾞｰ

diagram 51410 51442G 51442G 51442G 51442G 51443 51444A 51444A 51447D 51451A 51451D 51451D 51454 5201 5201 5201 52161Q 52161Q 58399D 58399D 58399M 58399M 58399N 58399N 9011906A13 9015960477 9015960477 9018906193 9018906193 9018906193
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-12181

MZEA12,NRE210,ZRE212,ZWE21#

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA12,NRE210,ZRE212,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA12,NRE210,ZRE212,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA12,NRE210,ZRE212,ZWE21#

 15
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

MZEA12,NRE210,ZRE212,ZWE21#

 15
51443 - COVER, ENGINE UNDER, REAR RH
51443-12110

MZEA12,NRE210,ZRE212,ZWE21#

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-12080

MZEA12,ZRE212,ZWE21#

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-12080

MZEA12,ZRE212,ZWE21#

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-12121

MZEA12,NRE210,ZRE212,ZWE21#

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-12120

MZEA12,NRE210,ZRE212,ZWE21#

 1
51451D - SCREW, NO.1
90159-60477

MZEA12,NRE210,ZRE212,ZWE21#

 4
51451D - SCREW, NO.1
90159-60477

MZEA12,NRE210,ZRE212,ZWE21#

 4
51454 - CLIP
90467-05176

MZEA12,NRE210,ZRE212,ZWE21#

 4
90179-06104

NRE210,ZRE212,ZWE21#

 4
52161Q - PIECE, FRONT BUMPER
52161-16010

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 5
52161Q - PIECE, FRONT BUMPER
52161-16010

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 5
58399D - COVER, FLOOR UNDER, NO.2
58398-12090

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,NO.1

 1
58399-12090

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,NO.2

 1
58399D - COVER, FLOOR UNDER, NO.2
58398-12090

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,NO.1

 1
58399-12090

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,NO.2

 1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,SUPER WHITE 2

 2
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,SUPER WHITE 2

 2
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK

 2
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

NRE210,ZRE212

寒冷地仕様&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り,BLACK

 2
Common parts
90119-06A13
90159-60477
90189-06193
Linked diagrams
5201
