TE74V-EXHDS (1981)

Toyota Corolla

Production Aug 1981 - Aug 1983
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)SED,V,WG

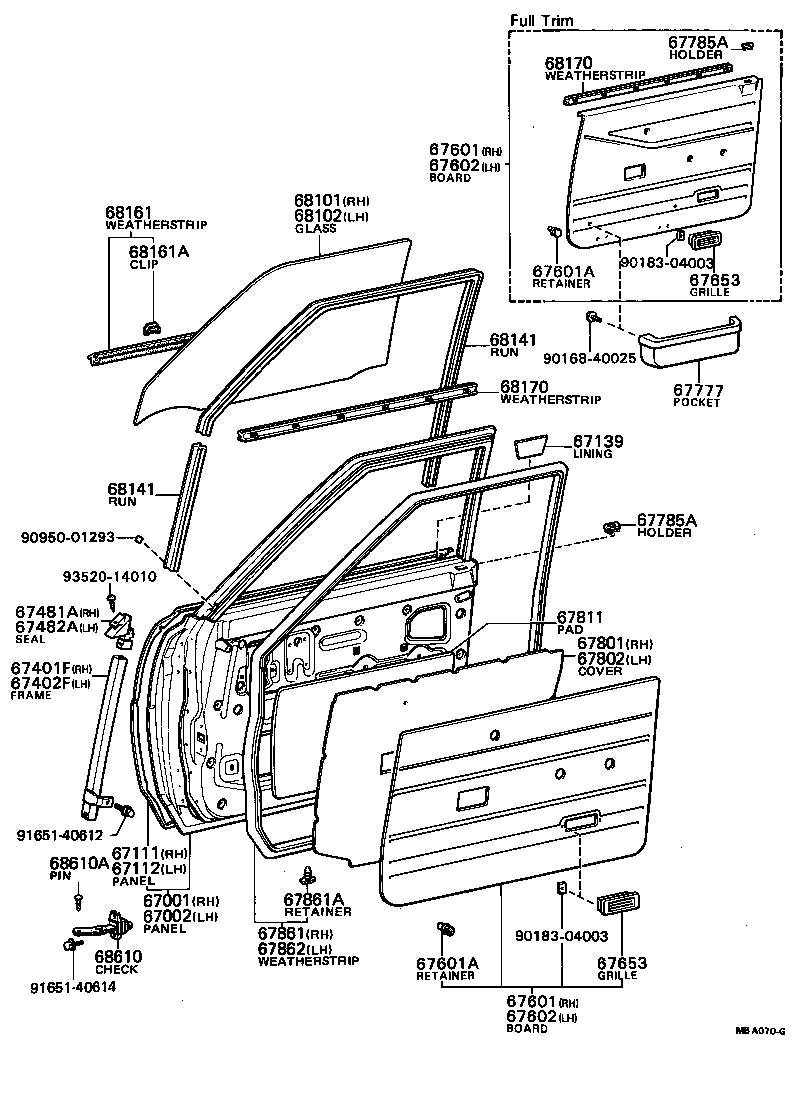

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67139 67401F 67402F 67481A 67482A 67601 67601 67601A 67601A 67602 67602 67653 67653 67777 67785A 67785A 67801 67802 67811 67861 67861A 67862 68101 68102 68141 68141 68161 68161A 68170 68170 68610 68610A 9016840025 9018304003 9018304003 9095001293 9165140612 9165140614 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-12410

AE70,CE7#,KE7#,TE7#..4D

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-12440

AE70,CE7#,KE7#,TE7#..4D

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12250

AE70,CE7#,KE7#,TE7#..4D

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12240

AE70,CE7#,KE7#,TE7#..4D

 1
67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67139-12010

AE70,KE7#,TE7#..SED,V

 2
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-12110

AE70,CE7#,KE7#,TE7#..SED,V,WG

W/O DOOR MIRROR

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-12110

AE70,CE7#,KE7#,TE7#..SED,V,WG

W/O DOOR MIRROR

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-12080

AE70,CE7#,KE7#,TE7#..4D

W/O DOOR MIRROR

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-12080

AE70,CE7#,KE7#,TE7#..4D

W/O DOOR MIRROR

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1273101

CE71,KE72,TE74..(DX,GL)..4D

BLACK,BLACK,TRIM2#

 1
67610-1273106

CE71,KE72,TE74..(DX,GL)..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1273101

CE71,KE72,TE74..(DX,GL)..4D

BLACK,BLACK,TRIM2#

 1
67610-1273106

CE71,KE72,TE74..(DX,GL)..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE70,CE7#,KE7#,TE7#

 34
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12010

AE70,CE7#,KE7#,TE7#

 34
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1253101

CE71,KE72,TE74..(DX,GL)..4D

BLACK,BLACK,TRIM2#

 1
67620-1253106

CE71,KE72,TE74..(DX,GL)..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1253101

CE71,KE72,TE74..(DX,GL)..4D

BLACK,BLACK,TRIM2#

 1
67620-1253106

CE71,KE72,TE74..(DX,GL)..4D

LIGHT BROWN,BROWN,TRIM4#

 1
67653 - GRILLE, FRONT DOOR, VENTILATION
67653-1601026

AE70,CE7#,KE7#,TE7#..CTD,DX,GL,GT,LVN,LVS,SE,SR,SX

DARK BROWN,BROWN,TRIM4#

 2
67653-1601001

AE70,CE7#,KE7#,TE7#

BLACK,BLACK,TRIM2#

 2
67653 - GRILLE, FRONT DOOR, VENTILATION
67653-1601026

AE70,CE7#,KE7#,TE7#..CTD,DX,GL,GT,LVN,LVS,SE,SR,SX

DARK BROWN,BROWN,TRIM4#

 2
67653-1601001

AE70,CE7#,KE7#,TE7#

BLACK,BLACK,TRIM2#

 2
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-12150

AE70,KE7#,TE7#..4D

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67831-12150

AE70,KE7#,TE7#..4D

 1
67811 - PAD, FRONT DOOR SILENCER
67811-12040

AE70,CE7#,KE7#,TE7#..4D

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12360

AE70,CE7#,KE7#,TE7#..4D

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

AE70,CE7#,KE7#,TE7#

 42
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12360

AE70,CE7#,KE7#,TE7#..4D

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-12300

AE70,CE7#,KE7#,TE7#..(CTD,DX,GL,GT,SE,SX)..4D

*TT,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-12300

AE70,CE7#,KE7#,TE7#..(CTD,DX,GL,GT,SE,SX)..4D

*TT,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-12110

AE70,KE7#,TE7#..4D

L=1678

 2
68143-12010

AE70,CE7#,KE7#,TE7#..4D

L=444,TG

 2
68141-12140

AE70,CE7#,KE7#,TE7#..4D

L=1748

 2
68143-13010

AE70,CE7#,KE7#,TE7#..4D

L=444

 2
68141 - RUN, FRONT DOOR GLASS
68141-12110

AE70,KE7#,TE7#..4D

L=1678

 2
68143-12010

AE70,CE7#,KE7#,TE7#..4D

L=444,TG

 2
68141-12140

AE70,CE7#,KE7#,TE7#..4D

L=1748

 2
68143-13010

AE70,CE7#,KE7#,TE7#..4D

L=444

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-12100

AE70,CE7#,KE7#,TE73,74..(CTD,DX,STD)..4D

RH

 1
68210-12060

AE70,CE7#,KE7#,TE73,74..(CTD,DX,STD)..4D

LH

 1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

AE70,CE7#,KE7#,TE73,74..(SED,V,WG)..(CTD,DX,STD)

 14
68610 - CHECK ASSY, FRONT DOOR
68610-12010

AE70,CE7#,KE7#,TE7#..SED,V,WG

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

AE70,CE7#,KE7#,TE7#

 2
Common parts
90168-40025
90183-04003
90950-01293
91651-40612
91651-40614
93520-14010
