TE73V-EXKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )CE71,72,KE71,72,73,74,TE73,74

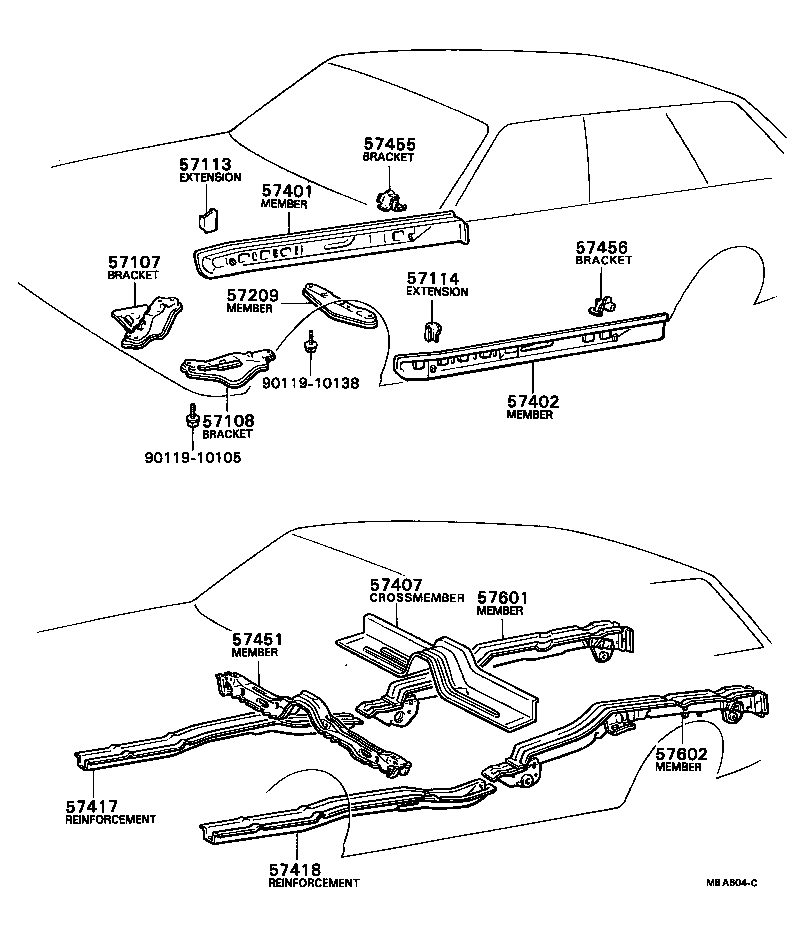

Click highlighted areas on diagram

diagram 57107 57108 57113 57114 57209 57401 57402 57407 57417 57418 57451 57455 57456 57601 57602 9011910105 9011910138
Part # Description Qty Price
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12010

AE70,KE7#,TE7#

 1
57113-12020

AE70,KE7#,TE7#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12020

AE70,KE7#,TE7#

 1
57114-12010

AE70,KE7#,TE7#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-12100

TE7#..MTM

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-12901

AE70,KE7#,TE7#..4D

 1
57401-12090

AE70,KE7#,TE7#..4D

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-12090

AE70,KE7#,TE7#..4D

 1
57402-12901

AE70,KE7#,TE7#..4D

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-12020

AE70,CE7#,KE7#,TE7#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-12040

AE70,CE7#,KE7#,TE7#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-12050

AE70,KE7#,TE7#

 1
57455 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57455-12020

AE70,CE7#,KE7#,TE7#

 1
57456 - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57456-12020

AE70,CE7#,KE7#,TE7#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-13090

KE71,TE73

 1
Common parts
90119-10105
90119-10138
