TE73V-EXKNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)12TJ

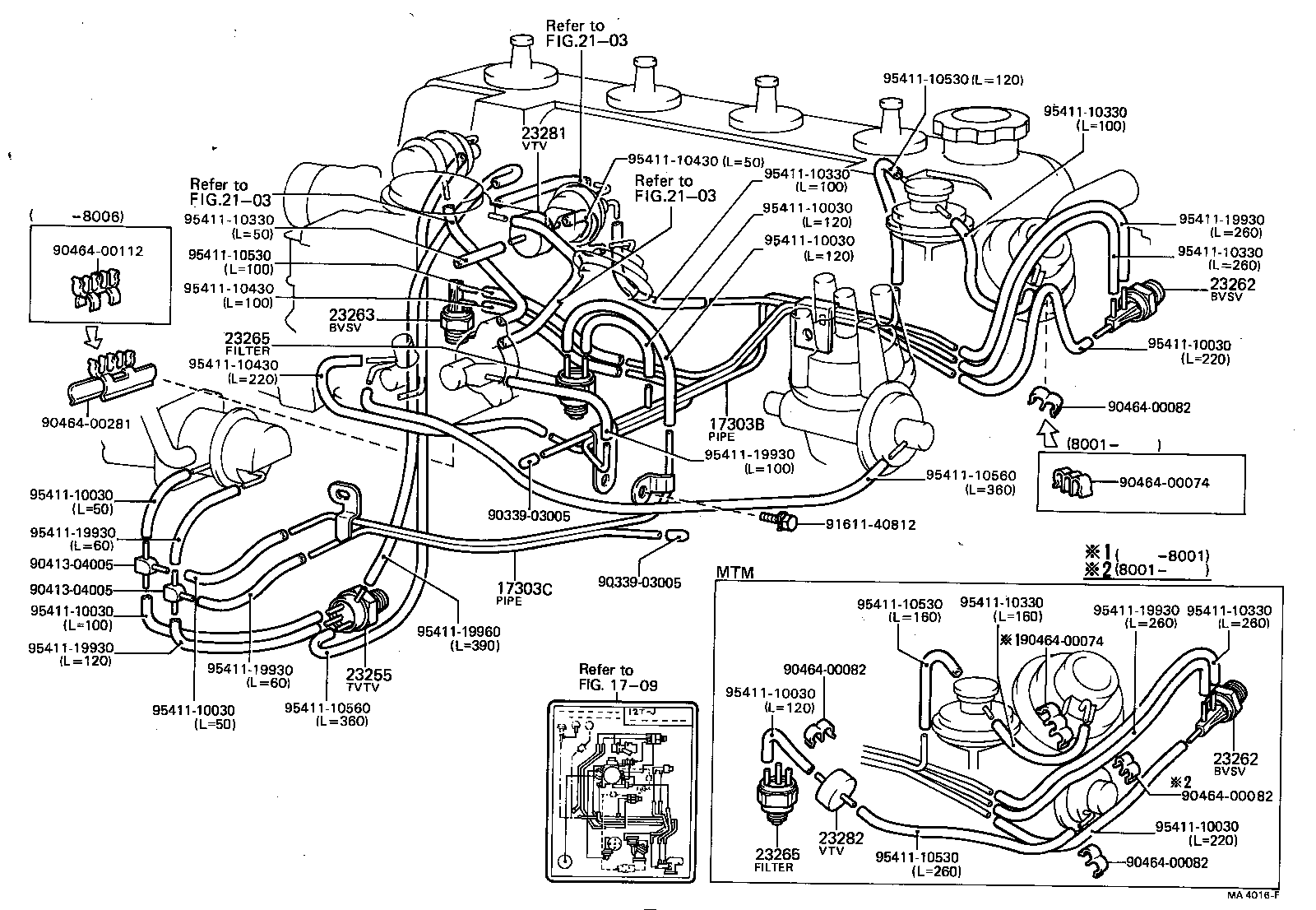

Click highlighted areas on diagram

diagram 1709 17303B 17303C 2103 2103 2103 23255 23262 23262 23263 23265 23265 23281 23282 9033903005 9033903005 9041304005 9041304005 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400112 9046400281 9161140812 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110330 9541110330 9541110330 9541110330 9541110330 9541110330 9541110430 9541110430 9541110430 9541110530 9541110530 9541110530 9541110530 9541110560 9541110560 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-27030

12TJ..TE73

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01068

12TJ,13TU..TE70,73

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

12TJ..TE73

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

12TJ..TE73

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

12TJ..TE73

 1
23265 - FILTER, GAS, NO.1
90917-11024

12TJ,13TU..TE70,73..MTM

 1
23265 - FILTER, GAS, NO.1
90917-11024

12TJ,13TU..TE70,73..MTM

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01073

12TJ..TE73..4F

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01041

12TJ..TE73..4F

 1
Common parts
90339-03005
90413-04005
90464-00074
90464-00082
90464-00112
90464-00281
91611-40812
95411-10030
95411-10330
95411-10430
95411-10530
95411-10560
95411-19930
95411-19960
Linked diagrams
1709
2103
