TE73V-EXHNSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)3FC ; (8108- )ATM

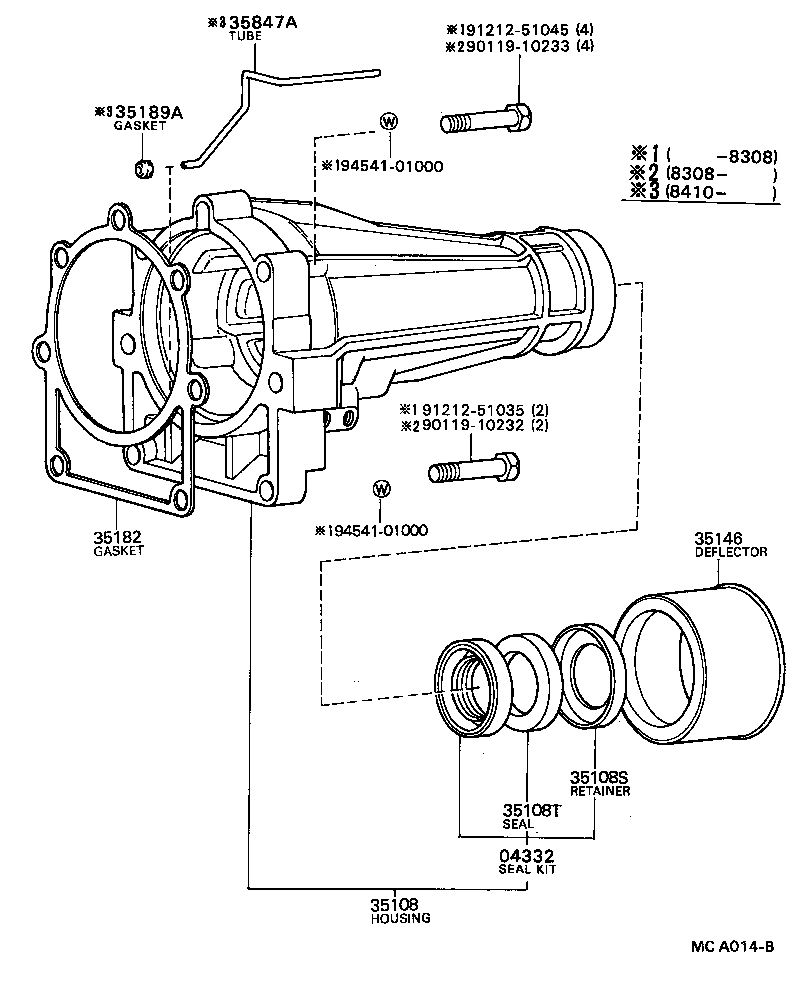

Click highlighted areas on diagram

diagram 04332 35108 35108S 35108T 35146 35182 35189A 35847A 9011910232 9011910233 9121251035 9121251045 9454101000 9454101000
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30020

AE70,TE70,73..3FC

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-22032

AE70,TE70,73..3FC

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

AE70,TE70,73..3FC

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

AE70,TE70,73..3FC

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

AE70,TE70,73..3FC

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

AE70,TE70,73..3FC

 1
Common parts
90119-10232
90119-10233
91212-51035
91212-51045
94541-01000
