TE73V-EXHDSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 12TJ
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)SED,V

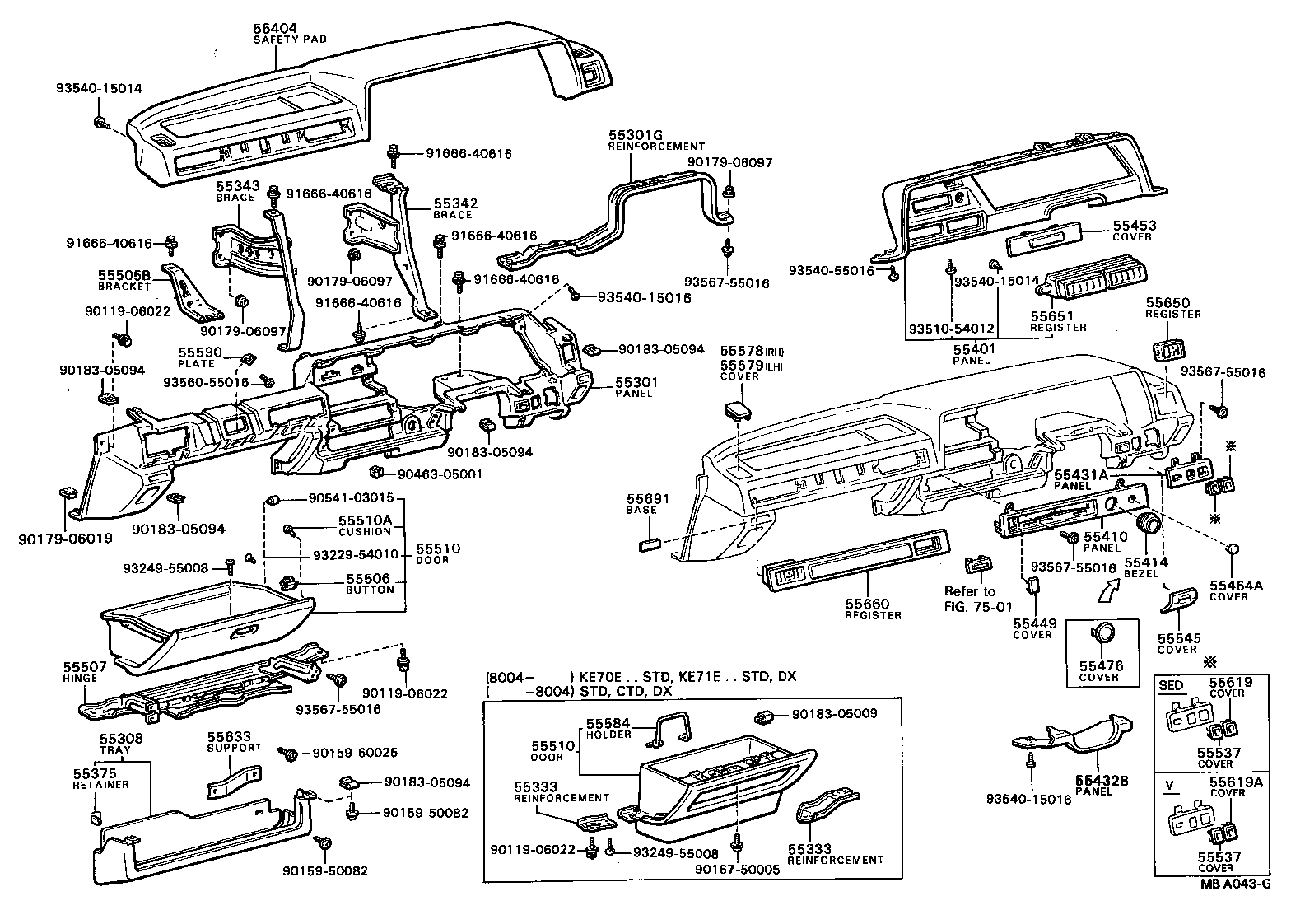

Click highlighted areas on diagram

diagram 55301 55301G 55308 55333 55333 55342 55343 55375 55401 55404 55410 55414 55431A 55432B 55449 55453 55464A 55476 55505B 55506 55507 55510 55510 55510A 55537 55537 55545 55578 55579 55584 55590 55619 55619A 55633 55650 55651 55660 55691 7501 9011906022 9011906022 9011906022 9015950082 9015950082 9015960025 9016750005 9017906019 9017906097 9017906097 9017906097 9018305009 9018305094 9018305094 9018305094 9018305094 9018305094 9046305001 9054103015 9166640616 9166640616 9166640616 9166640616 9166640616 9166640616 9322954010 9324955008 9324955008 9351054012 9354015014 9354015014 9354015016 9354015016 9354055016 9356055016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-1215001

AE70,CE7#,KE7#,TE7#..SED,V,WG

BLACK,BLACK,TRIM2#

 1
55311-1215015

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
55305-12050

AE70,KE7#,TE7#..SED,V

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55601-1208001

AE70,TE7#..SED,V

BLACK,BLACK,TRIM2#

 1
55601-1208005

AE70,TE7#..SED,V

BEIGE,BEIGE,TRIM4#

 1
55601-1208005

AE70,KE70,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55307-12030

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
55343 - BRACE, INSTRUMENT PANEL, NO.3
55308-12100

AE70,CE7#,KE7#,TE7#..SED,V,WG

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55410-1253006

AE70,KE71,TE7#..SED,V

BROWN,BROWN,TRIM4#

 1
55410-1253003

AE70,KE71,TE7#..SED,V

GRAY,GRAY,TRIM2#

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55401-1209015

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55401-1209001

AE70,CE7#,KE7#,TE7#..SED,V,WG

BLACK,BLACK,TRIM2#

 1
55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55413-12260

AE70,KE71,TE73..DX,STD

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-12050

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

 1
55431A - PANEL, INSTRUMENT PANEL FINISH
55431-12030

AE70,KE71,TE73..DX,STD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1206015

AE70,KE71,TE7#..(SED,V)..(DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55432-1206001

AE70,KE71,TE7#..SED,V

BLACK,BLACK,TRIM2#

 1
55464A - COVER, CHOKE KNOB HOLE
55617-1001001

AE70,CE70,71,TE7#

BLACK,BLACK,TRIM2#

 1
55505B - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-12060

AE70,KE7#,TE7#..SED,V

 1
55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55560-1203001

AE70,TE73..DX

BLACK

 1
55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55505-12030

AE70,TE7#..SED,V

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1219001

AE70,TE7#..SED,V

BLACK,BLACK,TRIM2#

 1
55550-1219015

AE70,TE7#..SED,V

BEIGE,BEIGE,TRIM4#

 1
55550-1219015

AE70,KE70,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1219001

AE70,TE7#..SED,V

BLACK,BLACK,TRIM2#

 1
55550-1219015

AE70,TE7#..SED,V

BEIGE,BEIGE,TRIM4#

 1
55550-1219015

AE70,KE70,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55557-16010

AE70,TE7#..SED,V

 2
55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55384-2001101

KE71;TE73..DX

BLACK,BLACK,TRIM2#

 1
55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55384-2001101

KE71;TE73..DX

BLACK,BLACK,TRIM2#

 1
55545 - COVER, FUSE BOX OPENING
55540-1201015

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55540-1201001

AE70,KE7#,TE7#..SED,V

BLACK,BLACK,TRIM2#

 1
55545-1201015

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55578 - COVER, SIDE DEFROSTER OPENING, RH
55578-1201001

KE71,TE73..DX,STD

BLACK,BLACK,TRIM2#

 1
55578-1201005

KE71,TE73..DX

BEIGE,BEIGE,TRIM4#

 1
55579 - COVER, SIDE DEFROSTER OPENING, LH
55578-1201001

KE71,TE73..DX,STD

BLACK,BLACK,TRIM2#

 1
55578-1201005

KE71,TE73..DX

BEIGE,BEIGE,TRIM4#

 1
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55590-12010

AE70,TE73..DX

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1204015

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BEIGE,BEIGE,TRIM4#

 1
55650-1204001

AE70,CE7#,KE7#,TE7#..SED,V,WG

BLACK,BLACK,TRIM2#

 1
55651 - REGISTER, INSTRUMENT PANEL, NO.1
55670-12020

AE70,KE7#,TE7#..SED,V

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-1207003

AE70,KE7#,TE7#..SED,V

GRAY,GRAY,TRIM1#

 1
55660-1207016

AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE)

BROWN,BROWN,TRIM4#

 1
55691 - BASE, INSTRUMENT PANEL NAME
55512-12080

AE70,CE7#,KE7#,TE7#..SED,V,WG

 2
Common parts
90119-06022
90159-50082
90159-60025
90167-50005
90179-06019
90179-06097
90183-05009
90183-05094
90463-05001
90541-03015
91666-40616
93229-54010
93249-55008
93510-54012
93540-15014
93540-15016
93540-55016
93560-55016
93567-55016
Linked diagrams
7501
