TE73V-EVKDSW (1979)

Toyota Corolla

Production Aug 1979 - Aug 1981
Engine 12TJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)KE70 ; (8108- )KE70,73..MTM

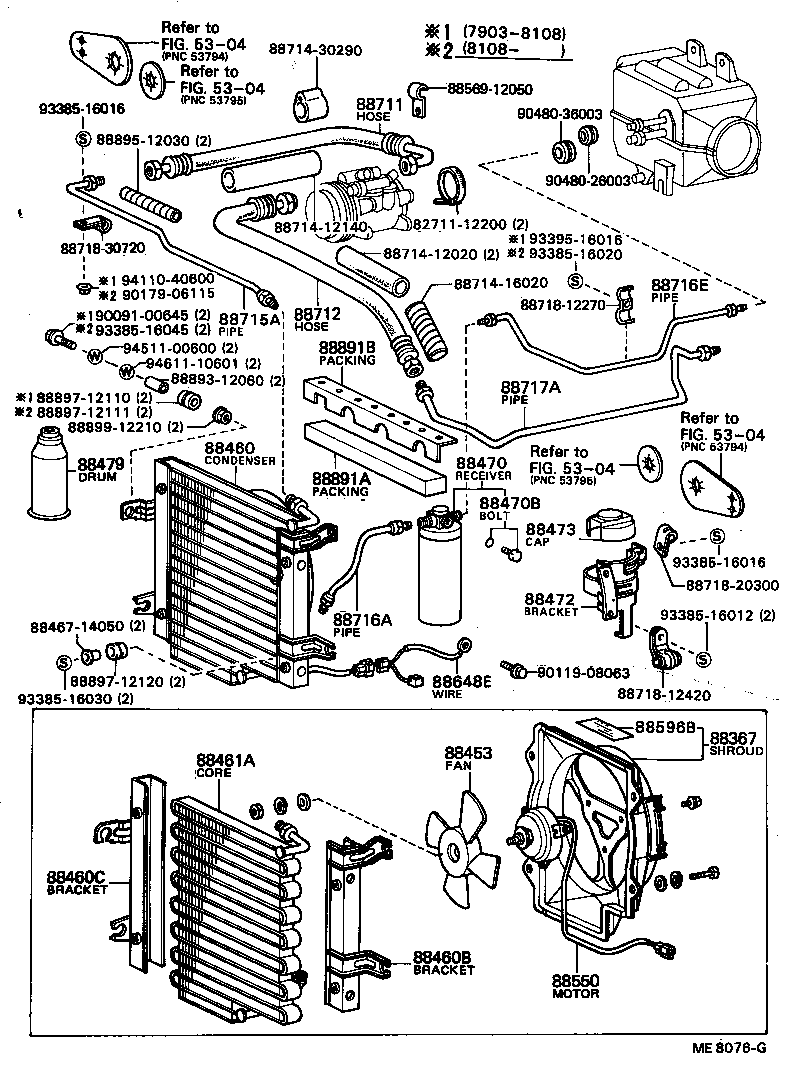

Click highlighted areas on diagram

diagram 5304 5304 5304 5304 8271112200 88367 88453 88460 88460B 88460C 88461A 8846714050 88470 88470B 88472 88473 88479 88550 8856912050 88596B 88648E 88711 88712 8871412020 8871412140 8871416020 8871430290 88715A 88716A 88716E 88717A 8871812270 8871812420 8871820300 8871830720 88891A 88891B 8889312060 8889512030 8889712110 8889712111 8889712120 8889912210 9009100645 9011908063 9017906115 9048026003 9048036003 9338516012 9338516016 9338516016 9338516020 9338516030 9338516045 9339516016 9411040600 9451100600 9461110601
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12120

KE71,TE70,73

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

KE71,TE7#

 1
88470B - BOLT, FUSE
90099-04579

AE70,CE7#,KE7#,TE7#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE70,CE7#,KE7#,TE7#

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12150

TE7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12300

TE71,73,74

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12420

AE70,KE71,TE7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12450

KE71,TE7#

 1
88891A - PACKING A (FOR COOLER)
53291-12050

AE70,TE7#

 1
Common parts
82711-12200
88467-14050
88569-12050
88714-12020
88714-12140
88714-16020
88714-30290
88718-12270
88718-12420
88718-20300
88718-30720
88893-12060
88895-12030
88897-12110
88897-12111
88897-12120
88899-12210
90091-00645
90119-08063
90179-06115
90480-26003
90480-36003
93385-16012
93385-16016
93385-16020
93385-16030
93385-16045
93395-16016
94110-40600
94511-00600
94611-10601
Linked diagrams
5304

(7903-8108)TE71,73

Click highlighted areas on diagram

diagram 5379112020 5379112030 5379312010 5379512010 88460 8846714050 88470 88470B 88479 8856922040 8856922040 88711 88712 8871314030 8871412030 8871412050 8871420030 88716A 88716E 8871812280 8871812280 8871812290 8871812310 8871812360 8871812370 88891A 88891B 8889212100 8889212100 8889212100 8889212100 8889212100 8889312060 8889712110 8889712120 8889912210 9009100645 9046108157 9048026003 9048036003 9338515016 9338516016 9338516016 9338516016 9338516016 9338516020 9338516025 9338516030 9338518020 9411040600 9411040600 9411040600 9411040600 9451100600 9461110601 9461110601
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12120

KE71,TE70,73

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12050

KE71,TE7#

 1
88470B - BOLT, FUSE
90099-04579

AE70,CE7#,KE7#,TE7#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE70,CE7#,KE7#,TE7#

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12150

TE7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12300

TE71,73,74

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12420

AE70,KE71,TE7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12450

KE71,TE7#

 1
88891A - PACKING A (FOR COOLER)
53291-12050

AE70,TE7#

 1
Common parts
53791-12020
53791-12030
53793-12010
53795-12010
88467-14050
88569-22040
88713-14030
88714-12030
88714-12050
88714-20030
88718-12280
88718-12290
88718-12310
88718-12360
88718-12370
88892-12100
88893-12060
88897-12110
88897-12120
88899-12210
90091-00645
90461-08157
90480-26003
90480-36003
93385-15016
93385-16016
93385-16020
93385-16025
93385-16030
93385-18020
94110-40600
94511-00600
94611-10601
