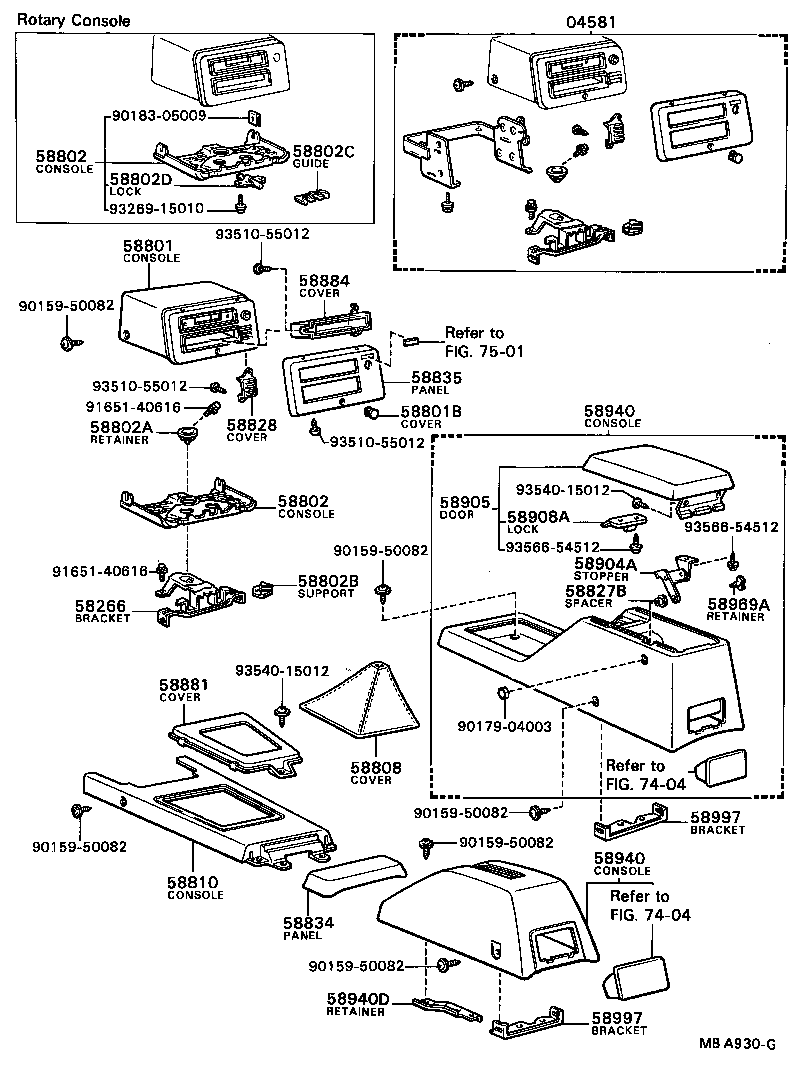

TE71-ESMQF (1979)
Toyota Corolla
(7903-8108)CP,HT,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04581 - FITTING KIT, CONSOLE | ||||
| 04581-12030 |
AE70,KE70,TE70,71..CP,HT,LB W/O *RCM |
1 | ||
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58902-12020 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1206004 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206001 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1206006 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1204006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1204004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1204104 |
AE70,KE70,TE71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206106 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMPO,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1206104 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206101 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204101 |
AE70,KE70,TE71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204106 |
AE70,KE70,TE71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58802 - CONSOLE SUB-ASSY, LOWER | ||||
| 58803-1202004 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 58803-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58803-1202001 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D BLACK,BLACK,TRIM2# |
1 | ||
| 58802 - CONSOLE SUB-ASSY, LOWER | ||||
| 58803-1202004 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D BLUE,BLUE,TRIM8# |
1 | ||
| 58803-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58803-1202001 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D BLACK,BLACK,TRIM2# |
1 | ||
| 58802A - RETAINER, ROTARY CONSOLE BOX | ||||
| 58851-12050 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 58802B - SUPPORT, ROTARY CONSOLE BOX | ||||
| 58852-12050 |
AE70,KE70,TE70,71..CP,HT,LB |
2 | ||
| 58802C - GUIDE, ROTARY CONSOLE BOX LOCK | ||||
| 58864-12010 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D |
1 | ||
| 58802D - LOCK SUB-ASSY, ROTARY CONSOLE BOX | ||||
| 58806-12010 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1207001 |
AE70,TE71..GT,LVN,SE,SR BLACK,BLACK,TRIM2# |
1 | ||
| 58808-1207001 |
KE70..4F..DX..4D;AE70,KE70,TE70,71..MTM..(GL,GT,LVN,SE,SL,SR) BLACK,BLACK,TRIM2# |
1 | ||
| 58808-1207004 |
AE70,TE71..GT,LVN,SE,SR BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1207004 |
KE70..4F..DX..4D;AE70,KE70,TE70,71..MTM..(GL,GT,LVN,SE,SL,SR) BLUE,BLUE,TRIM8# |
1 | ||
| 58808-1207006 |
AE70,TE71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58808-1207006 |
AE70,KE70,TE70,71..(HT,LB)..MTM..(GL,GT,SE) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1226004 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1228006 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM..(GL,GT,LVN,SE,SL,SR) COLD SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1226006 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1228004 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1228001 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1226001 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1231004 |
AE70,CE70,KE70,TE71..MTM..(GL,GT,LVN,LVS,SE,SR,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58828 - COVER, OK MONITOR OPENING | ||||
| 55529-12020 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 58835 - PANEL, CONSOLE, UPPER | ||||
| 58821-12020 |
AE70,KE70,TE70,71..CP,HT,LB |
1 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58843-1205004 |
AE70,KE70,TE71..(CP,HT,LB)..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58843-1205001 |
AE70,KE70,TE71..(CP,HT,LB)..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58843-1205006 |
AE70,KE70,TE71..(CP,HT,LB)..MTM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-12080 |
AE70,KE70,TE71..CP,HT,LB |
1 | ||
| 55521-12070 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| Common parts | ||||
| 90159-50082 | ||||
| 90179-04003 | ||||
| 90183-05009 | ||||
| 91651-40616 | ||||
| 93269-15010 | ||||
| 93510-55012 | ||||
| 93540-15012 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 7501 | ||||
(8108-8304)CP,HT,LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58813-1206004 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206001 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1206006 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1204006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1204004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1204104 |
AE70,KE70,TE71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206106 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMPO,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58813-1206104 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1206101 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) W/CAR COMP0,BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204101 |
AE70,KE70,TE71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1204106 |
AE70,KE70,TE71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1226004 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1228006 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM..(GL,GT,LVN,SE,SL,SR) COLD SPEC,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1226006 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58811-1228004 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1228001 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM COLD SPEC,BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1226001 |
AE70,KE70,TE70,71..(CP,HT,LB)..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1231004 |
AE70,CE70,KE70,TE71..MTM..(GL,GT,LVN,LVS,SE,SR,SX) BLUE,BLUE,TRIM8# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58881 - COVER, SHIFTING HOLE | ||||
| 58843-1205004 |
AE70,KE70,TE71..(CP,HT,LB)..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58843-1205001 |
AE70,KE70,TE71..(CP,HT,LB)..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58843-1205006 |
AE70,KE70,TE71..(CP,HT,LB)..MTM DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58884 - COVER, STEREO OPENING | ||||
| 55521-12080 |
AE70,KE70,TE71..CP,HT,LB |
1 | ||
| 55521-12070 |
AE70,KE70,TE70,71..(CP,HT,LB)..(GL,GT,LVN,SE,SL,SR) |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1202006 |
AE70,TE70,71..(GT,LVN,SE,SR)..2D DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1202006 |
AE70,CE70,KE70,TE71..GT,LVN,LVS,SE,SR,SX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX BLACK,BLACK,TRIM2# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58902-12030 |
AE70,KE70,TE71..CP,HT,LB |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12010 |
AE70,KE70,TE71..CP,HT,LB |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12010 |
AE70,CE70,KE70,TE70,71..GT,LVN,LVS,SE,SR,SX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06159 | ||||
| 90159-50082 | ||||
| 90176-04015 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-55016 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
