TE71-ESMQF (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)

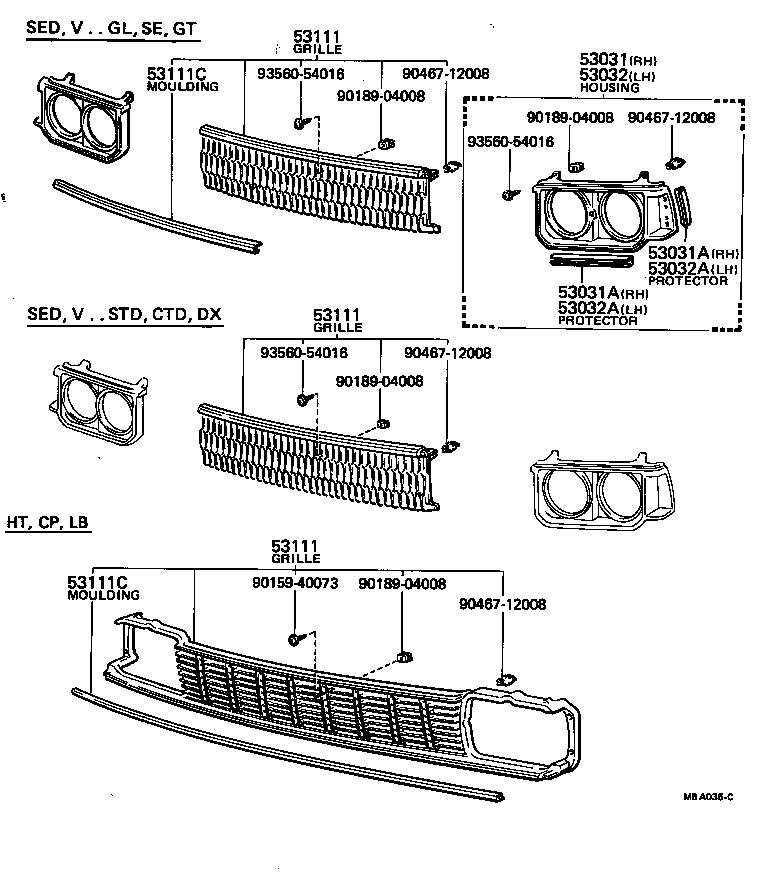

Click highlighted areas on diagram

diagram 53031 53031A 53031A 53032 53032A 53032A 53111 53111 53111 53111C 53111C 9015940073 9018904008 9018904008 9018904008 9018904008 9046712008 9046712008 9046712008 9046712008 9356054016 9356054016 9356054016
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53131-12320

AE70,KE70,TE71..CP,HT,LB

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53138-12040

AE70,KE70,TE71..CP,HT,LB

 1
53031A - PROTECTOR, HEADLAMP DOOR, RH
53138-12040

AE70,KE70,TE71..CP,HT,LB

 1
53032 - HOUSING, HEADLAMP, LH
53132-12230

AE70,KE70,TE71..CP,HT,LB

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53139-12110

AE70,KE70,TE71..CP,HT,LB

 1
53032A - PROTECTOR, HEADLAMP DOOR, LH
53139-12110

AE70,KE70,TE71..CP,HT,LB

 1
53111 - GRILLE, RADIATOR
53101-12450

TE71..2D

 1
53111-12530

AE70,KE70,TE71..CP,HT,LB

 1
53111 - GRILLE, RADIATOR
53101-12450

TE71..2D

 1
53111-12530

AE70,KE70,TE71..CP,HT,LB

 1
53111 - GRILLE, RADIATOR
53101-12450

TE71..2D

 1
53111-12530

AE70,KE70,TE71..CP,HT,LB

 1
Common parts
90159-40073
90189-04008
90467-12008
93560-54016
