TE71-EEMQF (1979)

Toyota Corolla

Production Mar 1979 - Apr 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 1605 88301 88301 88302 88320 88330 88330B 88330B 88330B 88330C 88330C 88403 88595 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040

AE70,TE7#

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-12040

AE70,TE7#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22040

AE70,KE7#,TE7#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12190

KE71,TE71,73

 1
88320-12190

KE70..3FC;KE72,TE7#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22060

AE70,TE7#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

AE70,KE7#,TE7#

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

AE70,KE7#,TE7#

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

AE70,KE7#,TE7#

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

AE70,KE7#,TE7#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

AE70,KE7#,TE7#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-26030

AE70,TE7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

TE7#

 1
Common parts
90099-07087
90099-07114
94110-40800
94511-00800
Linked diagrams
1605

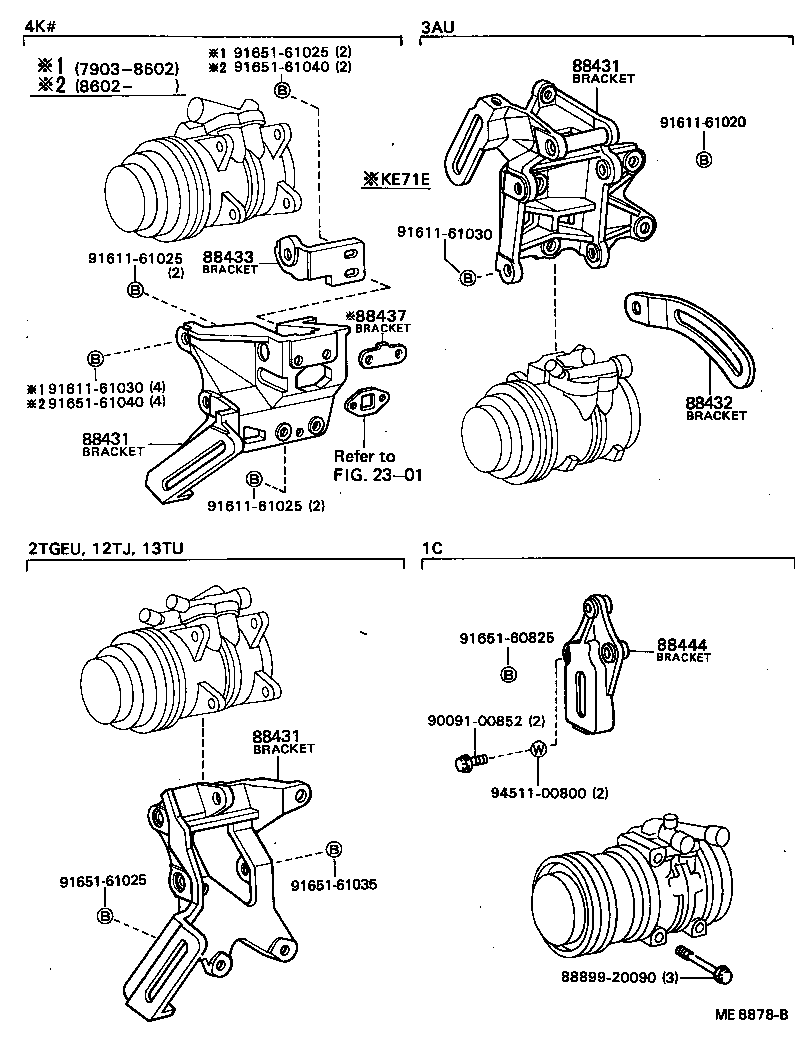

ILLUST NO. 2 OF 2(7903- )

Click highlighted areas on diagram

diagram 2301 88431 88431 88431 88432 88433 88437 88444 8889920090 9009100852 9161161020 9161161025 9161161025 9161161030 9161161030 9165160825 9165161025 9165161025 9165161035 9165161040 9165161040 9451100800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12200

TE70,71,73

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12200

TE70,71,73

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12200

TE70,71,73

 1
Common parts
88899-20090
90091-00852
91611-61020
91611-61025
91611-61030
91651-60825
91651-61025
91651-61035
91651-61040
94511-00800
Linked diagrams
2301
