TE71-EEMQF (1979)
Toyota Corolla

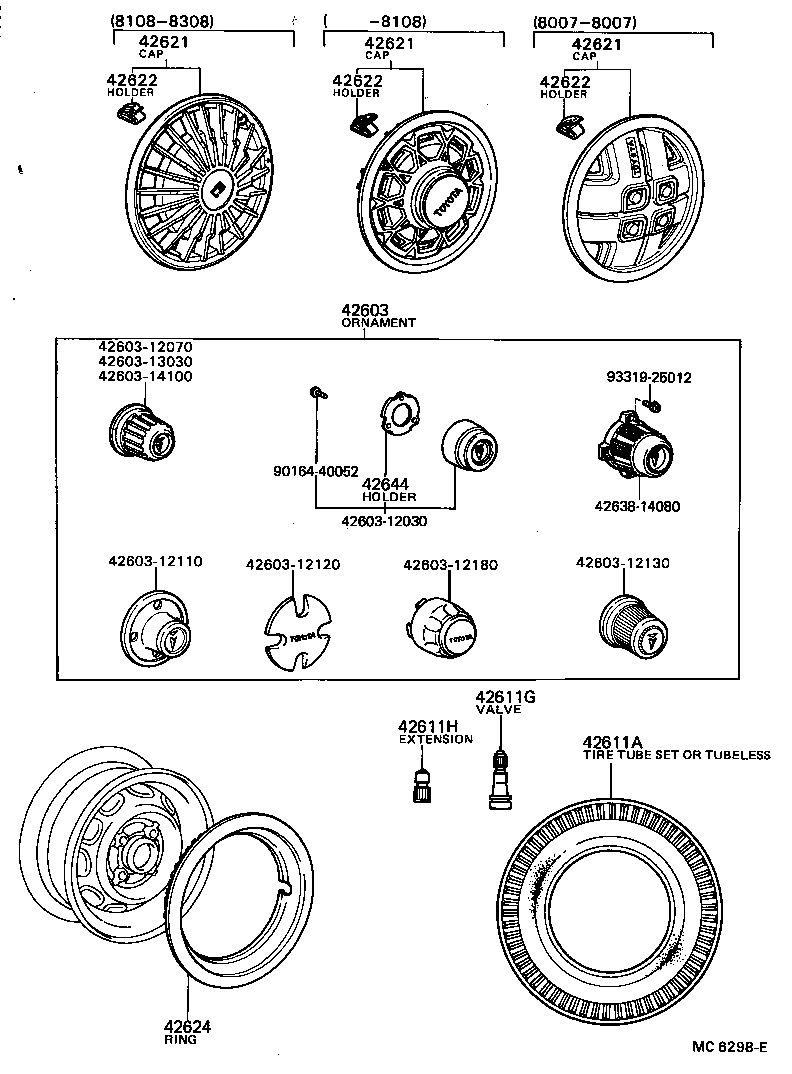

ILLUST NO. 1 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42638-14080 |
TE70,71..GT,LVN,SL,SR W/ALUMI WHEEL |
4 | ||
| 42603-12030 |
TE70,71..GT,LVN,LVS,SL,SR |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-12250 |
AE70,TE70,71 175/70HR13 |
4 | ||
| 42652-12430 |
AE70,CE70,KE70,TE71 175/70SR13 |
4 | ||
| 42652-14180 |
TE71 185/70HR13 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE70,CE7#,KE70,72,73,74,TE70,71,74 |
4 | ||
| 42624 - RING, WHEEL CAP | ||||
| 42624-14023 |
TE71 |
4 | ||
| 42624-14025 |
TE71..GT,LVN |
4 | ||
| 42624-14024 |
TE71..GT,LVN |
4 | ||
| 42644 - HOLDER, WHEEL HUB ORNAMENT | ||||
| 42644-14041 |
TE70,71..GT,LVN,LVS,SR |
4 | ||
| Common parts | ||||
| 42603-12030 | ||||
| 42603-12070 | ||||
| 42603-12110 | ||||
| 42603-12120 | ||||
| 42603-12130 | ||||
| 42603-12180 | ||||
| 42603-13030 | ||||
| 42603-14100 | ||||
| 42638-14080 | ||||
| 90164-40052 | ||||
| 93319-25012 | ||||

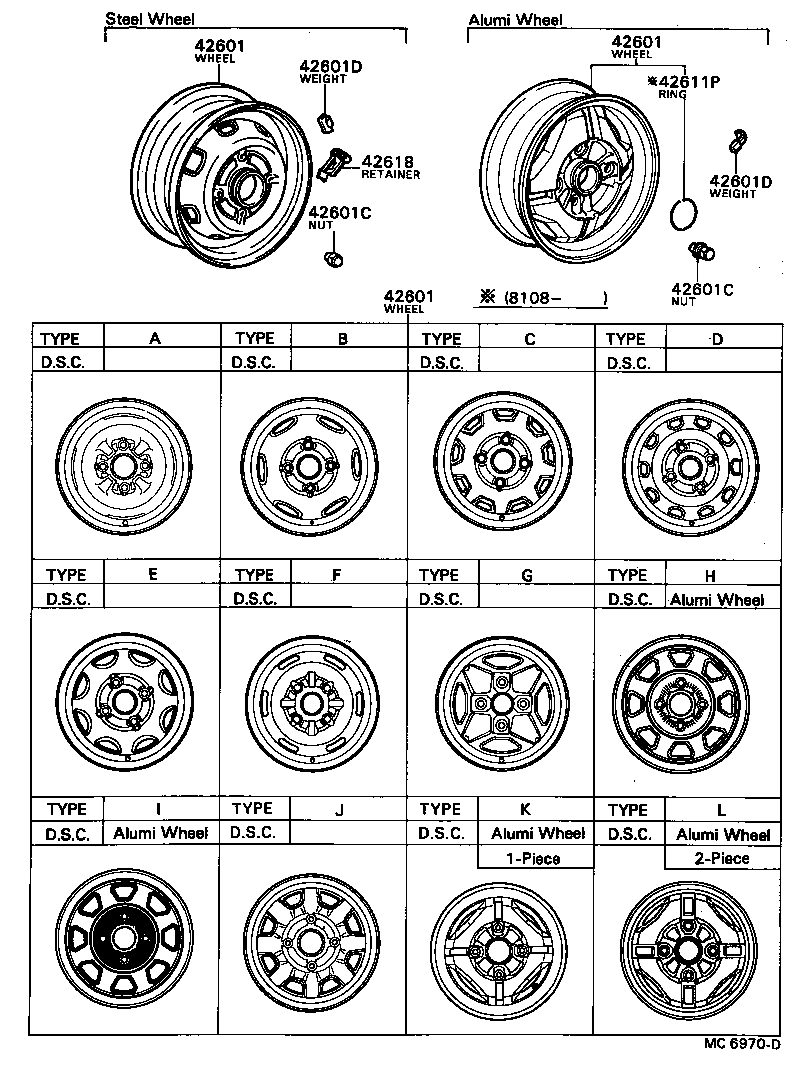

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42601-12010 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE K,1-PIECE |
4 | ||
| 42611-14310 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42611-14311 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42601-12090 |
AE70,CE70,KE70,73,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE L,2-PIECE |
4 | ||
| 42611-12241 |
TE70,71..GT,LVN,LVS,SL,SR 5J-13,TYPE G |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42601-12010 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE K,1-PIECE |
4 | ||
| 42611-14310 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42611-14311 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42601-12090 |
AE70,CE70,KE70,73,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE L,2-PIECE |
4 | ||
| 42611-12241 |
TE70,71..GT,LVN,LVS,SL,SR 5J-13,TYPE G |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42601-12010 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE K,1-PIECE |
4 | ||
| 42611-14310 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42611-14311 |
TE70,71..GT,LVN,SL,SR 5J-13,TYPE H,ALUMI WHEEL |
4 | ||
| 42601-12090 |
AE70,CE70,KE70,73,TE71..GL,GT,LVN,LVS,SE,SR,SX 5J-13,ALUMI TYPE L,2-PIECE |
4 | ||
| 42611-12241 |
TE70,71..GT,LVN,LVS,SL,SR 5J-13,TYPE G |
4 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01026 |
TE70,71..GT,LVN,SL,SR ALUMI WHEEL |
16 | ||
| 90942-01021 |
AE70,KE7#,TE7# W/WHEEL HUB ORNAMENT |
16 | ||
| 90942-01028 |
AE70,CE7#,KE7#,TE7# W/WHEEL HUB ORNAMENT |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01026 |
TE70,71..GT,LVN,SL,SR ALUMI WHEEL |
16 | ||
| 90942-01021 |
AE70,KE7#,TE7# W/WHEEL HUB ORNAMENT |
16 | ||
| 90942-01028 |
AE70,CE7#,KE7#,TE7# W/WHEEL HUB ORNAMENT |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03092 |
TE70,71..GT,LVN,SL,SR 10G,10G,ALUMI WHEEL |
1 | ||
| 90942-03093 |
TE70,71..GT,LVN,SL,SR 20G,20G,ALUMI WHEEL |
1 | ||
| 90942-03094 |
TE70,71..GT,LVN,SL,SR 30G,30G,ALUMI WHEEL |
1 | ||
| 90942-03092 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 10G,10G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03093 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 20G,20G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03095 |
TE70,71..GT,LVN,SL,SR 40G,40G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
TE70,71..GT,LVN,SL,SR 60G,60G,ALUMI WHEEL |
1 | ||
| 90942-03096 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 50G,50G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03096 |
TE70,71..GT,LVN,SL,SR 50G,50G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 60G,60G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03094 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 30G,30G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03022 |
AE70,CE7#,KE7#,TE7# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
AE70,CE7#,KE7#,TE7# 20G,厚さ=8,20G |
1 | ||
| 90942-03099 |
AE70,CE7#,KE7#,TE7# 25G,25G |
1 | ||
| 90942-03029 |
AE70,CE7#,KE7#,TE7# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03109 |
AE70,CE7#,KE7#,TE7# 75G,75G |
1 | ||
| 90942-03025 |
AE70,CE7#,KE7#,TE7# 50G,厚さ=9.5,50G |
1 | ||
| 90942-03102 |
AE70,CE7#,KE7#,TE7# 55G,55G |
1 | ||
| 90942-03108 |
AE70,CE7#,KE7#,TE7# 65G,65G |
1 | ||
| 90942-03027 |
AE70,CE7#,KE7#,TE7# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
AE70,CE7#,KE7#,TE7# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03101 |
AE70,CE7#,KE7#,TE7# 45G,45G |
1 | ||
| 90942-03020 |
AE70,CE7#,KE7#,TE7# 30G,厚さ=10,30G |
1 | ||
| 90942-03041 |
AE70,CE7#,KE7#,TE7# 10G,厚さ=7.5,10G |
1 | ||
| 90942-03098 |
AE70,CE7#,KE7#,TE7# 15G,15G |
1 | ||
| 90942-03095 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 40G,40G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03100 |
AE70,CE7#,KE7#,TE7# 35G,35G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03092 |
TE70,71..GT,LVN,SL,SR 10G,10G,ALUMI WHEEL |
1 | ||
| 90942-03093 |
TE70,71..GT,LVN,SL,SR 20G,20G,ALUMI WHEEL |
1 | ||
| 90942-03094 |
TE70,71..GT,LVN,SL,SR 30G,30G,ALUMI WHEEL |
1 | ||
| 90942-03092 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 10G,10G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03093 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 20G,20G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03095 |
TE70,71..GT,LVN,SL,SR 40G,40G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
TE70,71..GT,LVN,SL,SR 60G,60G,ALUMI WHEEL |
1 | ||
| 90942-03096 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 50G,50G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03096 |
TE70,71..GT,LVN,SL,SR 50G,50G,ALUMI WHEEL |
1 | ||
| 90942-03097 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 60G,60G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03094 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 30G,30G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03022 |
AE70,CE7#,KE7#,TE7# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
AE70,CE7#,KE7#,TE7# 20G,厚さ=8,20G |
1 | ||
| 90942-03099 |
AE70,CE7#,KE7#,TE7# 25G,25G |
1 | ||
| 90942-03029 |
AE70,CE7#,KE7#,TE7# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03109 |
AE70,CE7#,KE7#,TE7# 75G,75G |
1 | ||
| 90942-03025 |
AE70,CE7#,KE7#,TE7# 50G,厚さ=9.5,50G |
1 | ||
| 90942-03102 |
AE70,CE7#,KE7#,TE7# 55G,55G |
1 | ||
| 90942-03108 |
AE70,CE7#,KE7#,TE7# 65G,65G |
1 | ||
| 90942-03027 |
AE70,CE7#,KE7#,TE7# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
AE70,CE7#,KE7#,TE7# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03101 |
AE70,CE7#,KE7#,TE7# 45G,45G |
1 | ||
| 90942-03020 |
AE70,CE7#,KE7#,TE7# 30G,厚さ=10,30G |
1 | ||
| 90942-03041 |
AE70,CE7#,KE7#,TE7# 10G,厚さ=7.5,10G |
1 | ||
| 90942-03098 |
AE70,CE7#,KE7#,TE7# 15G,15G |
1 | ||
| 90942-03095 |
AE70,KE70,TE71..GL,GT,LVN,LVS,SE,SR,SX 40G,40G,ALUMI WHEEL,TYPE K |
1 | ||
| 90942-03100 |
AE70,CE7#,KE7#,TE7# 35G,35G |
1 | ||
