TE71-EEMQF (1979)
Toyota Corolla
Production
Mar 1979
-
Apr 1983
Engine
2TGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8308)TE7#..MTM

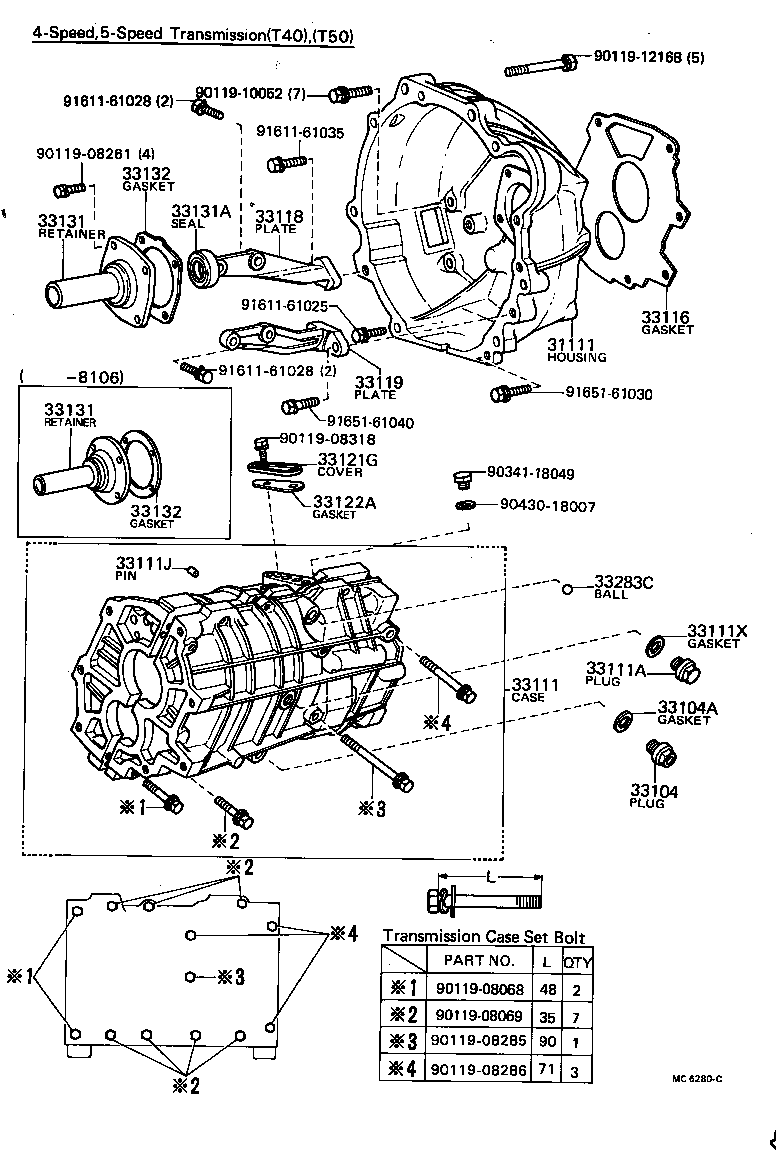

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-20180 |
TE7#..MTM |
1 | ||
| 31111-14040 |
TE7#..MTM |
1 | ||
| 31111-14050 |
TE7#..MTM W/REDUCTI0N STATER |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
AE70,CE7#,KE70,71,72,73..MTM |
1 | ||
| 90341-18081 |
KE74,TE7#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-14030 |
TE7#..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
AE70,CE7#,KE7#,TE7#..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08030 |
KE74,TE7#..MTM 長さ=16,外径=8 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33116 - GASKET, MANUAL TRANSMISSION CASE | ||||
| 33116-14010 |
TE7#..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-12020 |
TE7#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-12011 |
TE7#..MTM |
1 | ||
| 33119-12050 |
KE70,71,72,73..MTM |
1 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-14010 |
KE74,TE7#..MTM |
1 | ||
| 33122A - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-14010 |
KE74,TE7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-14010 |
TE7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-14010 |
TE7#..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-25003 |
AE70,KE7#,TE7#..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-14010 |
TE7#..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-14010 |
TE7#..MTM |
1 | ||
| 33283C - BALL, REVERSE RESTRICT | ||||
| 90360-10003 |
KE74,TE7#..MTM |
1 | ||
| Common parts | ||||
| 90119-08068 | ||||
| 90119-08069 | ||||
| 90119-08261 | ||||
| 90119-08285 | ||||
| 90119-08286 | ||||
| 90119-08318 | ||||
| 90119-10052 | ||||
| 90119-12168 | ||||
| 90341-18049 | ||||
| 90430-18007 | ||||
| 91611-61025 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
