TE71-ECMZF (1981)
Toyota Corolla
(7903-8304)CP

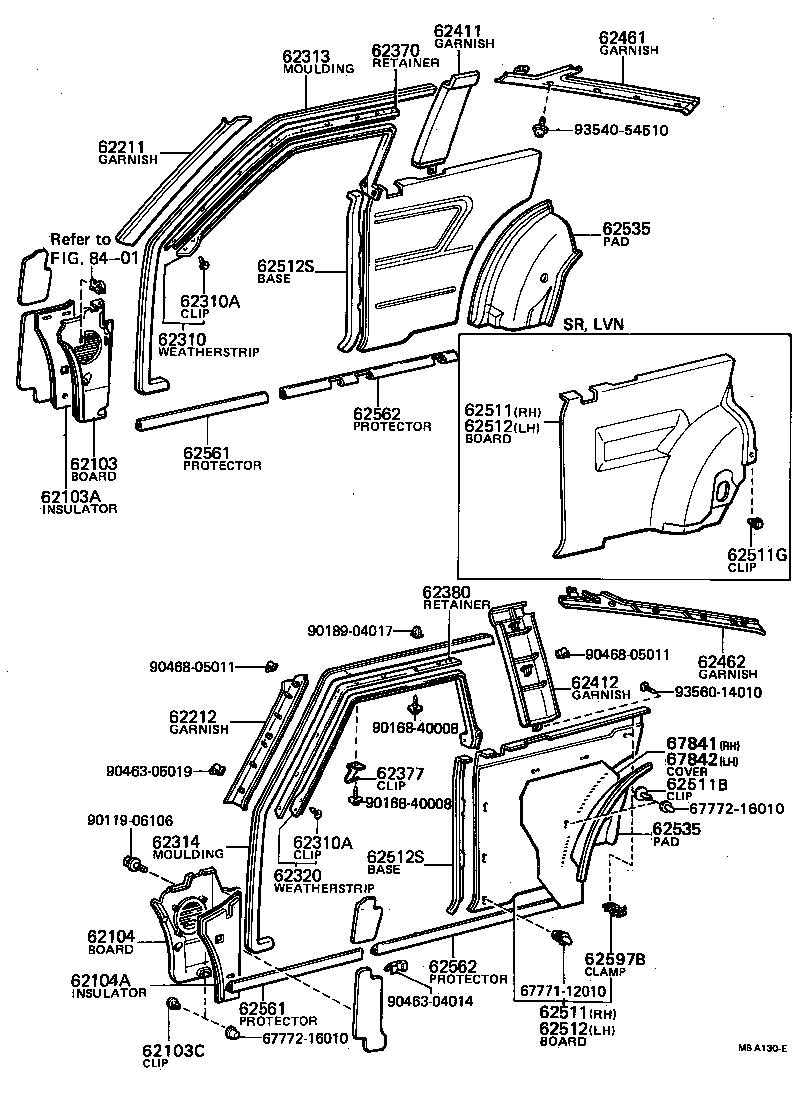

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1208001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62101-1205001 |
AE70,KE7#,TE7#..SED,V BLACK,BLACK,TRIM2# |
1 | ||
| 62101-1208004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62101-1208006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62103A - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-12030 |
AE70,CE7#,KE7#,TE7# |
1 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0901204 |
AE70,CE70,KE70,TE70,71..CTD,DX,GL,GT,LVN,LVS,SE,SL,SR,SX BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0901201 |
AE70,CE7#,KE7#,TE7# BLACK,BLACK,TRIM2# |
2 | ||
| 90467-0901216 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
2 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1208004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62102-1208001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62102-1208006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1206001 |
AE70,CE7#,KE7#,TE7#..SED,V,WG BLACK,BLACK,TRIM2# |
1 | ||
| 62104A - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-12020 |
AE70,KE7#,TE7# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1213001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62211-1213006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62211-1213004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1213001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62212-1213004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62212-1213006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62310 - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-12080 |
AE70,KE70,TE70,71..CP |
1 | ||
| 62381-12130 |
AE70,KE70,TE71..CP |
1 | ||
| 62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67869-12010 |
AE70,KE70,TE70,71..CP,HT,LB |
4 | ||
| 62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67869-12010 |
AE70,KE70,TE70,71..CP,HT,LB |
4 | ||
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62313-1209006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1209001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1207001 |
KE70,71,72,TE73,74..(SED,V)..2D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1209004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62313-1209006 |
AE70,KE70,TE70,71..CP,HT,LB DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1209001 |
AE70,KE70,TE70,71..CP,HT,LB BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1207001 |
KE70,71,72,TE73,74..(SED,V)..2D BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1209004 |
AE70,KE70,TE70,71..CP,HT,LB BLUE,BLUE,TRIM8# |
1 | ||
| 62320 - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-12140 |
AE70,KE70,TE71..CP |
1 | ||
| 62382-12110 |
AE70,KE70,TE70,71..CP |
1 | ||
| 62370 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH | ||||
| 62361-12050 |
AE70,KE70,TE70,71..CP |
1 | ||
| 62377 - CLIP, DOOR WINDOW GLASS | ||||
| 62367-12040 |
AE70,KE70,TE70,71..CP,HT,LB FR |
2 | ||
| 62380 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH | ||||
| 62362-12050 |
AE70,KE70,TE70,71..CP |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1218004 |
AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
1 | ||
| 62411-1218006 |
AE70,KE70,TE70,71..CP DARK WINE,BROWN |
1 | ||
| 62411-1218001 |
AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1218004 |
AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
1 | ||
| 62412-1218006 |
AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62412-1218001 |
AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-1210001 |
AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
1 | ||
| 62471-1210006 |
AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62471-1210004 |
AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
1 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-1210001 |
AE70,KE70,TE70,71..CP BLACK,BLACK,TRIM2# |
1 | ||
| 62472-1210004 |
AE70,KE70,TE70,71..CP BLUE,BLUE,TRIM8# |
1 | ||
| 62472-1210006 |
AE70,KE70,TE70,71..CP DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1252001 |
AE70,KE70,TE71..LVS,SL BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1252004 |
AE70,KE70,TE71..LVS,SL BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1252006 |
AE70,KE70,TE71..LVS,SL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1252001 |
AE70,KE70,TE71..LVS,SL BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1252004 |
AE70,KE70,TE71..LVS,SL BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1252006 |
AE70,KE70,TE71..LVS,SL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0801401 |
AE70,KE70,TE71..CP,LB BLACK,BLACK,TRIM2# |
4 | ||
| 90467-0801404 |
AE70,KE70,TE71..CP,LB BLUE,BLUE,TRIM8# |
4 | ||
| 90467-0801416 |
AE70,KE70,TE71..CP,LB DARK BROWN,BROWN,TRIM4# |
4 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1250006 |
AE70,KE70,TE71..LVS,SL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1250004 |
AE70,KE70,TE71..LVS,SL BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1250001 |
AE70,KE70,TE71..LVS,SL BLACK,BLACK,TRIM2# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1250006 |
AE70,KE70,TE71..LVS,SL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1250004 |
AE70,KE70,TE71..LVS,SL BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1250001 |
AE70,KE70,TE71..LVS,SL BLACK,BLACK,TRIM2# |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1211001 |
AE70,KE70,TE70,71..CP,HT,LB RH,BLACK,BLACK,TRIM2# |
1 | ||
| 62518-1205006 |
AE70,KE70,TE70,71..CP,HT,LB LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62517-1211004 |
AE70,KE70,TE70,71..CP,HT,LB RH,BLUE,BLUE,TRIM8# |
1 | ||
| 62518-1205001 |
AE70,KE70,TE70,71..CP,HT,LB LH,BLACK,BLACK,TRIM2# |
1 | ||
| 62517-1211006 |
AE70,KE70,TE70,71..CP,HT,LB RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62518-1205004 |
AE70,KE70,TE70,71..CP,HT,LB LH,BLUE,BLUE,TRIM8# |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1211001 |
AE70,KE70,TE70,71..CP,HT,LB RH,BLACK,BLACK,TRIM2# |
1 | ||
| 62518-1205006 |
AE70,KE70,TE70,71..CP,HT,LB LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62517-1211004 |
AE70,KE70,TE70,71..CP,HT,LB RH,BLUE,BLUE,TRIM8# |
1 | ||
| 62518-1205001 |
AE70,KE70,TE70,71..CP,HT,LB LH,BLACK,BLACK,TRIM2# |
1 | ||
| 62517-1211006 |
AE70,KE70,TE70,71..CP,HT,LB RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62518-1205004 |
AE70,KE70,TE70,71..CP,HT,LB LH,BLUE,BLUE,TRIM8# |
1 | ||
| 62535 - PAD, QUARTER WHEEL HOUSE TRIM | ||||
| 62610-1206006 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62610-1206001 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 62620-1205006 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62620-1205004 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 62620-1205001 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 62610-1206004 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 62535 - PAD, QUARTER WHEEL HOUSE TRIM | ||||
| 62610-1206006 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62610-1206001 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,BLACK,BLACK,TRIM2# |
1 | ||
| 62620-1205006 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 62620-1205004 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,BLUE,BLUE,TRIM8# |
1 | ||
| 62620-1205001 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) LH,BLACK,BLACK,TRIM2# |
1 | ||
| 62610-1206004 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) RH,BLUE,BLUE,TRIM8# |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-12020 |
AE70,CE7#,KE7#,TE7# |
2 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62563-12010 |
AE70,KE7#,TE7# RH |
1 | ||
| 62564-12010 |
AE70,KE7#,TE7# LH |
1 | ||
| 62597B - CLAMP, QUARTER TRIM | ||||
| 62597-12020 |
AE70,KE70,TE70,71..(CP,LB)..(DX,GL,GT,LVS,SE,SL,SX) |
2 | ||
| 67841 - COVER, QUARTER SERVICE HOLE, NO.1 RH | ||||
| 67841-12150 |
AE70,KE70,TE70,71..CP |
1 | ||
| 67842 - COVER, QUARTER SERVICE HOLE, NO.1 LH | ||||
| 67841-12150 |
AE70,KE70,TE70,71..CP |
1 | ||
| Common parts | ||||
| 67771-12010 | ||||
| 67772-16010 | ||||
| 90119-06106 | ||||
| 90168-40008 | ||||
| 90189-04017 | ||||
| 90463-04014 | ||||
| 90463-05019 | ||||
| 90468-05011 | ||||
| 93540-54510 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
